CPCI-124RSG0-M4
Description
- Card Edge Connector
- Mini PCI Card Edge Connector
- 124Pins
- Standard Type
- Right Angle
- SMT
- Gold Flash
- H=4.0mm High
- LCP
- Black Color

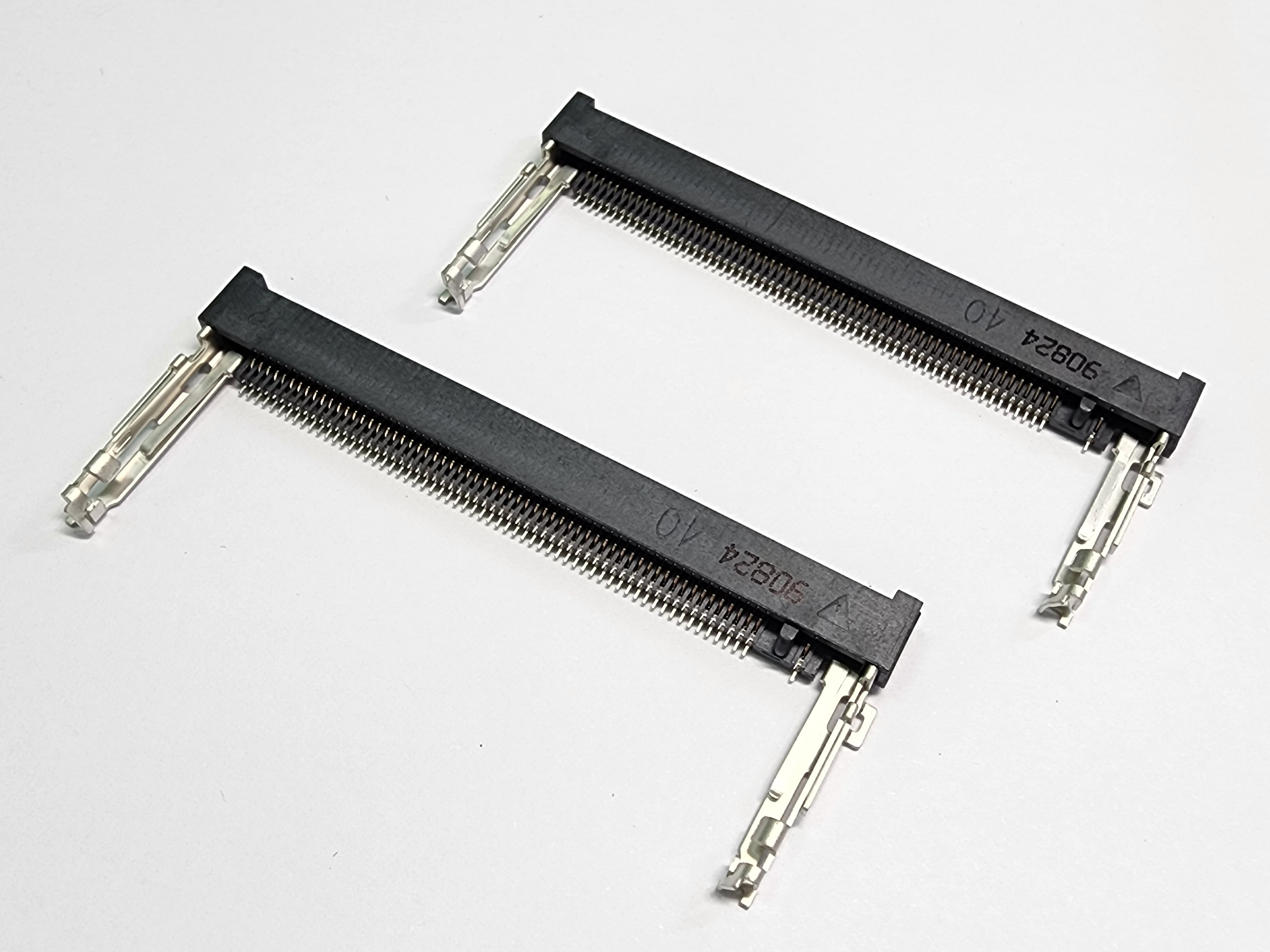

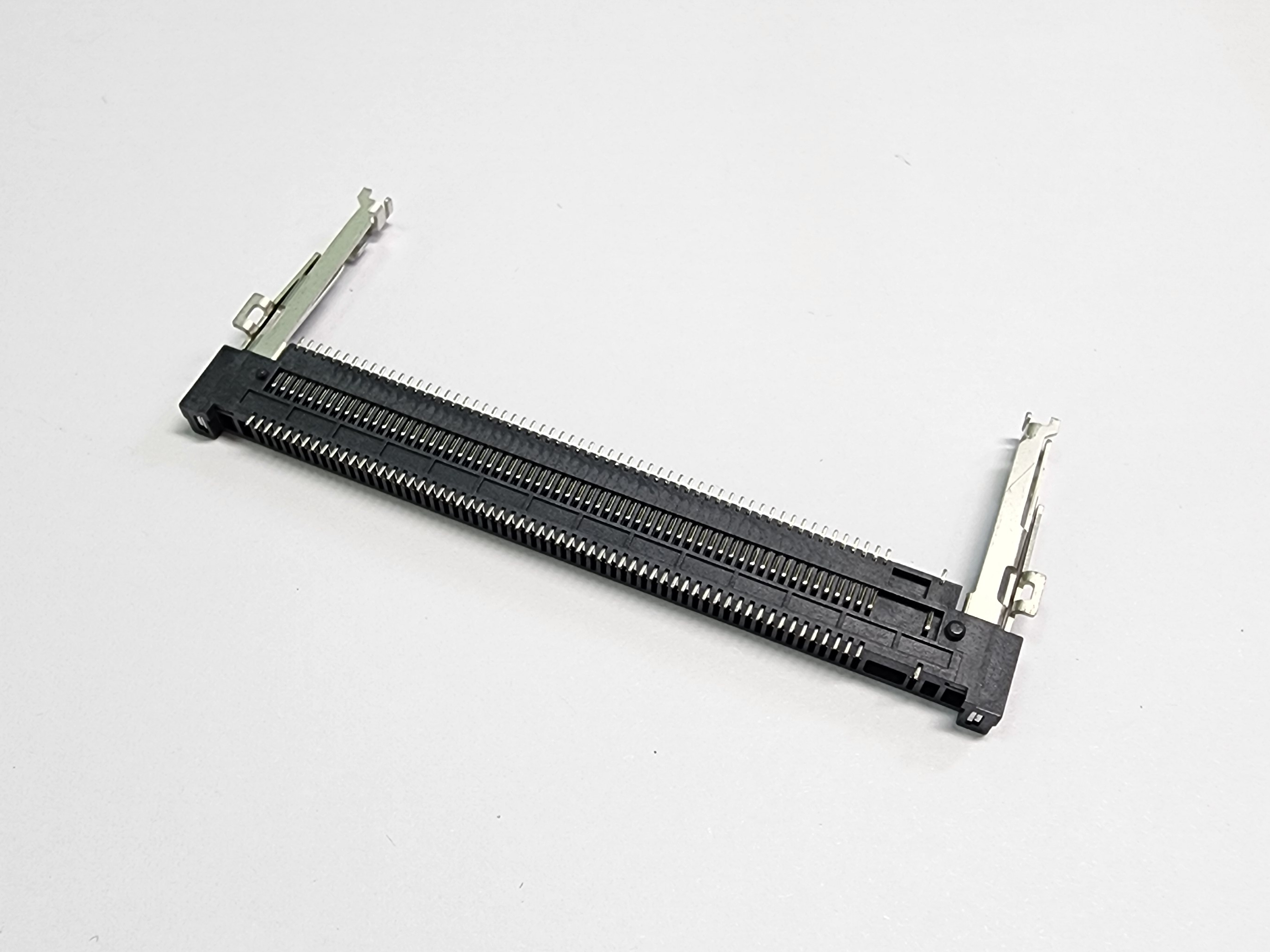

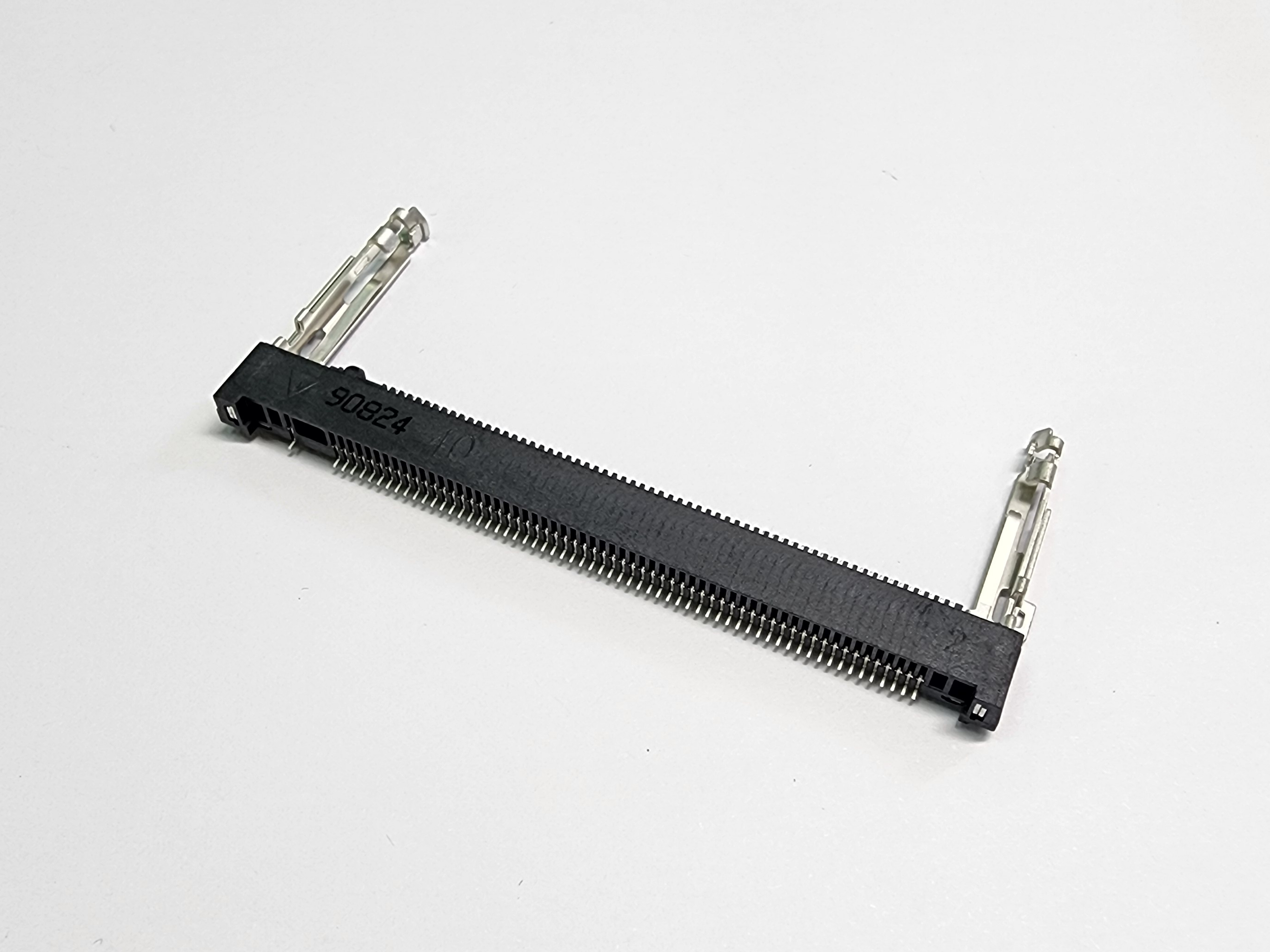

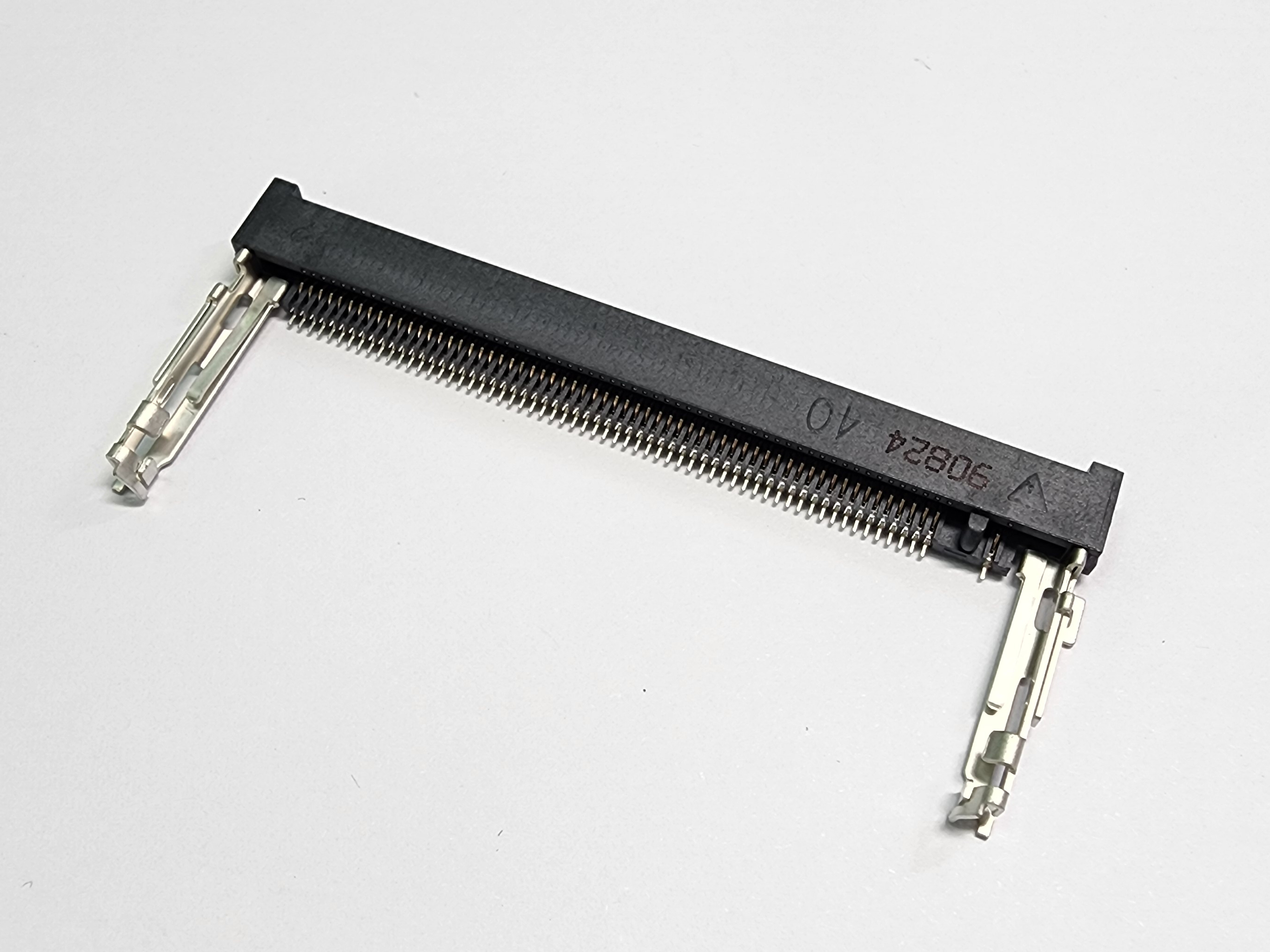

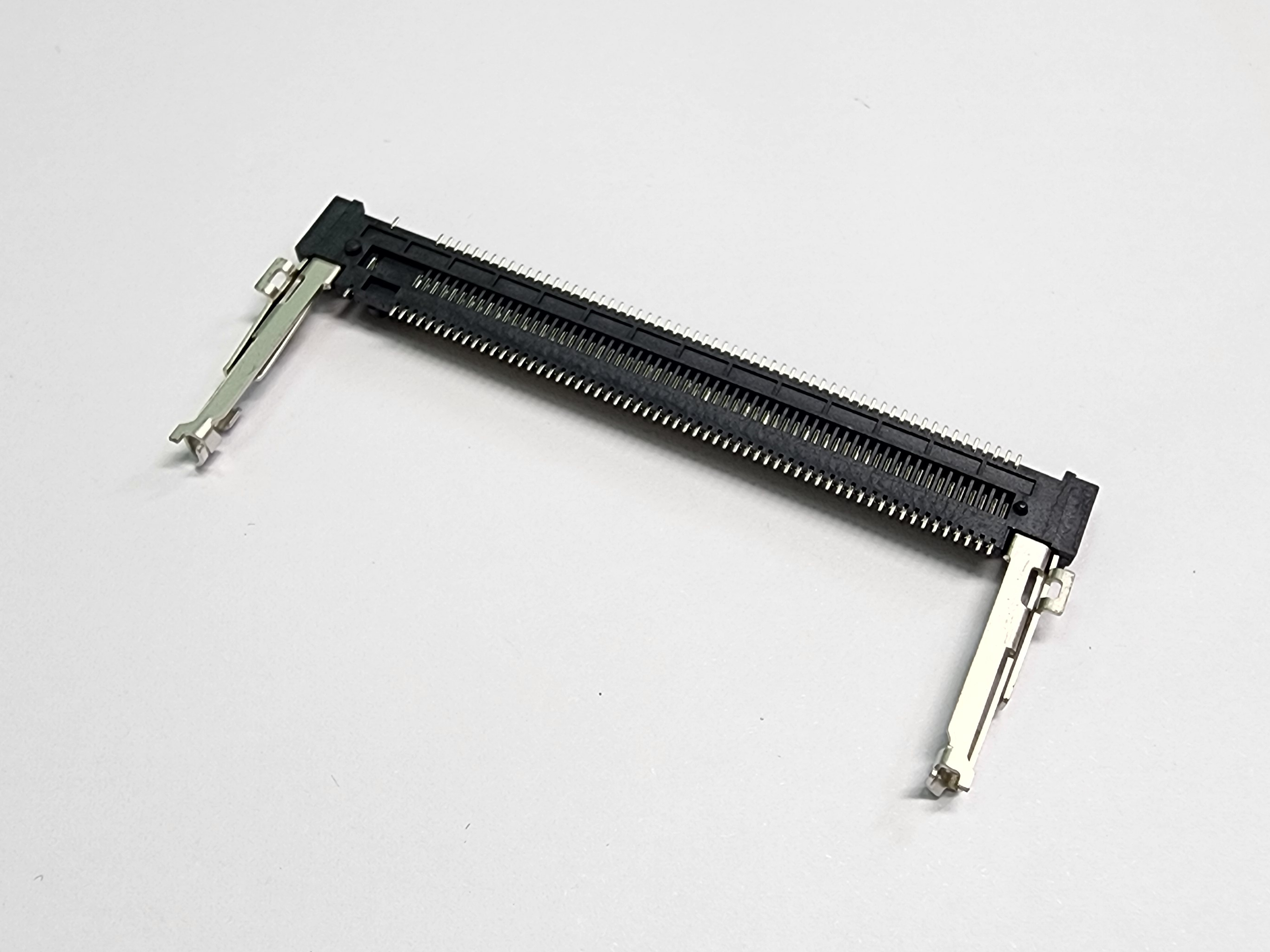

Mini PCI Card Edge Connector, 124Pins, Right Angle, SMT, Gold Flash, H=4.0mm Height, Black Color
Material
- Housing: LCP, UL 94V-0 Rated.
- Color: Black.
- Contact: Phosphor Bronze.
- Plating: Gold Plating over Nickel on Contact Area;
- Tin Plating on Solder Tail.
- Latched: Stainless Steel
- Plating: Tin(80u" Min.) Plating over All.
