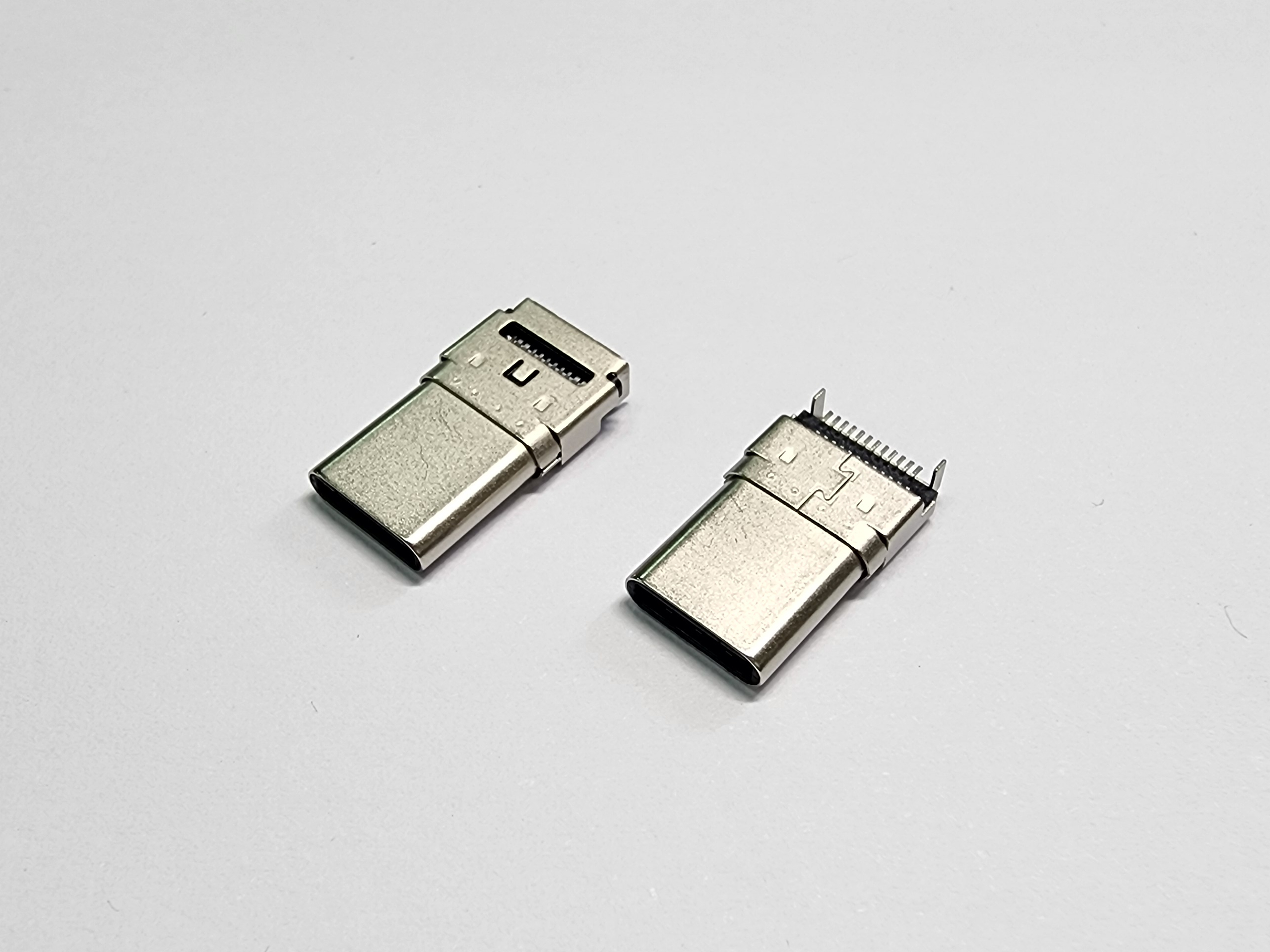

CU3C-P241SG0-P3

USB 3.1 C Type, 24Pins, Plug, Subside Type, SMT, H=1.1mm, Gold Flash, Black Color

Material

• Insulator: LCP, Glass Fiber Filled, UL 94V-0 Rated.
• Color: Black.
• Contact: Phosphor Bronze, T=0.15mm.
• Plating: Gold Plating over Nickel on Contact Area;
• Tin Plating over Nickel on Solder Tail.
• Guard Plate: Stainless Steel, T=0.10mm.
• Shell: Stainless Steel, T=0.20mm.
• Plating: Nickel Plating over All.

Mechanical

• Insertion Force: 5~20N Max.
• Withdrawal Force: 8~20N Min.
• Durability: 10,000Cycles.

Electrical Specification

• Current Rating: 3A Max.
• Contact Resistance: 40mΩ Max.
• Insulation Resistance: 100MΩ Min.
• Dielectric Withstanding Voltage: 100V AC R.M.S.

Environmental

• Operating Temperature:  -30°C to +85°C.
• RoHS Compliance.
