Conn-Link Technology Inc

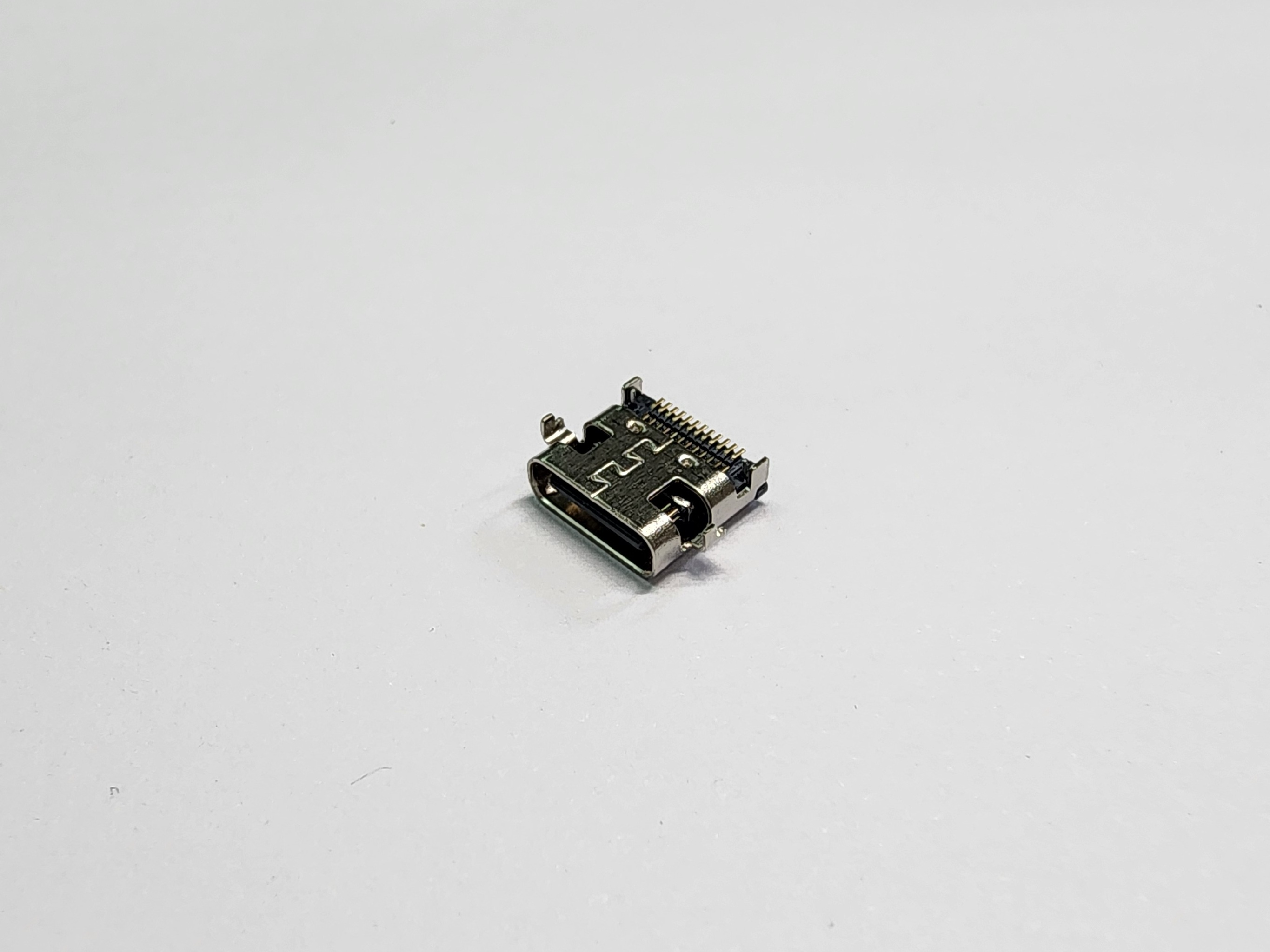

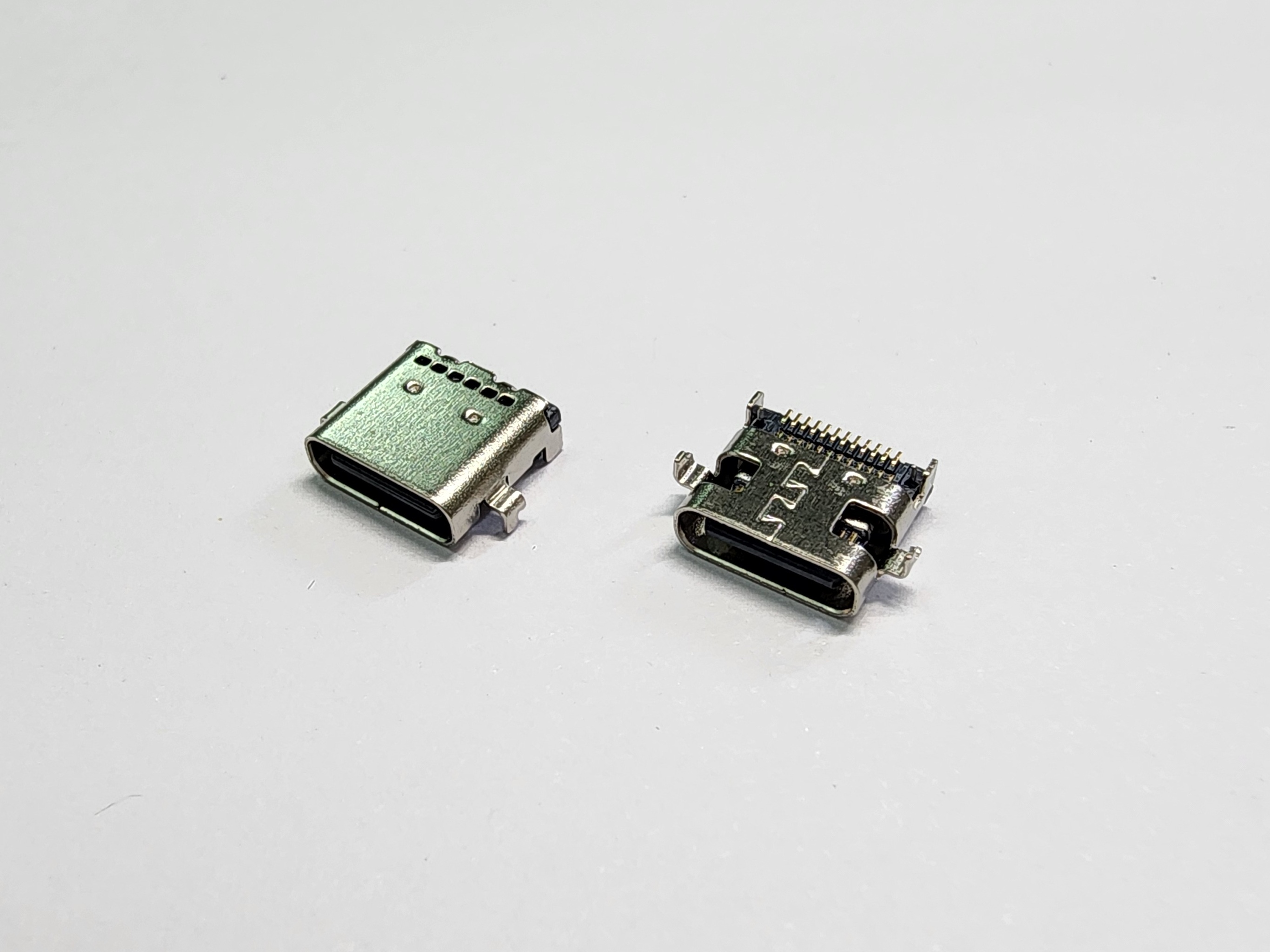

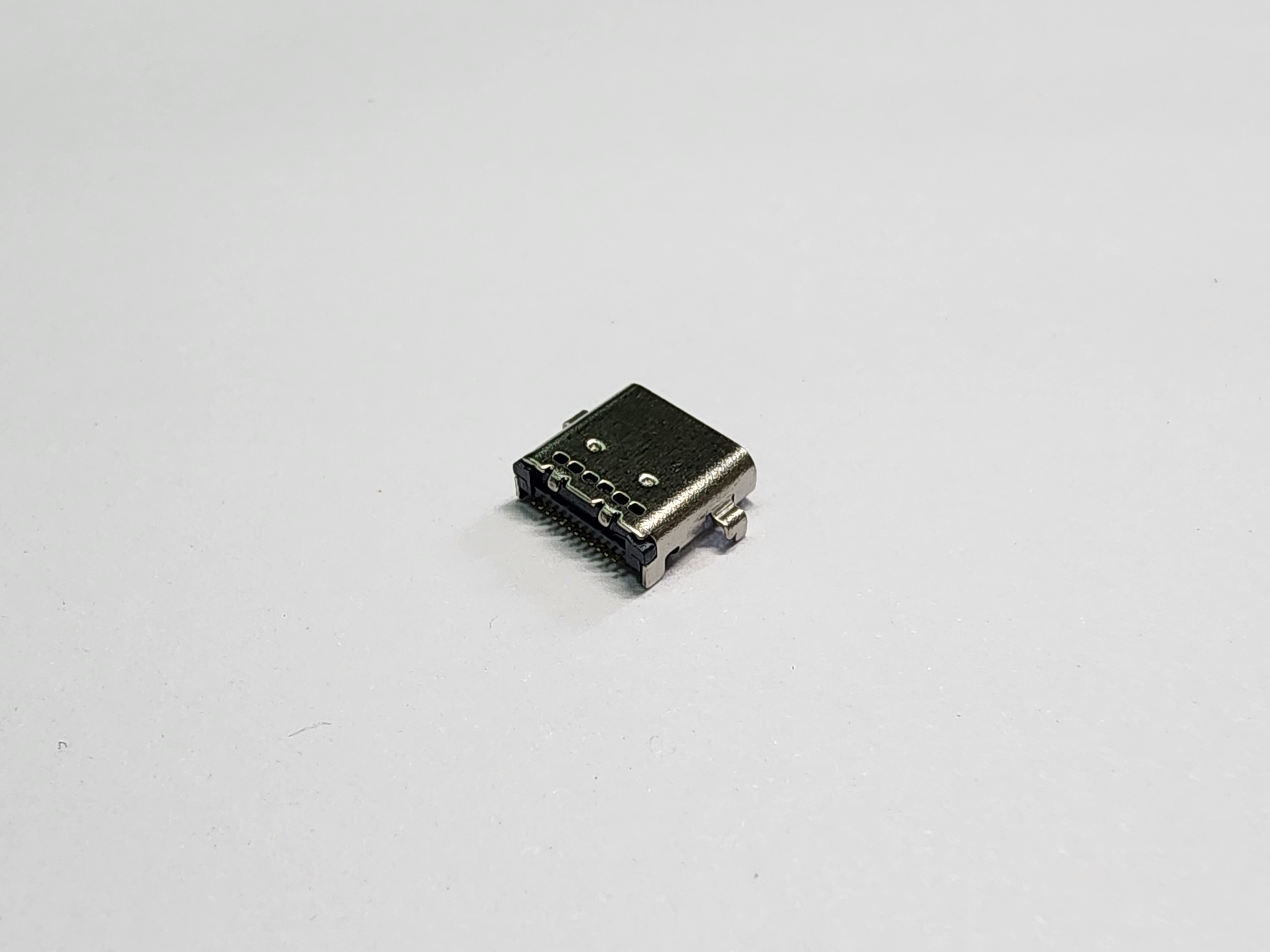

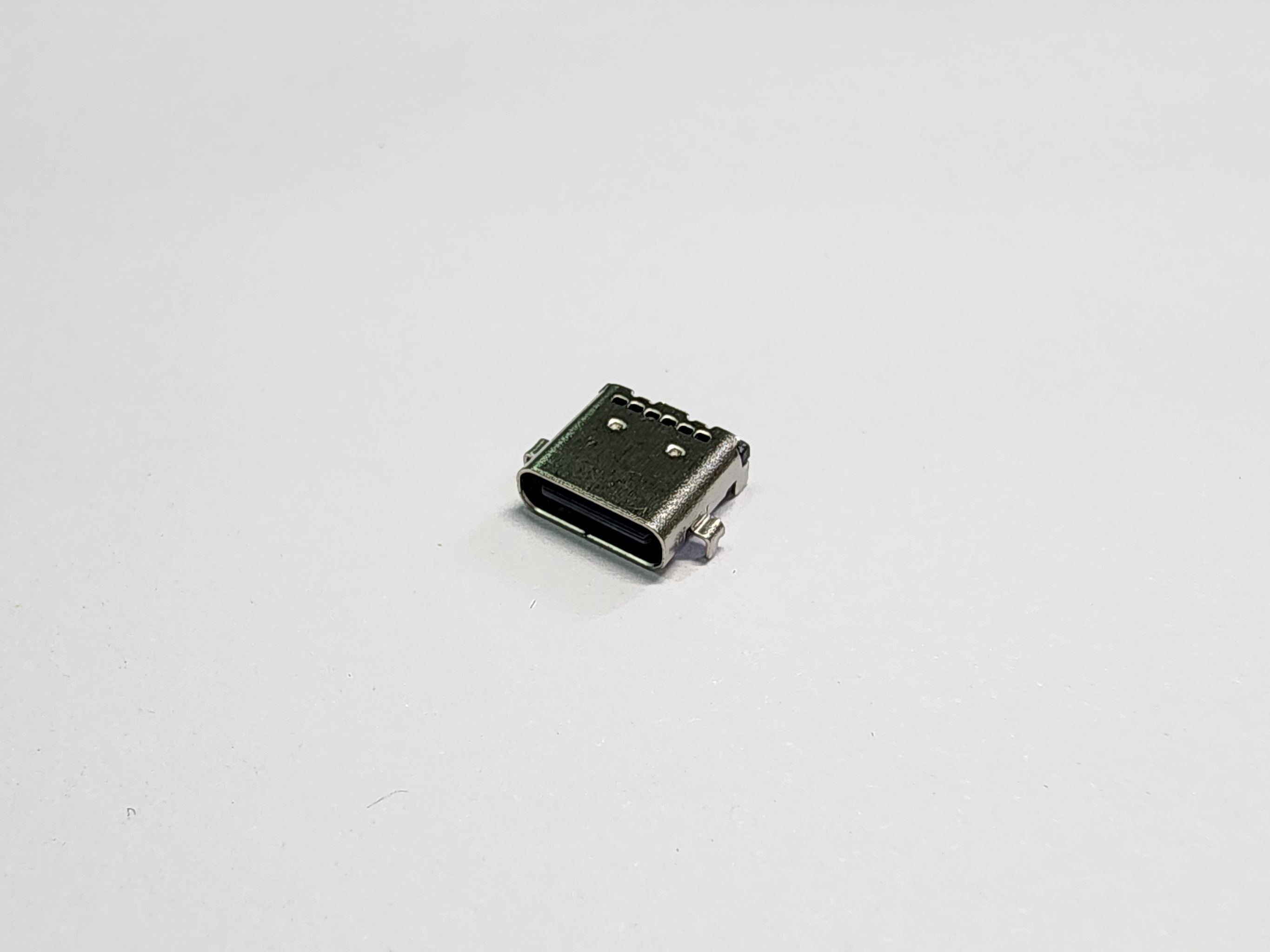

CU3C-R241SG0-L8

Description

  • USB 3.1 Type C Connector
  • 24Pins
  • Receptacle
  • Subside Type
  • SMT Dual Rows
  • Gold Flash
  • Short Body 7.9mm
  • CH=0.8mm
  • High Temperature Thermoplastic
  • Black Color

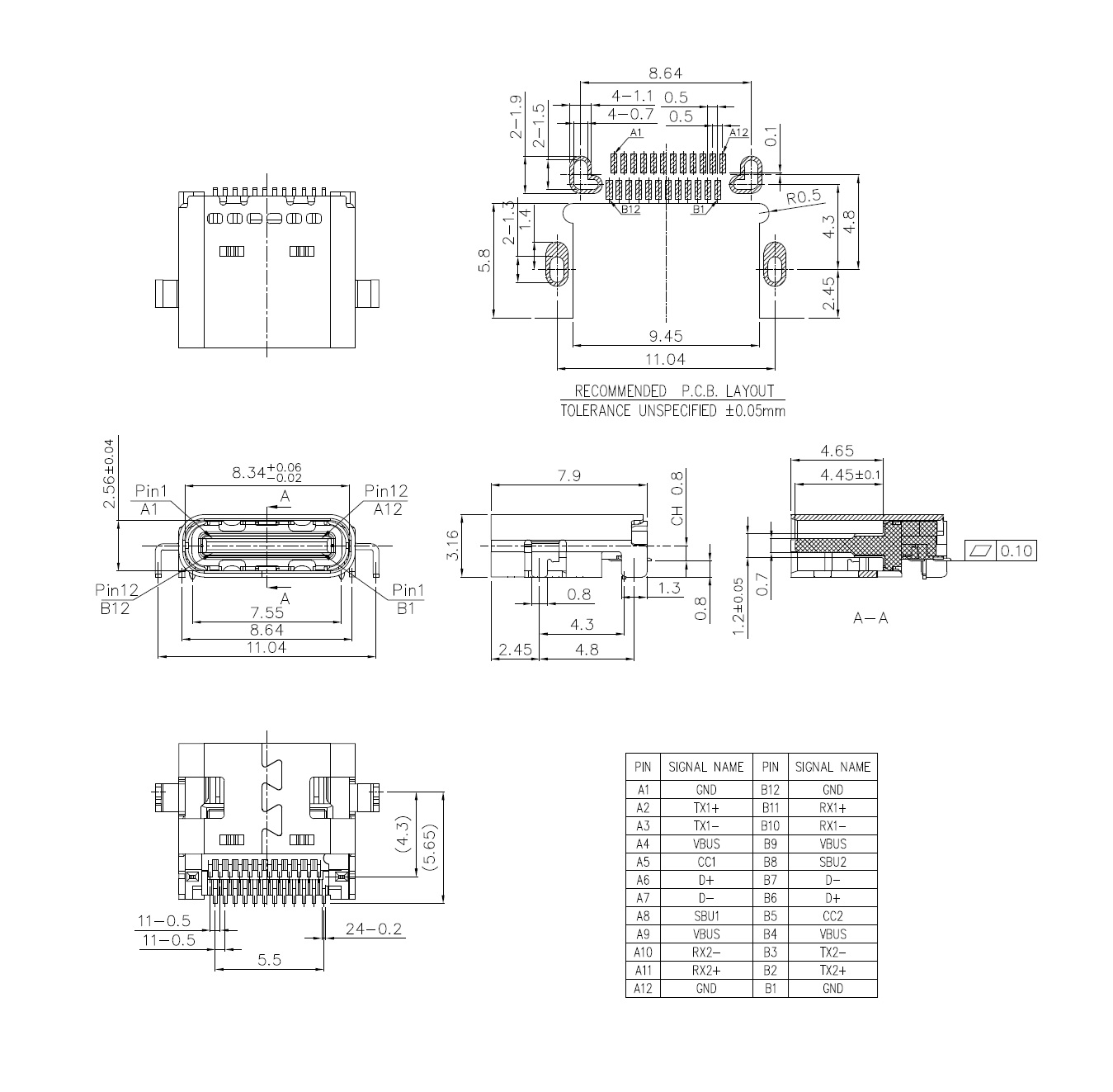

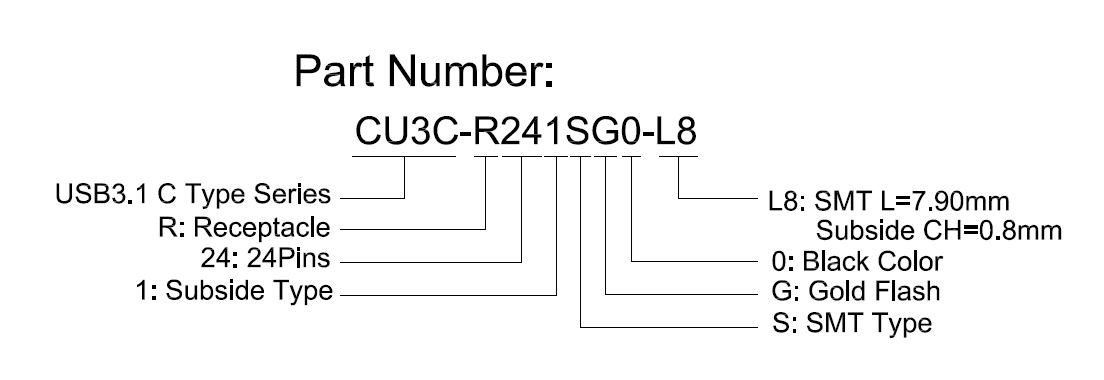

USB 3.1 C Type, 24Pins, Receptacle, Subside Type, SMT, CH=0.8mm, Short Body 7.9mm, Gold Flash, Black Color

Material

  • Insulator: High Temp. Thermoplastic, UL 94V-0 Rated.
  • Color: Black.
  • Contact: Copper Alloy T=0.15mm.
  • Plating: Gold Plating over Nickel on Contact Area.
  • Gold Plating over Nickel on Solder Tail.
  • Shell: Stainless Steel, T=0.30mm.
  • Plating: Nickel Plating over All.
  • Mid-Plate: Stainless Steel, T=0.15mm.
  • Plating: Tin Plating on Soldering Area.
  • EMI-Plate: Stainless Steel, T=0.10mm.

Mechanical

  • Insertion Force: 5N~20N.
  • Withdrawal Force: 5N~20N.
  • Durability: 10,000Cycles.

Electrical Specification

  • Current Rating: 5.0A Max for VBUS.
  • Contact Resistance:
  • VBUS & GND Pins & Other Pins: 40mΩ Max.
  • Shield: 50mΩ Max.
  • Insulation Resistance: 100MΩ Min.
  • Dielectric Withstanding Voltage: 100V AC R.M.S.

Environmental

  • Operating Temperature: -25°C to +85°C.
  • RoHS Compliance.
  • REACH Compliance.
