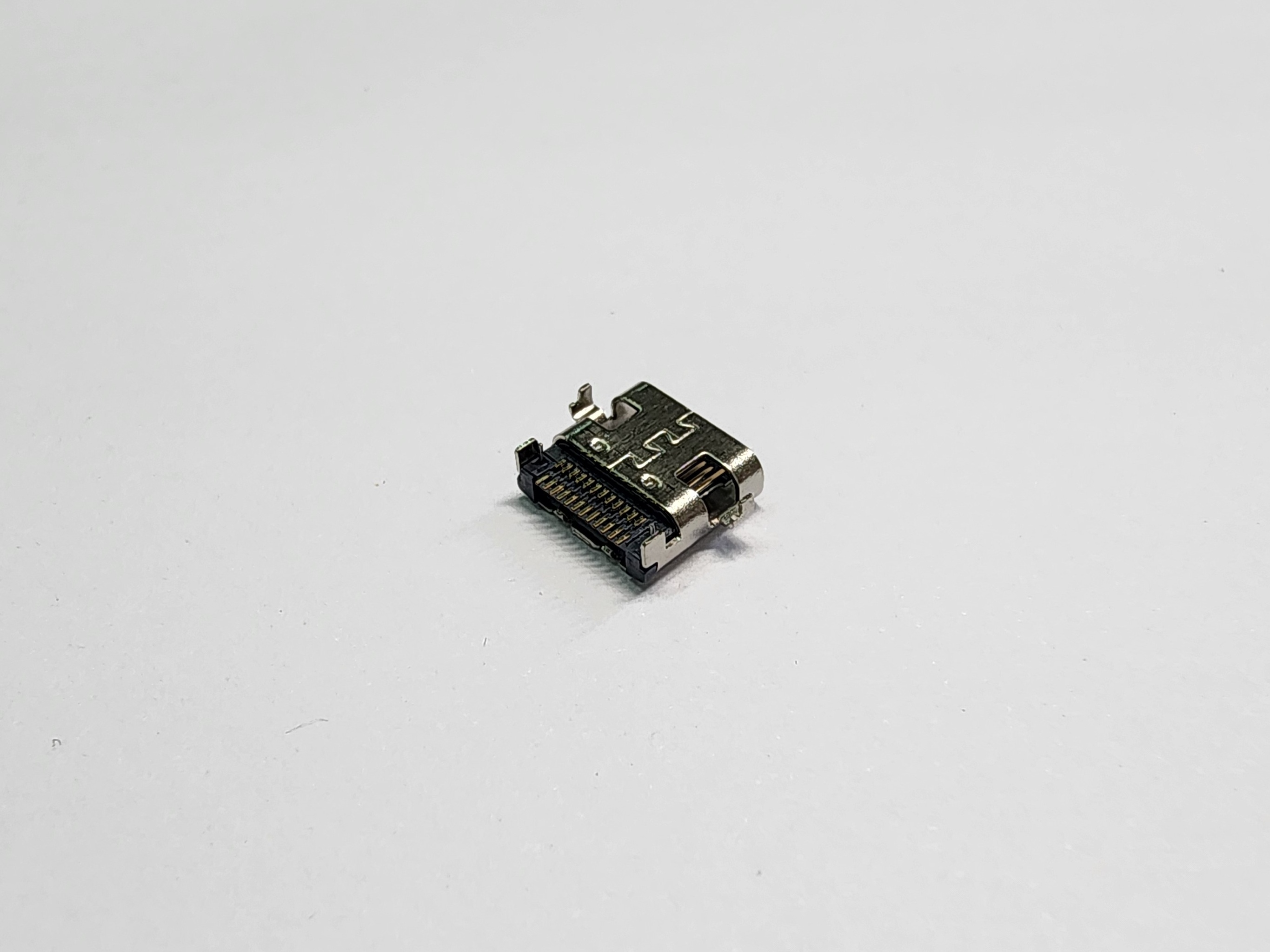

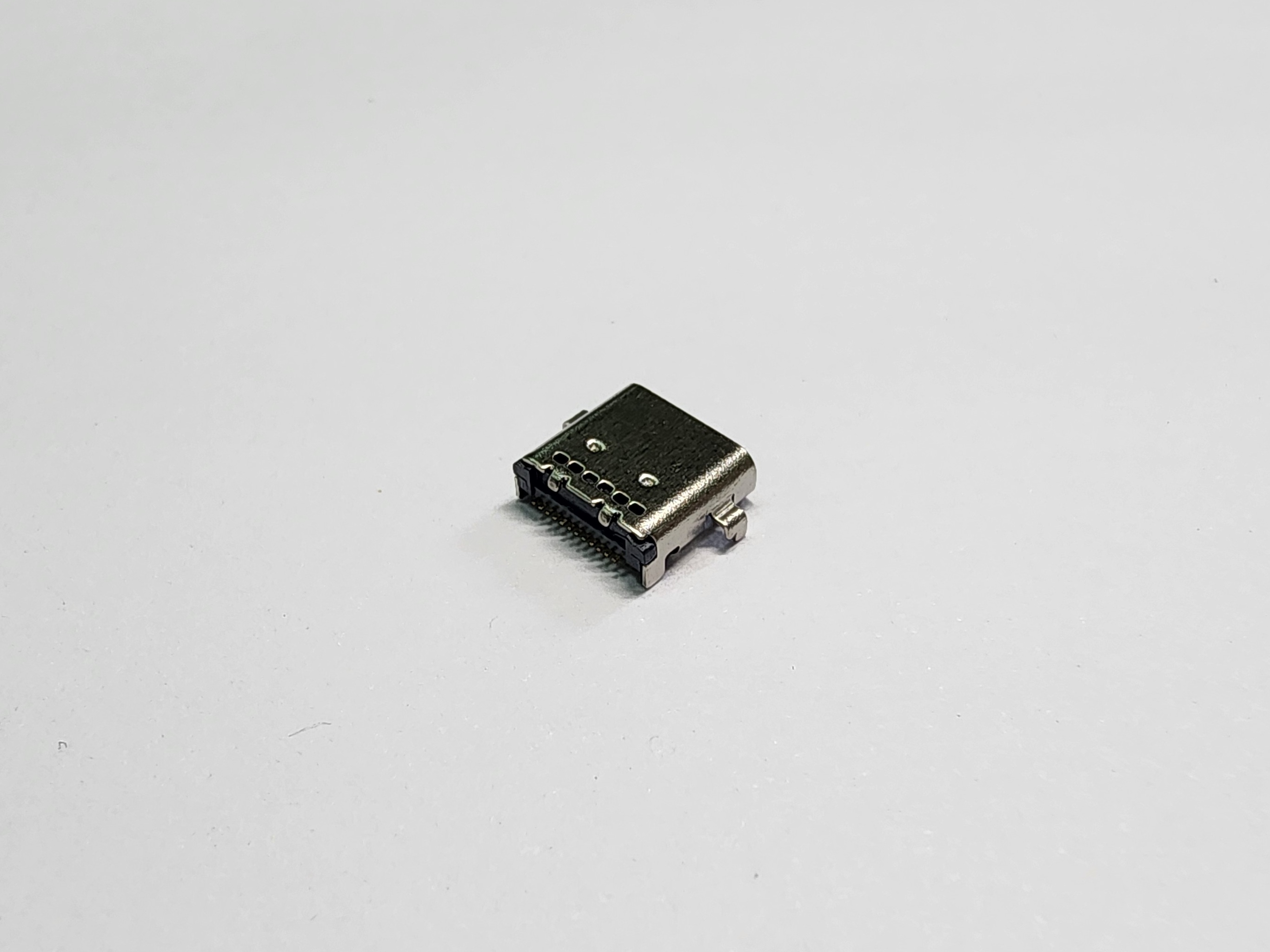

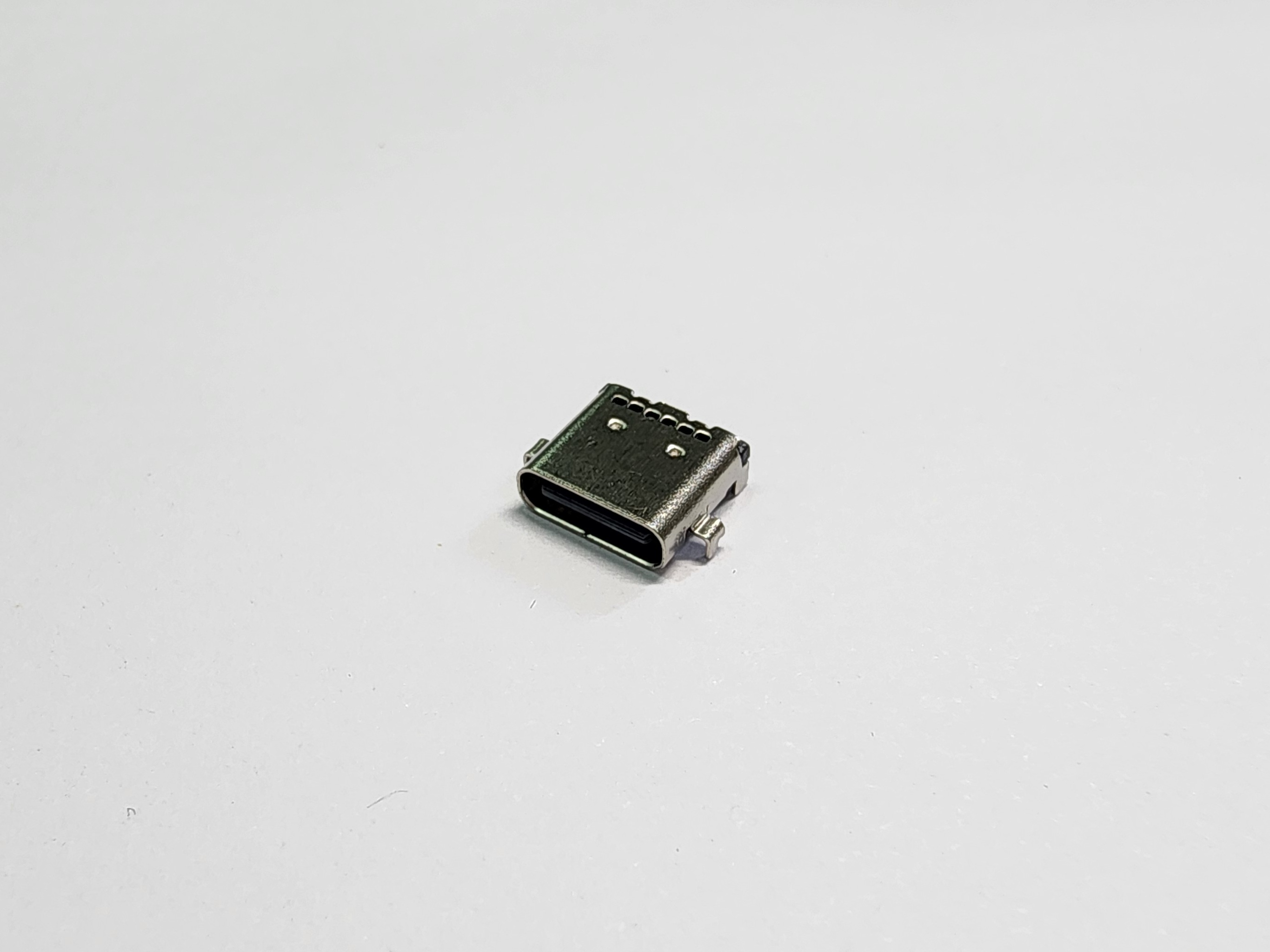

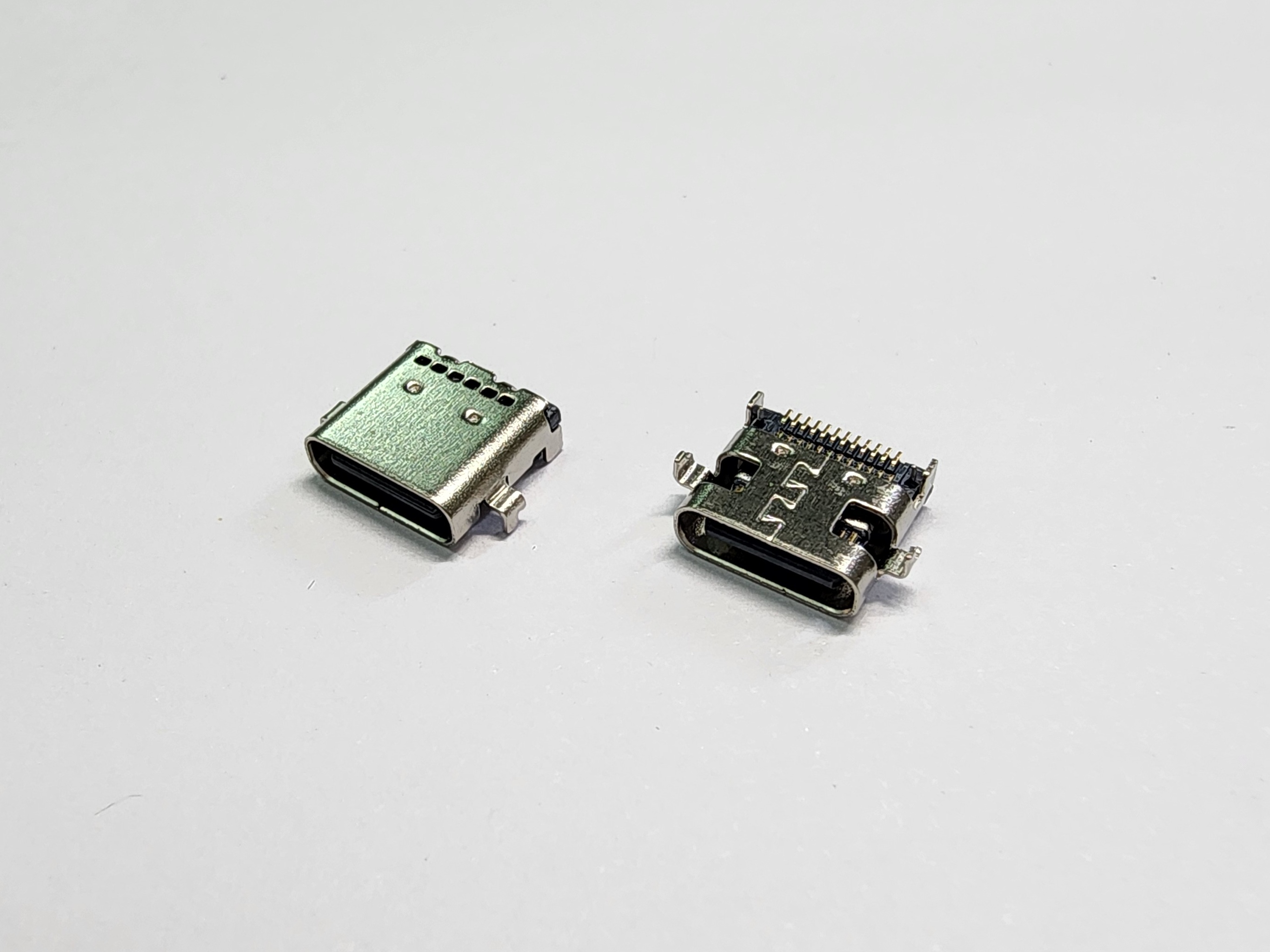

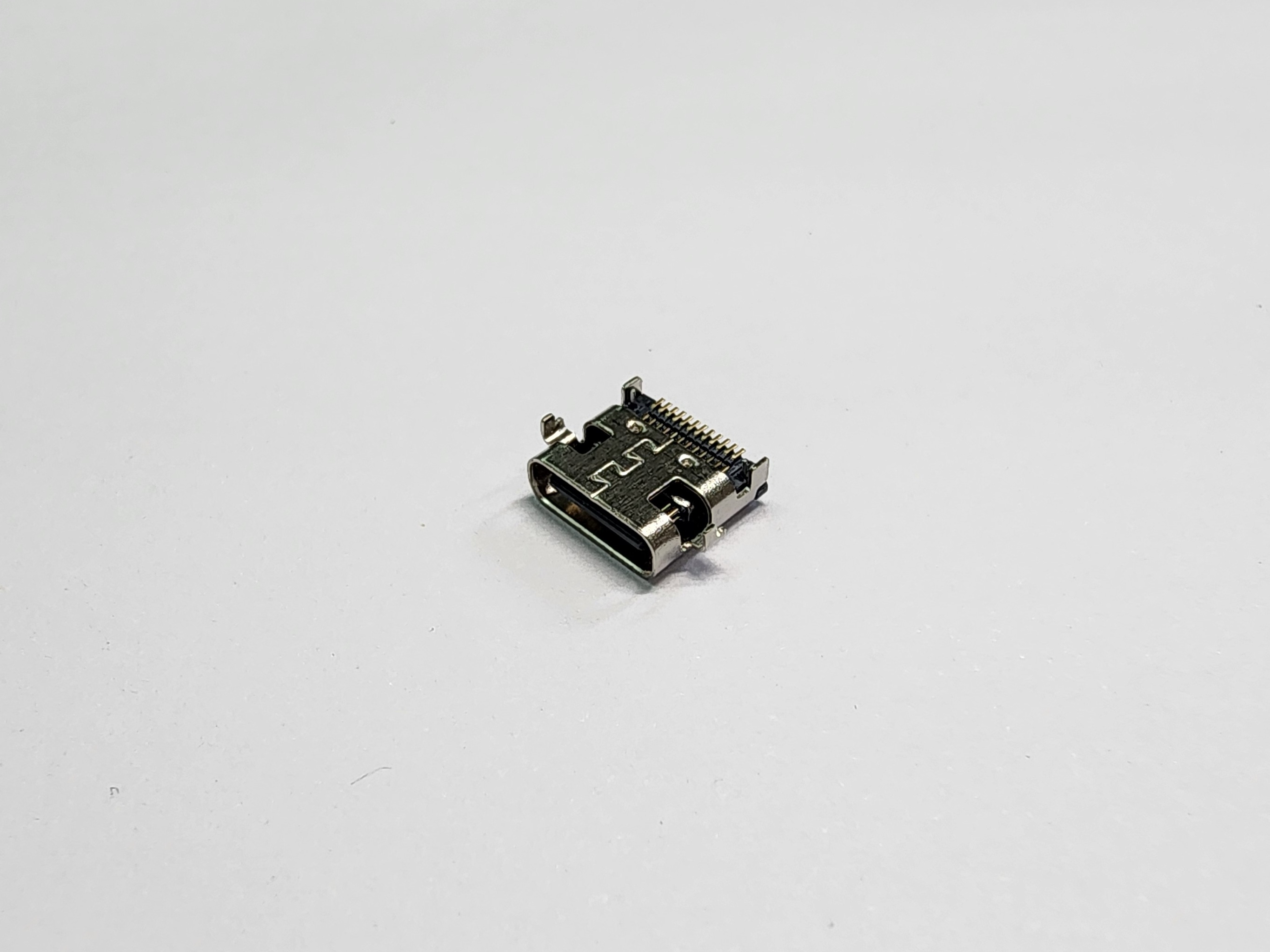

CU3C-R241SG0-L8
Description
- USB 3.1 Type C Connector
- 24Pins
- Receptacle
- Subside Type
- SMT Dual Rows
- Gold Flash
- Short Body 7.9mm
- CH=0.8mm
- High Temperature Thermoplastic
- Black Color
USB 3.1 C Type, 24Pins, Receptacle, Subside Type, SMT, CH=0.8mm, Short Body 7.9mm, Gold Flash, Black Color
Material
- Insulator: High Temp. Thermoplastic, UL 94V-0 Rated.
- Color: Black.
- Contact: Copper Alloy T=0.15mm.
- Plating: Gold Plating over Nickel on Contact Area.
- Gold Plating over Nickel on Solder Tail.
- Shell: Stainless Steel, T=0.30mm.
- Plating: Nickel Plating over All.
- Mid-Plate: Stainless Steel, T=0.15mm.
- Plating: Tin Plating on Soldering Area.
- EMI-Plate: Stainless Steel, T=0.10mm.
Mechanical
- Insertion Force: 5N~20N.
- Withdrawal Force: 5N~20N.
- Durability: 10,000Cycles.
Electrical Specification
- Current Rating: 5.0A Max for VBUS.
- Contact Resistance:
- VBUS & GND Pins & Other Pins: 40mΩ Max.
- Shield: 50mΩ Max.
- Insulation Resistance: 100MΩ Min.
- Dielectric Withstanding Voltage: 100V AC R.M.S.
Environmental
- Operating Temperature: -25°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
