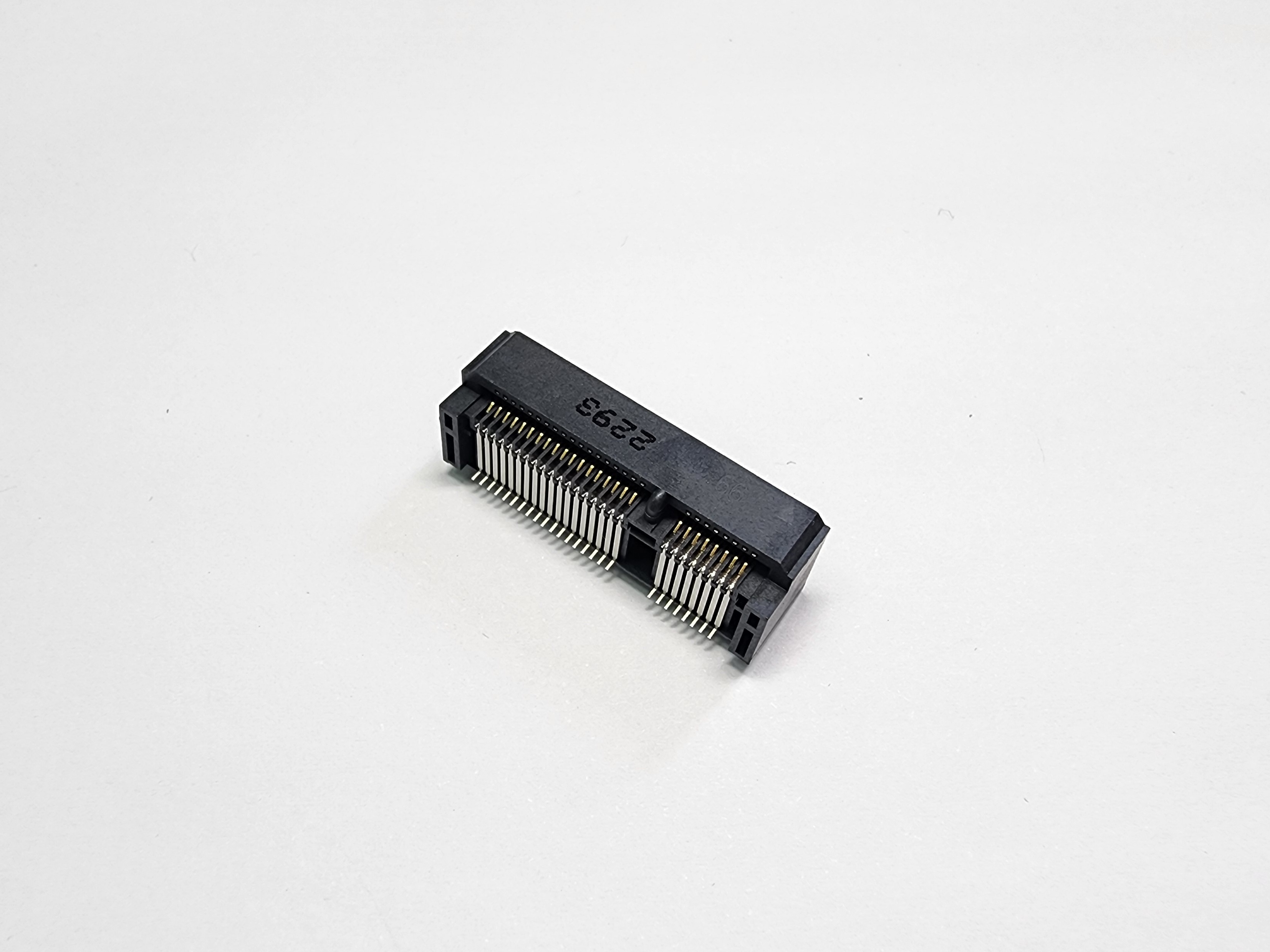

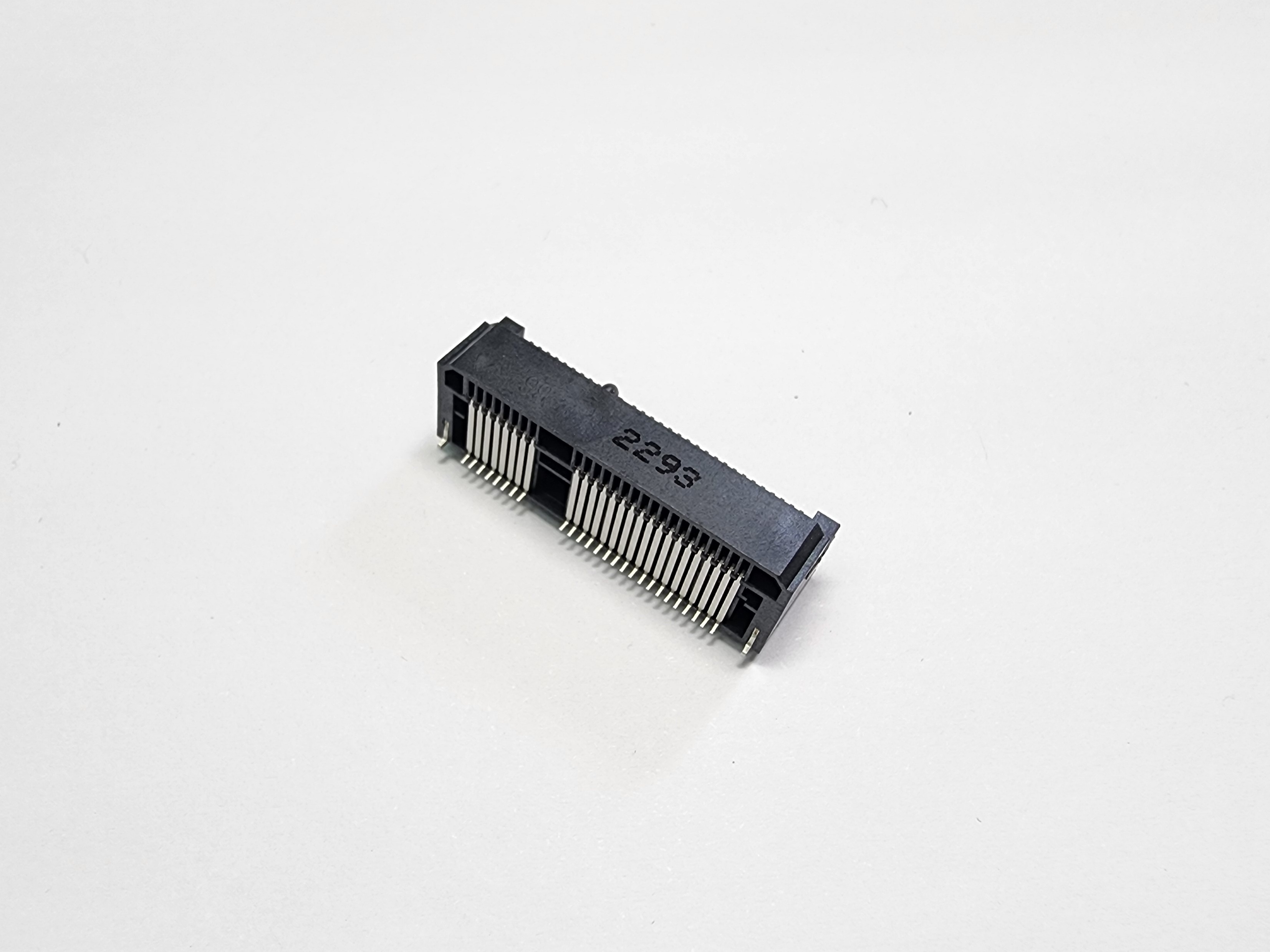

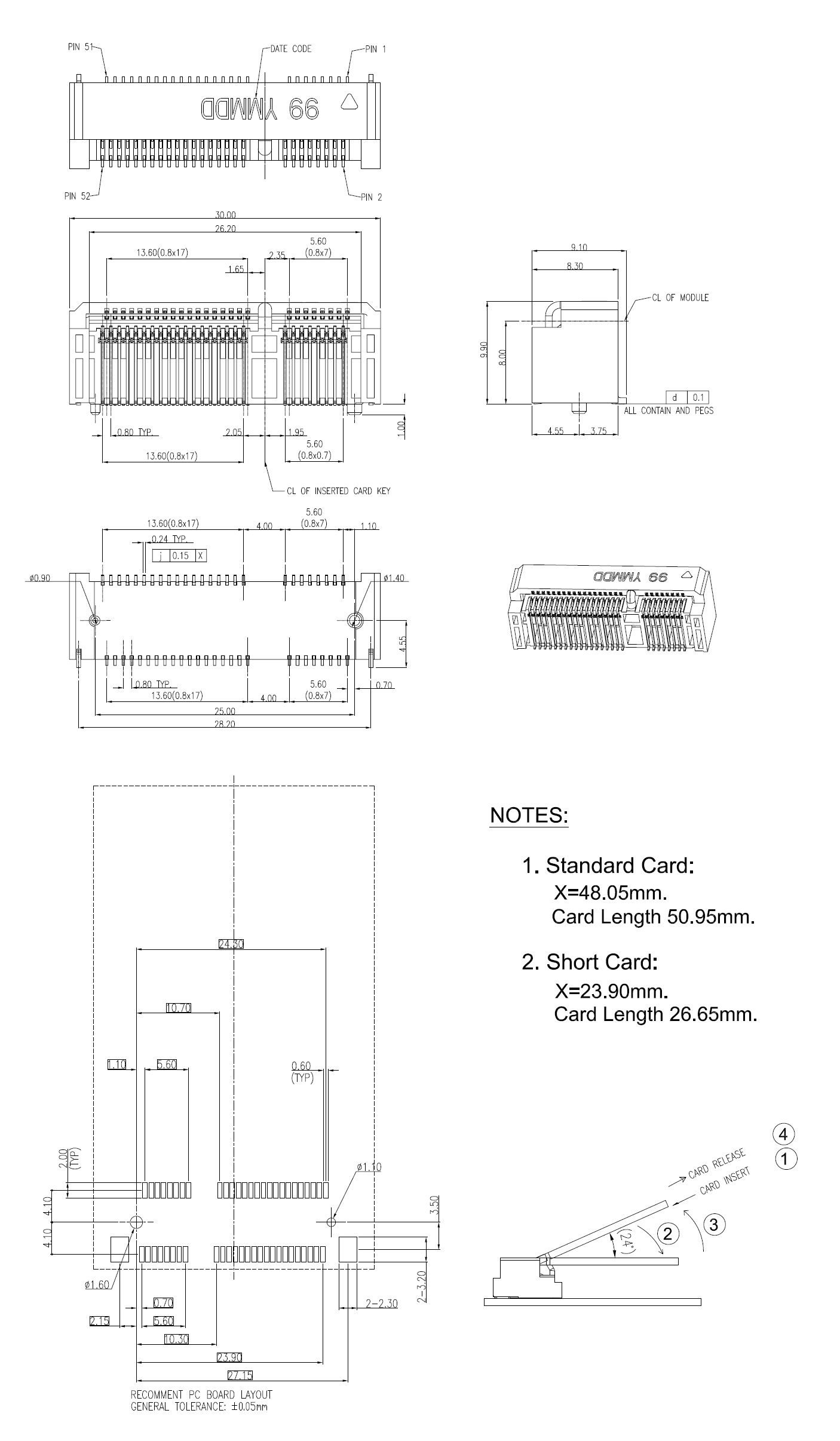

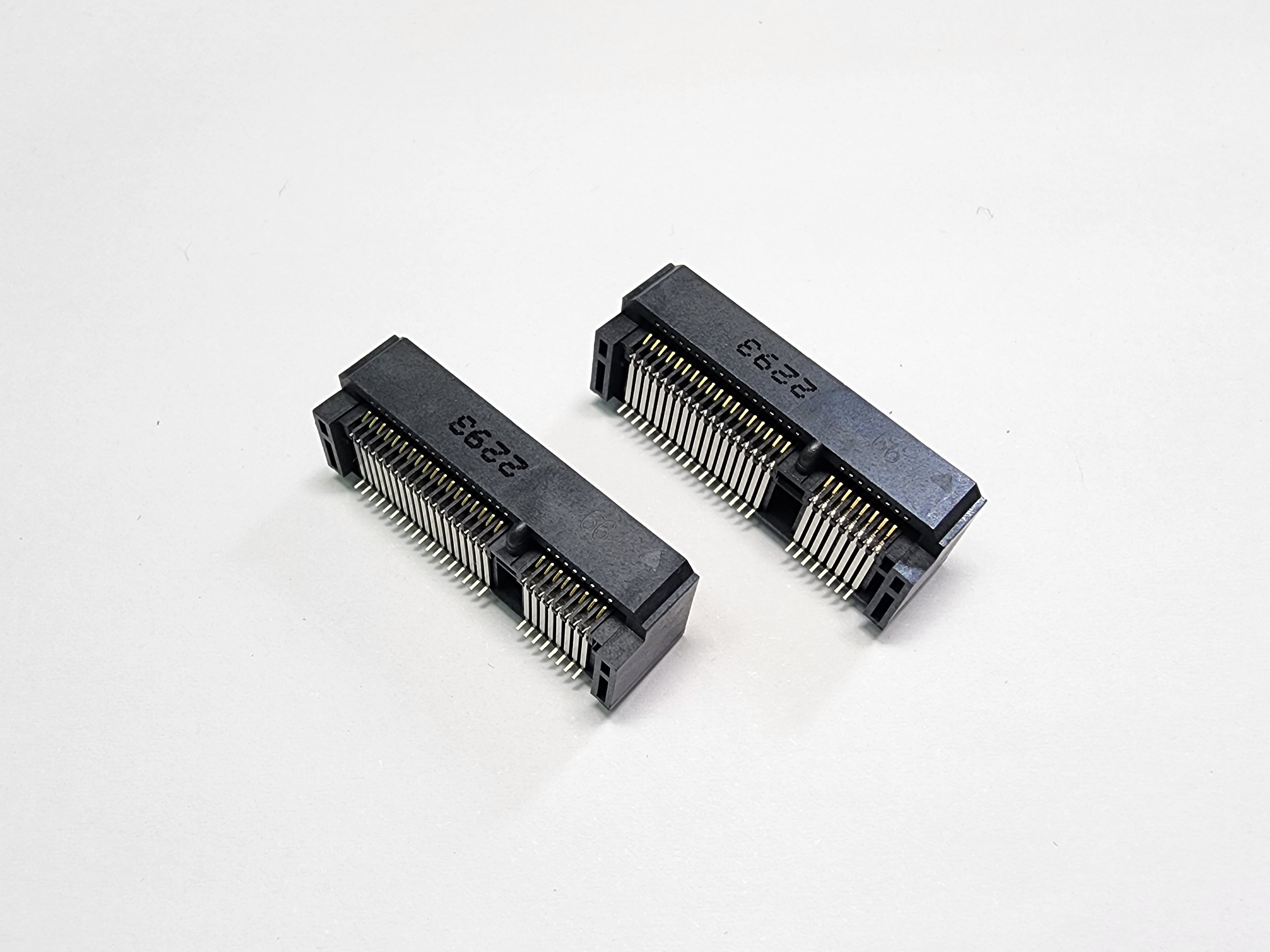

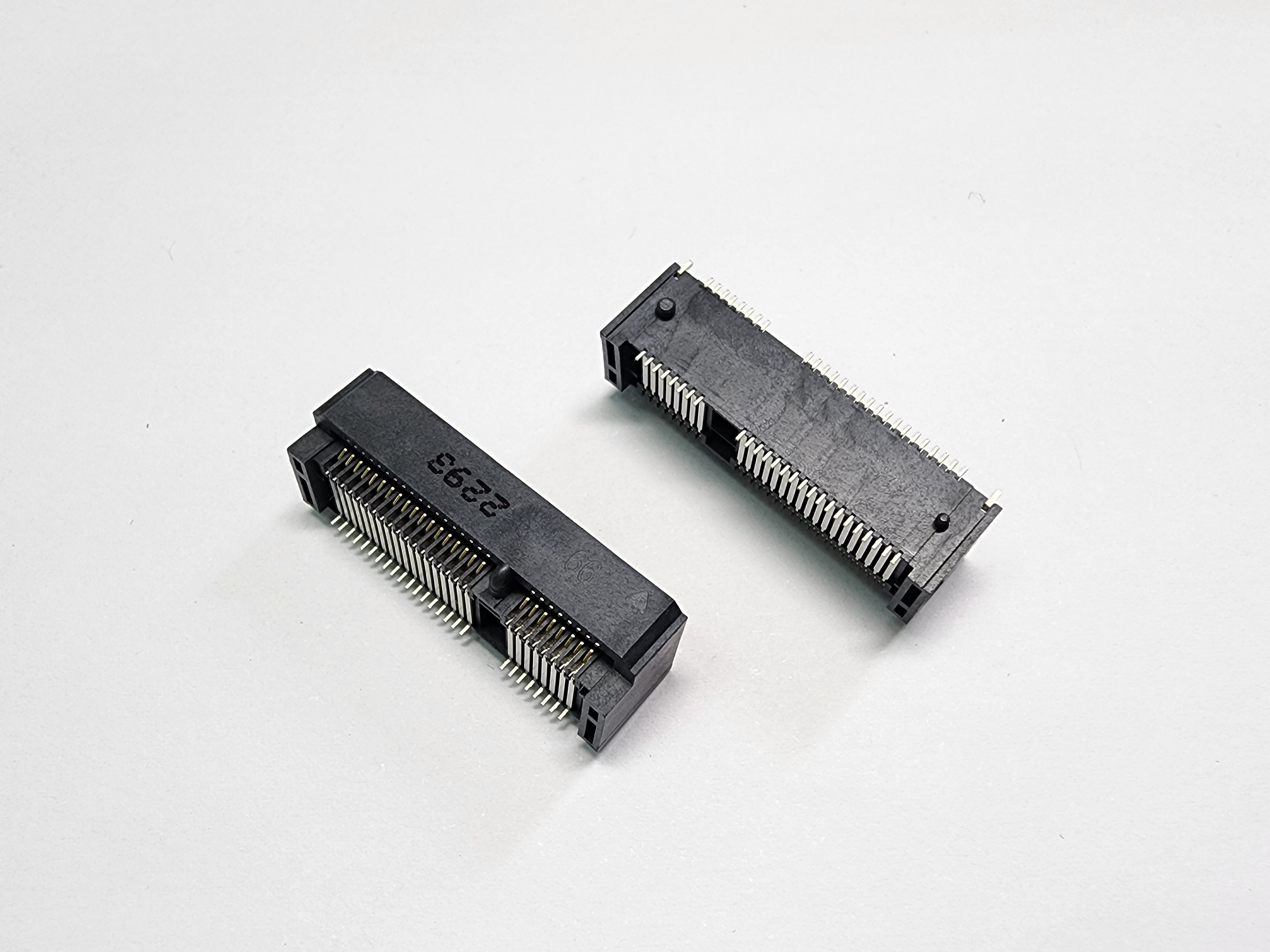

CPCE-M52RSG0-JA
Description
- Mini PCI Express Card Edge Connector
- 52Pins
- Right Angle
- SMT
- Gold Flash
- H=9.90mm Height
- LCP
- Black Color

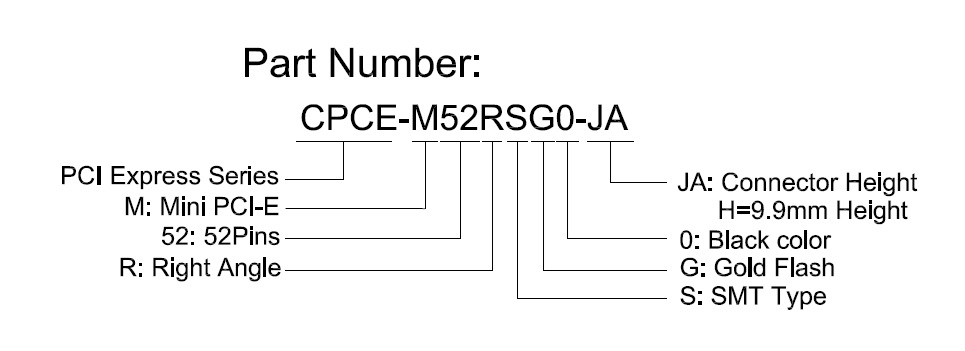

Mini PCI-Express Card Edge Connector, 52Pins, Right Angle, SMT, Gold Flash, H=9.9mm Height, LCP, Black Color
Material
- Housing: LCP, UL 94V-0 Rated.
- Color: Black.
- Contact: Phosphor Bronze(C5191R-H).
- Plating: Gold Plating over Nickel on Contact Area;
- Matt Tin Plating on Solder Tail.
- Nail: Brass(C2680R-H).
- Plating: Matt Tin Plating over Nickel.
Mechanical
- Insertion Force: 20N Max.
- Withdrawal Force: 25N Min.
- Durability: 50 Cycles Min.
Electrical Specification
- Current Rating: 0.3 Ampere per Pin.
- Voltage Rating: 25V AC.
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 500MΩ Min.
- Dielectric Withstanding Voltage: 250V AC for One Minute.
Environmental
- Operating Temperature: -40°C to +90°C.
- RoHS Compliance.
- REACH Compliance.
