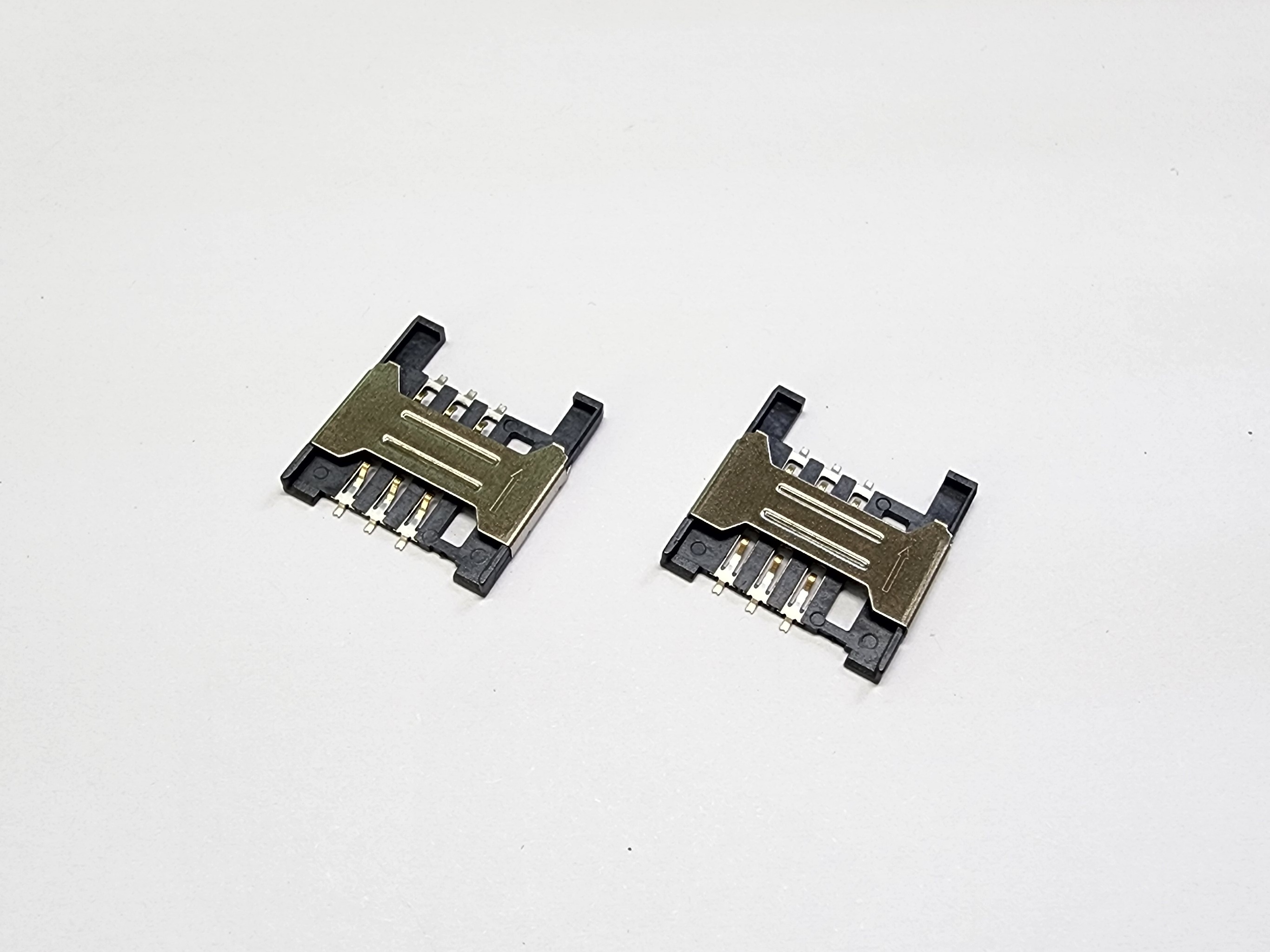

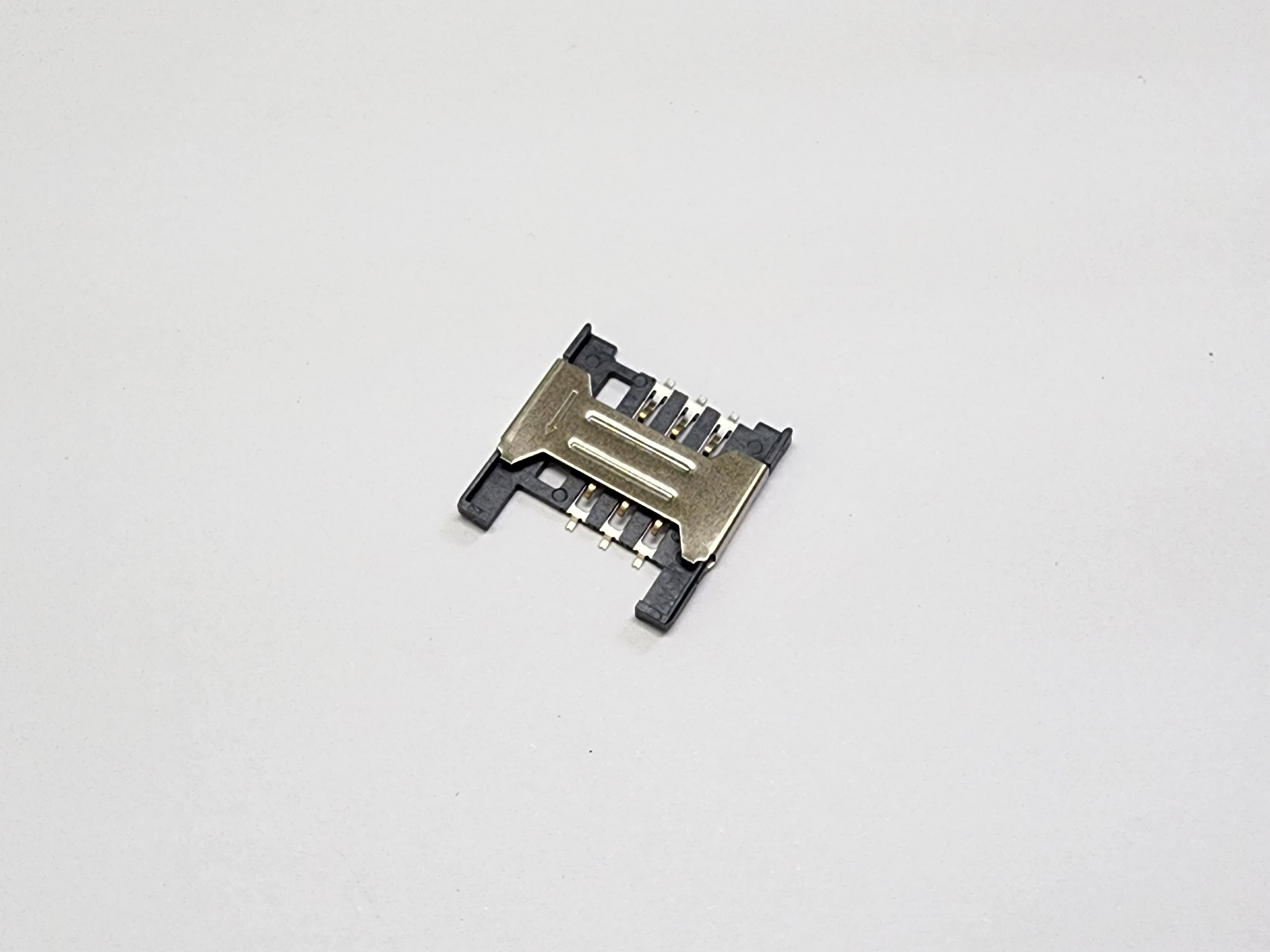

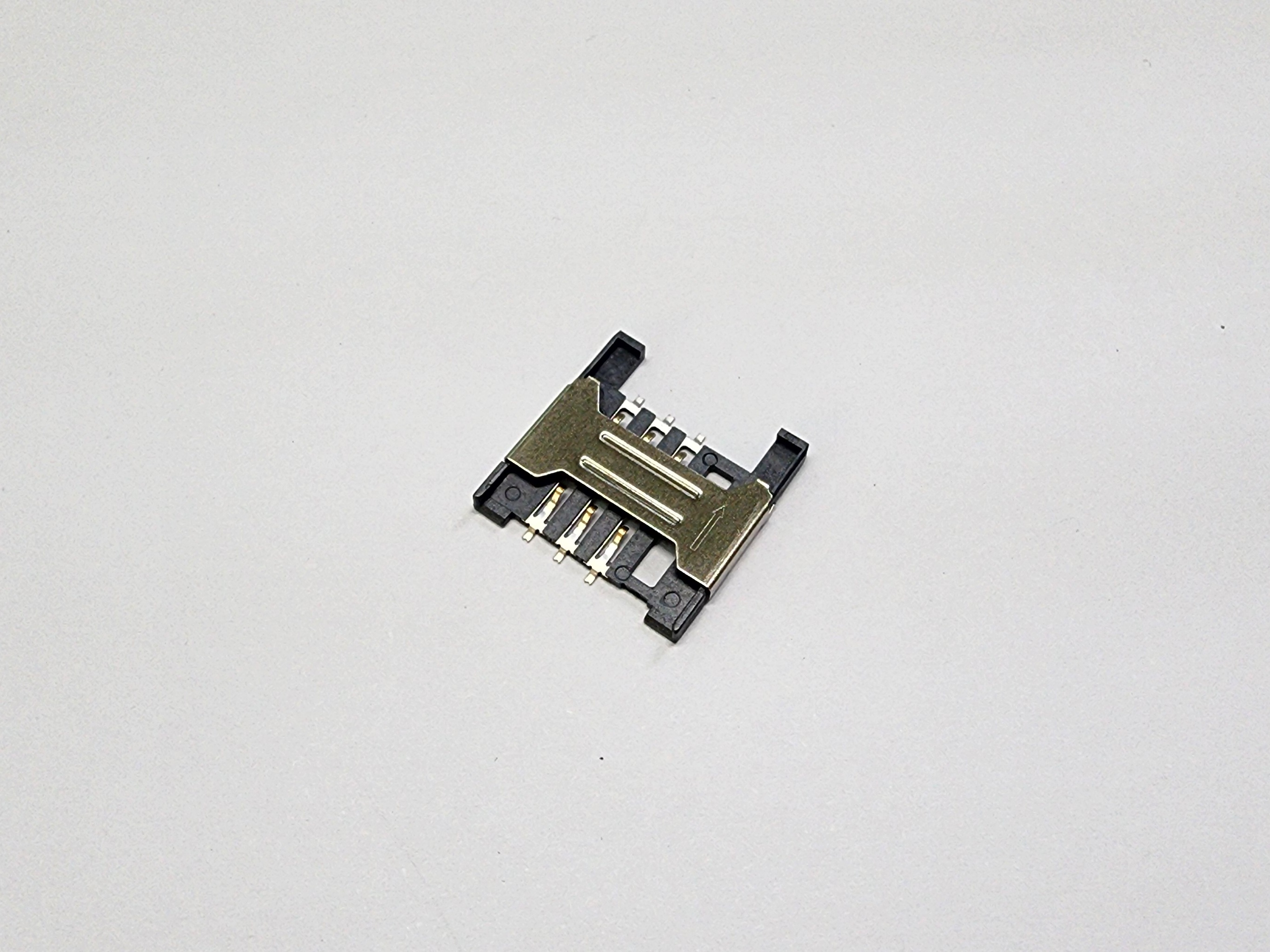

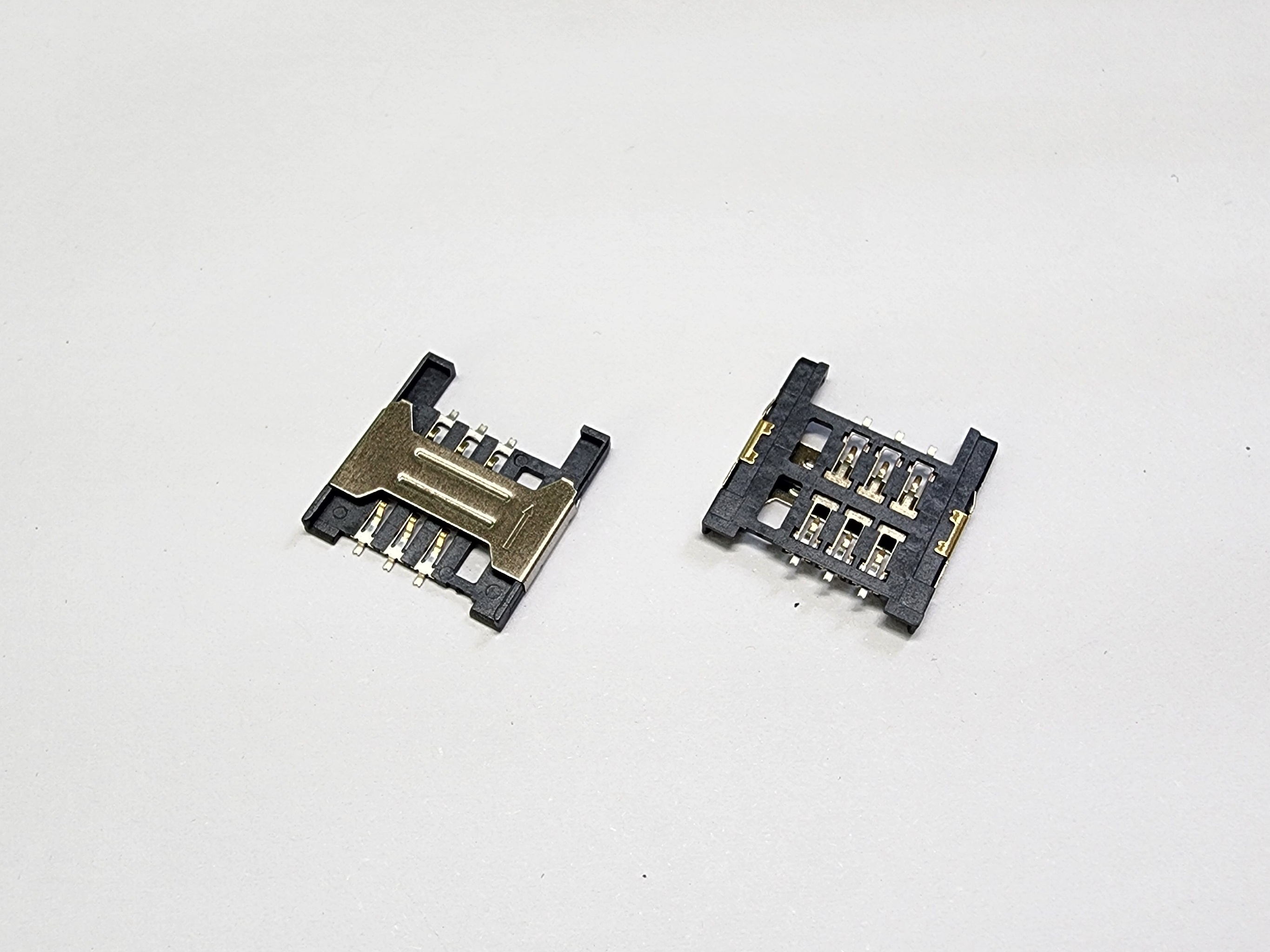

CSIM-Q06VSG0-563
Description
- SIM Card Socket Connector
- Push/Pull Type
- Pitch 2.54mm
- 6Pins
- Gold Flash
- SMD
- H=1.85mm High
- Without Post
- With Metal Shell
- LCP
- Black Color
SIM Card Socket, 6Pins, Push/Pull Type, Pitch 2.54mm, H=1.85mm, Without Post, With Metal Shell, Gold Flash, Black Color
Material
- Housing: LCP, UL 94V-0 Rated.
- Color: Black.
- Contact: Copper Alloy, T=0.15mm.
- Plating: Gold Plating over Nickel on Contact Area;
- Tin Plating over Nickel on Solder Area.
- Shell: Stainless Steel, SUS304, T=0.15mm.
- Plating: Gold Plating over Nickel on Solder Area.
- Nickel Plating Underplating over All.
Mechanical
- Insertion Force: 10N Max.
- Withdrawal Force: 2N.
- Contact Retention Force: 2.5N Min.
- Durability: 5,000Cycles Min.
Electrical Specification
- Current Rating: 0.5 Ampere Max per Contact.
- Voltage Rating: 50V AC/DC.
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500 VAC for One Minute.
Environmental
- Operating Temperature: -25°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
