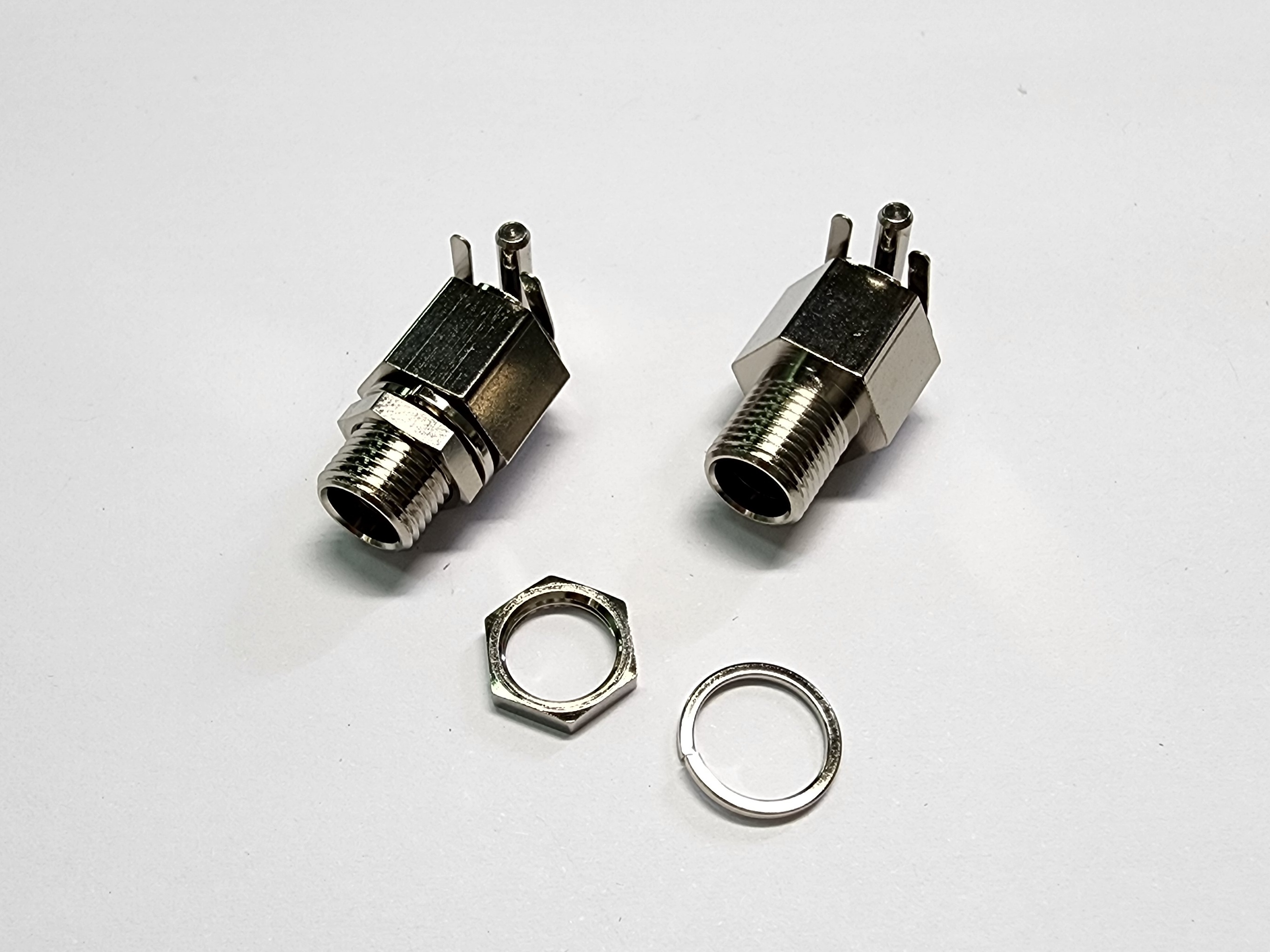

CDCJ-203RDN0-M9 (20V10A)

DC Power Jack, 2.1mm/5.6mm, Right Angle, 3Pins, DIP, Nickel Plating, PBT, Black Color, Support Current 20V 10A, With Screw, M8 Nut & Washer

Material

• Housing: PBT, UL 94V-0 Rated.
• Color: Black.
• Spring: Phosphor Bronze.
• Plating: Nickel Plating over All.
• Sleeve: Brass.
• Plating: Nickel Plating over All.
• Center Pin: Phosphor Bronze.
• Plating: Nickel Plating over All.
• Screw Nut: Brass.
• Plating: Nickel Plating over All.
• Washer: SWRH62.
• Plating: Nickel Plating over All.

Mechanical

• Insertion Force: 0.4Kgf~4.0Kgf(Initial),
• After Life Test: 0.3Kgf~3.0Kgf(Final).
• Extraction Force: 0.4Kgf~4.0Kgf(Initial),
• After Life Test: 0.3Kgf~3.0Kgf(Final).
• Life Test: 5,000 Cycles Min.

Electrical Specification

• Rating: DC 20V 10A.
• Contact Resistance: 30mΩ Max(Initial);
• Between Plug and Contact: 100mΩ Max;
• After Life Test: 60mΩ Max(Final).
• Insulation Resistance: 100MΩ Min Measured by 500V DC.
• Dielectric Withstanding Voltage: 500V AC for One Minute.

Environmental

• Operation Temperature Range: -40°C~80°C.
• Soldering Heat Resistance Wave Soldering 230°C.
• Plug Interface Dimensions Conform to EIAJ RC-5321 Spec.
• RoHS Compliance.
• REACH Compliance.
