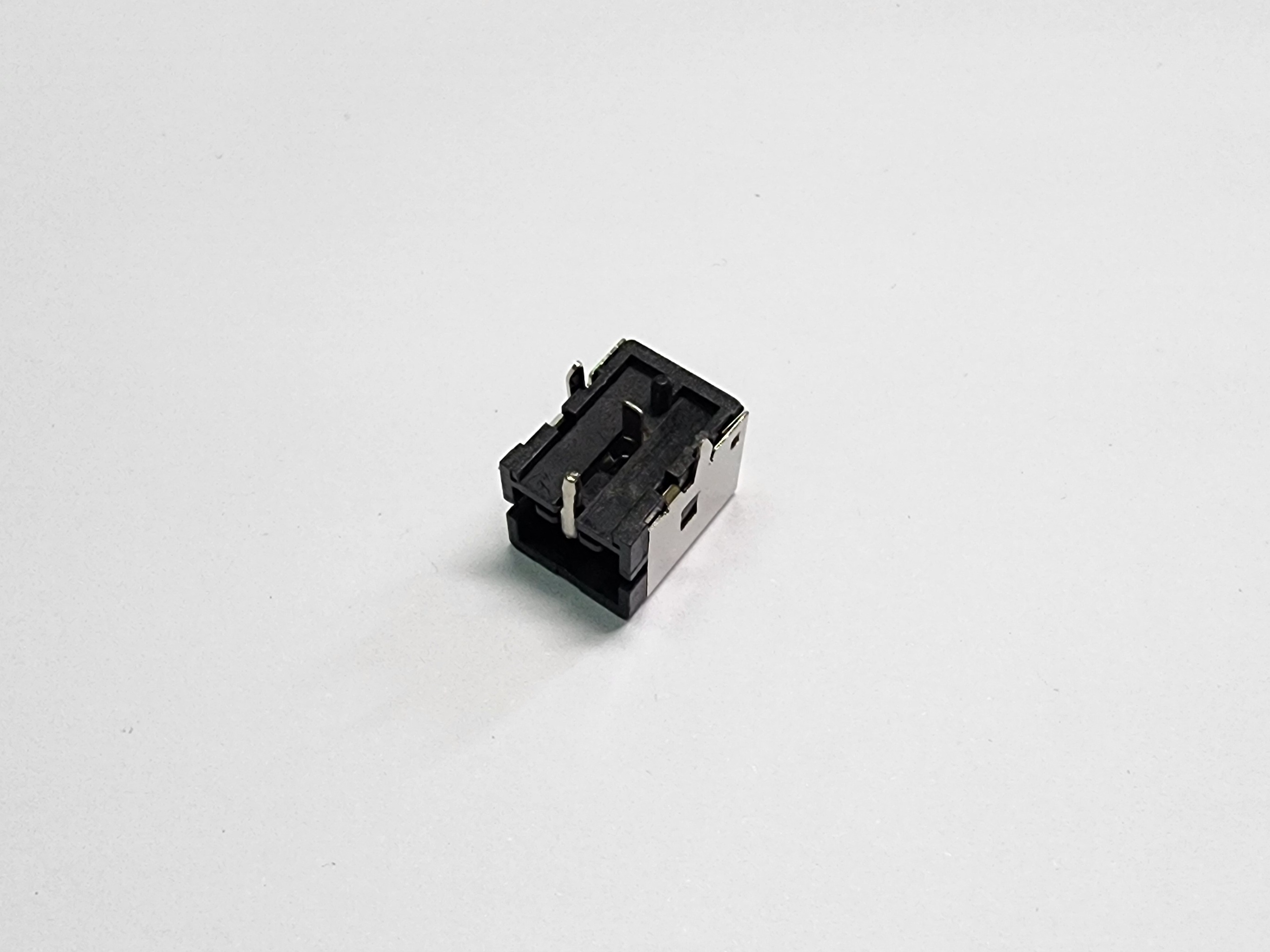

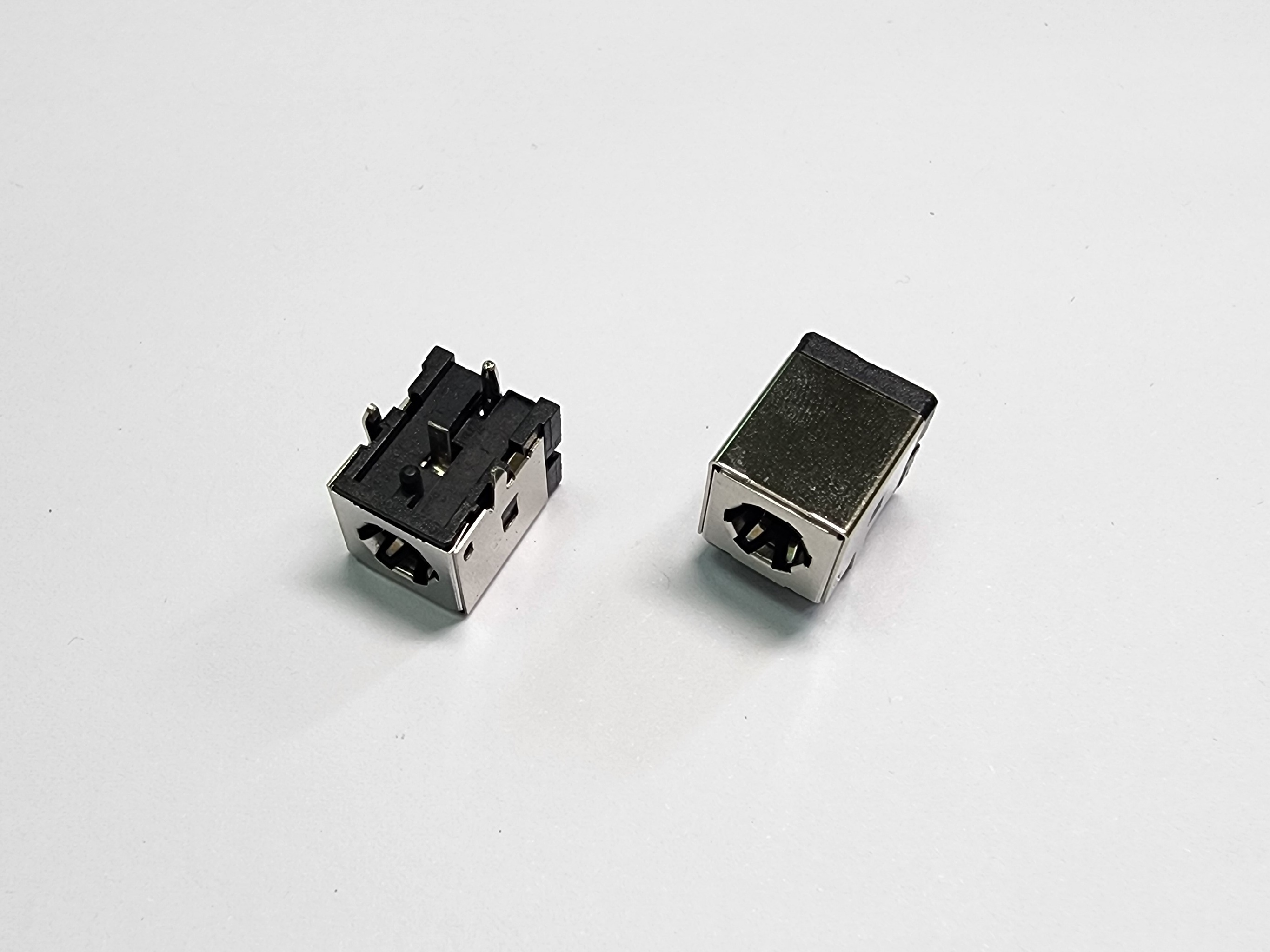

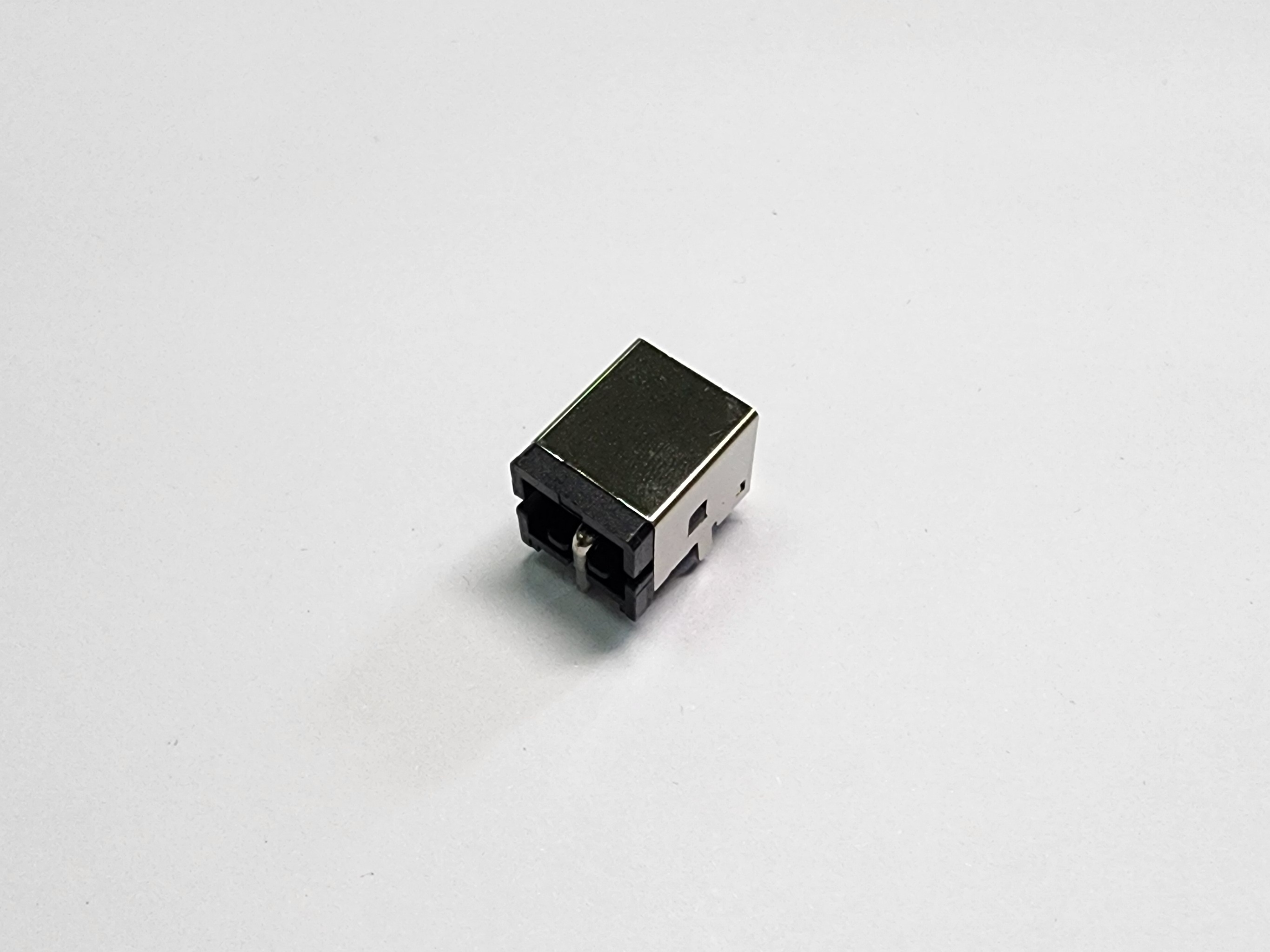

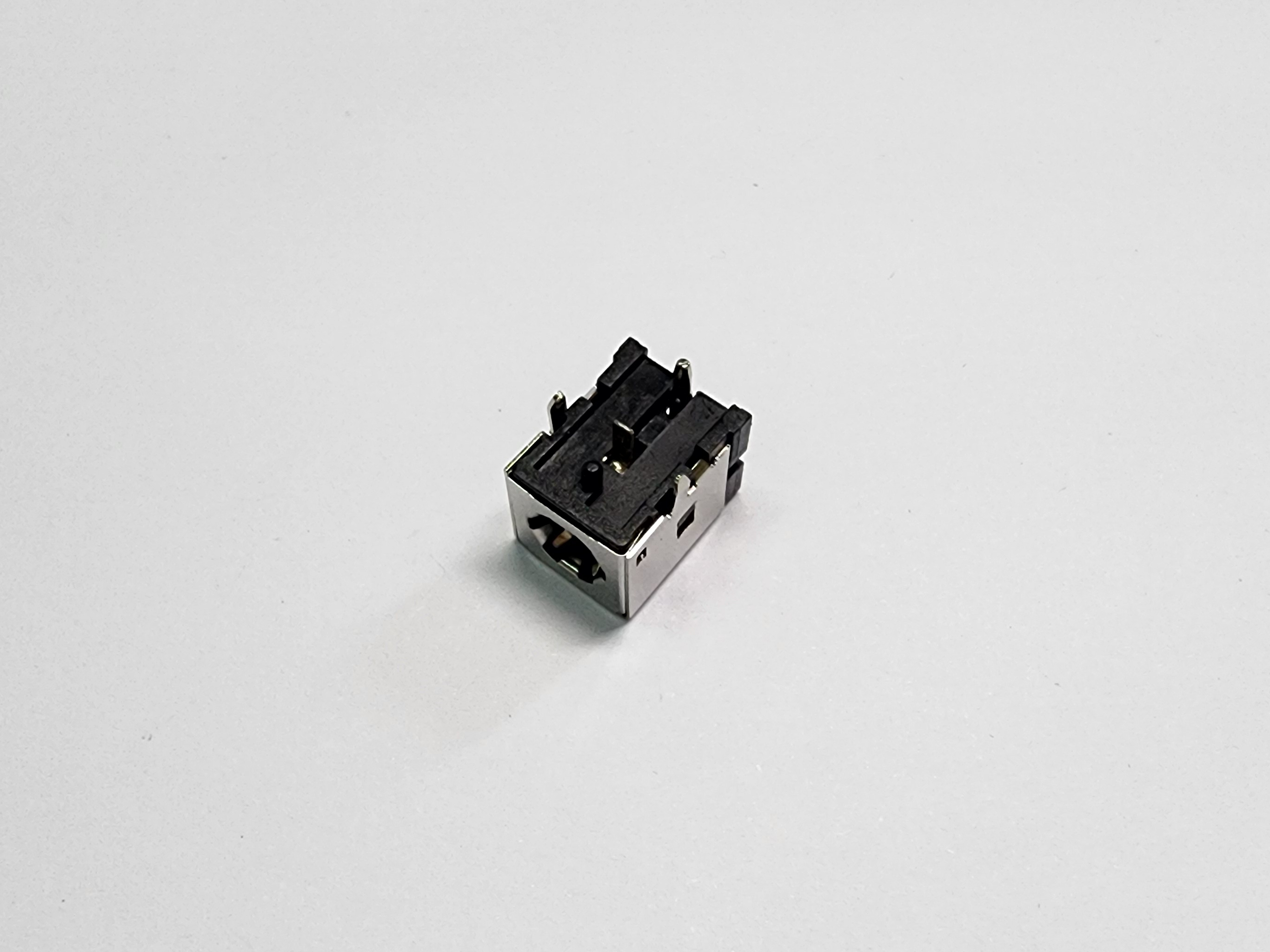

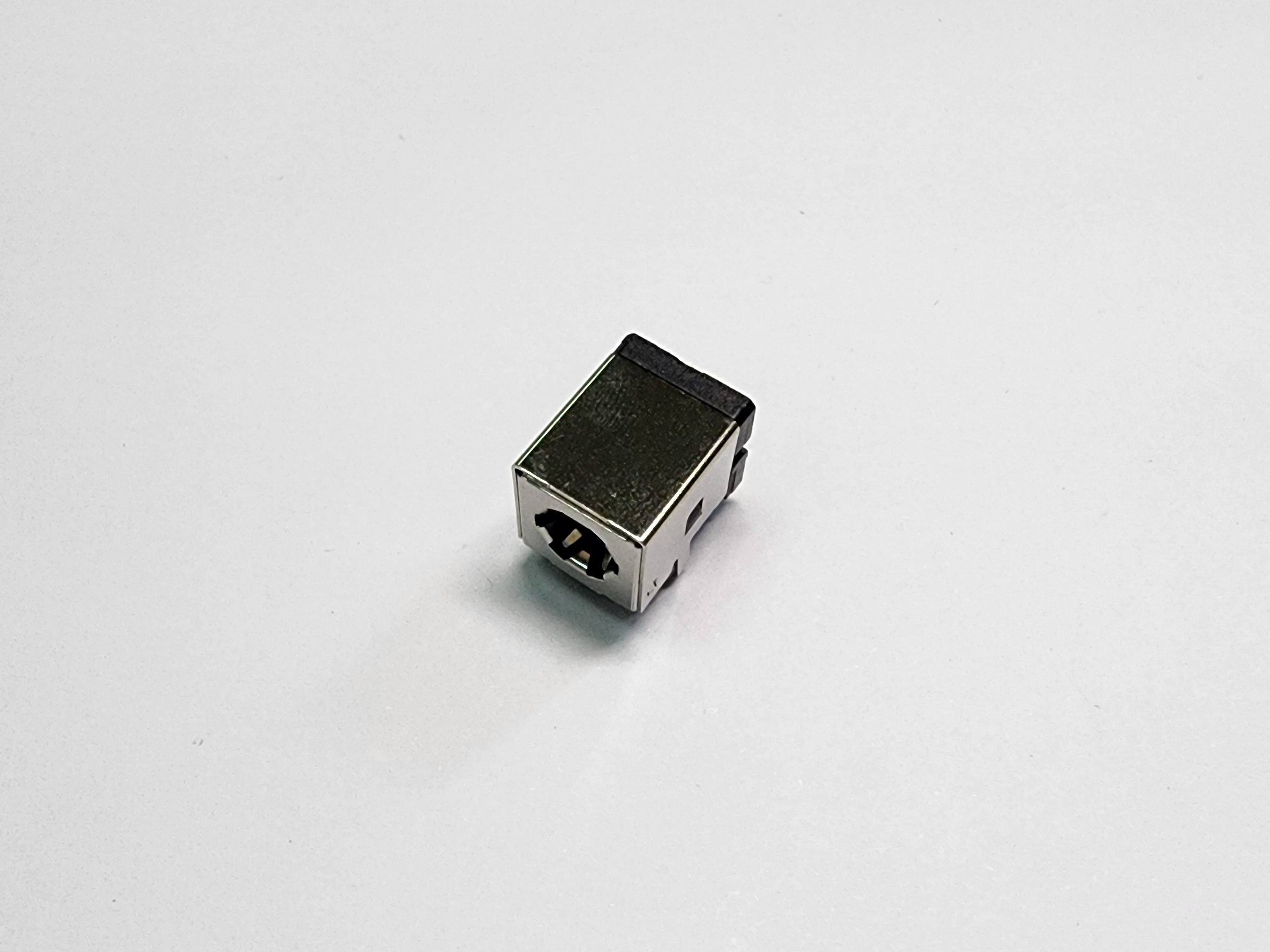

CDCJ-252RDB0-86 (20V8A)

DC Power Jack, 2.5mm/5.3mm, Right Angle, DIP, Short Center Pin, H=10mm, With Shielding(2Pins), Black Color, Tape & Reel Package, Support 20V 8A

Material

• Housing: PA10T, UL 94V-0 Rated.
• Color: Black.
• Tip Spring: C5191, T=0.30mm.
• Plating: Ag(10u” Min.) Plating over Nickel(40u” Min.).
• Center Pin: Zinc Alloy.
• Plating: Nickel(40u” Min.) Plating over All.
• PEG: C2680, T=0.40mm.
• Shield Plate: SUS301, T=0.10mm.
• Ground Shield: C5191, T=0.30mm.
• Plating: Nickel(40u” Min.) Plating over All.

Mechanical

• Insertion Force: 3N~30N.
• Extraction Force: 3N~30N.
• Life Test: 5,000 Cycles Min.

Electrical Specification

• Rating: DC 24V 8A.
• Contact Resistance: 30mΩ Max(Initial);
• Contact Resistance: 30mΩ Max(Initial);
• After Life Test: 50mΩ Max(Final).
• Insulation Resistance: 100MΩ Min Measured by 500V DC.
• After Life Test: 50MΩ Min(Final).
• Dielectric Withstanding Voltage: 500V AC for One Minute.

Environmental

• Operation Temperature Range: -20°C~70°C.
• Respervation Temperature Range: -40°C~85°C.
• Plug Interface Dimensions Conform to EIAJ RC-5321 Spec.
• RoHS Compliance.
• REACH Compliance.
