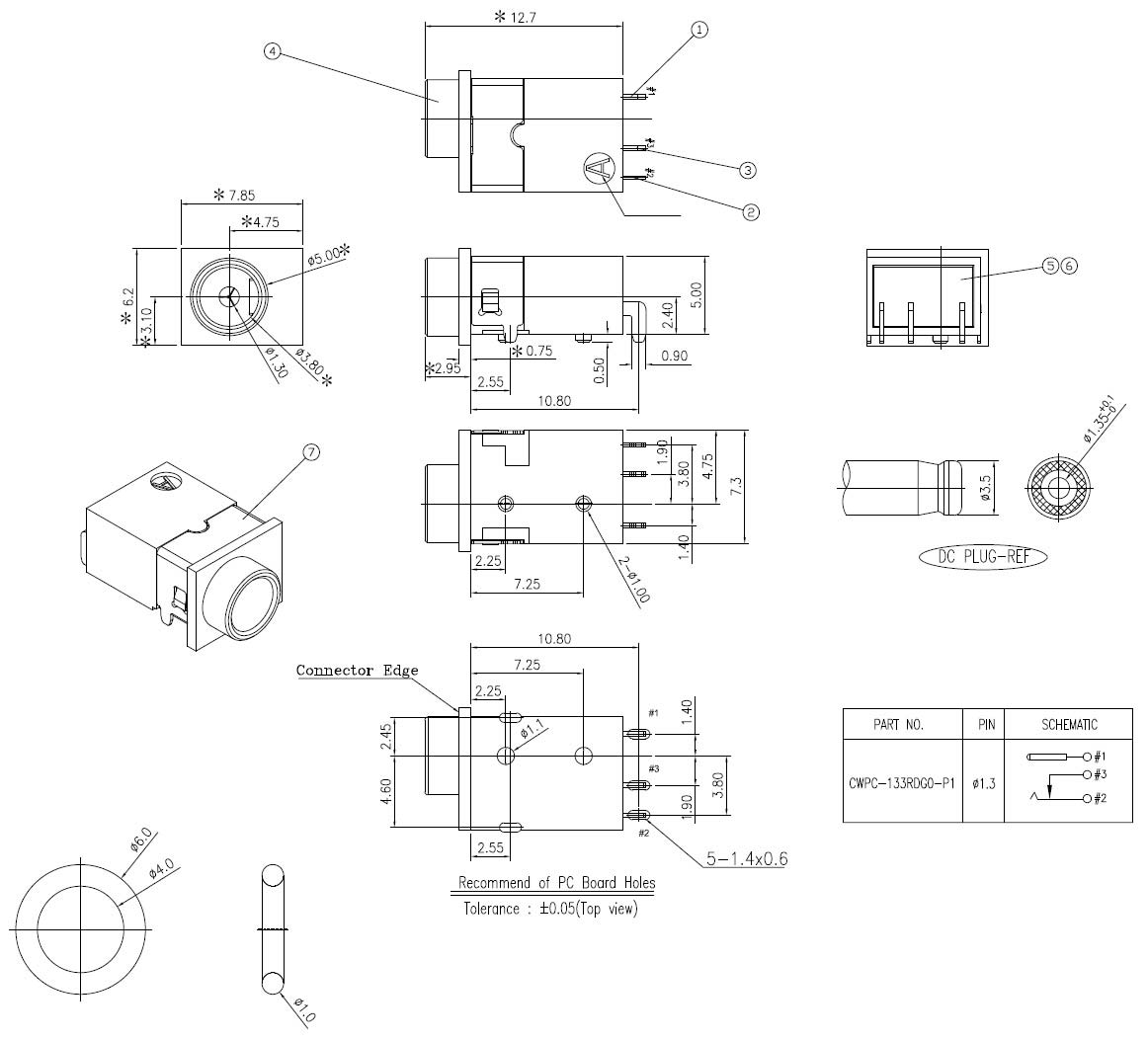

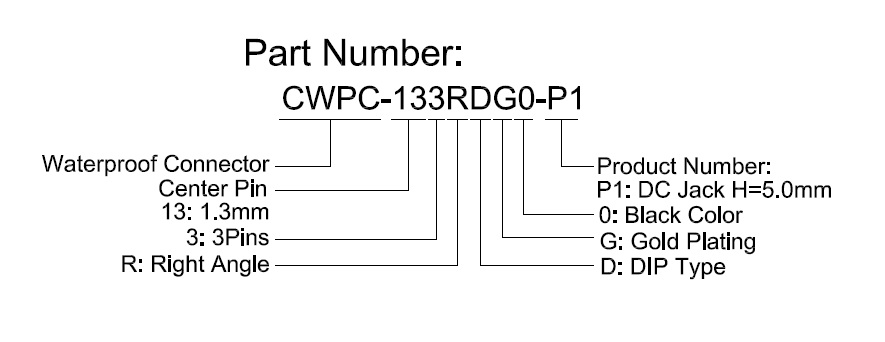

Description
  • Waterproof Connector
  • DC Power Jack
  • Center Pin 1.3mm
  • 3Pins
  • Right Angle
  • DIP
  • Gold Flash
  • H=5.0mm
  • Black Color
  • with Oval Ring
  • Waterproof Level IPX7

Material

  • Housing: PA10T, UL 94V-0 Rated.
  • Color: Black.
  • Cover: PA10T, UL 94V-0 Rated.
  • Color: Black.
  • Terminal#1~#3: Phosphor Bronze.
  • Plating: Gold Plating over Nickel.
  • Shield: Brass.
  • Plating: Nickel Plating.
  • Glue: Silicon.
  • Color: White.

Mechanical

  • Plug Insertion Force: 0.3~3.0Kg Force Initial;
    0.3~2.0Kg Force after Life Test.
  • Plug Extraction Force: 0.3~3.0Kg Force Initial;
    0.3~2.0Kg Force after Life Test.
  • Durability: 5,000Cycles.

Electrical Specification

  • Rating: DC 24V 2A.
  • Contact Resistance: 50mΩ Max Initial;
    100mΩ Max after Life Test.
  • Insulation Resistance: 100MΩ Min Measured by 500V DC.
  • Dielectric Withstanding Voltage: 500V AC per Minute.

Environmental

  • Operating Temperature: -25°C to +70°C.
  • Soldering Heat Resistance Reflow Soldering 255°C±5°C.
  • Plug Interface Dimensions Conform to EIAJ RC-5321 Spec.
  • Standard Package: Tape & Reel.
