凱聯科技股份有限公司

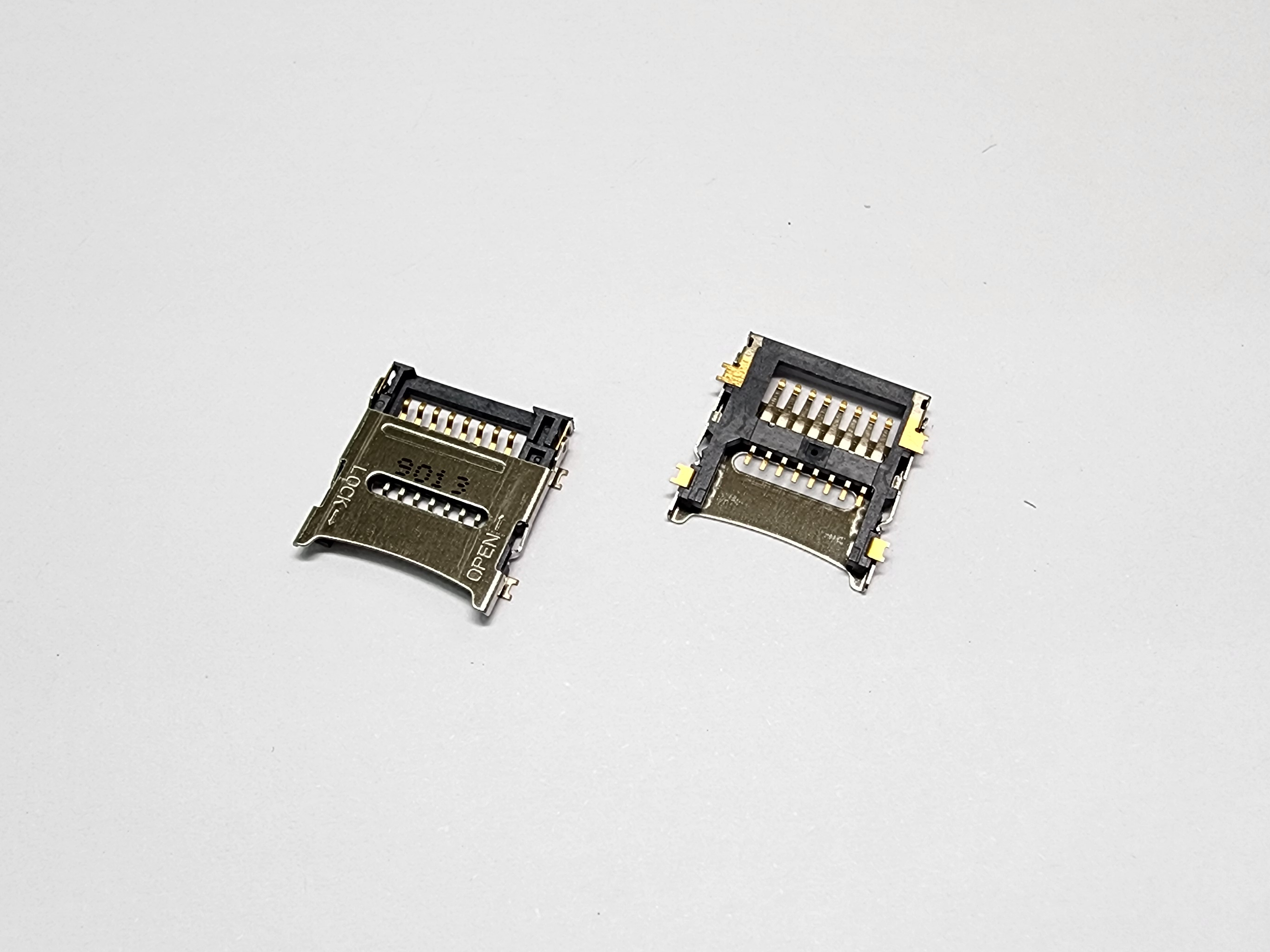

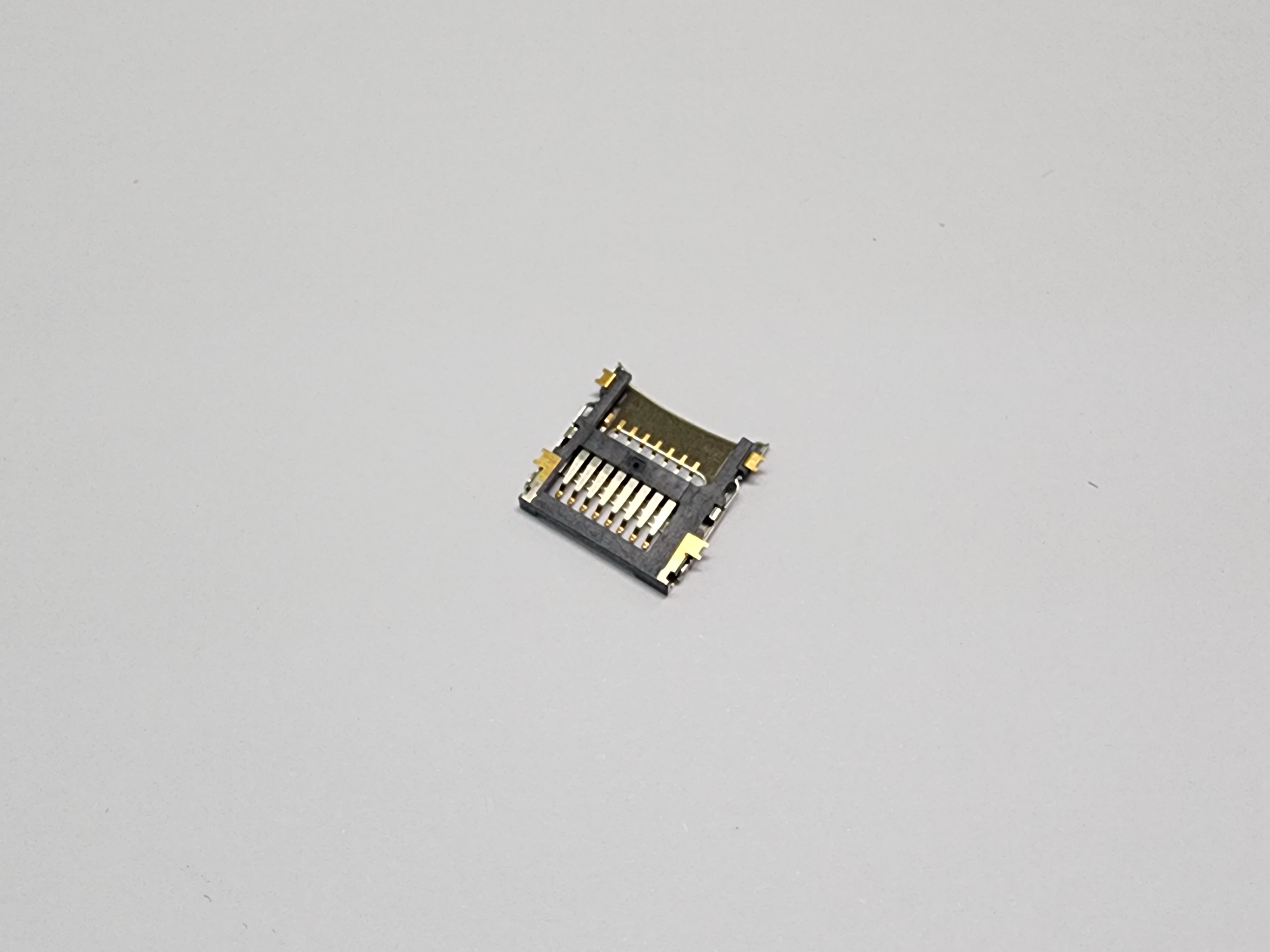

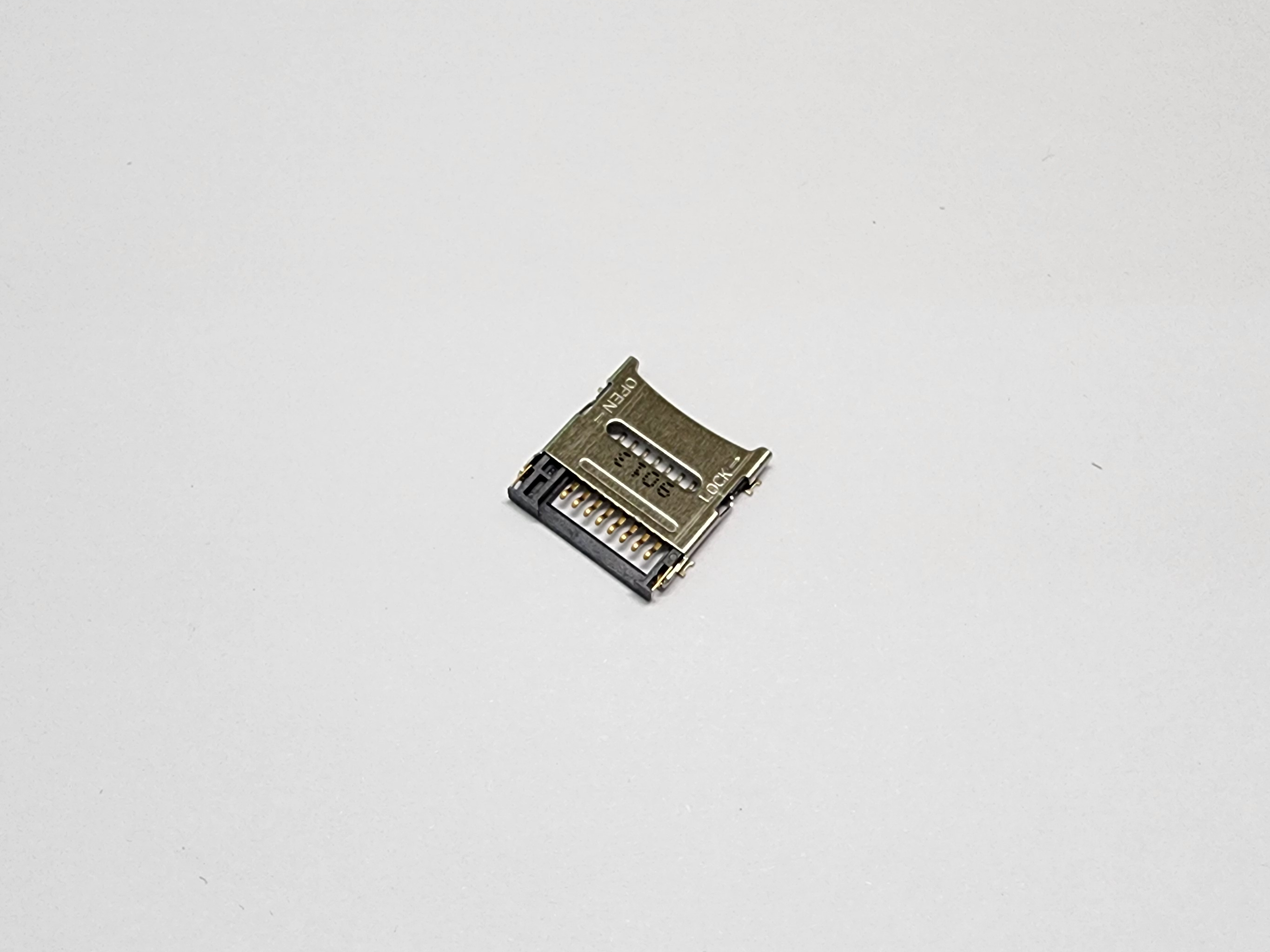

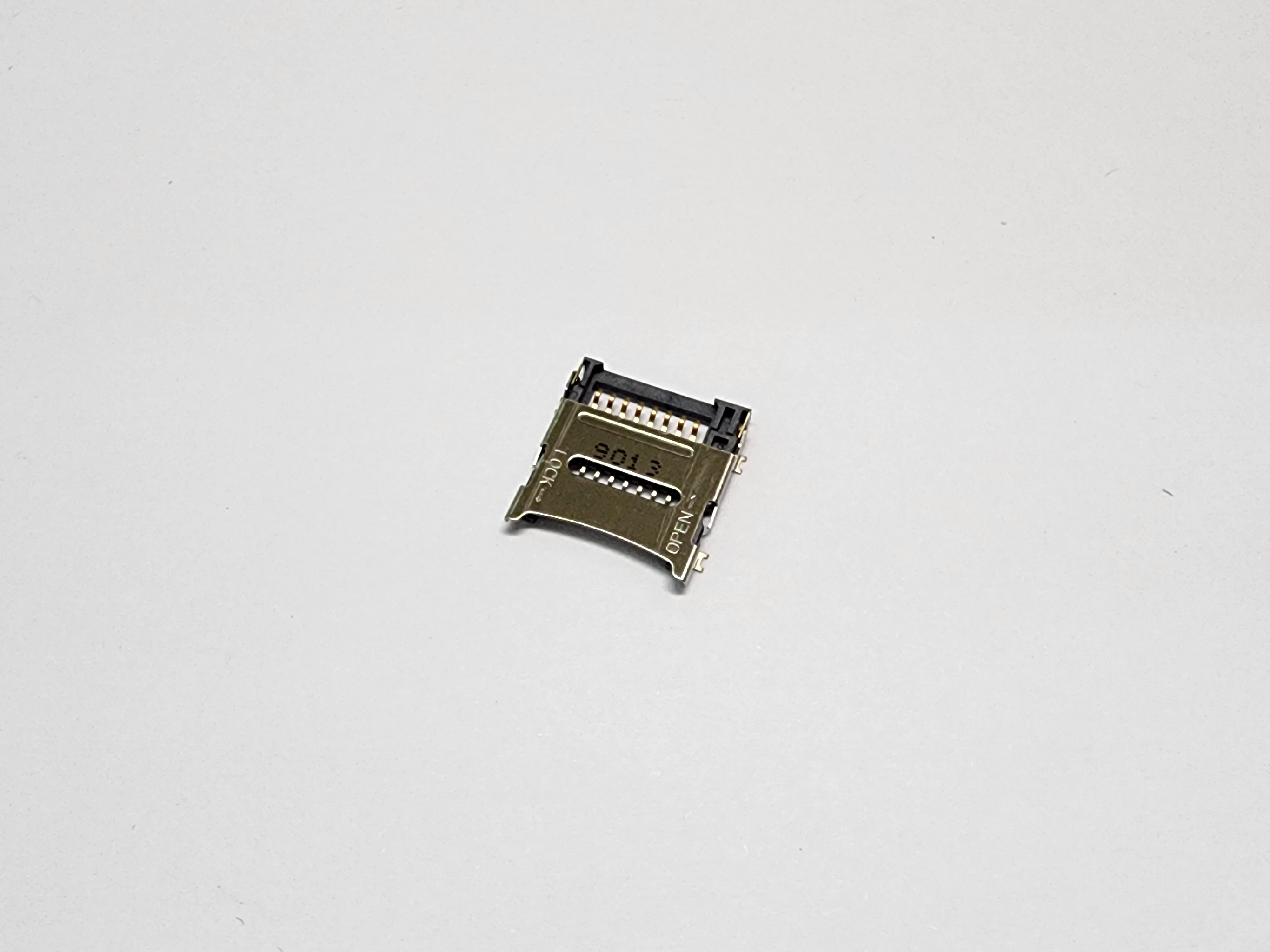

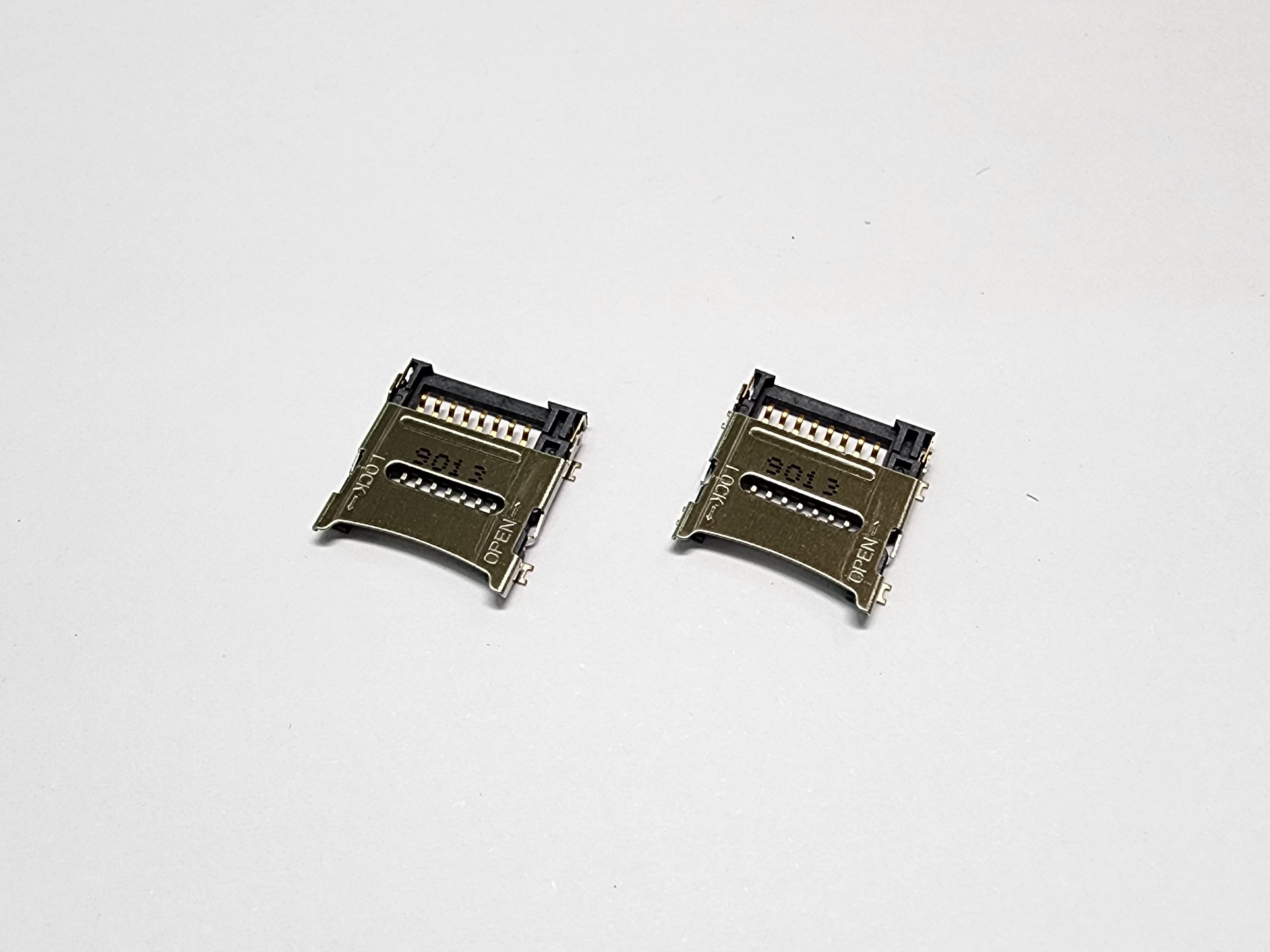

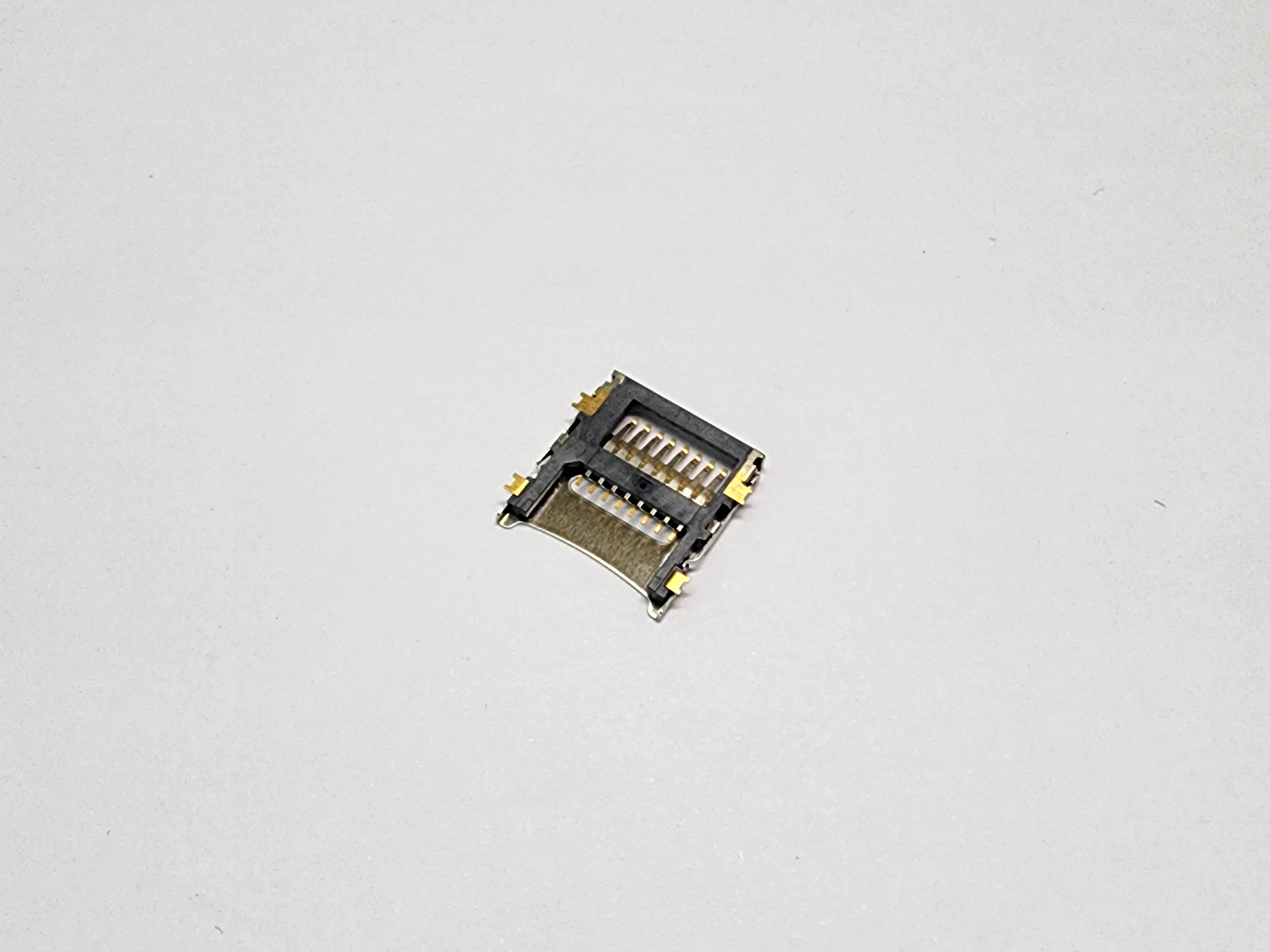

CMSD-HS8VSG0-753

Description

  • Micro SD Card Socket Connector
  • T-Flash
  • Hinge Type
  • Standard Type
  • 8Pins
  • Gold Flash Plating
  • SMD
  • H=1.80mm High
  • Without Post
  • Metal Cover
  • LCP
  • Black Color

Micro SD Card(T-Flash), Hinge Type, 8Pins, SMD, Gold Flash, H=1.80mm Height, Without Post, With Metal Cover, Black Color

Material

  • Housing: High Temperature Thermoplastic, LCP, UL 94V-0 Rated.
  • Color: Black.
  • Contact: Phosphor Bronze.
  • Plating: Gold Plating on Contact Area;
  • Gold Flash on Solder Tail;
  • Nickel UnderPlating 50u" Thickness Min. Over All.
  • Shell: Stainless Steel(SUS304).
  • Plating: Gold Flash on Solder PAD.
  • Nickel Plating 50u" Thickness Min. Over All.

Mechanical

  • Pulling Force: 2N Min.
  • Durability: 5,000Cycles Min.

Electrical Specification

  • Current Rating: 1.0 Ampere Max per Pin.
  • Voltage Rating: 30V AC/DC.
  • Contact Resistance: 50mΩ Max.
  • Insulation Resistance: 1000MΩ Min at 250VDC.
  • Dielectric Withstanding Voltage: 100 V AC(rms) for 1 Minute.

Environmental

  • Operating Temperature: -40°C to +85°C.
  • RoHS Compliance.
  • REACH Compliance.
