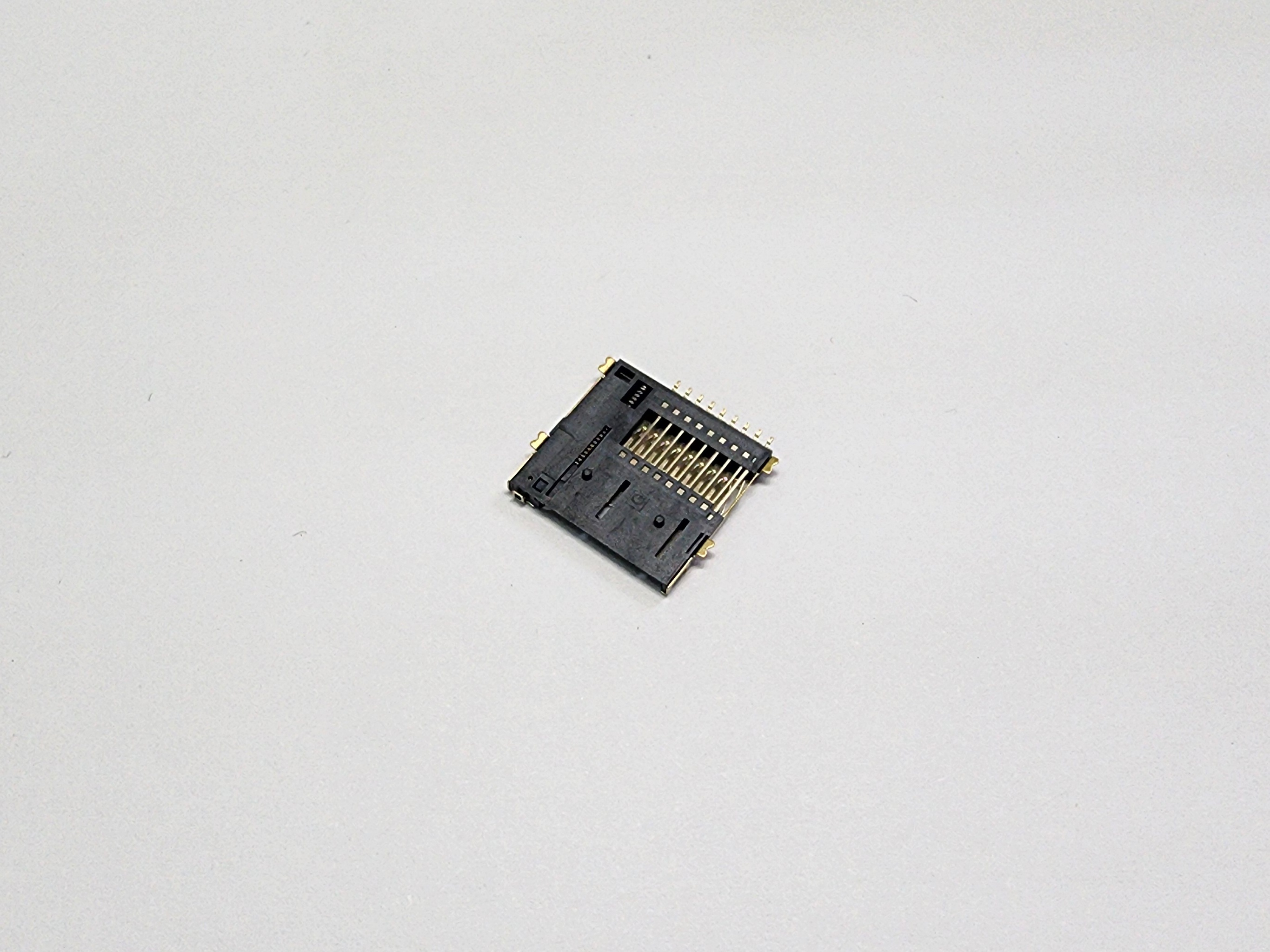

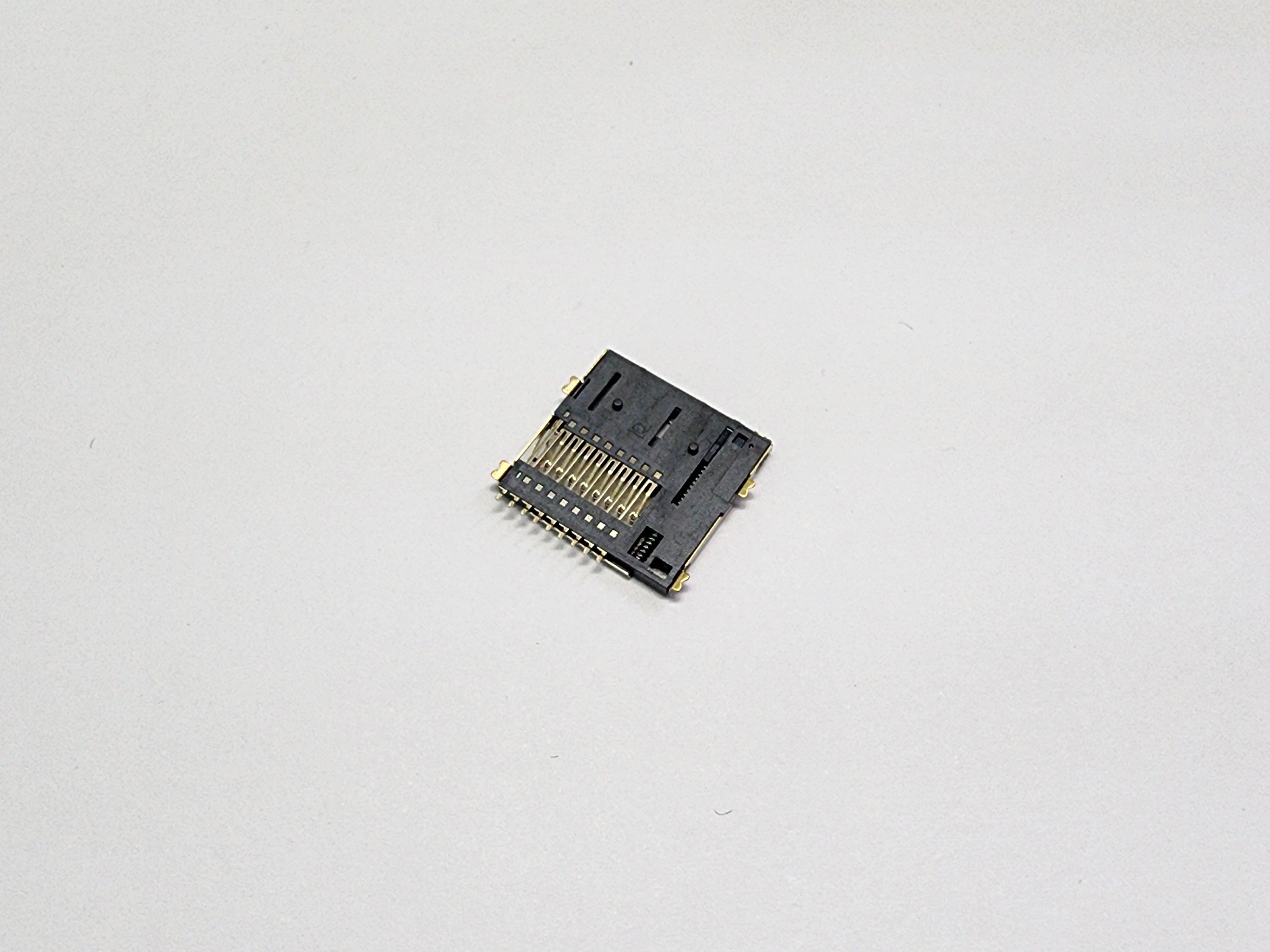

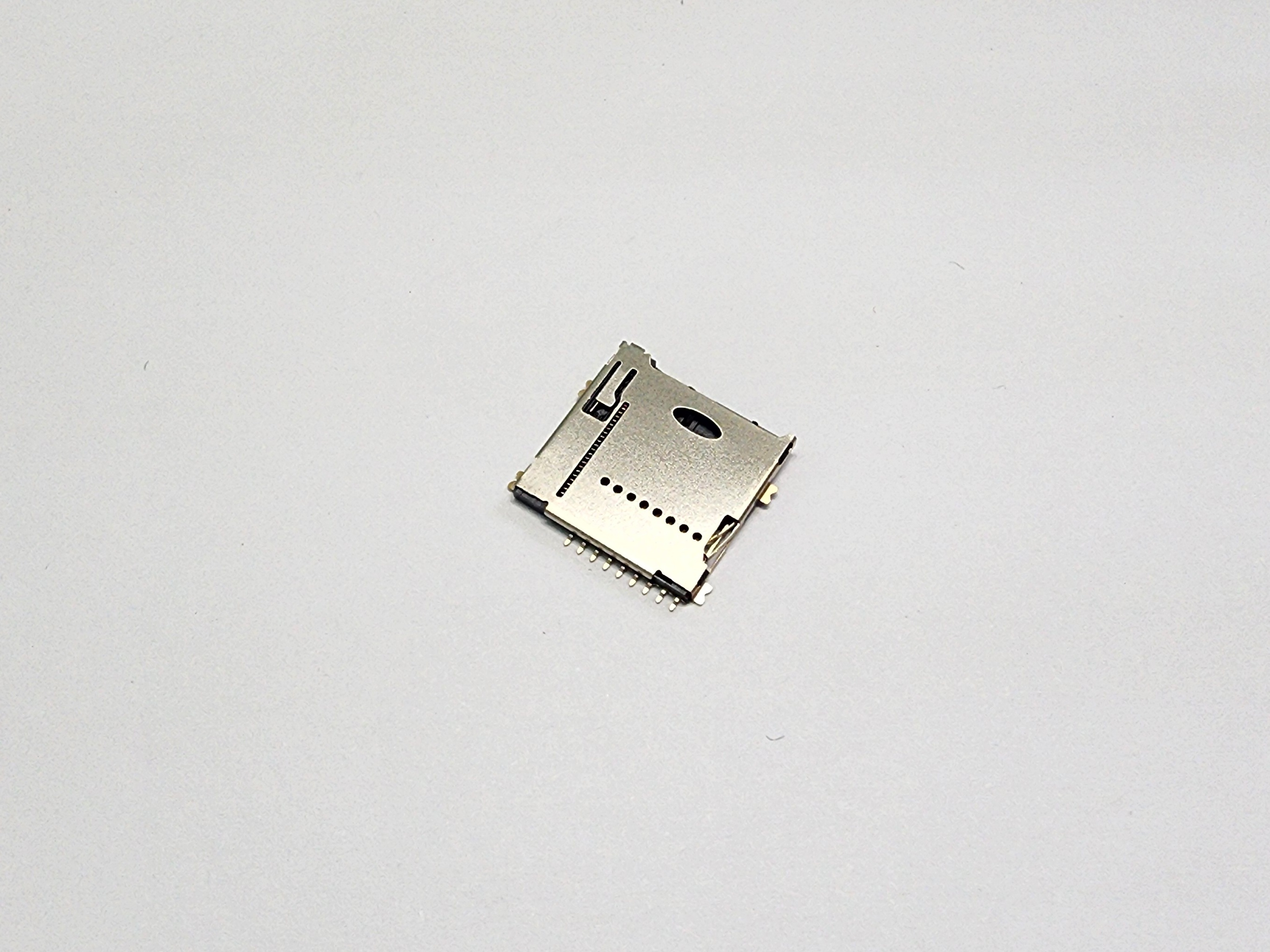

CMSD-PS9VSG0-P13

Description

  • Micro SD Card Socket Connector
  • Push/Push Type
  • Standard Type
  • 9Pins
  • Gold Flash Plating
  • SMD
  • H=1.40mm High
  • With Posts
  • Metal Cover
  • With Detect Pin
  • High Temperature Thermoplastic
  • Black Color

Micro SD Card, SMD, Push/Push Type, 9Pins, With Detect Pin, H=1.40mm Height, With Posts, Metal Cover, Black Color

Material

  • Housing: High Temperature Thermoplastic, UL 94V-0 Rated.
  • Color: Black.
  • Contact: Copper Alloy.
  • Plating: Gold Plating on Contact Area;
  • Tin 100u" Plating on Solder Tail;
  • Nickel UnderPlating 50u" Thickness Min. Over All.
  • Shell: Stainless Steel.
  • Plating: Gold Flash on Solder PAD.
  • Nickel Plating 50u" Thickness Min. Over All.

Mechanical

  • Mating Cycles: 5,000 Insertions.

Electrical Specification

  • Current Rating: 0.5 Ampere Max.
  • Voltage Rating: 5V.
  • Contact Resistance: 100mΩ Max.
  • Insulation Resistance: 1000MΩ Min at 500VDC.
  • Dielectric Withstanding Voltage: 100 V AC(rms)/DC.

Environmental

  • Operating Temperature: -40°C to +85°C.
  • Storage Temperature: -40°C to +85°C.
  • Humidity Range: 95% R.H. Max.
  • RoHS Compliance.
  • REACH Compliance.
