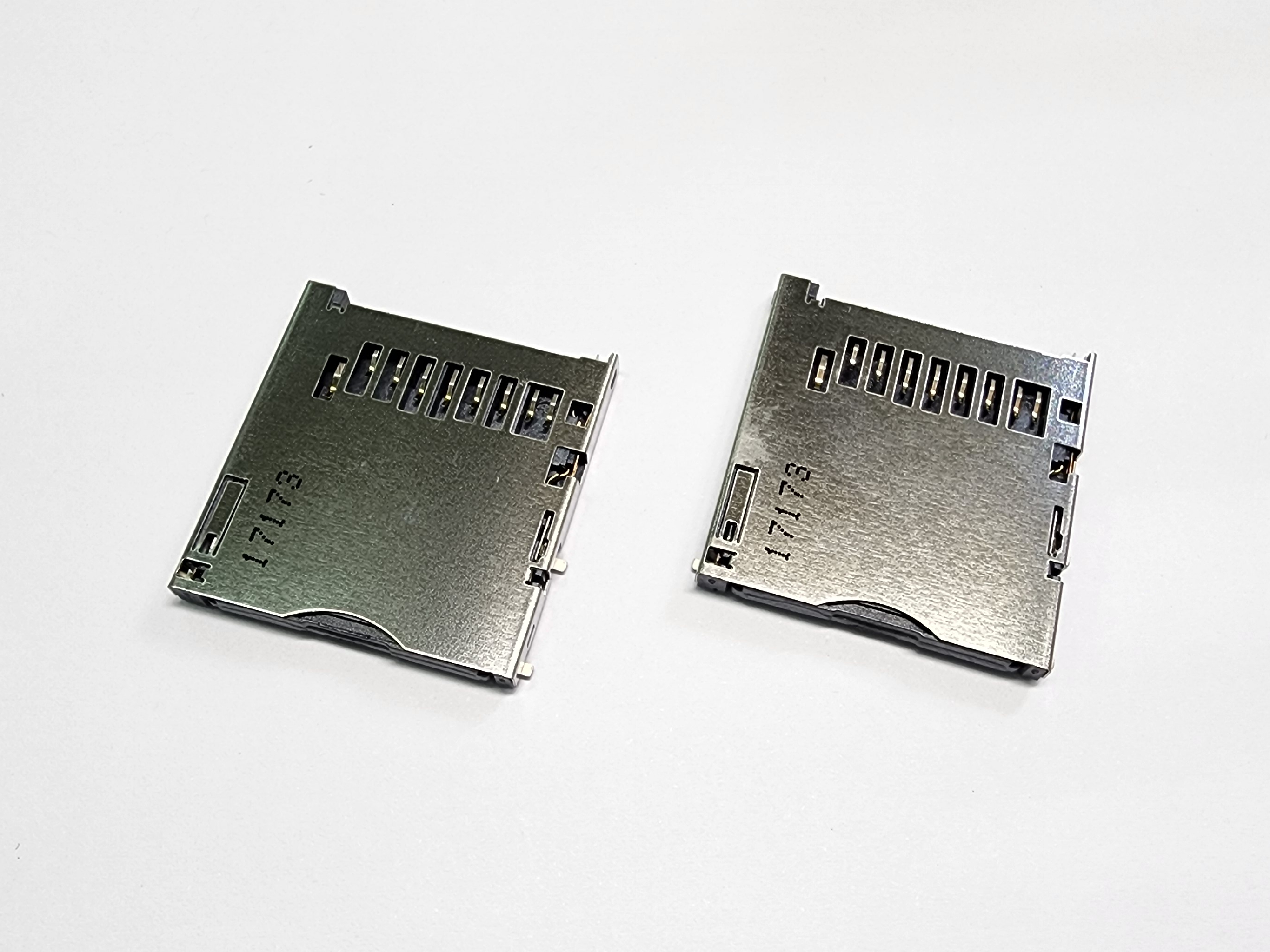

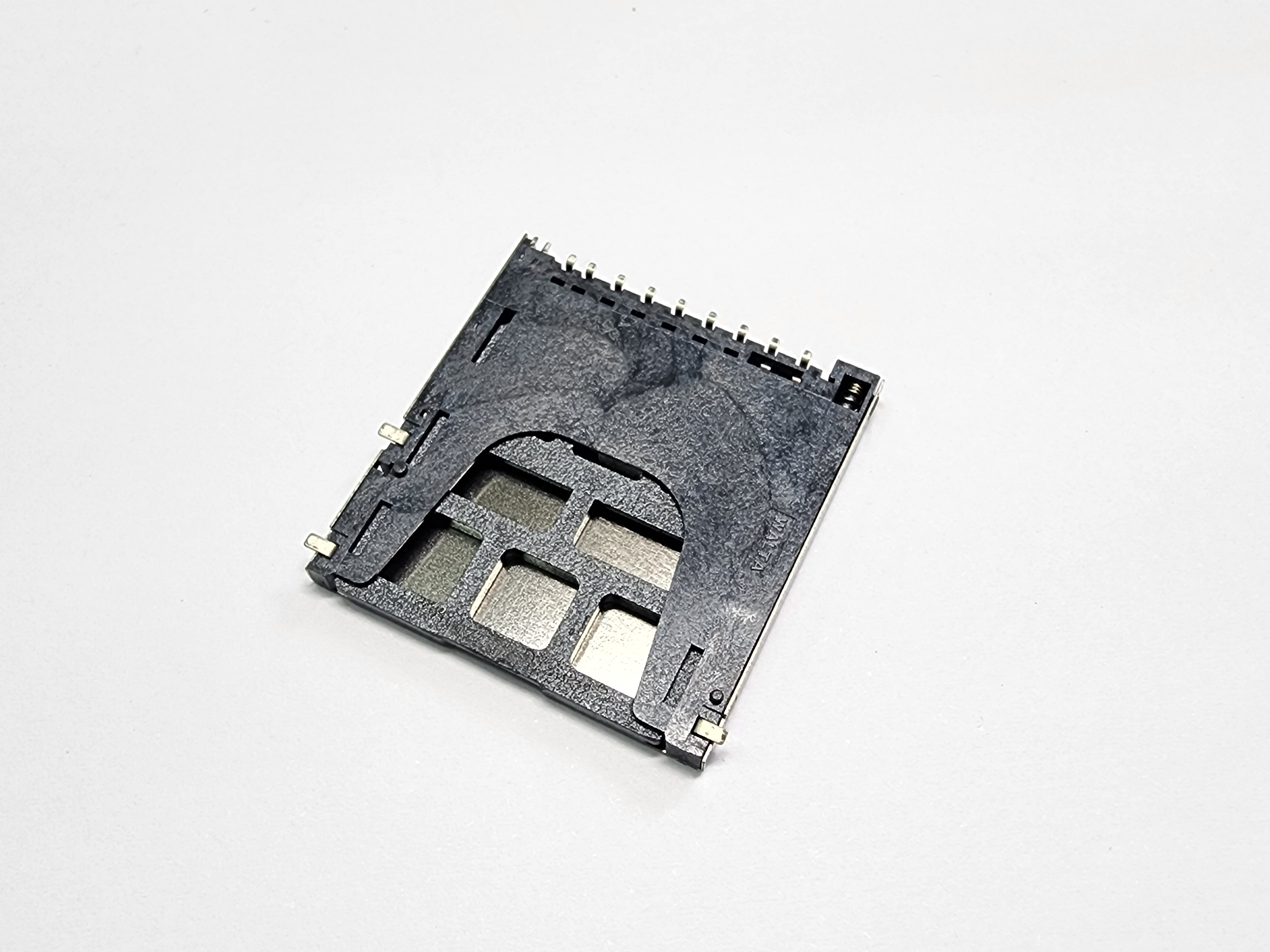

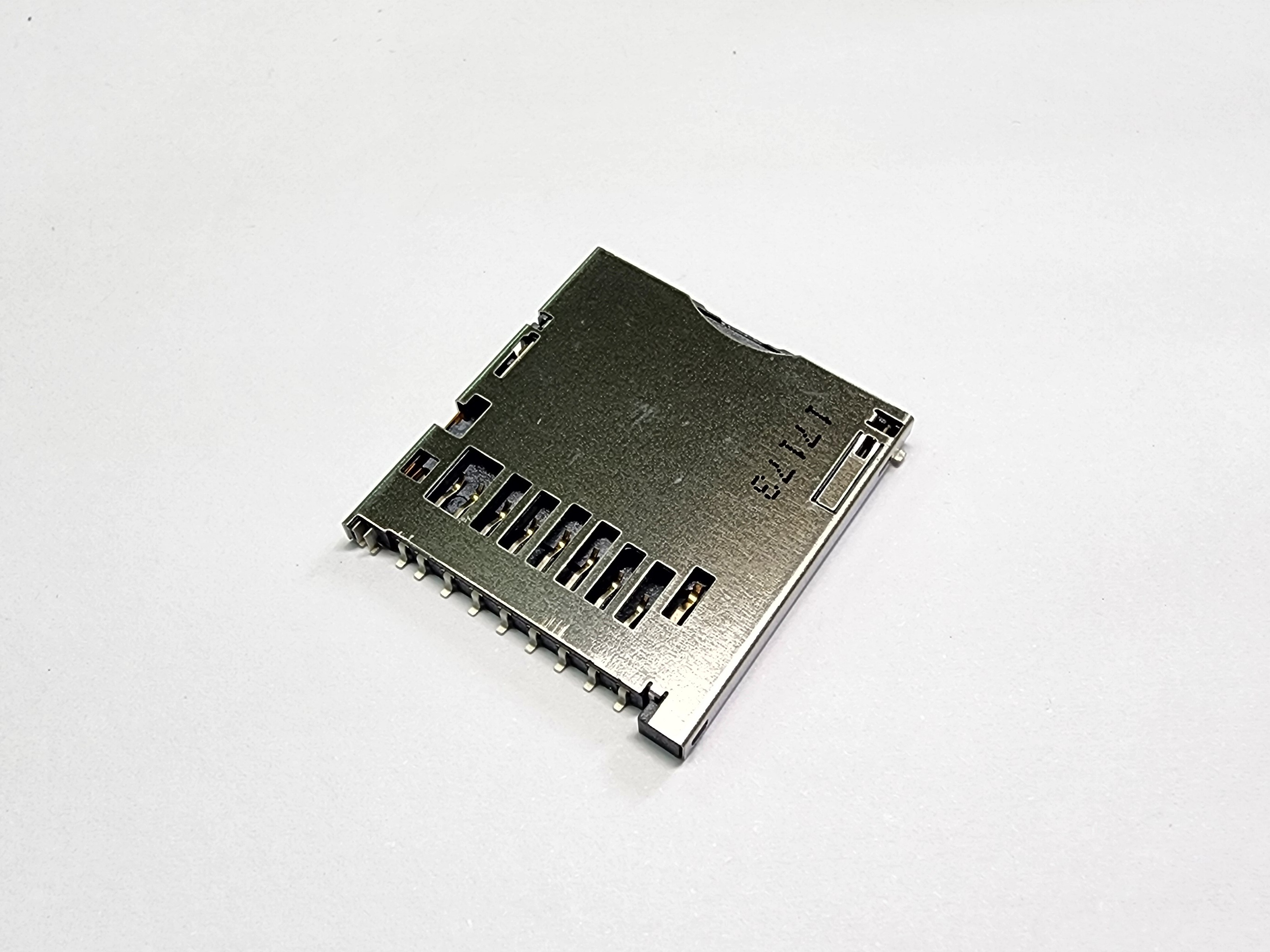

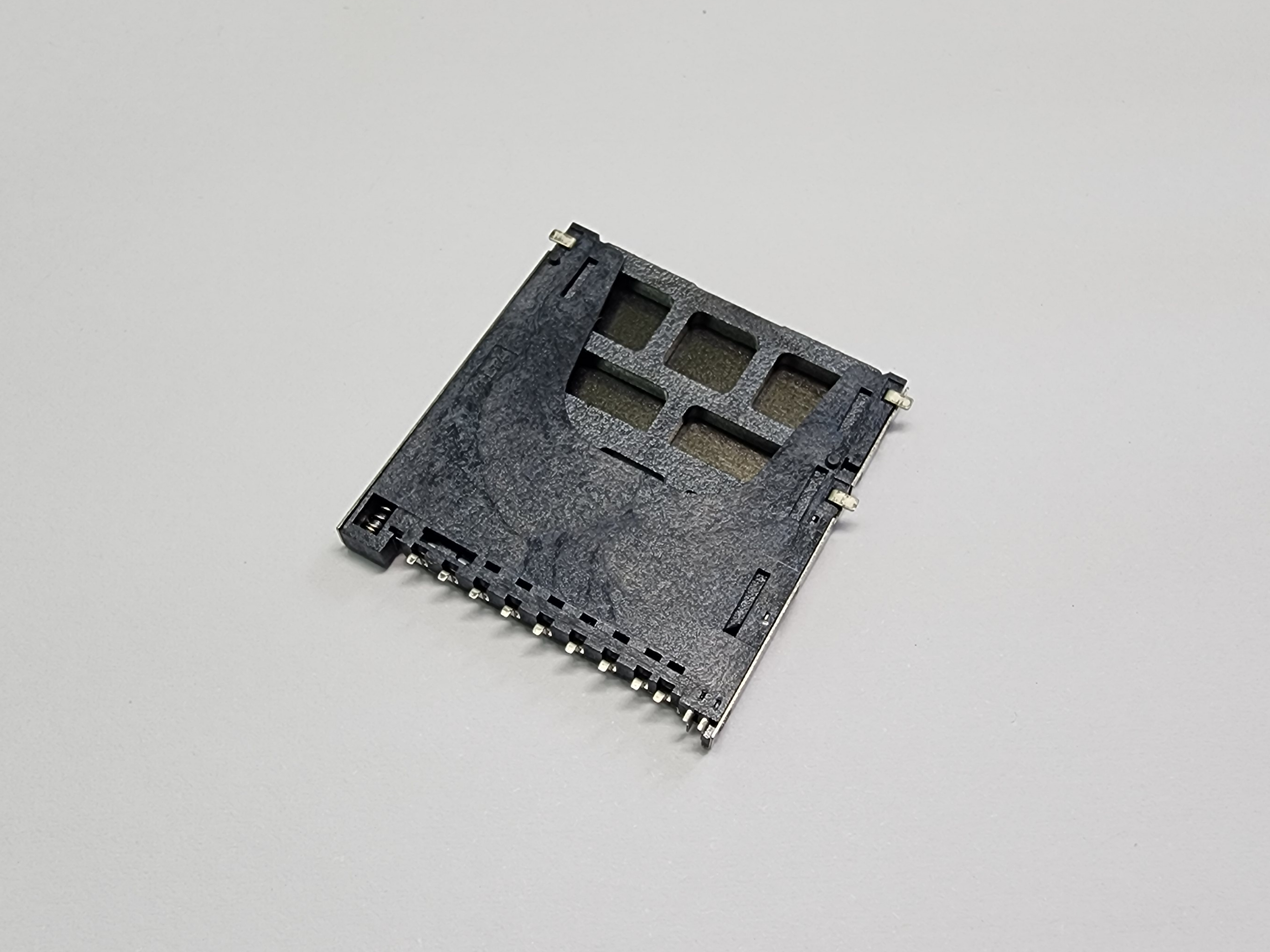

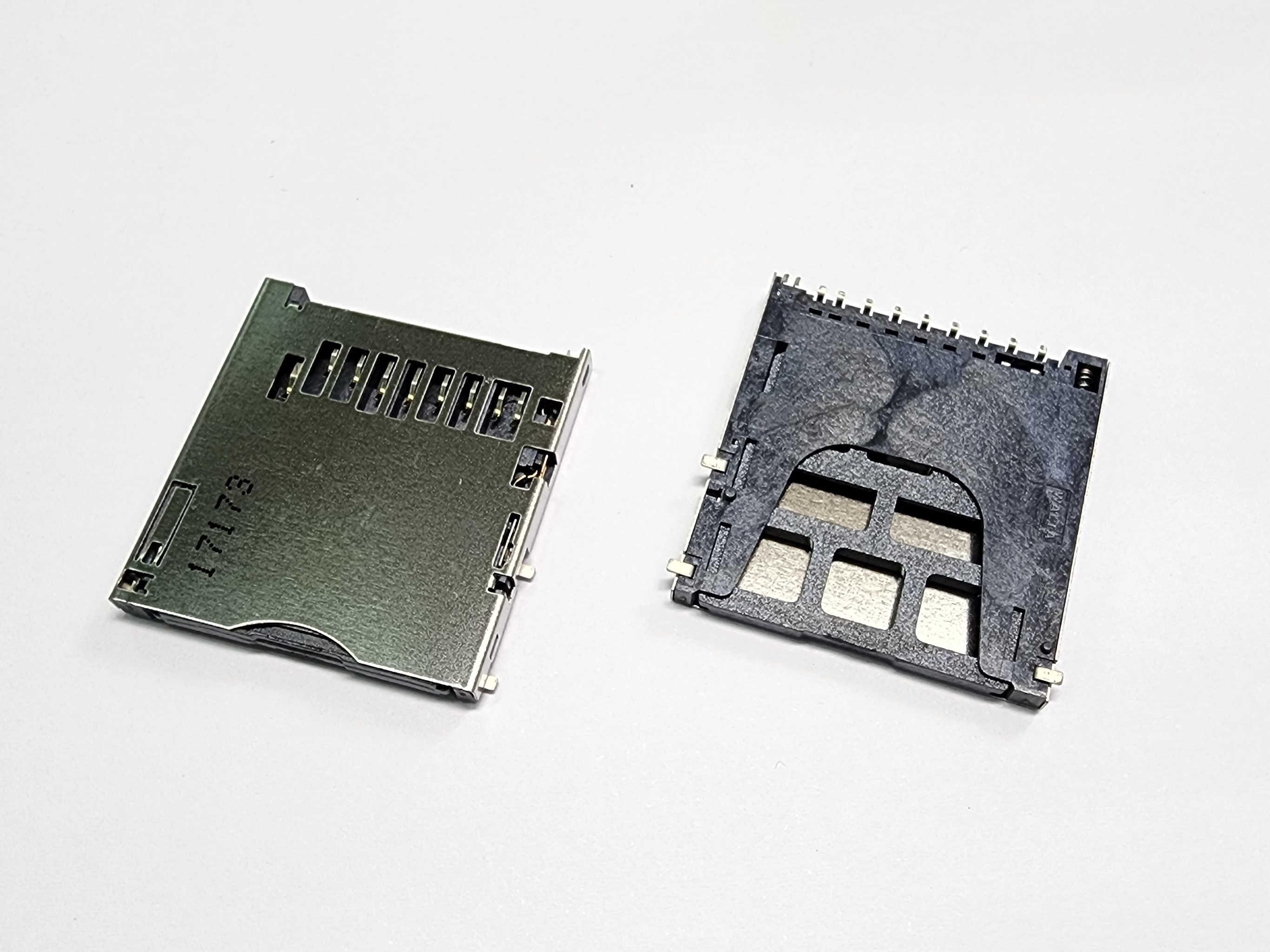

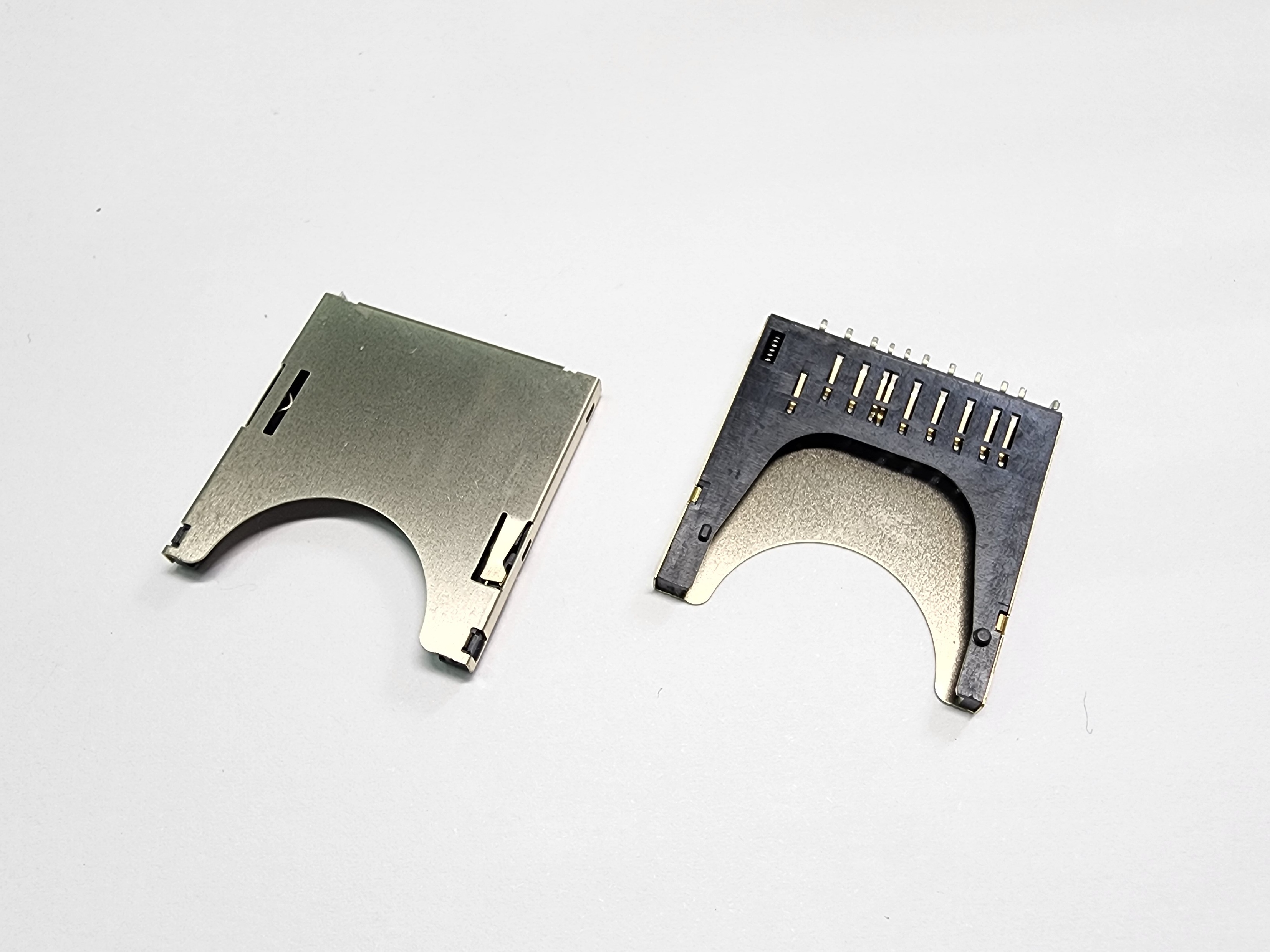

CSDC-PR9VS10-623

SD Card Socket Connector, SMD, Push/Push Type, 9Pins, 5u" Gold Plating, Reverse Type, H=2.85mm Height, With Posts, With Switch, LCP, Black Color

Material

• Housing: LCP, UL94V-0 Rated.
• Color: Black.
• Slide: LCP, UL94V-0 Rated.
• Color: Black.
• Contact: Copper Alloy.
• Plating: 5u" Gold Plating on Contact Area;
• 80u" Tin Plating on Solder Area;
• Nickel Underplating over All.
• S/W Pin: Copper Alloy.
• Hold Down: Copper Alloy.
• Shell: SUS304.
• Plating: 80u" Tin Plating on Solder Area;
• Nickel Plating over All.
• Spring: SWP.
• Crank-Axle: SUS304.

Mechanical

• Contact Retention Force: 2.5N Min.
• Insertion Force: 40N Max.
• Withdrawal Force: 2N Min.
• Durability: 10,000 Cycles.

Electrical Specification

• Current Rating: 0.5 Ampere Max.
• Contact Resistance: 100mΩ Max.
• Contact Resistance: 60mΩ Max.
• Insulation Resistance: 1000MΩ Min at 100V DC.
• Dielectric Withstanding Voltage: 500V AC for One Minute.

Environmental

• Operating Temperature: -25°C to +90°C.
• RoHS Compliance.
• REACH Compliance.
