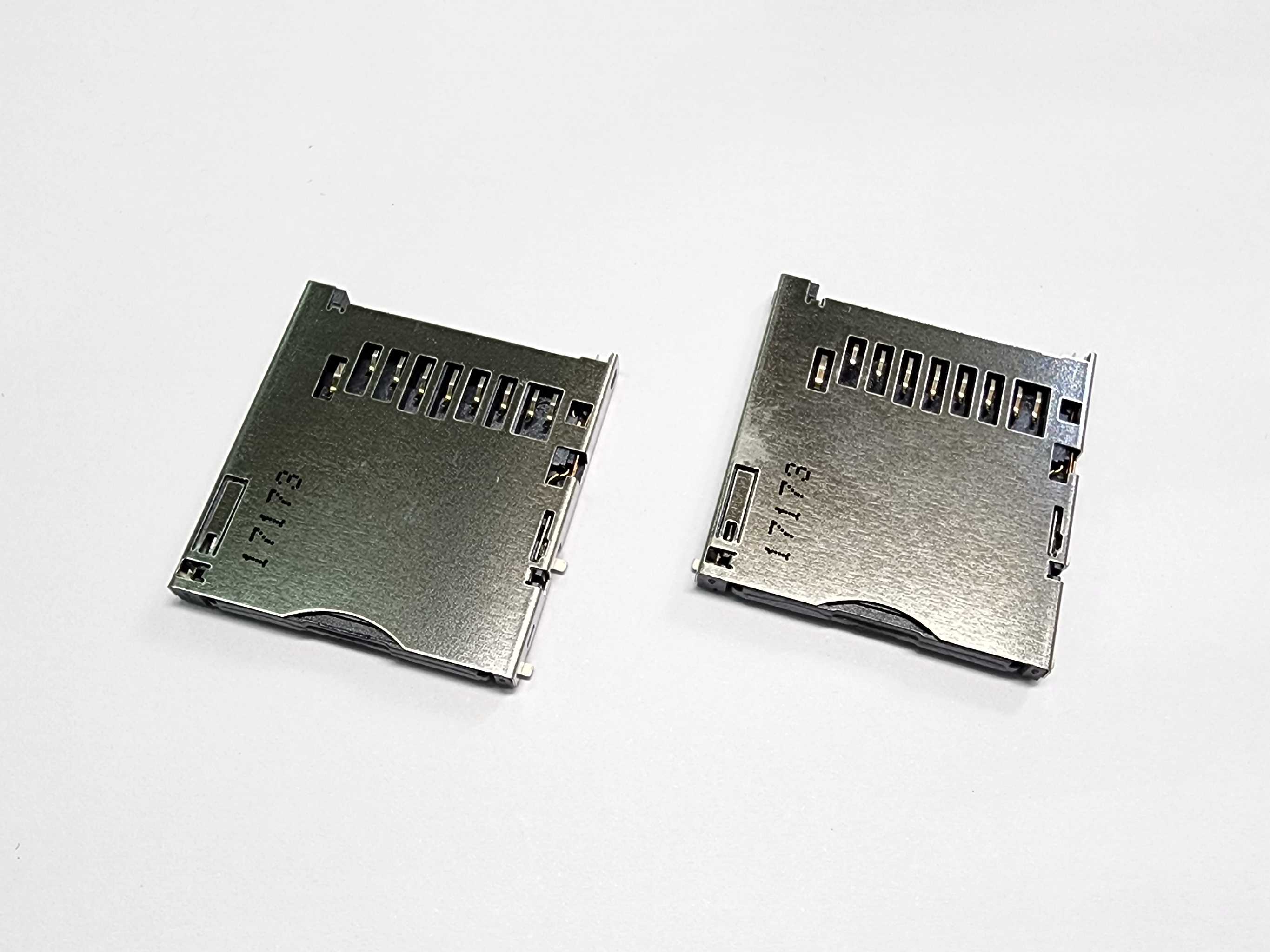

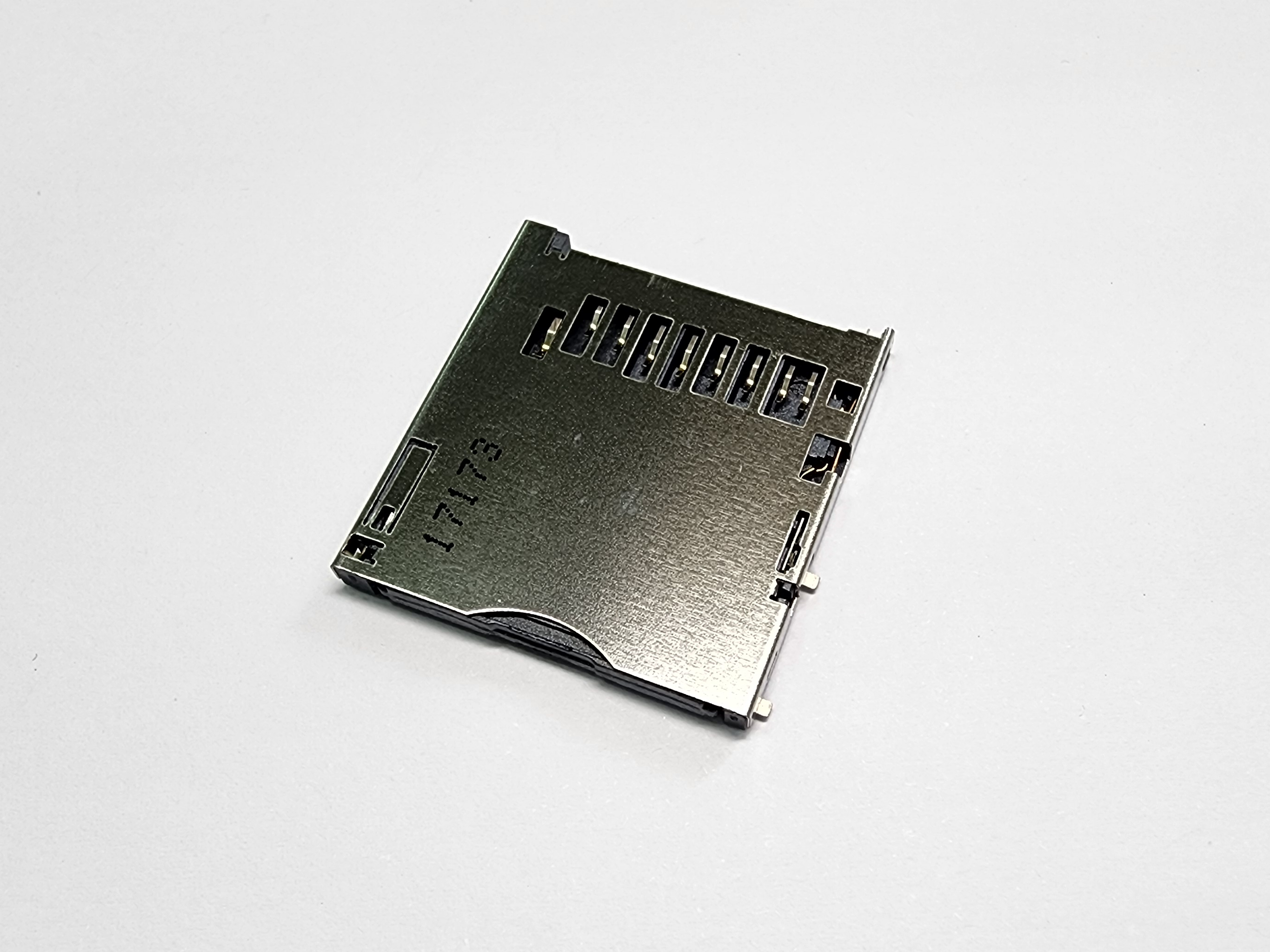

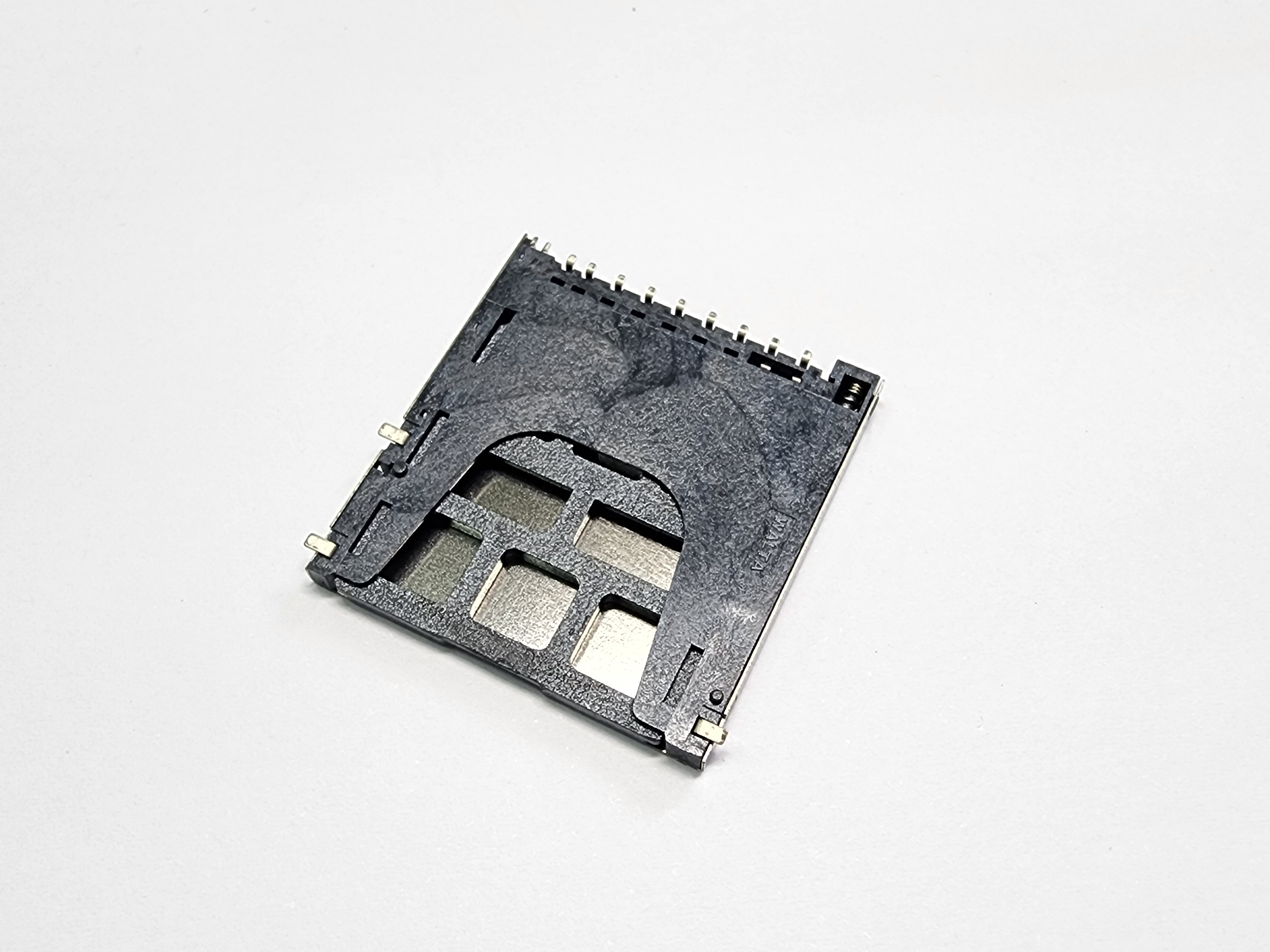

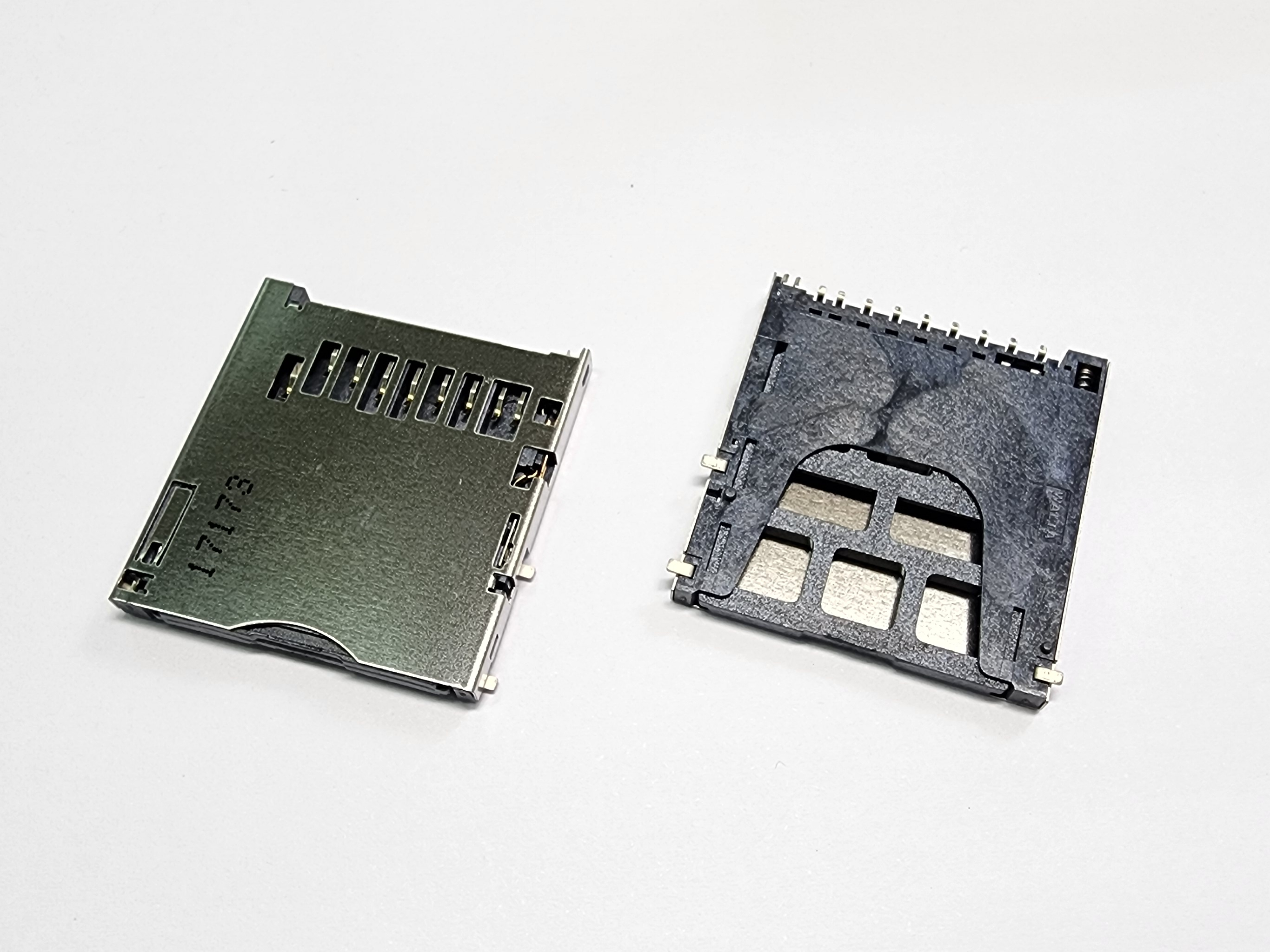

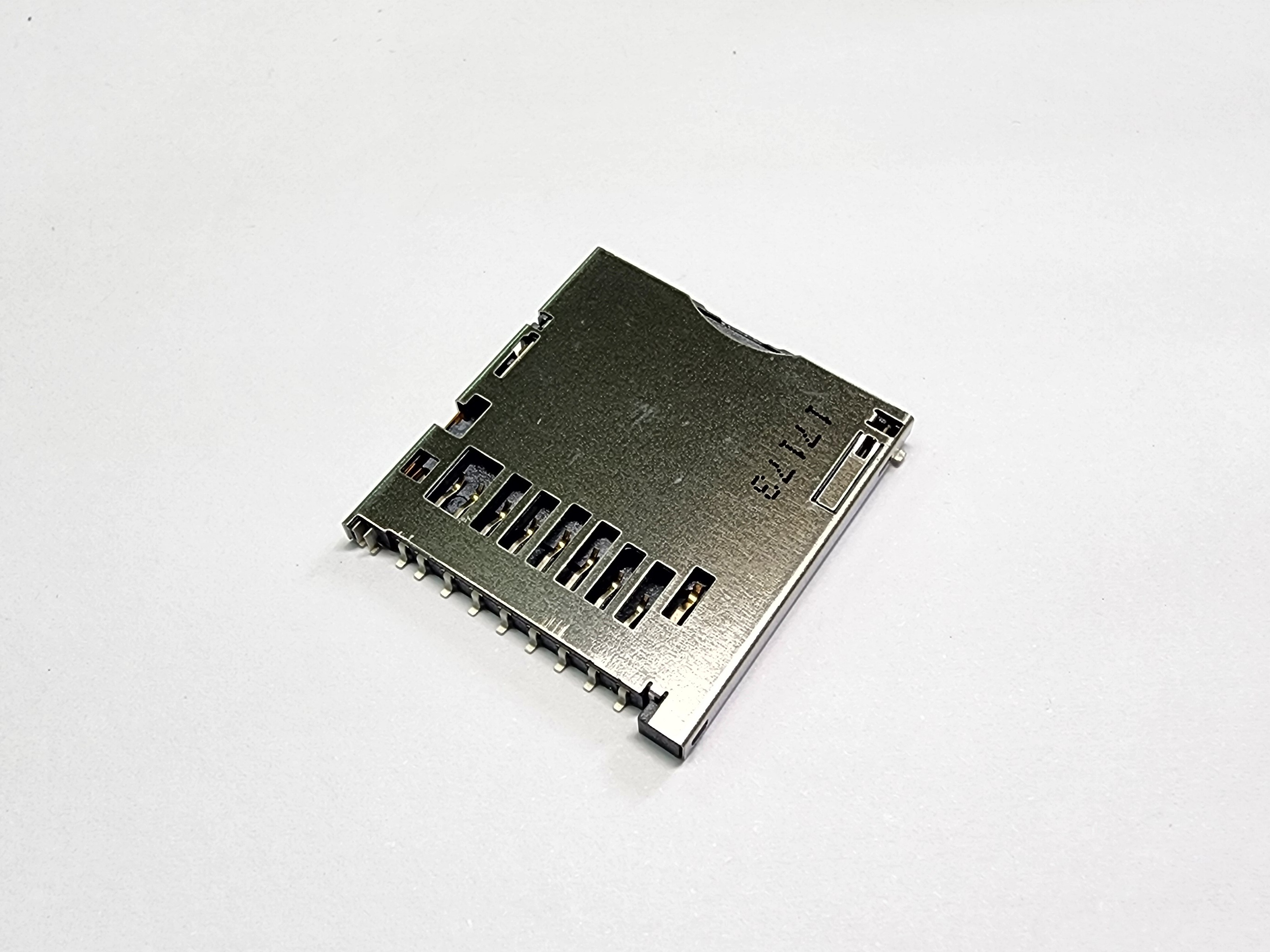

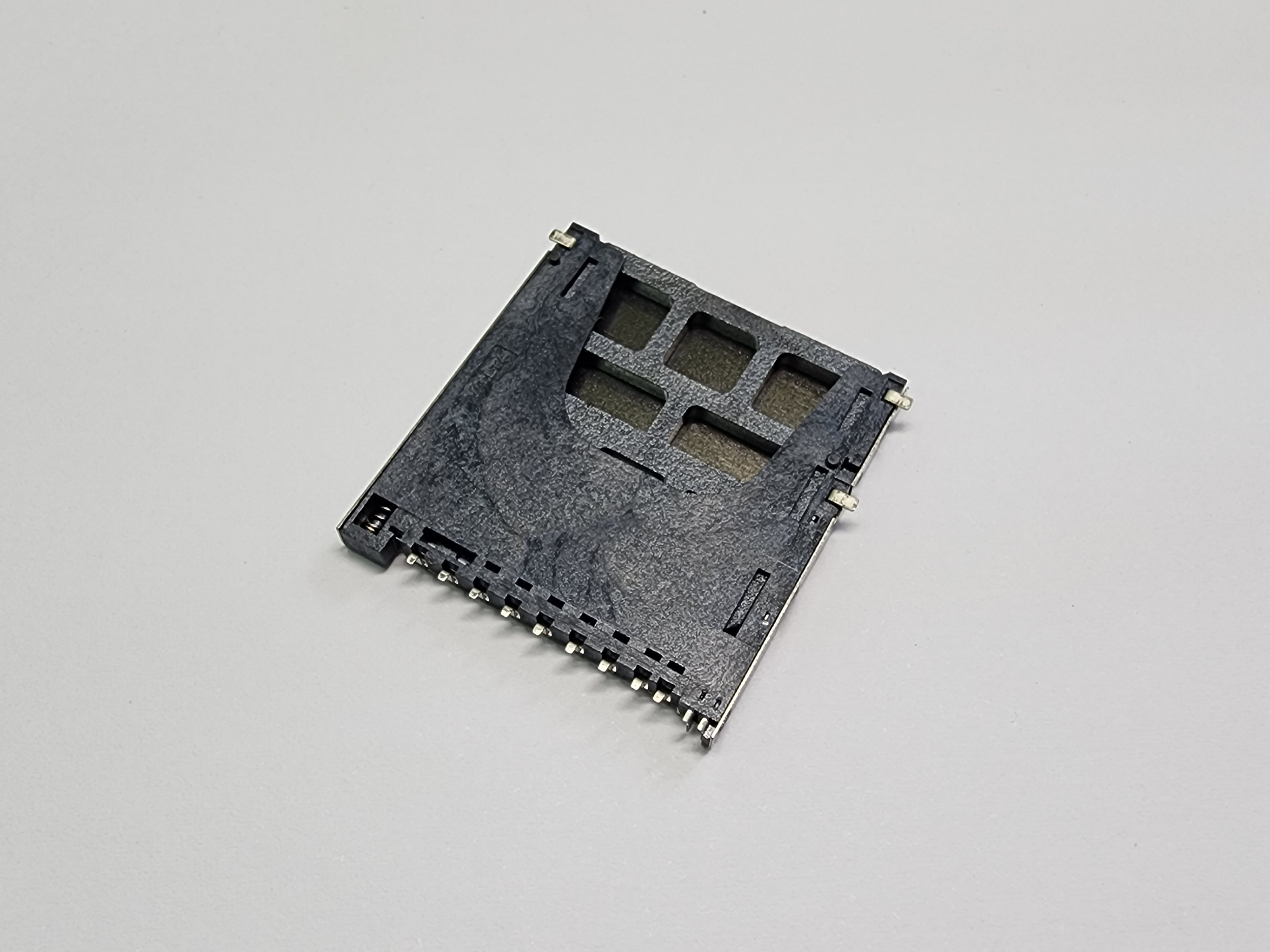

CSDC-PR9VS10-623
Description
- SD Card Socket Connector
- Push/Push Type
- Reverse Type
- 9Pins
- 5u” Gold Plating
- SMD
- H=2.85mm High
- With Posts
- With Switch
- LCP
- Black Color
SD Card Socket Connector, SMD, Push/Push Type, 9Pins, 5u" Gold Plating, Reverse Type, H=2.85mm Height, With Posts, With Switch, LCP, Black Color
Material
- Housing: LCP, UL94V-0 Rated.
- Color: Black.
- Slide: LCP, UL94V-0 Rated.
- Color: Black.
- Contact: Copper Alloy.
- Plating: 5u" Gold Plating on Contact Area;
- 80u" Tin Plating on Solder Area;
- Nickel Underplating over All.
- S/W Pin: Copper Alloy.
- Hold Down: Copper Alloy.
- Shell: SUS304.
- Plating: 80u" Tin Plating on Solder Area;
- Nickel Plating over All.
- Spring: SWP.
- Crank-Axle: SUS304.
Mechanical
- Contact Retention Force: 2.5N Min.
- Insertion Force: 40N Max.
- Withdrawal Force: 2N Min.
- Durability: 10,000 Cycles.
Electrical Specification
- Current Rating: 0.5 Ampere Max.
- Contact Resistance: 100mΩ Max.
- Contact Resistance: 60mΩ Max.
- Insulation Resistance: 1000MΩ Min at 100V DC.
- Dielectric Withstanding Voltage: 500V AC for One Minute.
Environmental
- Operating Temperature: -25°C to +90°C.
- RoHS Compliance.
- REACH Compliance.
