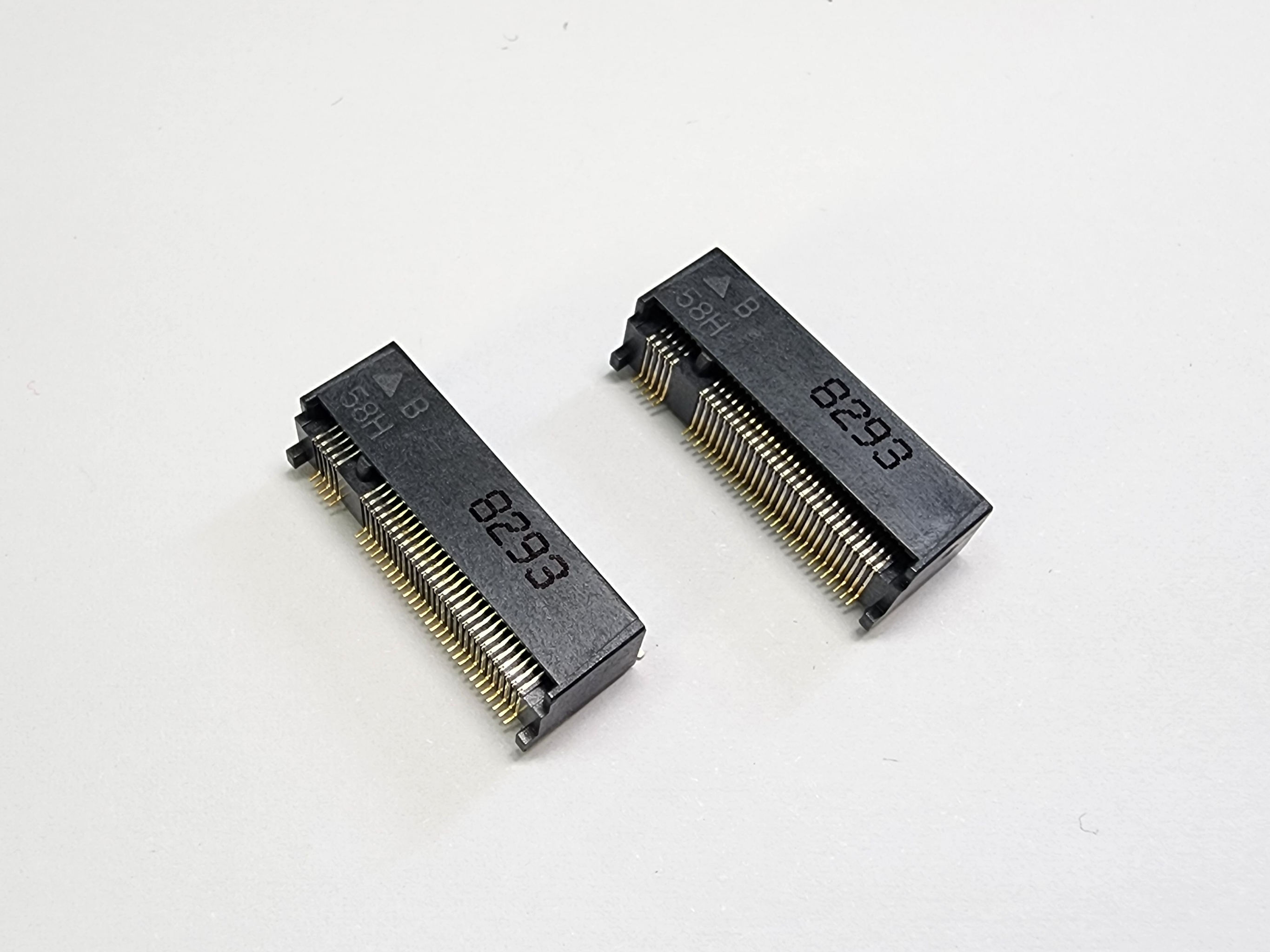

CM2C-B67RSG0-J2

M.2 Card Edge Connector, B Key, 67Pins, Right Angle, SMT, Gold Flash, H=2.150mm, LCP, Black Color

Material

• Housing: LCP, UL 94V-0 Rated.
• Color: Black.
• Contact: Phosphor Bronze(C5210R-EH).
• Plating: Gold Plating over Nickel on Contact Area;.
• Gold Plating over Nickel on Solder Tail.
• Solder Peg: Brass(C2680R-H).
• Plating: Tin Plating.

Mechanical

• Insertion Force: 20N Max.
• Extraction Force: 25N Min.
• Durability Test: 60 Cycles Min.

Electrical Specification

• Current Rating: 0.5 Ampere per Contact.
• Voltage Rating: 50V AC.
• Contact Resistance: 55mΩ Max.
• Insulation Resistance: 500MΩ Min.
• Dielectric Withstanding Voltage: 300V AC for One Minute.

Environmental

• Operating Temperature:  -40°C to +85°C.
• For Reflow Soldering Lead-Free Process.
• Soldering Heat Resistance Reflow Soldering 260°C.
• RoHS Compliance
• REACH Compliance.
