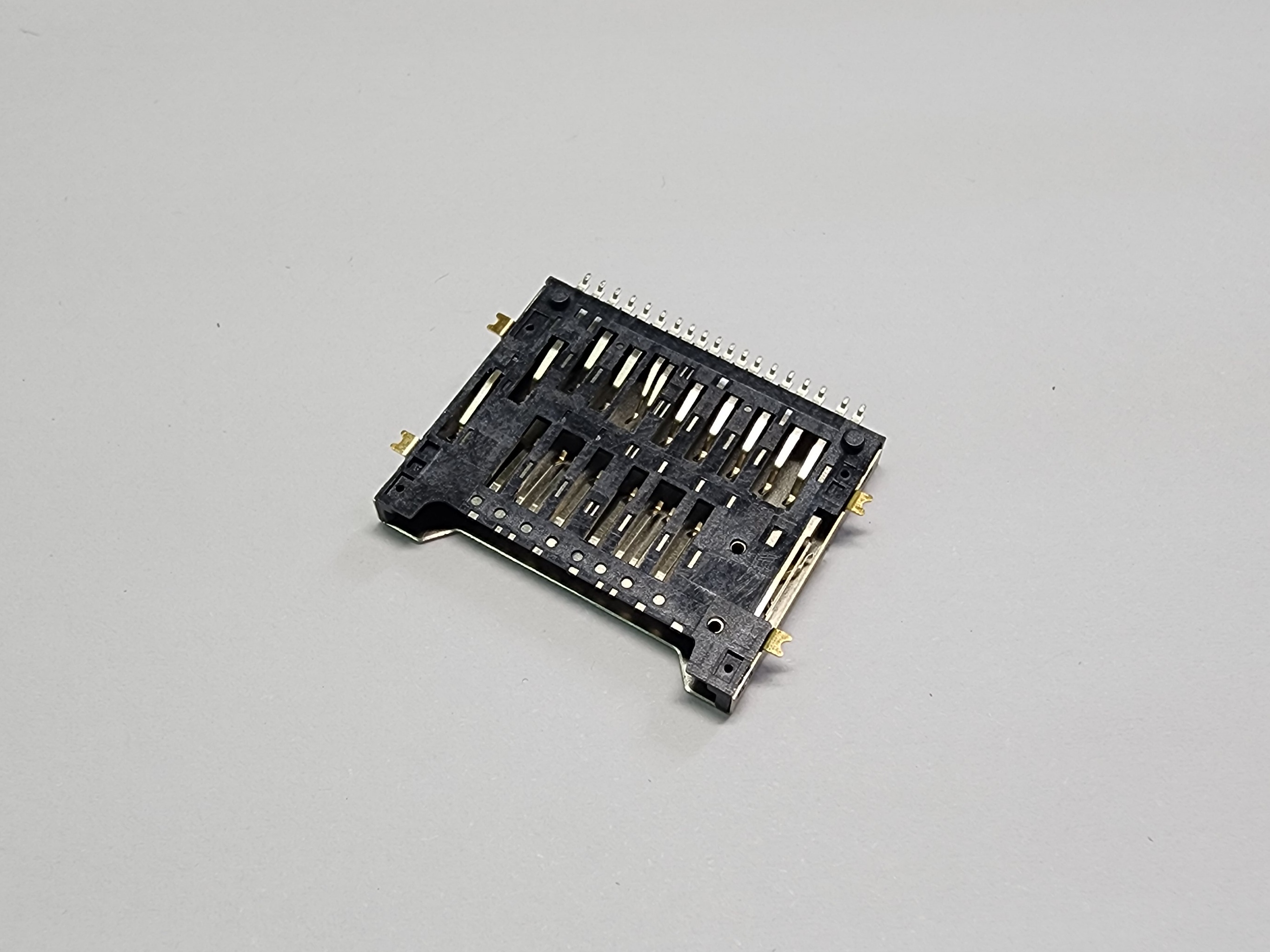

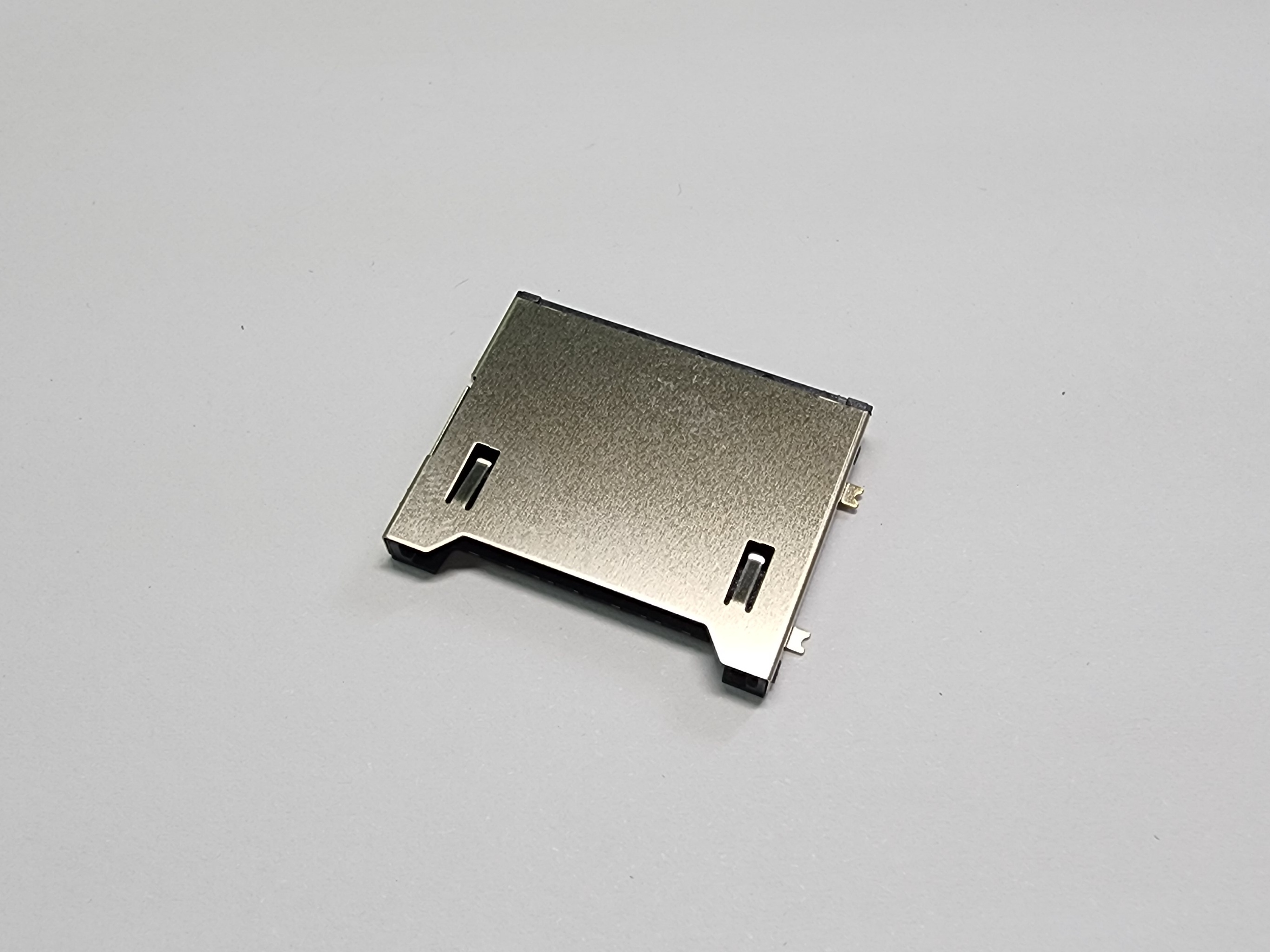

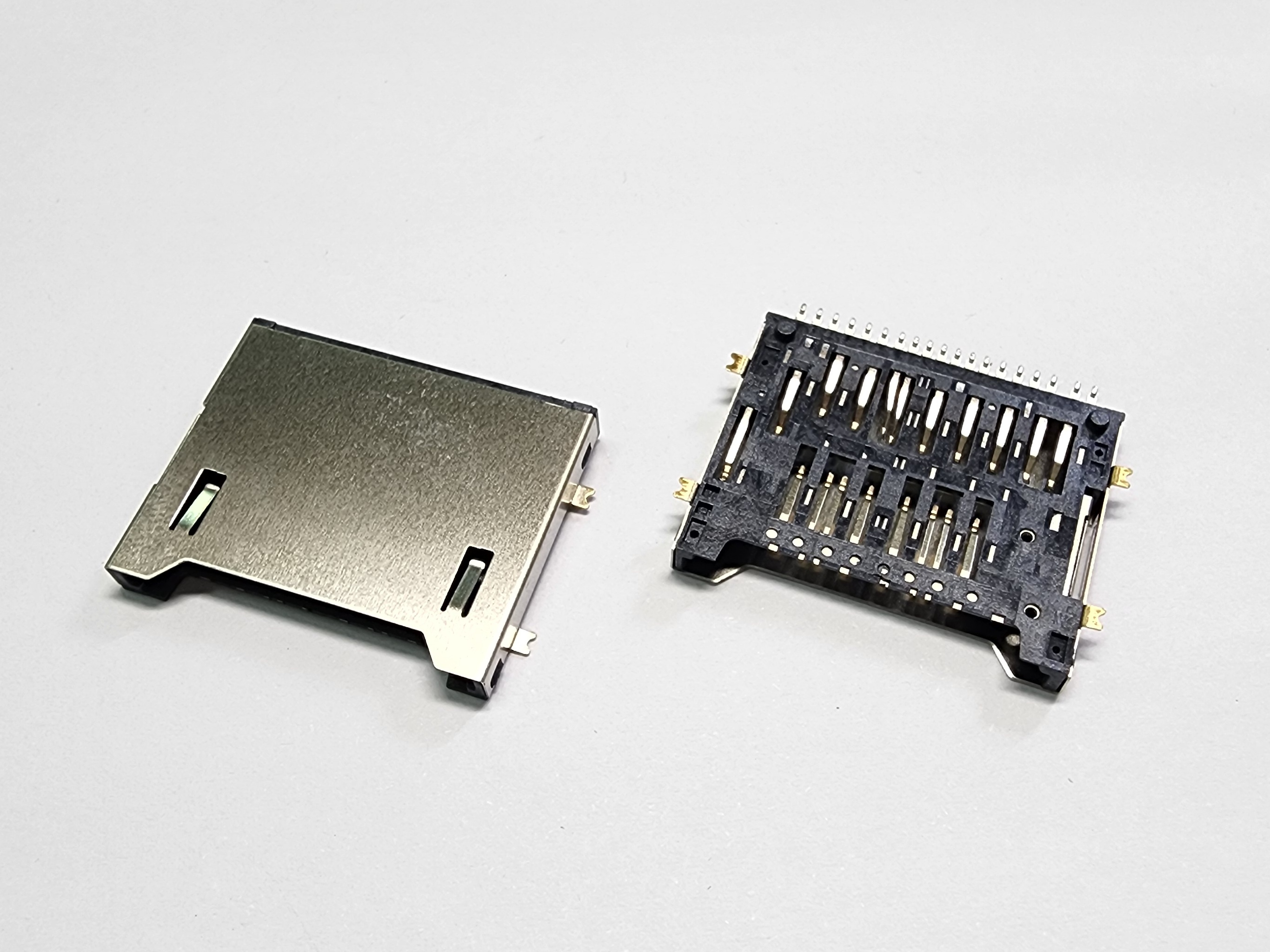

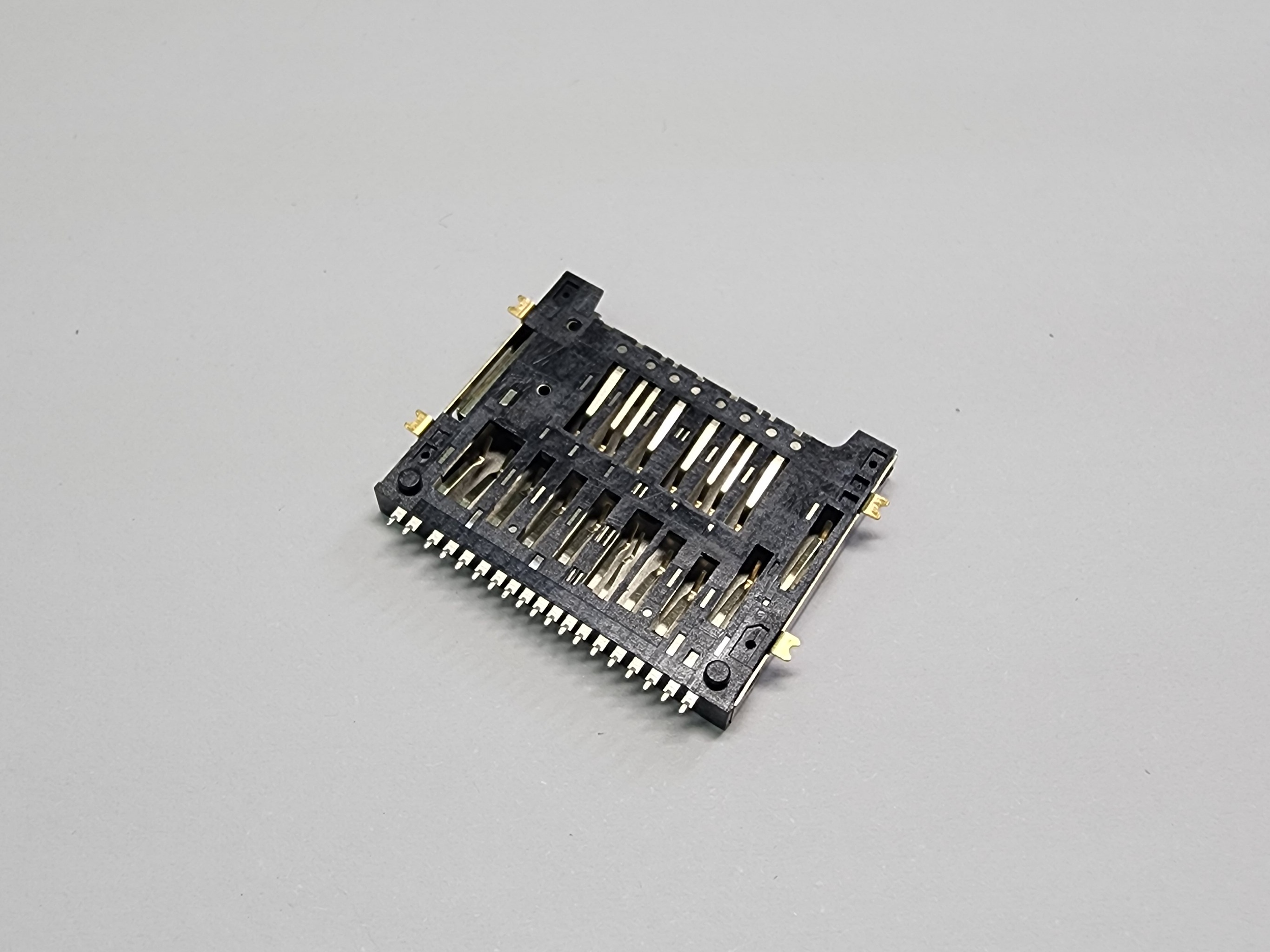

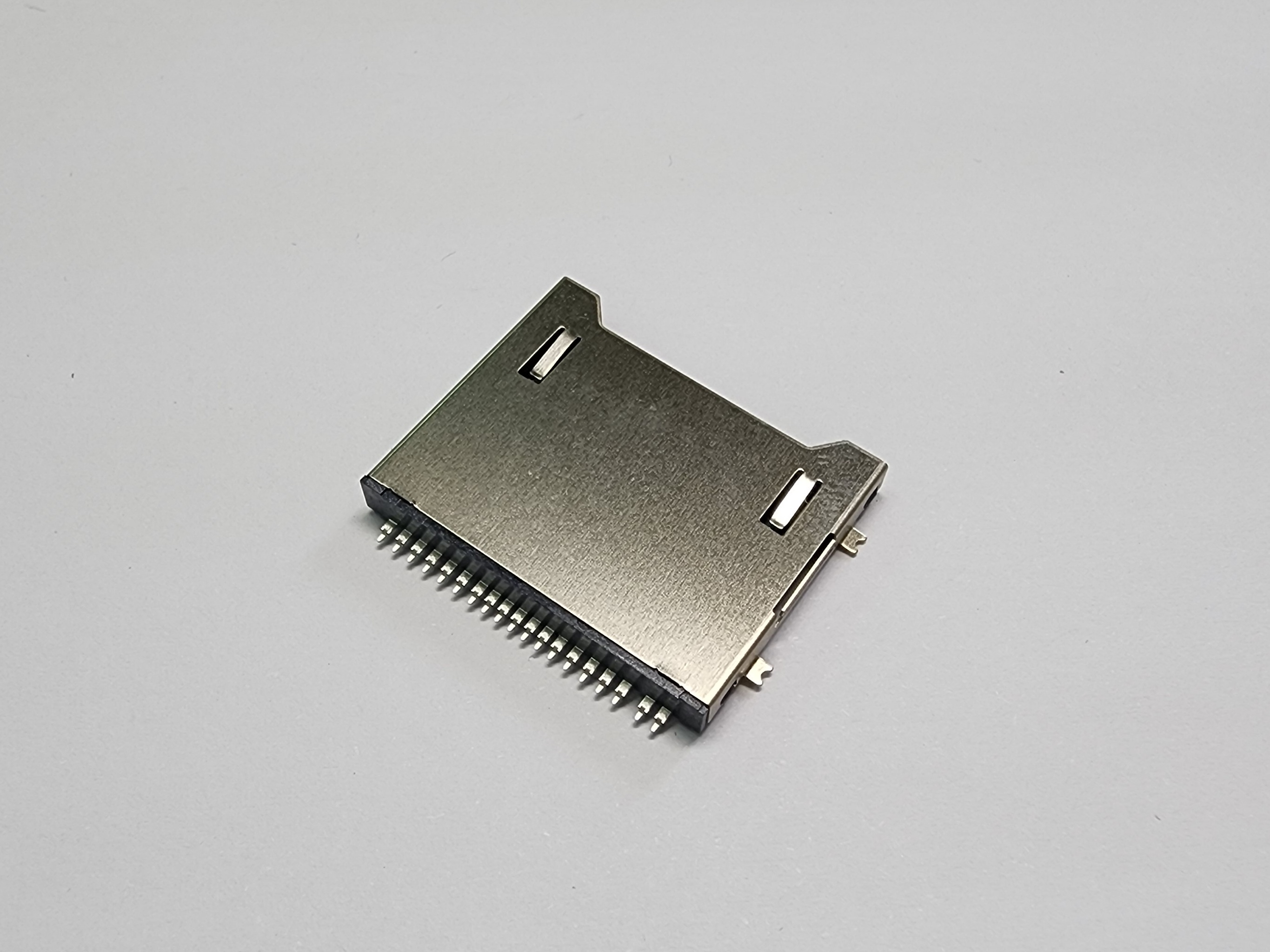

CSDC-QSJVSG0-843
Description
- SD Card 4.0 Socket Connector
- Push/Pull Type
- Standard Type
- 19Pins
- Gold Flash
- SMD
- H=2.90mm High
- L=21.20mm
- With Metal Shielding
- With 2Posts 22.80mm
- LCP
- Black Color
SD Card 4.0 Connector, SMD, Push/Pull Type, 19Pins, Standard Type, H=2.90mm Height, L=21.20mm, With Posts 22.80mm, With Metal Shielding, LCP, Black Color
Material
- Housing: LCP, UL 94V-0 Rated.
- Color: Black.
- Contact: Copper Alloy.
- Plating: Gold Plating over Nickel on Contact Area;
- Matte Tin Plating on Solder Tail.
- Shell: SUS304.
- Plating: Nickel Plating.
Mechanical
- Durability: 1,000Cycles.
Electrical Specification
- Voltage Rating: 10V AC Max.
- Current Rating: 1 Ampere Max.
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: 1000MΩ Min at 500VDC.
- Dielectric Withstanding Voltage: 500V AC for One Minute.
Environmental
- Operating Temperature: -25°C to +60°C.
- Storage Temperature: -40°C to +70°C.
- RoHS Compliance.
- REACH Compliance.
