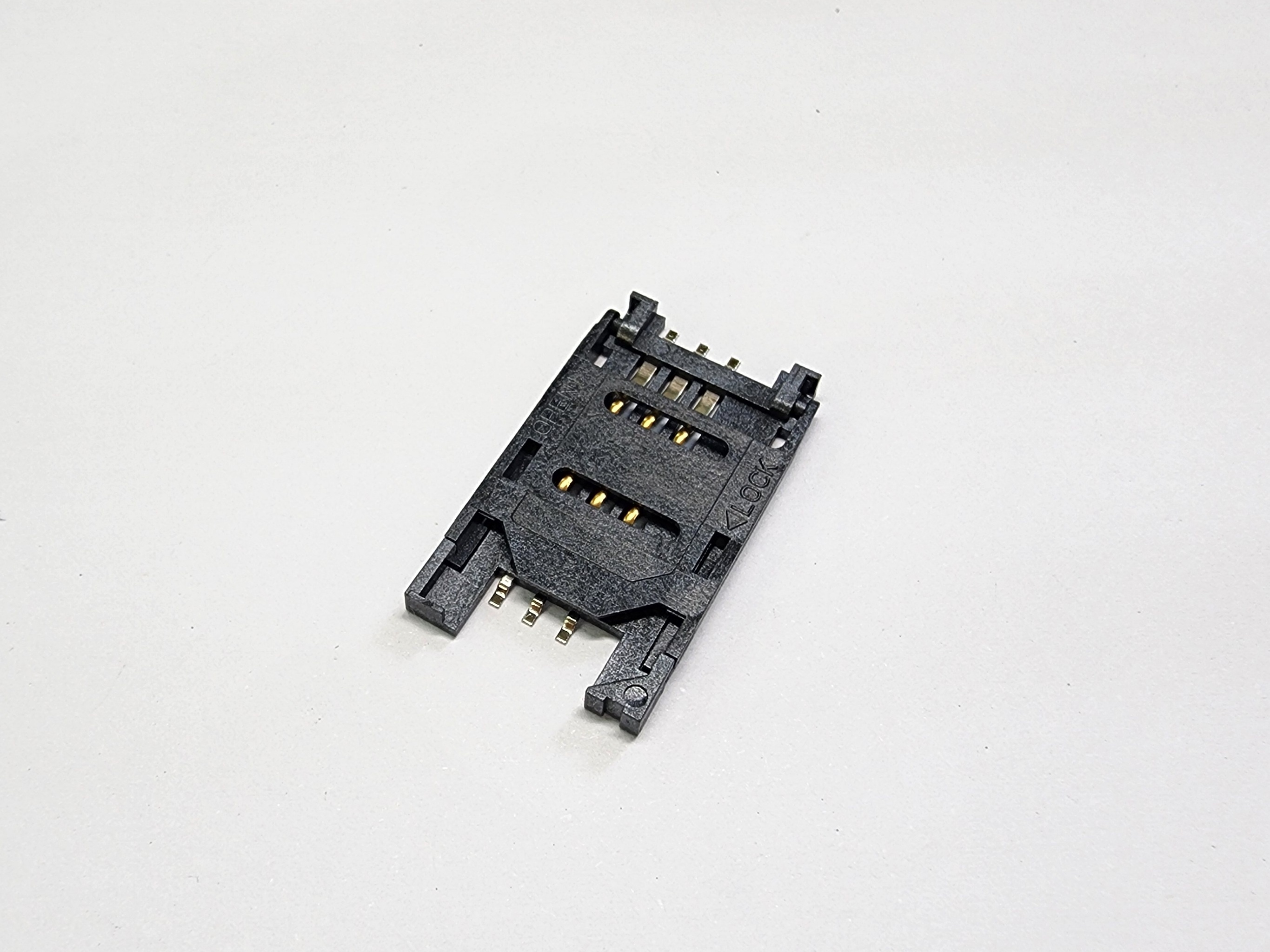

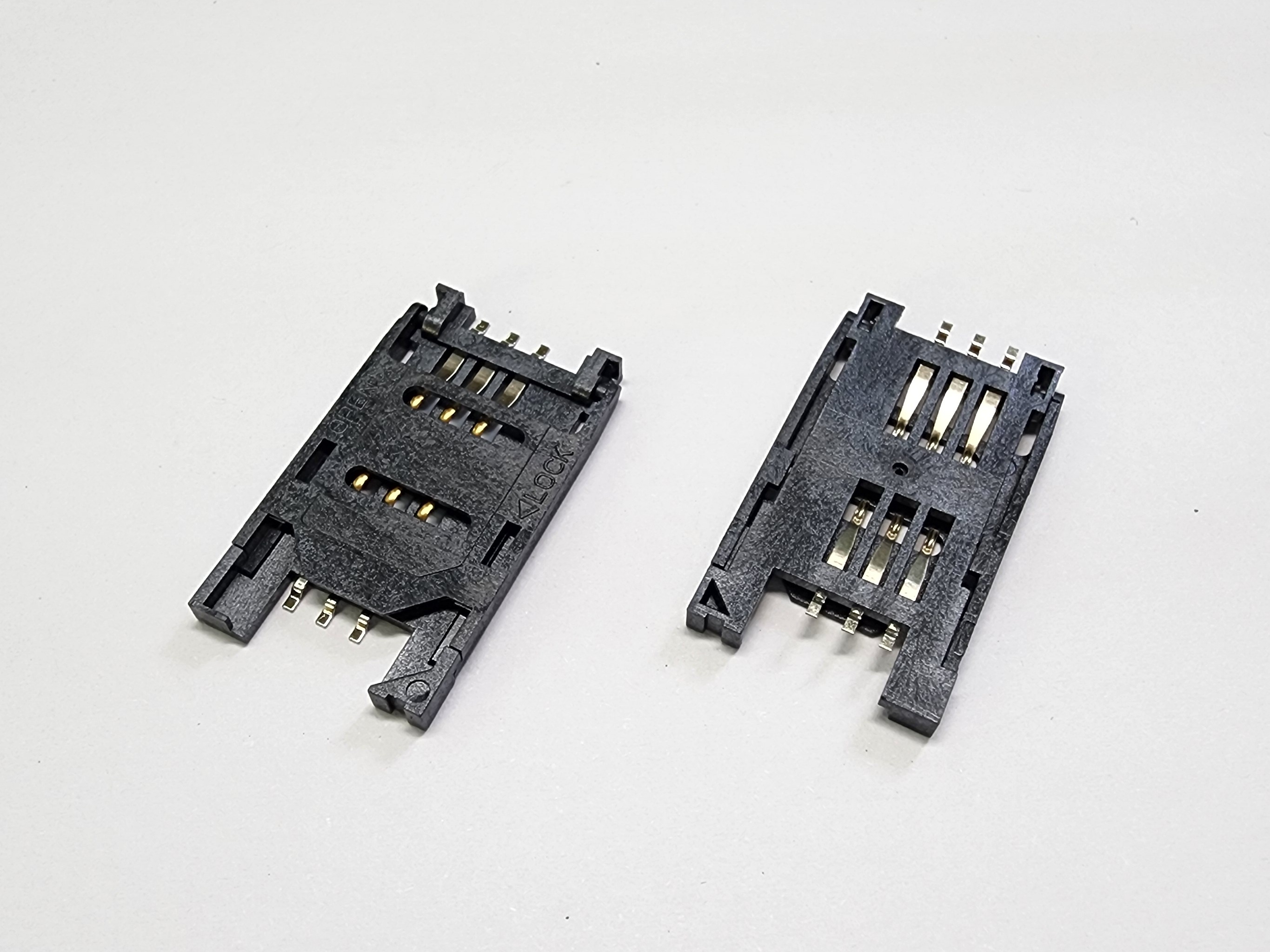

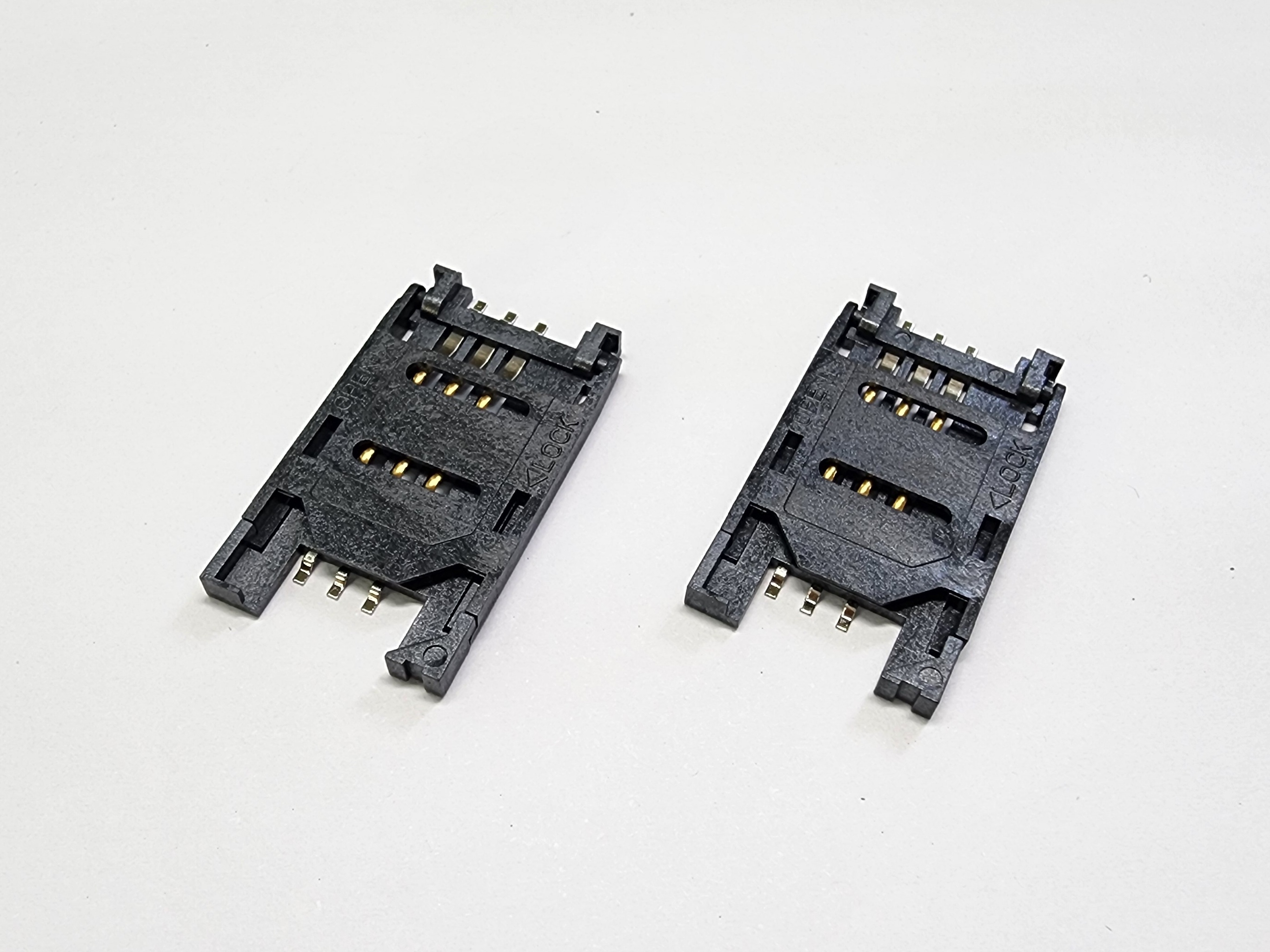

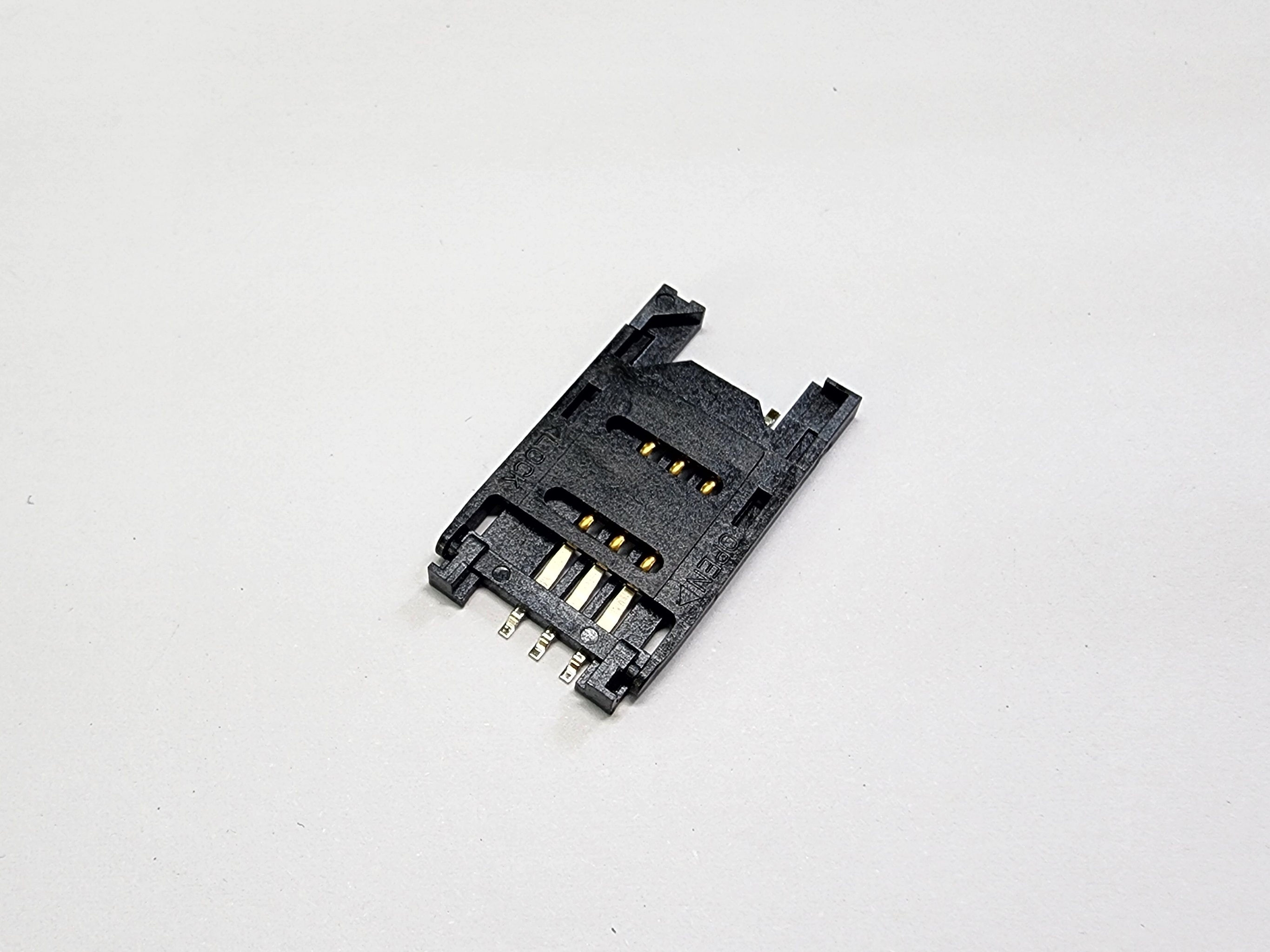

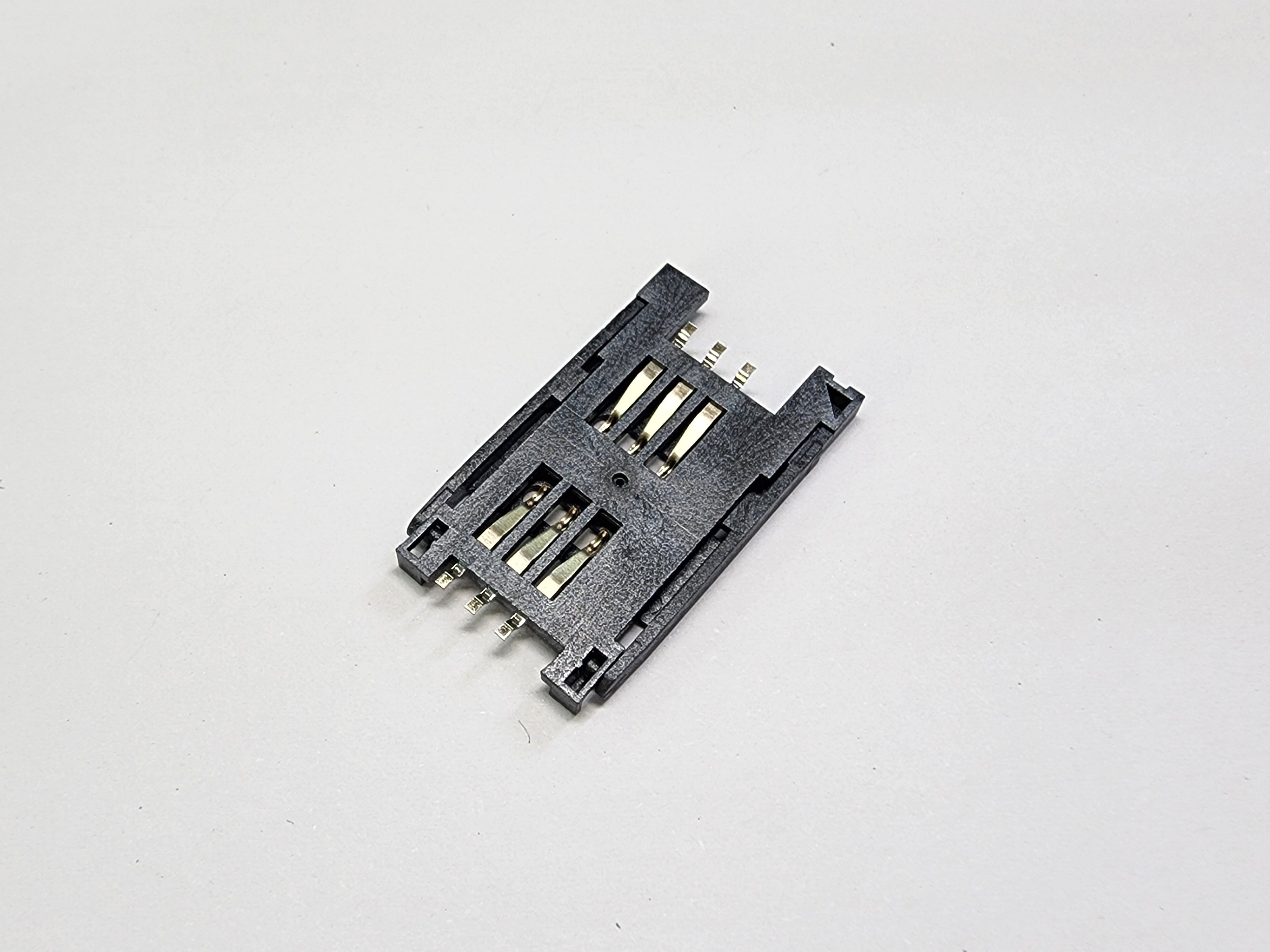

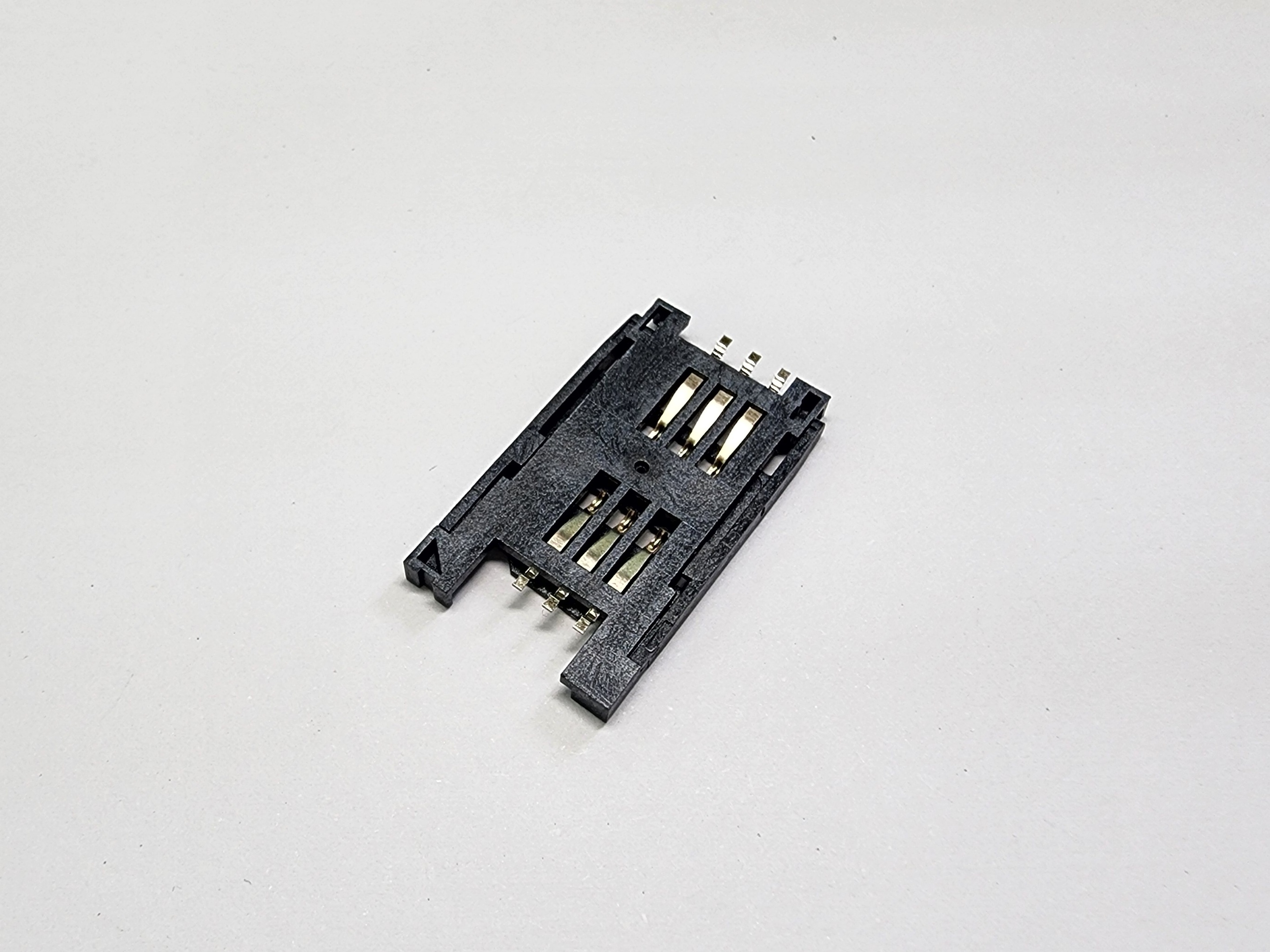

CSIM-H06VSG0-D23
Description
- SIM Card Socket Connector

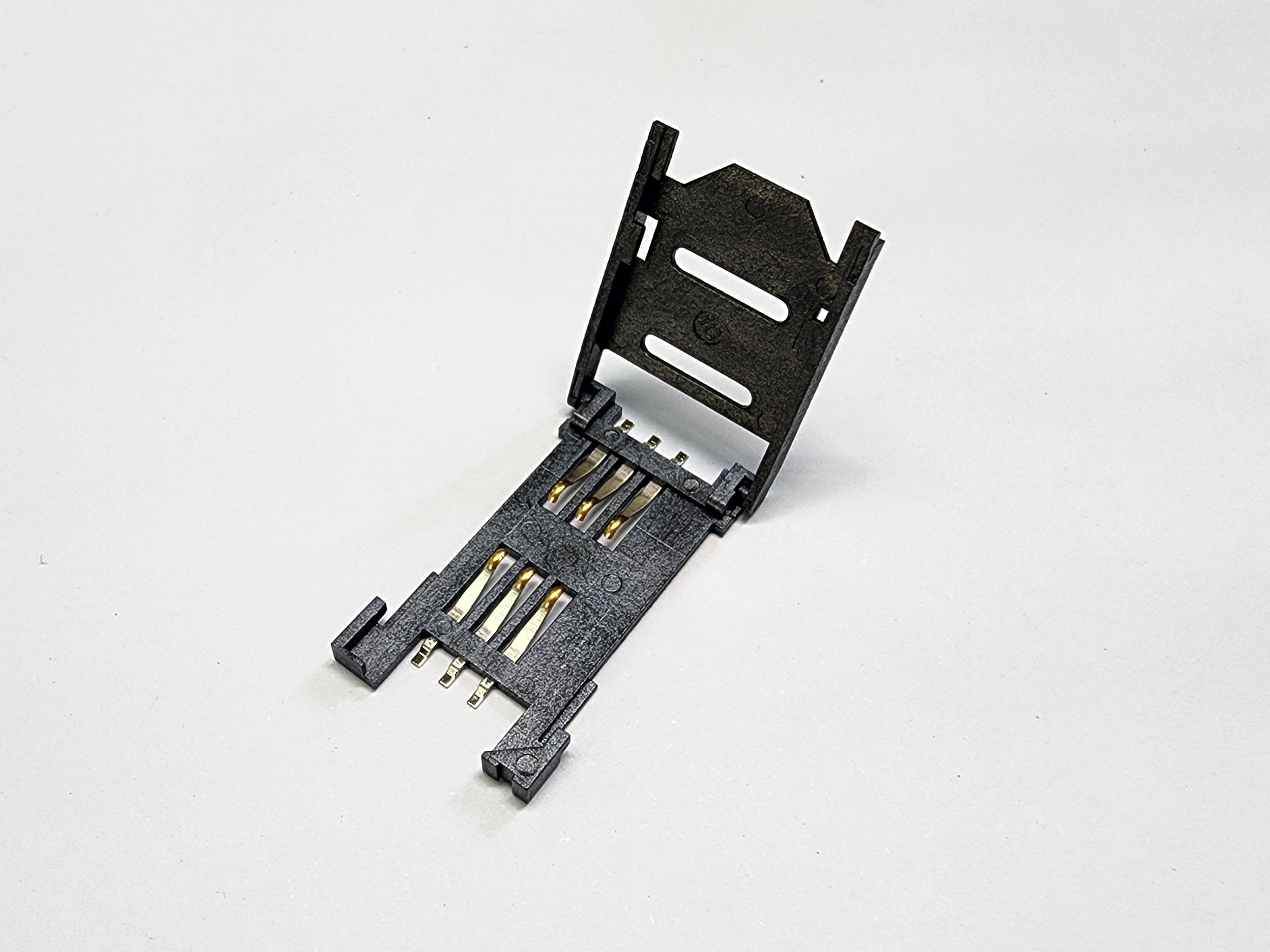

- Hinge Type
- Pitch 2.54mm
- 6Pins
- Gold Flash
- SMD
- H=2.50mm High
- Without Post
- Without Pad
- LCP
- Black Color
SIM Card Socket, 6Pins, Hinge Type, Pitch 2.54mm, H=2.50mm, Without Post, Without Pad, Gold Flash, LCP, Black Color
Material
- Housing: LCP, UL 94V-0 Rated.
- Color: Black.
- Contact: Phosphor Bronze.
- Plating: Gold Plating over Nickel on Contact Area;
- Tin Plating over Nickel on Solder Area.
Mechanical
- Durability: 5,000Cycles Min.
Electrical Specification
- Current Rating: 0.5 Ampere Max per Contact.
- Voltage Rating: 30V AC/DC.
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500 VAC for One Minute.
Environmental
- Operating Temperature: -40°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
