Conn-Link Technology Inc

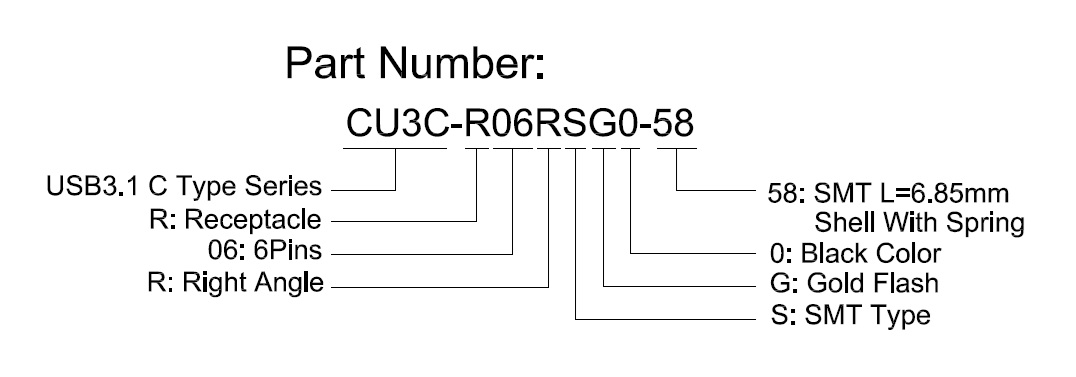

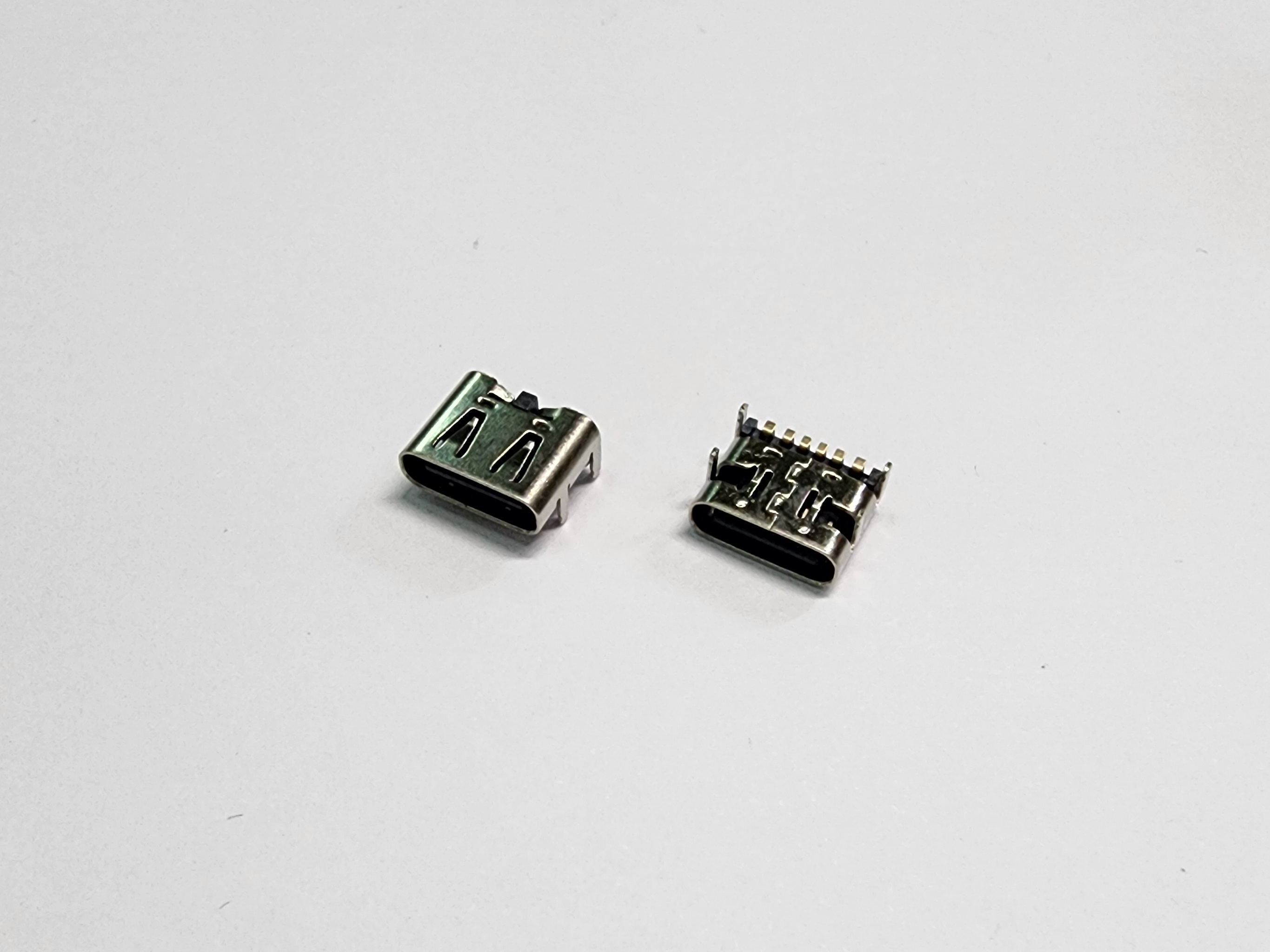

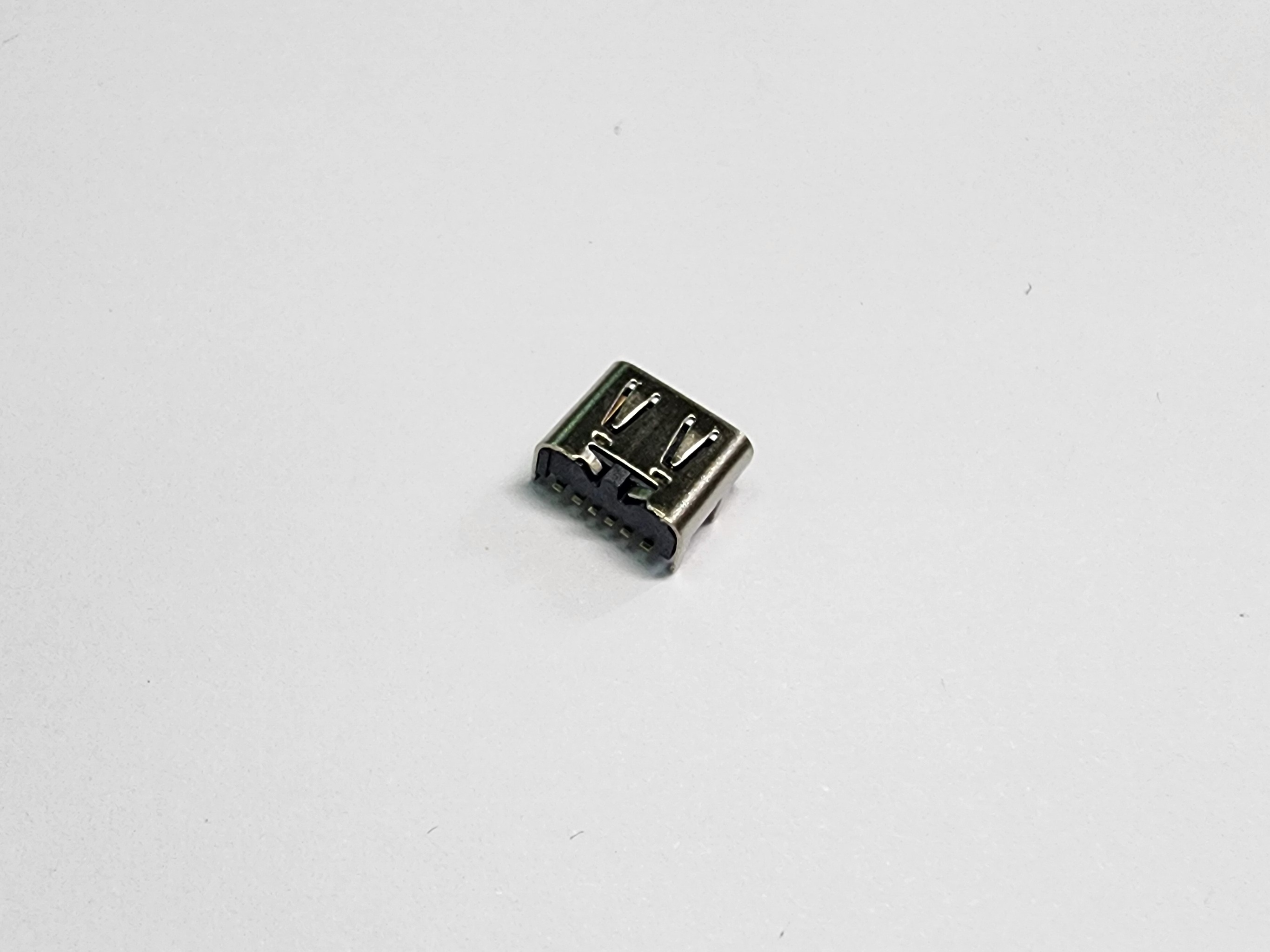

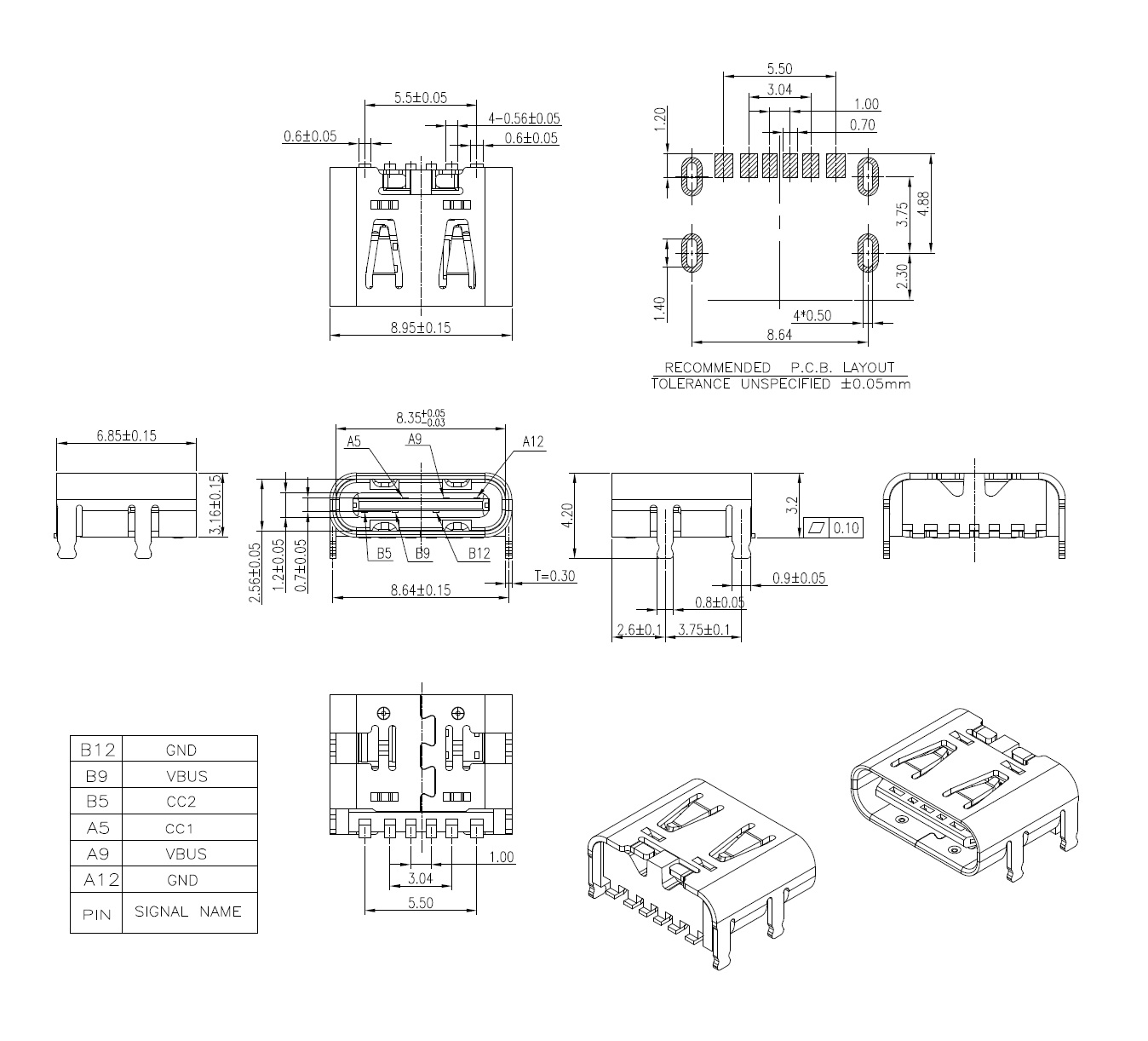

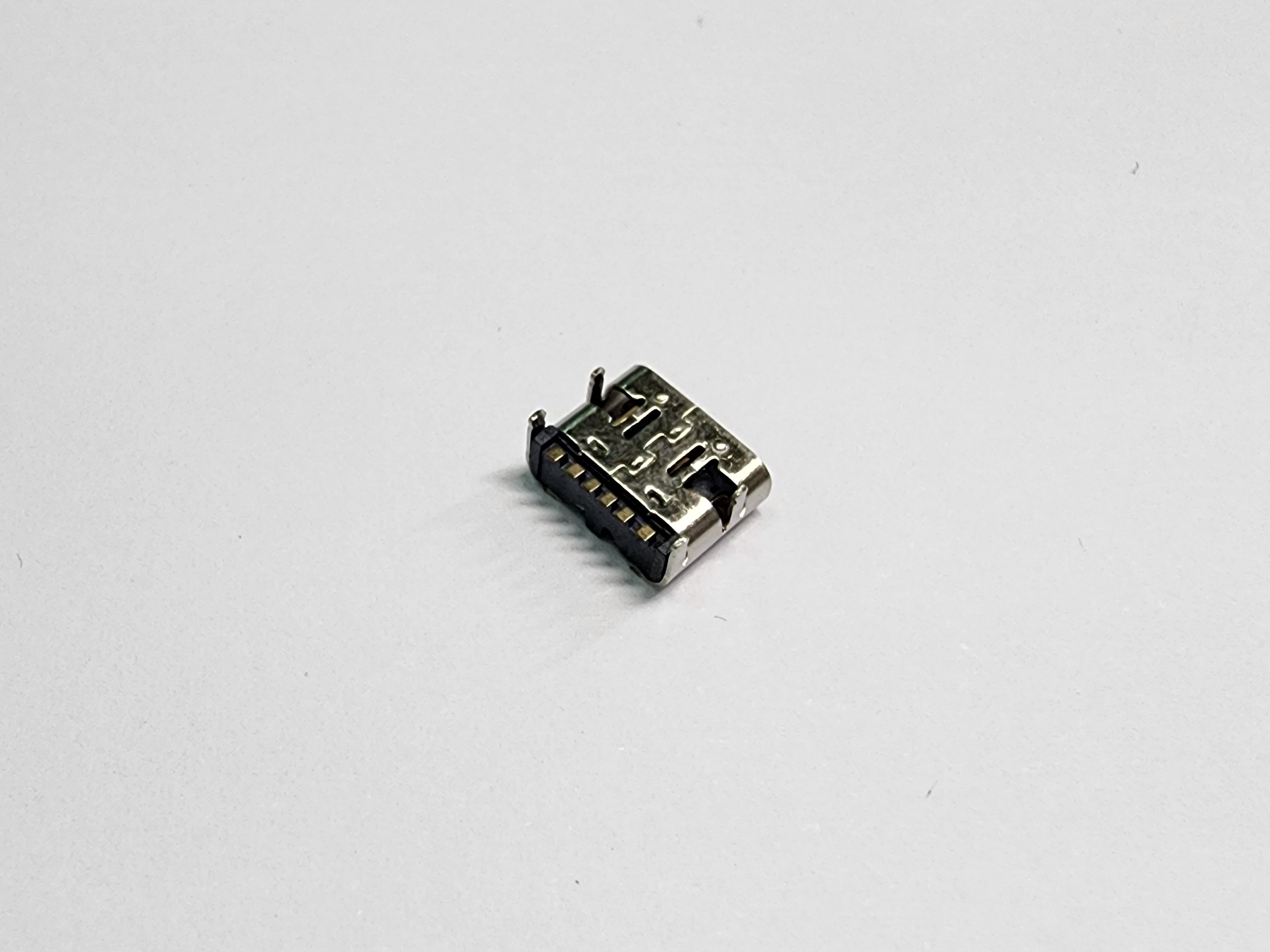

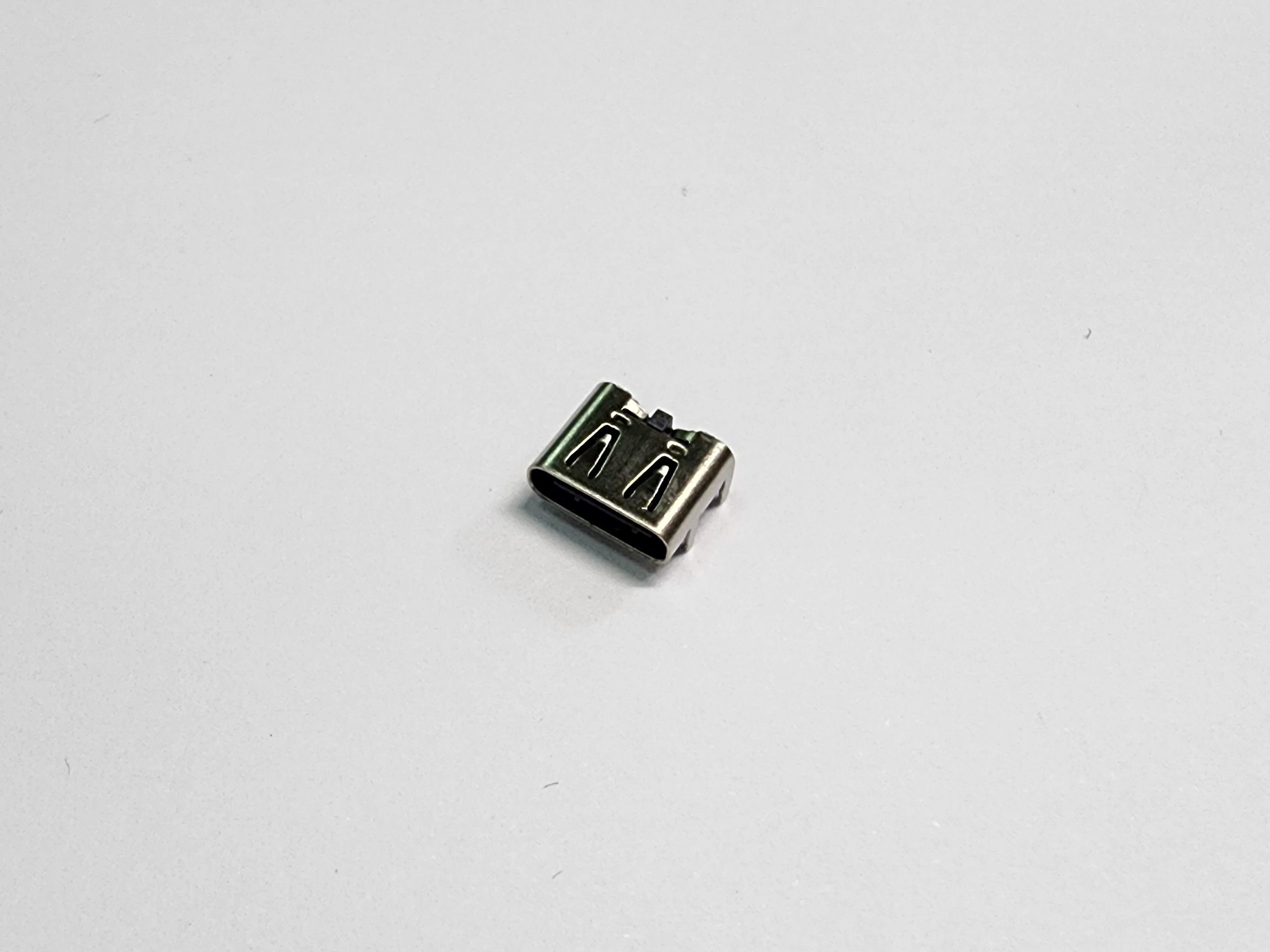

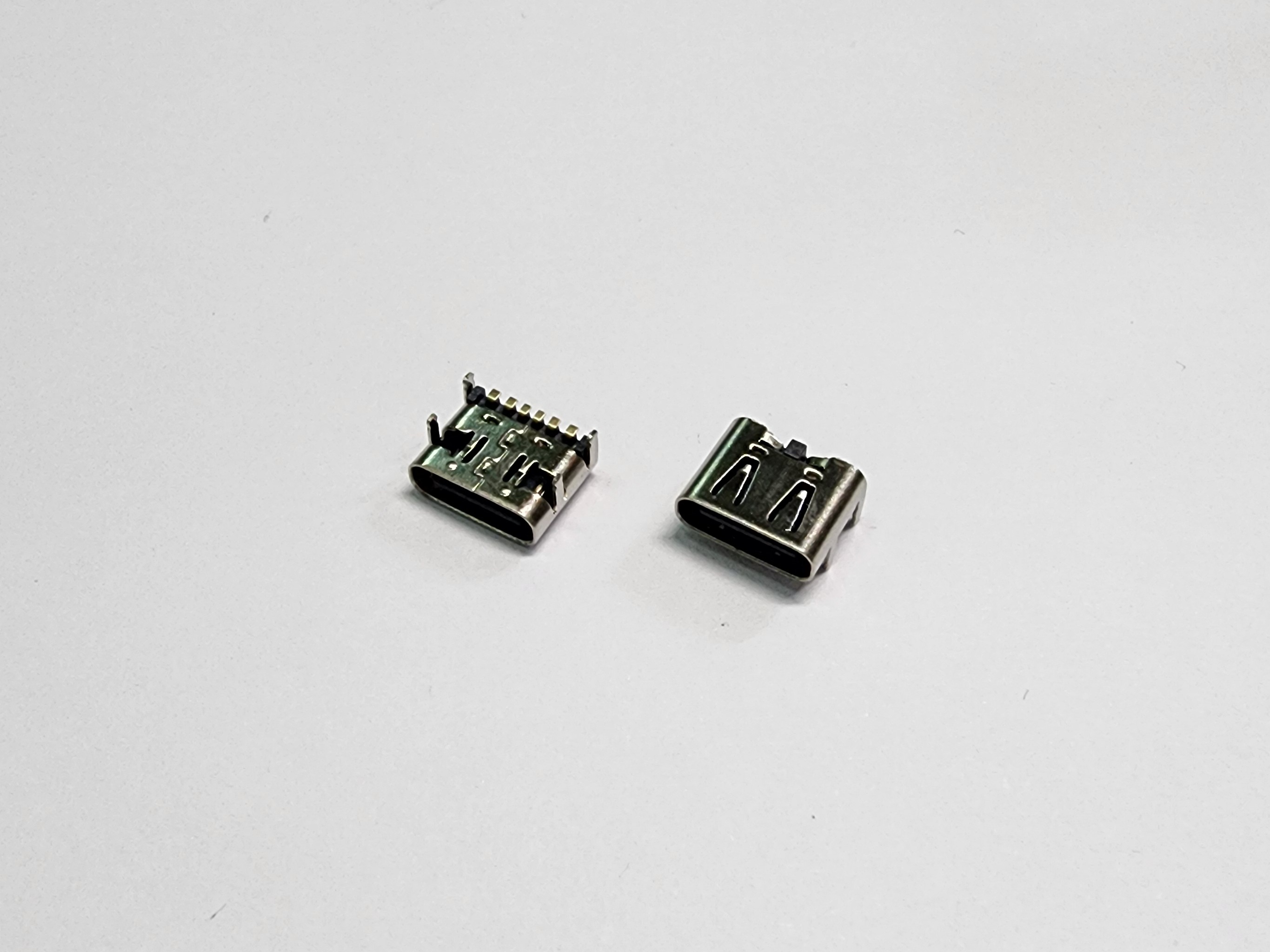

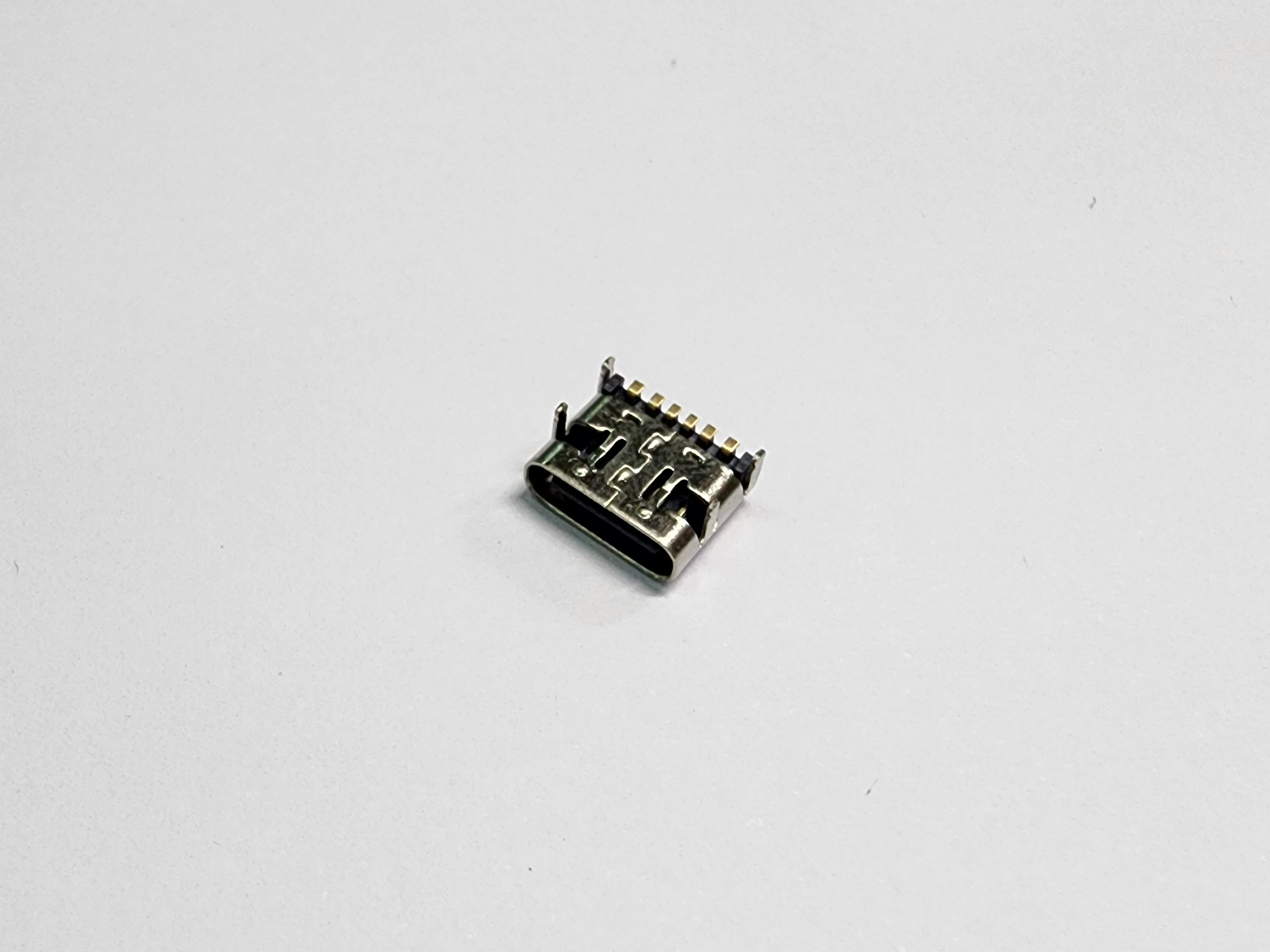

CU3C-R06RSG0-58

Description

  • USB 3.1 Type C Connector
  • 6Pins
  • Receptacle
  • Right Angle
  • SMT
  • Gold Flash
  • Short Body L=6.85mm
  • H=3.20mm
  • Shell with Spring
  • LCP
  • Black Color

USB 3.1 C Type, 6Pins, Receptacle, Right Angle, SMT, Gold Flash, Short Body L=6.85mm, Shell With Spring, H=3.20mm, LCP, Black Color

Material

  • Insulator: LCP, UL 94V-0 Rated.
  • Color: Black.
  • Contact: Brass.
  • Plating: Gold Plating over Nickel on Contact Area.
  • Gold Plating over Nickel on Solder Tail.
  • Shell: Stainless Steel, SUS201-1/2H, T=0.30mm±0.03mm.
  • Plating: Nickel Plating over All.

Mechanical

  • Insertion Force: 5~20N.
  • Withdrawal Force: 8~20N.
  • Durability: 8,000Cycles.

Electrical Specification

  • Current Rating: 5.0A Max for VBUS;
  • 1.25A Max for GND Pins;
  • 0.25A Max for Other Pins.
  • Voltage Rating: 20V Max.
  • Contact Resistance: 40mΩ Max.
  • Insulation Resistance: 100MΩ Min.
  • Dielectric Withstanding Voltage: 100V AC R.M.S.

Environmental

  • Operating Temperature:  -25°C to +85°C.
  • RoHS Compliance.
  • REACH Compliance.
