Conn-Link Technology Inc

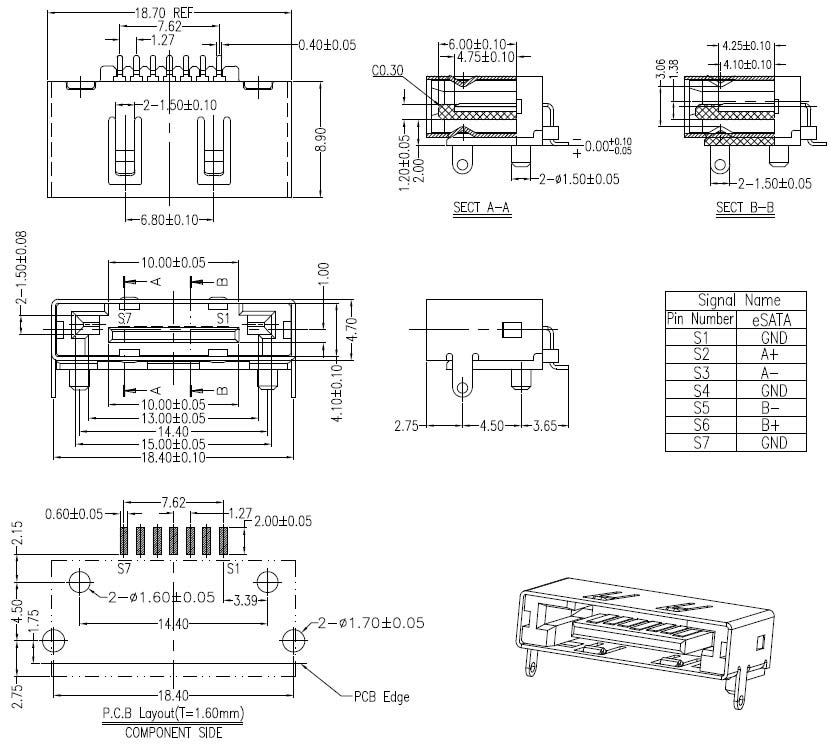

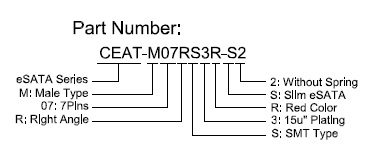

Description
  • eSATA (external SATA) Slim Type
  • 7P
  • Male
  • Right Angle
  • SMD
  • Standard
  • Red Color
  • ​without Spring.

Material

  • Housing: Nylon6T+30%G.F, UL 94V-0 Rated.
  • Color: Red.
  • Contact: Brass.
  • Plating: Gold plating over Nickel on contact area;
    Tin plating on solder Tail.
  • Shell: Brass.
  • Plating: Ni(40u" Min) Plating.

Mechanical

  • Insertion Force: 4080g Max.
  • Withdrawal Force: 1020g Min.
  • Durability: 2500 Cycles.

Electrical Specification

  • Operation Voltage: 100VAC Max.
  • Current Rating: 1.5 Ampere per Contact.
  • Contact Resistance: 30mΩ Max.
  • Insulation Resistance: 1000MΩ Min.
  • Dielectric Withstanding Voltage: 500 VAC.

Environmental

  • Operating Temperature: -55°C to +85°C
  • RoHS Compliance.
