Conn-Link Technology Inc
Description

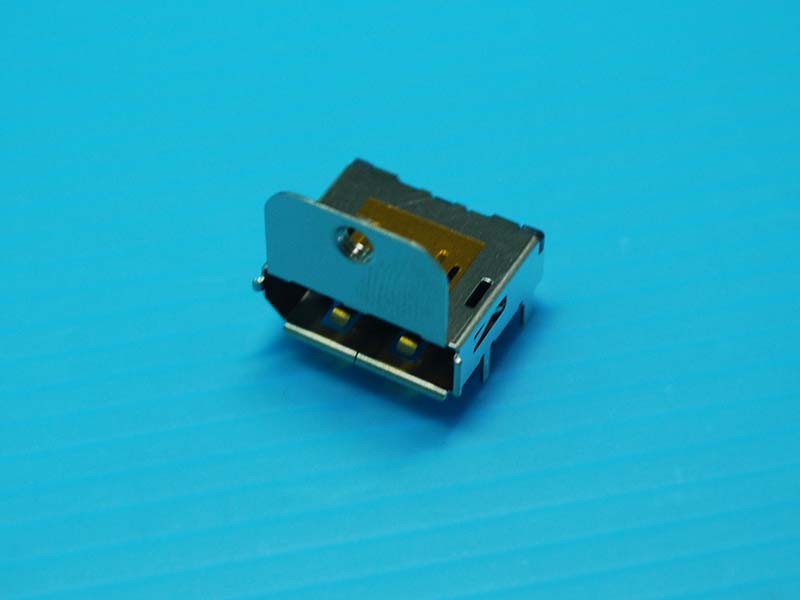

  • DisplayPort Connector(DP)
  • 20Pins
  • Receptacle
  • Right Angle
  • SMD Type
  • With Flange 14.9*9.22mm
  • 30u” Gold Plating
  • Black Color

Material

  • Housing: LCP+50%G.F, UL94V-0 Rated.
  • Color: Black.
  • Contact: Phosphor Bronze.
  • Plating: Gold Plating over Nickel on Contact Area;
    Tin Plating on Solder Tail.
  • Shell: Stainless Steel.
  • Plating: Nickel plating.

Mechanical

  • Insertion Force: 4.5Kgf Max.
  • Withdrawal Force: 1.0~4.0Kgf.
  • Female Screw Lock Torque: 3Kgf-cm Max.

Electrical Specification

  • Operation Voltage: 40VAC Max.
  • Current Rating: 0.5 Ampere per Contact.
  • Contact Resistance: 30mΩ Max.
  • Insulation Resistance: 100MΩ Min.
  • Dielectric Withstanding Voltage: 500V AC Min.

Environmental

  • Operating Temperature: -20°C to +85°C
  • RoHS Compliance.
