Conn-Link Technology Inc

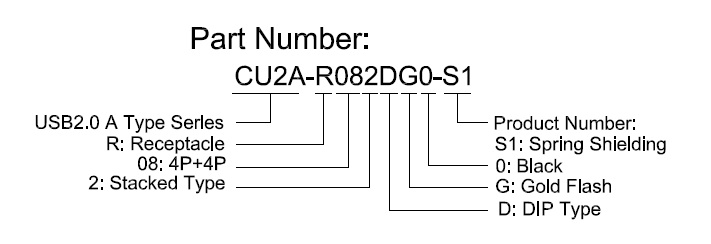

Description
  • USB2.0 A Type
  • 4+4Pins Receptacle
  • Stacked Type
  • DIP
  • Gold Flash Plating
  • Shielding with front Spring
  • Black Color

Material

  • Housing: PBT Glass Fibre UL 94V-0.
  • Color: Black.
  • Contact: Brass T=0.25mm.
  • Plating: Gold Plating over Nickel on Contact Area;
    Tin Plating over Nickel on Solder Tail.
  • Shield: Iron T=0.30mm.
  • Plating: Nickel Plating.

Mechanical

  • Insertion Force: 35N Max.
  • Withdrawal Force: 10N Min Initial; 8-20N after 1000Cycles.
  • Durability: 5,000 Cycles.

Electrical Specification

  • Current Rating: 1.0Ampere at 30VDC.
  • Contact Resistance: 30mΩ Max Initial; 40mΩ after 1000Cycles.
  • Insulation Resistance: 1000MΩ Min.
  • Dielectric Withstanding Voltage: 500 VAC 1 Sec. Level.

Environmental

  • Operating Temperature: -40°C to +85°C
  • RoHS Compliance.
