Conn-Link Technology Inc

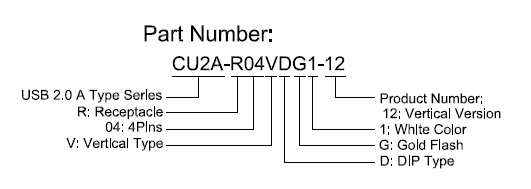

Description

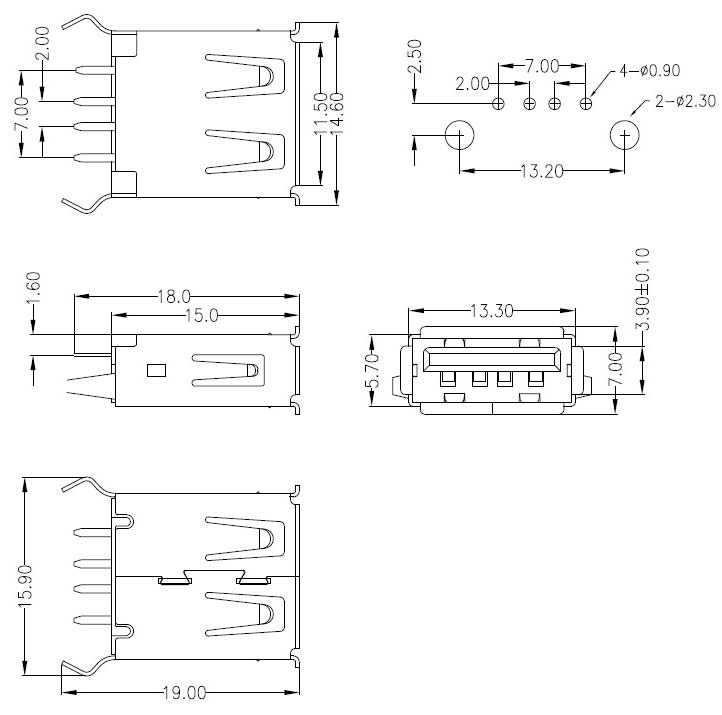

  • USB2.0 A Type
  • 4Pins Receptacle
  • Vertical Type
  • H=15.0mm Height
  • DIP Type
  • White Color
  • Gold Flash Plating

Material

  • Housing: PBT, UL94 V-0 Rated.
  • Color: White.
  • Contact: Brass T=0.25mm.
  • Plating: Gold Plating over Nickel on Contact Area;
    Tin Plating over Nickel on Solder Tail.
  • Shield: SPCC, T=0.30mm.
  • Plating: Nickel Plating.

Electrical Specification

  • Current Rating: 1.5 Ampere.
  • Contact Resistance: 30mΩ Max.
  • Insulation Resistance: 1000MΩ Min.
  • Dielectric Withstanding Voltage: 500 VAC 1 Sec. Level.

Environmental

  • Operating Temperature: -55°C to +85°C
  • RoHS Compliance.
