Conn-Link Technology Inc

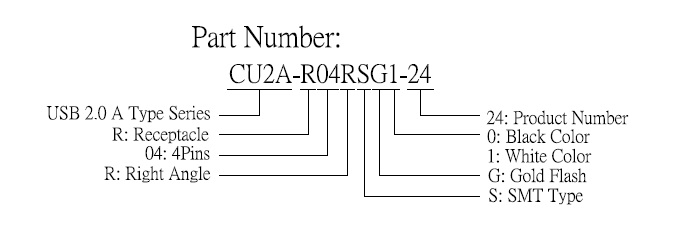

Description
  • USB2.0 A Type
  • 4Pins Receptacle
  • Right Angle
  • SMD Type
  • White Color
  • Gold Flash Plating
  • RoHS Compliance

Material

  • Housing: High-Thermoplastic, UL94 V-0 Rated.
  • Color: White.
  • Contact: Brass.
  • Plating: Gold Plating over Nickel(100u") on Contact Area;
  • Tin(80u"~100u") Plating over Nickel(100u") on Solder Tail.
  • Shield: SPCC.
  • Plating: Nickel(100u"~120u") Plating.

Mechanical

  • Insertion Force: 3.57Kgf Max.
  • Withdrawal Force: 0.7Kgf Min.
  • Durability: 5000 Cycles.

Electrical Specification

  • Current Rating: 1.5Ampere Max per Contact.
  • Contact Resistance: 30mΩ Max.
  • Insulation Resistance: 1000MΩ  Min.
  • Dielectric Withstanding Voltage: 500 VAC Min for 1Minute.

Environmental

  • Operating Temperature: -25°C to +75°C
  • RoHS Compliance.
