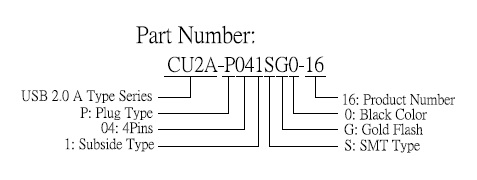

Description
- USB2.0 A Type
- 4Pins Plug
- Subside Type
- SMD
- Black Color
- Gold Flash Plating
Material
- Housing: PA9T Glass Fibre UL94 V-0.
- Color: Black.
- Contact: Bronze T=0.25 ± 0.02mm.
- Plating: Gold Plating over Nickel on Contact Area;
Tin Plating over Nickel on Solder Tail.
- Shield: SPCC-SD-OILED, T=0.30 ± 0.02mm.
- Plating: Ag Plating over Nickel.
Electrical Specification
- Current Rating: 1.5 Ampere.
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500 VAC 1 Sec. Level.
Environmental
- Operating Temperature: -55°C to +85°C
- RoHS Compliance.
![]()
![]()
