Conn-Link Technology Inc
Description

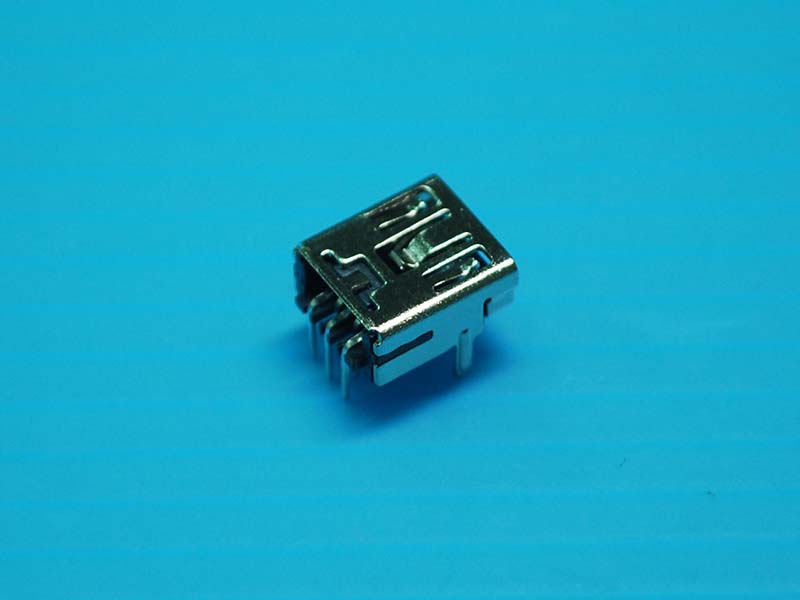

  • USB2.0 Mini B Type
  • 5Pins Receptacle
  • Right Angle
  • DIP Type
  • With DIP Shielding
  • Gold Flash Plating
  • Black Color

Material

  • Housing: PA9T Glass Fibre UL94 V-0.
  • Color: Black.
  • Contact: Phosphor Bronze T=0.25mm±0.02mm.
  • Plating: Gold Plating over Nickel(60u") on Contact Area;
    Tin(80u"~100u") Plating over Nickel(60u") on Solder Tail.
  • Shield: Brass T=0.40mm±0.02mm.
  • Plating: Nickel(100u"~120u") Plating.

Mechanical

  • Insertion Force: 35N Max.
  • Withdrawal Force: 10N Min Initial, 8-20N after 1000Cycles.
  • Durability: 5,000 cycles.

Electrical Specification

  • Current Rating: 1.0Ampere at 30VDC.
  • Contact Resistance: 30mΩ Max Initial, 40mΩ after 1000Cycles.
  • Insulation Resistance: 1000MΩ Min.
  • Dielectric Withstanding Voltage: 100 VAC per Sec.

Environmental

  • Operating Temperature: -55°C to +105°C
  • RoHS Compliance.
