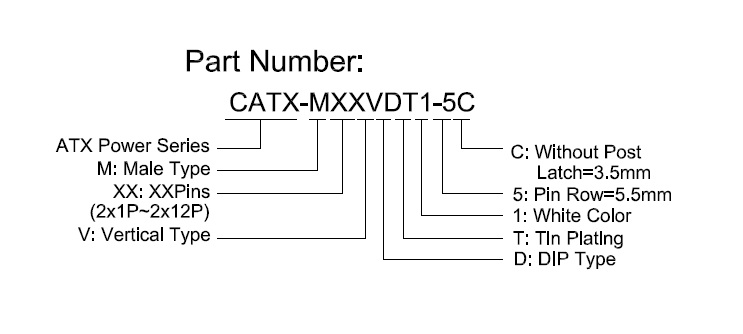

Description

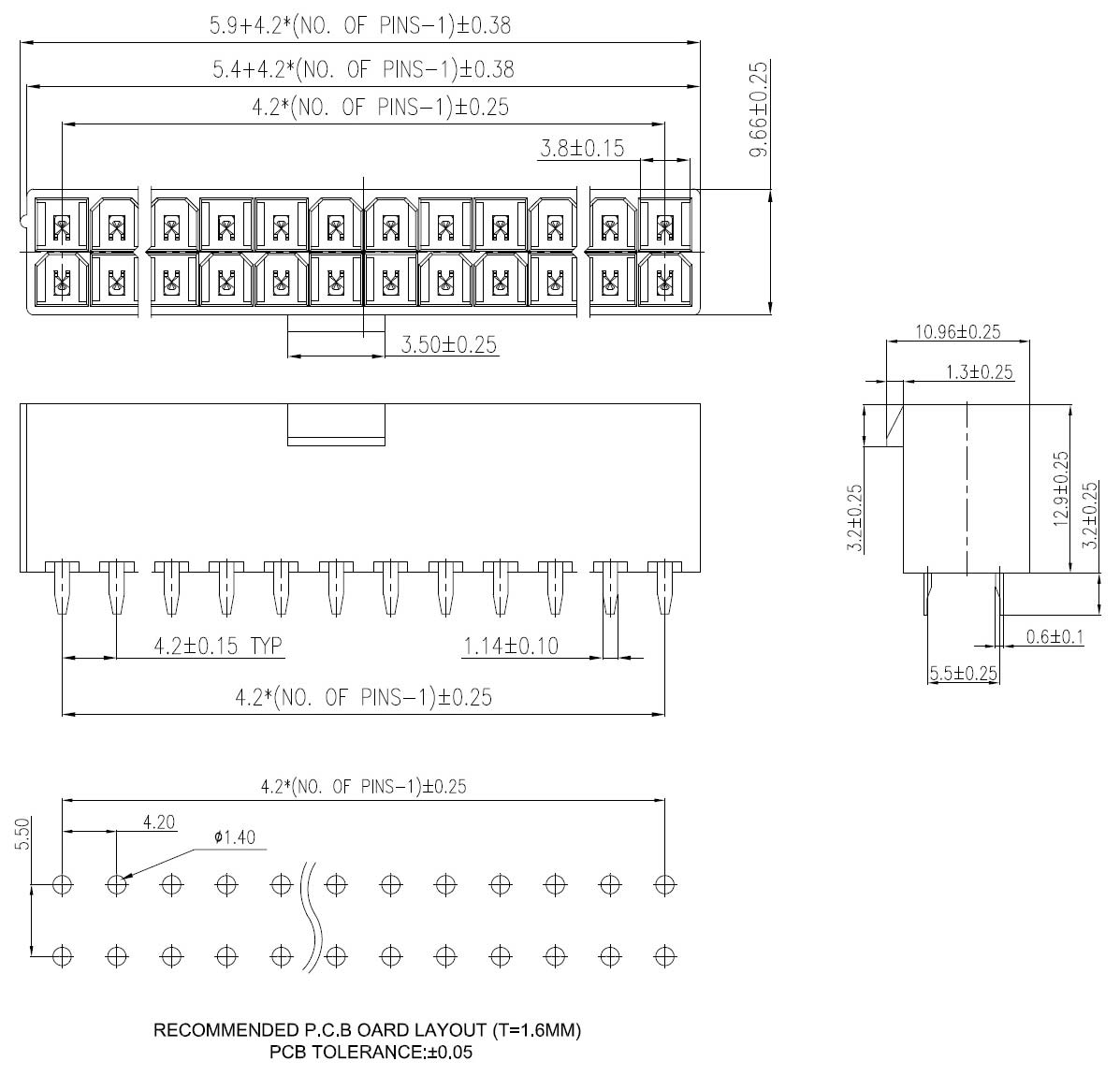

  • ATX Power XXPins(2x1P~2x12P)
  • Vertical
  • DIP
  • 5.5mm*4.2mm
  • Without Post
  • Latch=3.5mm
  • Natural White Color

Material

  • Housing: Nylon 66, UL 94V-0 Rated.
  • Color: White.
  • Contact: Brass C2680.
  • Plating: Tin Plating 100u" Min. Over All;
    Nickel Under Plating 50u" Min. Over All.

Electrical Specification

  • Voltage Rating: 250V AC/DC.
  • Current Rating: 9 Ampere AC/DC.
  • Contact Resistance: 20mΩ Max.
  • Insulation Resistance: 1000MΩ  Min.
  • Dielectric Withstanding Voltage: 1500V AC per Minute.

Environmental

  • Operating Temperature: -40°C to +105°C
  • RoHS Compliance.
