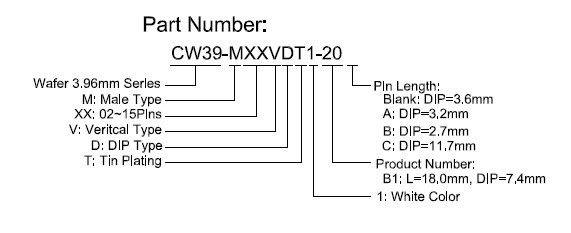

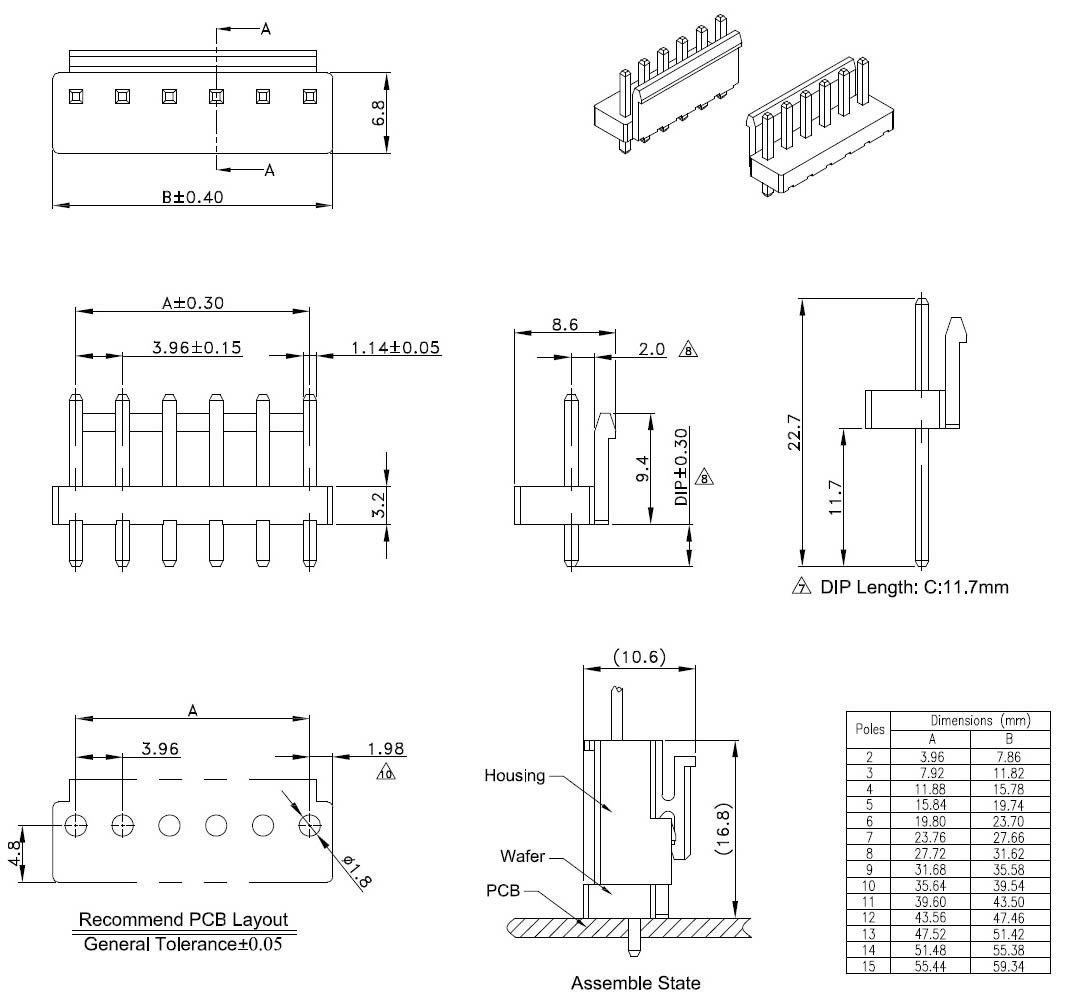

Description
- Wire to Board Connector
- 3.96mm Pitch Wafer
- Vertical
- DIP
- 02~15Pins
- White Color
Material
- Housing: Nylon 66, UL 94V-2 Rated.
- Color: White.
- Contact: Brass.
- Plating: Tin Plating over Nickel.
Tin Plating on Solder Tail.
Electrical Specification
- Operation Voltage: 250V AC/DC.
- Current Rating: 7 Ampere AC/DC per Contact.
- Contact Resistance: 10mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 1500V AC per Minute.
Environmental
- Operating Temperature: -25°C to +85°C
- RoHS Compliance.
![]()
![]()
