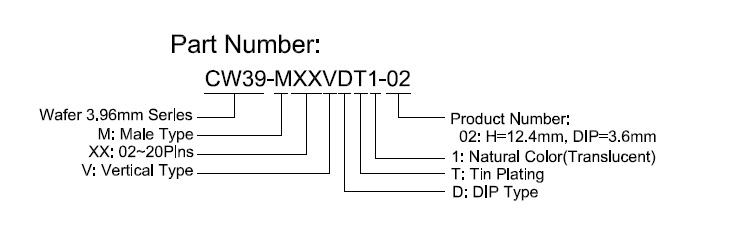

Description
- 3.96mm Series Wire to Board Connector
- 02~20Pins
- Vertical Type
- DIP D=3.6mm
- Translucent (Natural Color)
Material
- Housing: Nylon 66, UL 94V-2 Rated.
- Color: Translucent(Natural).
- Contact: Brass.
- Plating: Tin Plating over Nickel.
Electrical Specification
- Operation Voltage: 250V AC/DC.
- Current Rating: 7 Ampere AC/DC per Contact.
- Contact Resistance: 10mΩ Max.
- Contact Resistance: 10mΩ Max.
- Dielectric Withstanding Voltage: 1500V AC per Minute.
Environmental
- Operating Temperature: -25°C to +85°C
- RoHS Compliance.
![]()
![]()
