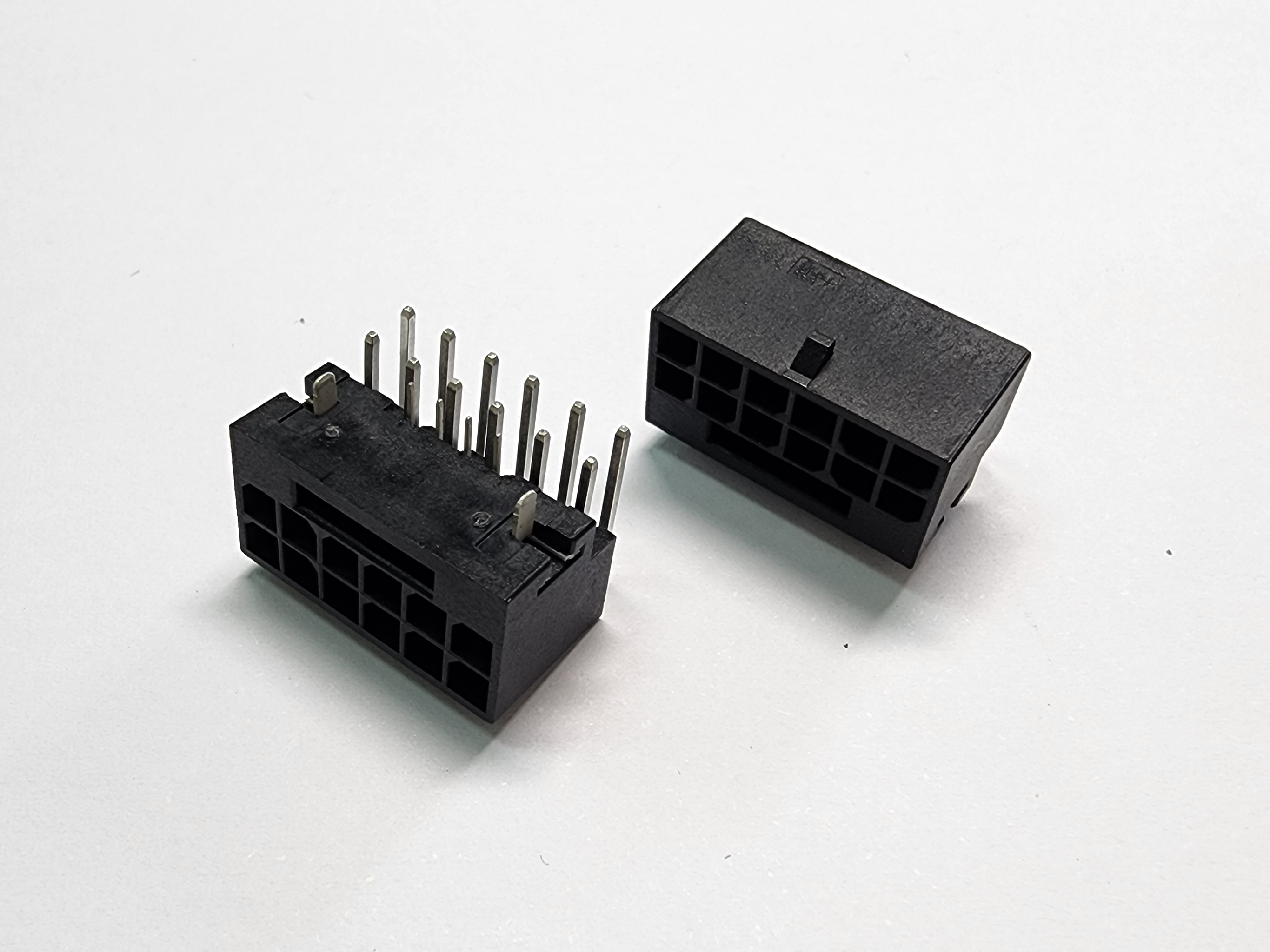

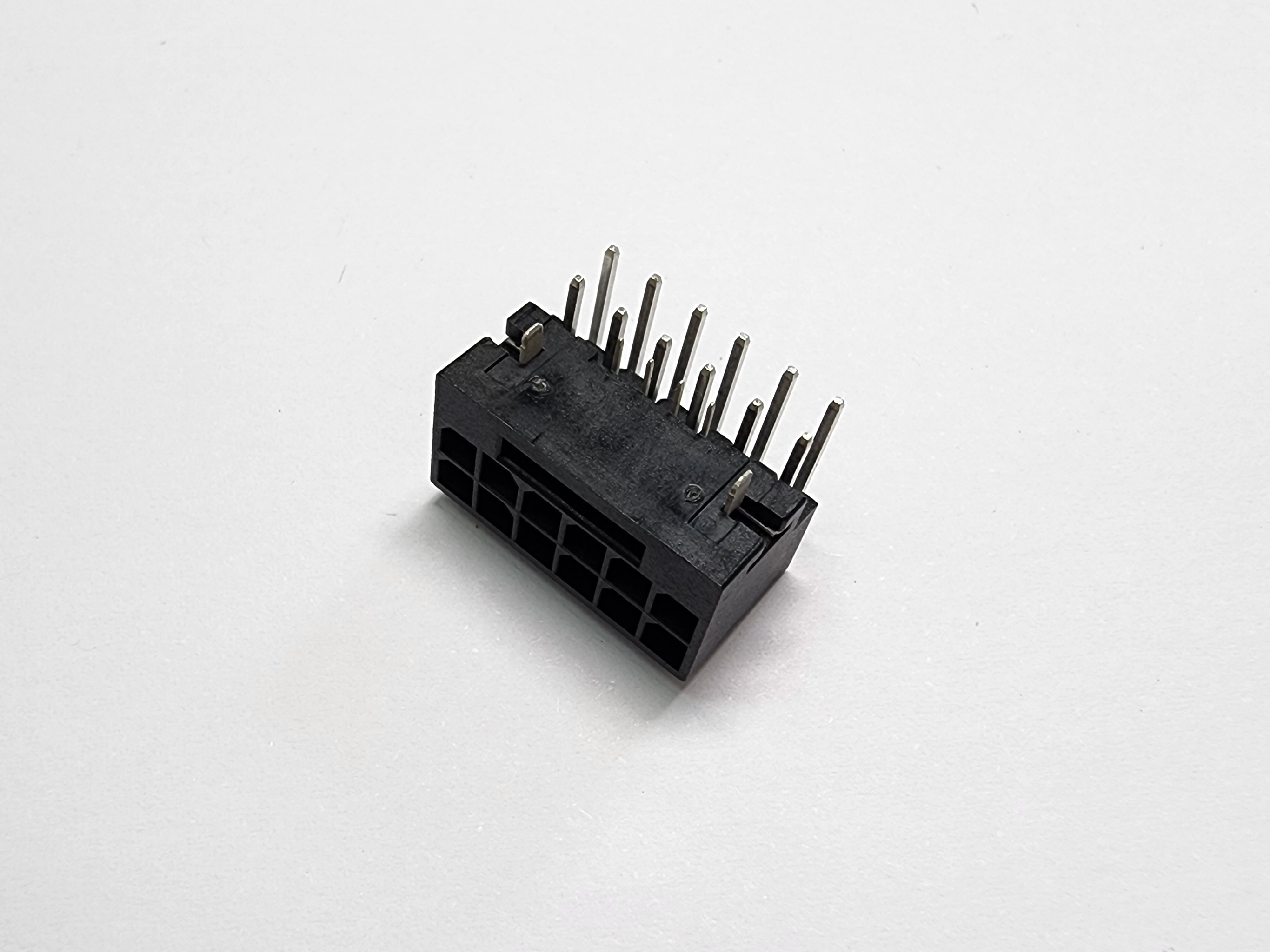

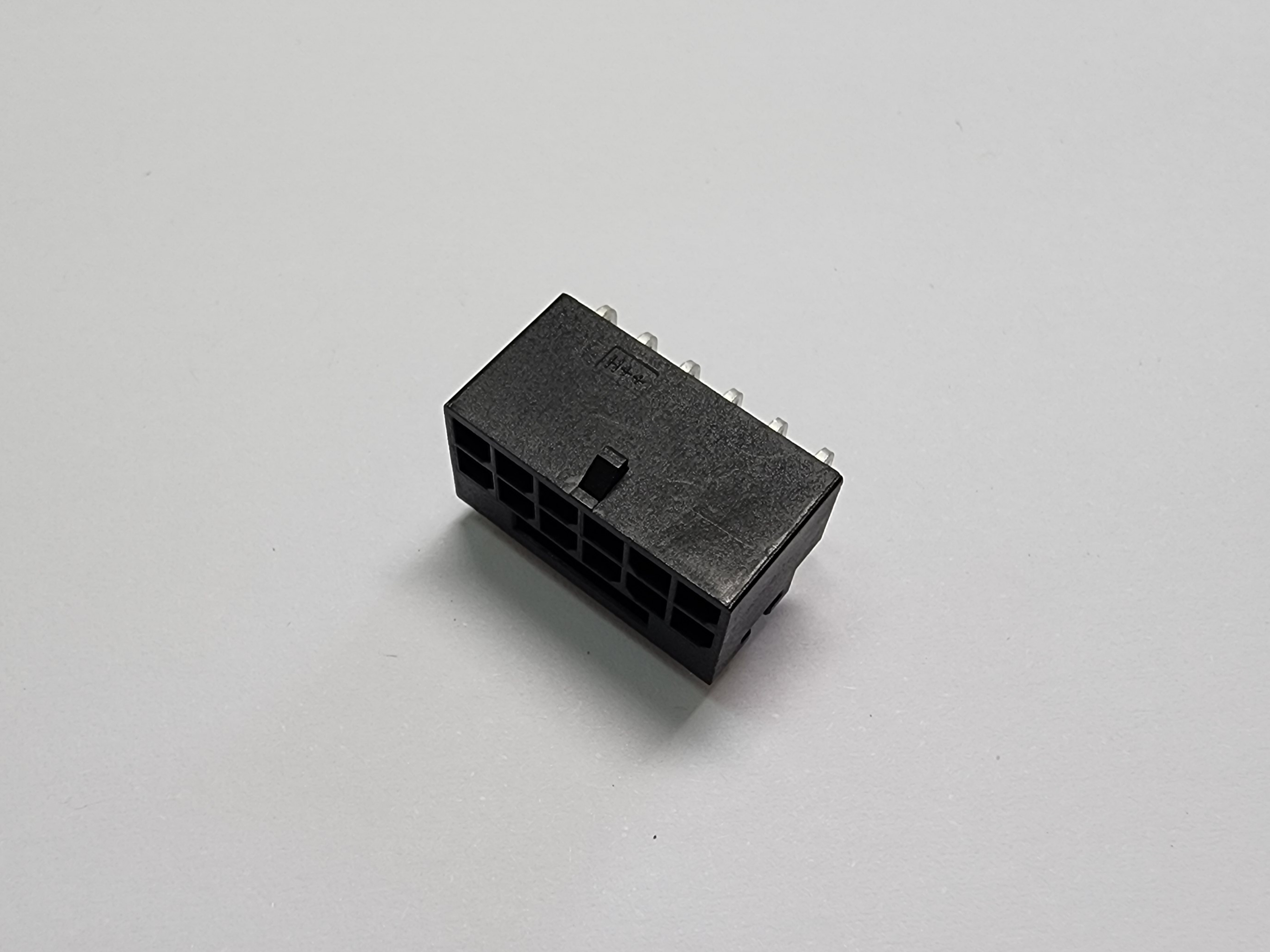

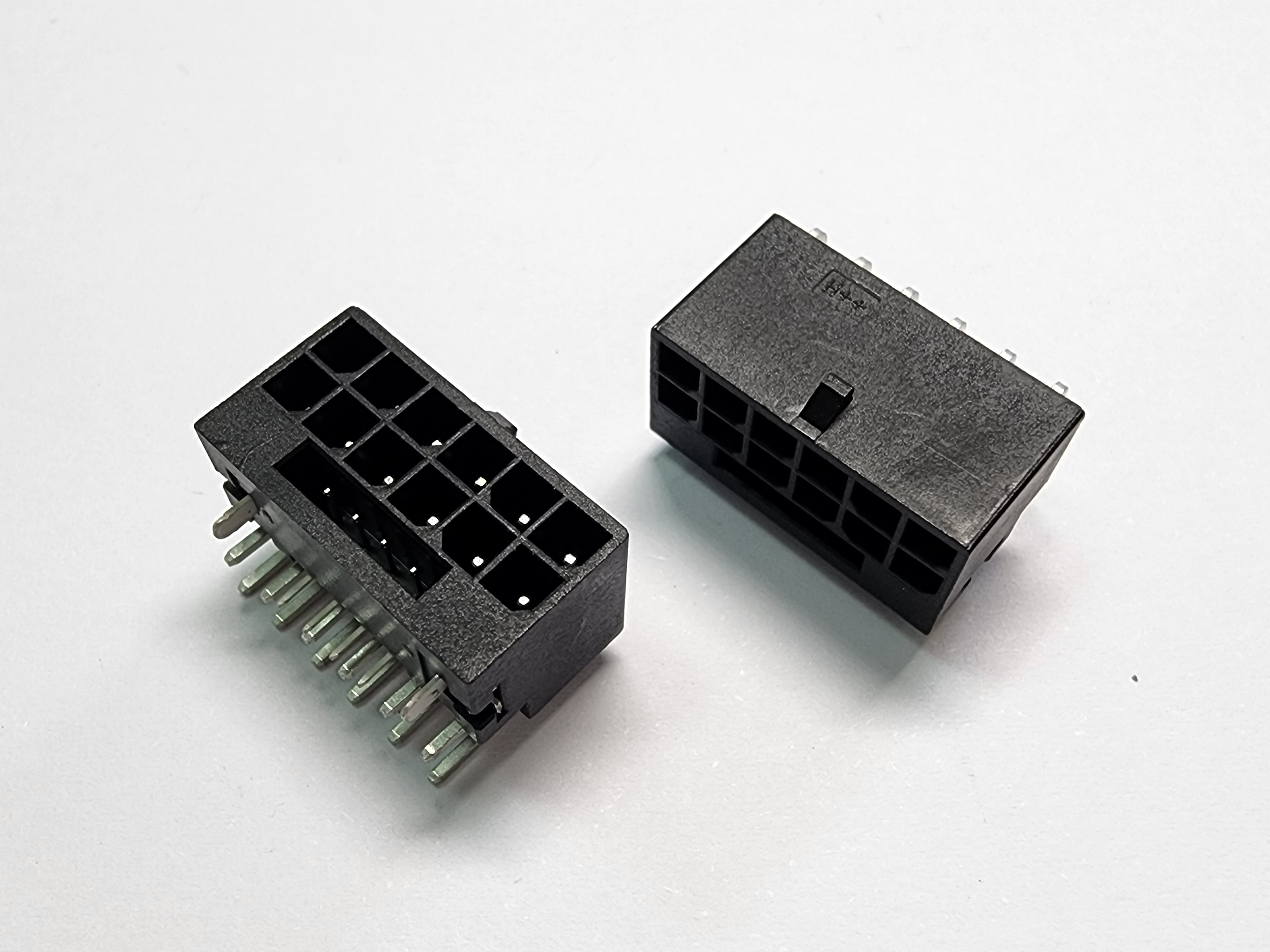

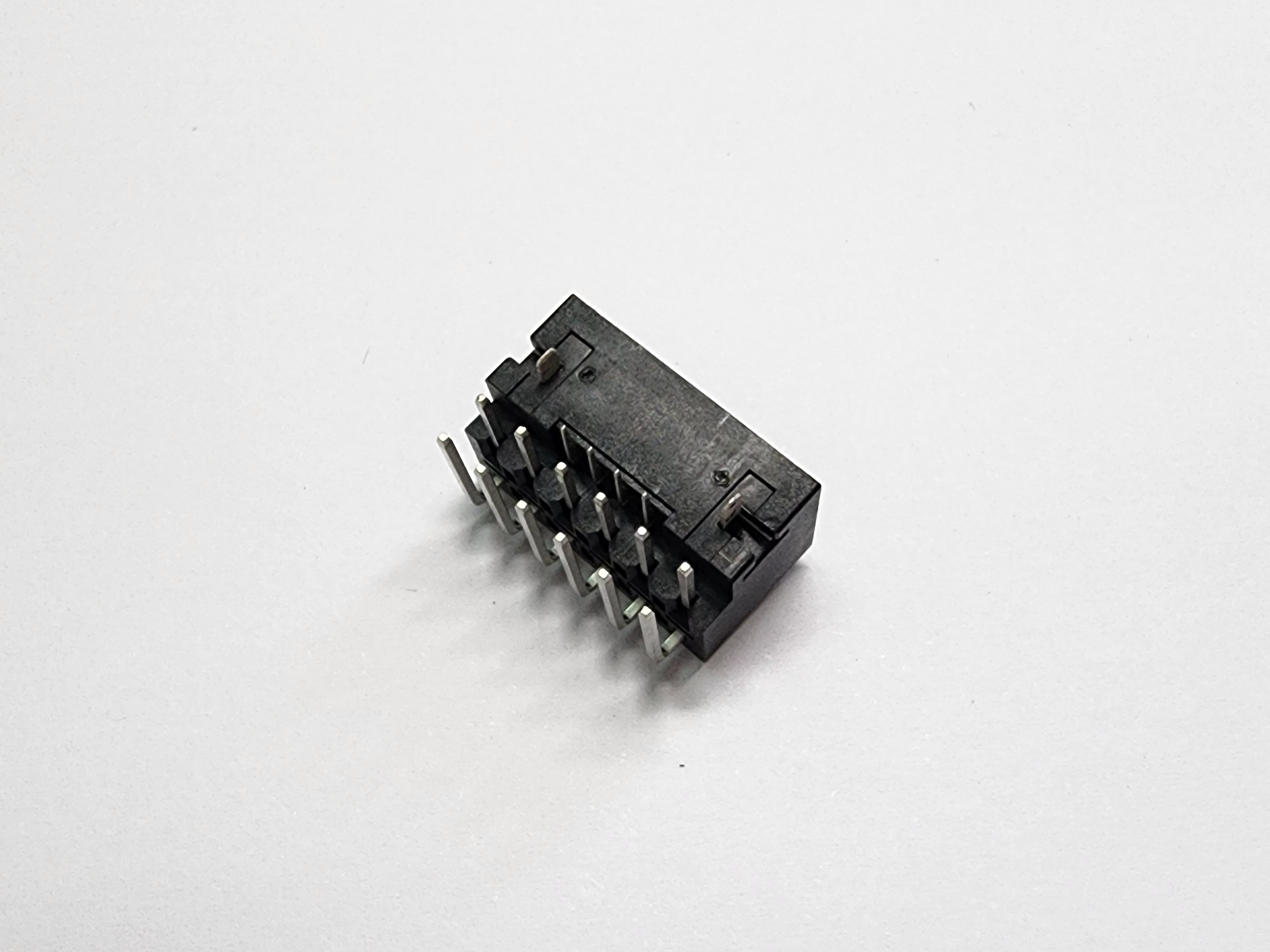

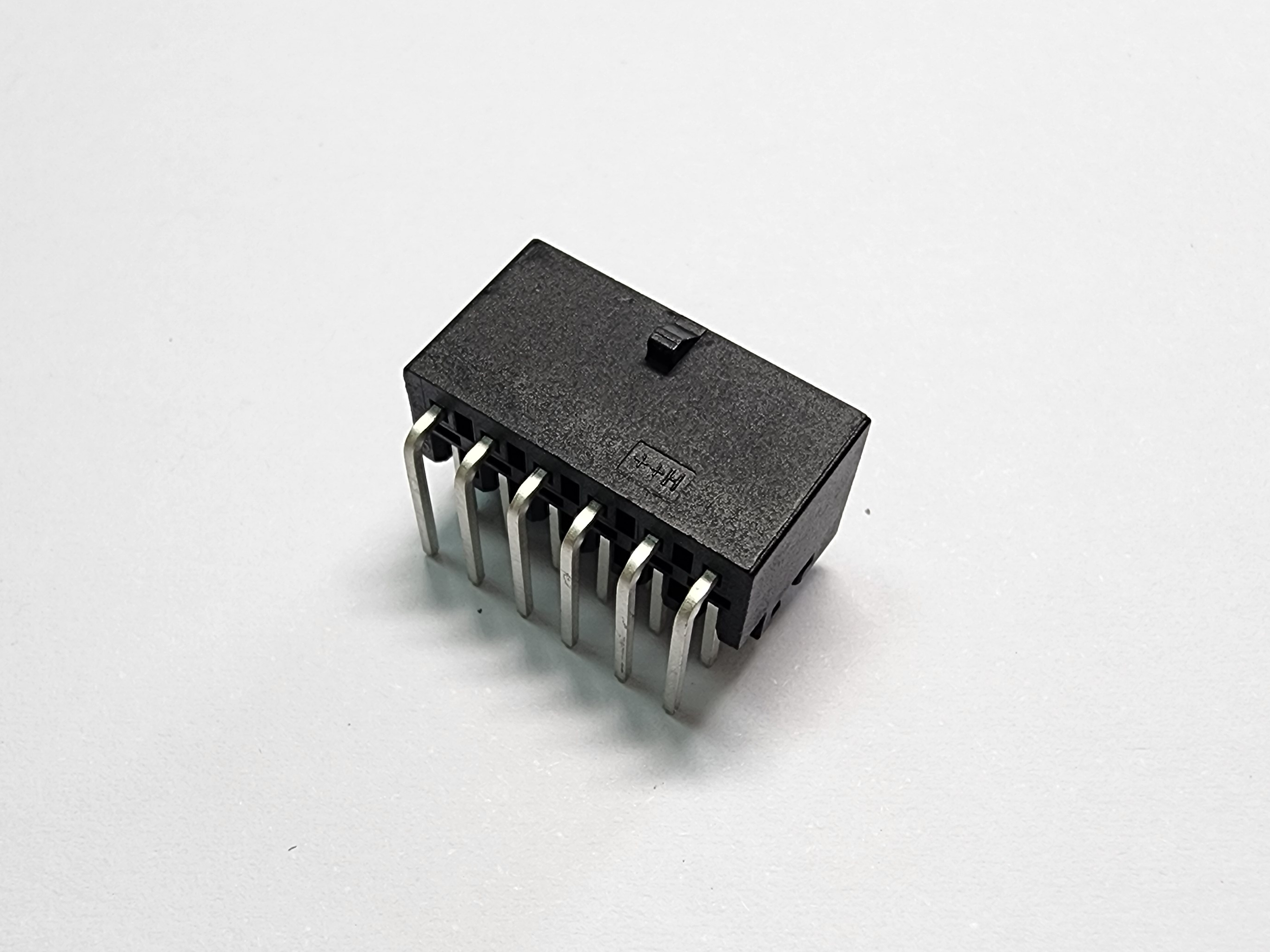

CATX-M16RDT0-3C

ATX3.1 H++ PCI Express 6.0 12V-2x6 Auxiliary Power, 3.0mm 2x6Pins with 2.0mm 4Pins, Male Type, Right Angle, DIP D=2.1mm, H=9.81mm, PA9T, Black Color

Material

• Housing: PA9T, UL 94V-0 Rated.
• Color: Black Color.
• Power and GND Contacts: Brass, C1100.
• Plating: Tin Plating Over All; Nickel Under Plating Over All.
• Signal Contacts: Brass, C2680.
• Plating: Tin Plating Over All; Nickel Under Plating Over All.
• Board Lock: SUS201.
• Plating: Tin Plating Over All; Nickel Under Plating Over All.

Electrical Specification

• Current Rating:

9.2A per Pin (Power & GND Pins);

1.0A per Pin (Signal Pins).

• Voltage Rating: 12V DC.
• Contact Resistance:

6mΩ Max Initial(Power & GND Pins);

10mΩ Max Initial(Signal Pins).

• Insulation Resistance: 1000MΩ Min at 500V DC.
• Dielectric Withstanding Voltage:

1500V AC R.M.S for One Minute(Power & GND Pins).

500V AC R.M.S for One Minute(Signal Pins).

Environmental

• Operating Temperature:  -40°C to +105°C.
• Resistance to Soldering Heat: 260°C for 10 Seconds.
• RoHS Compliance.
• REACH Compliance.
