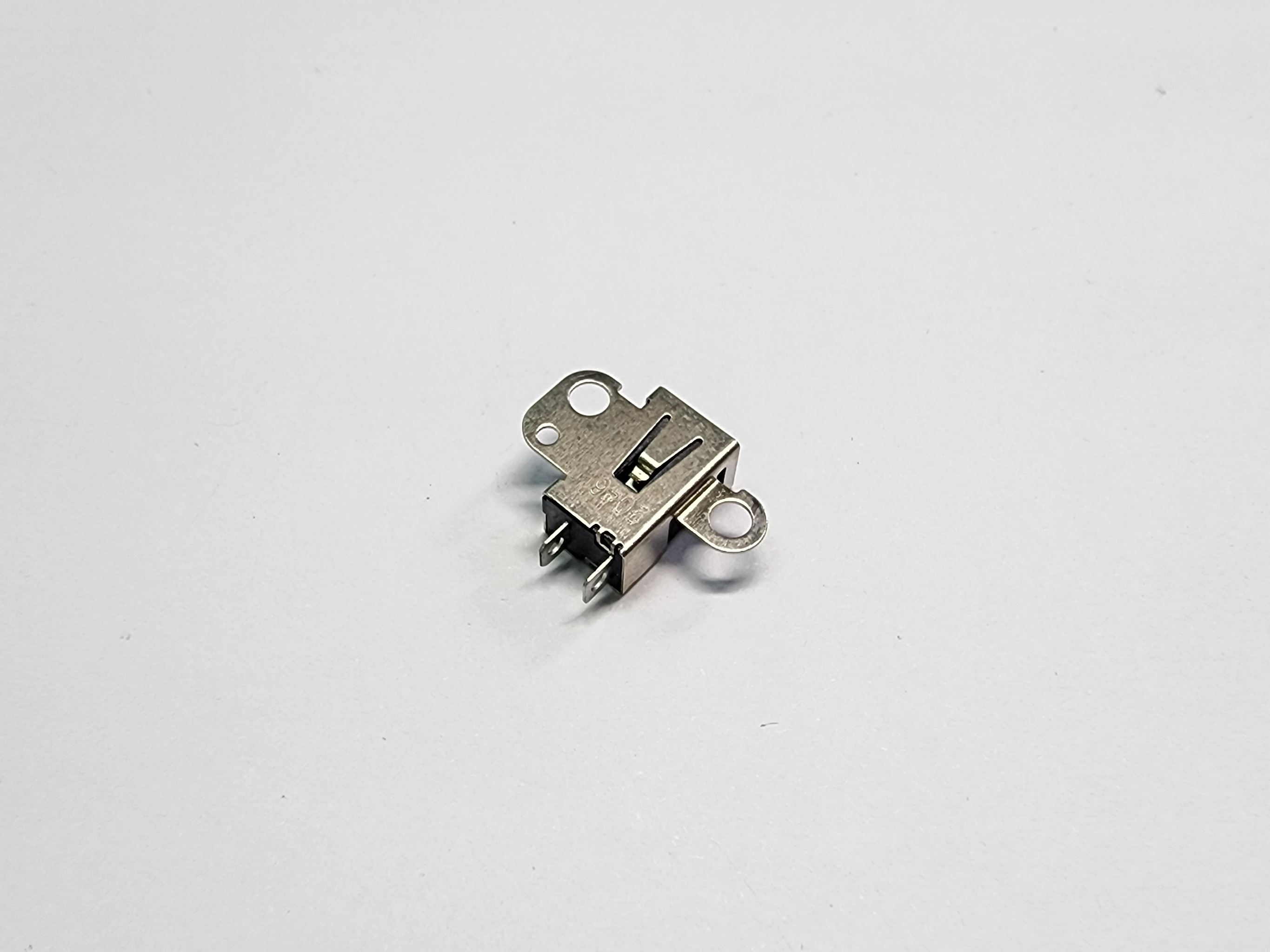

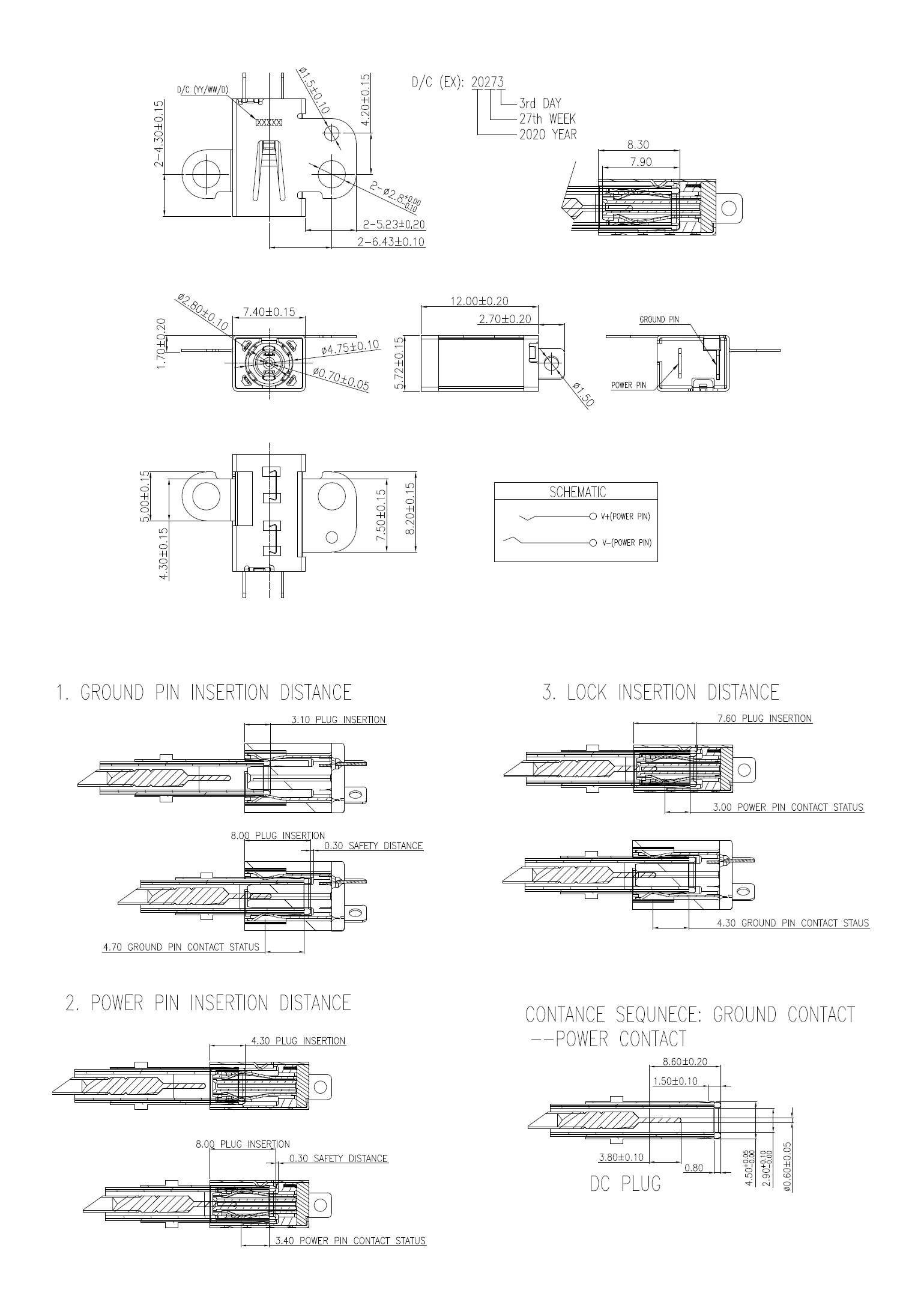

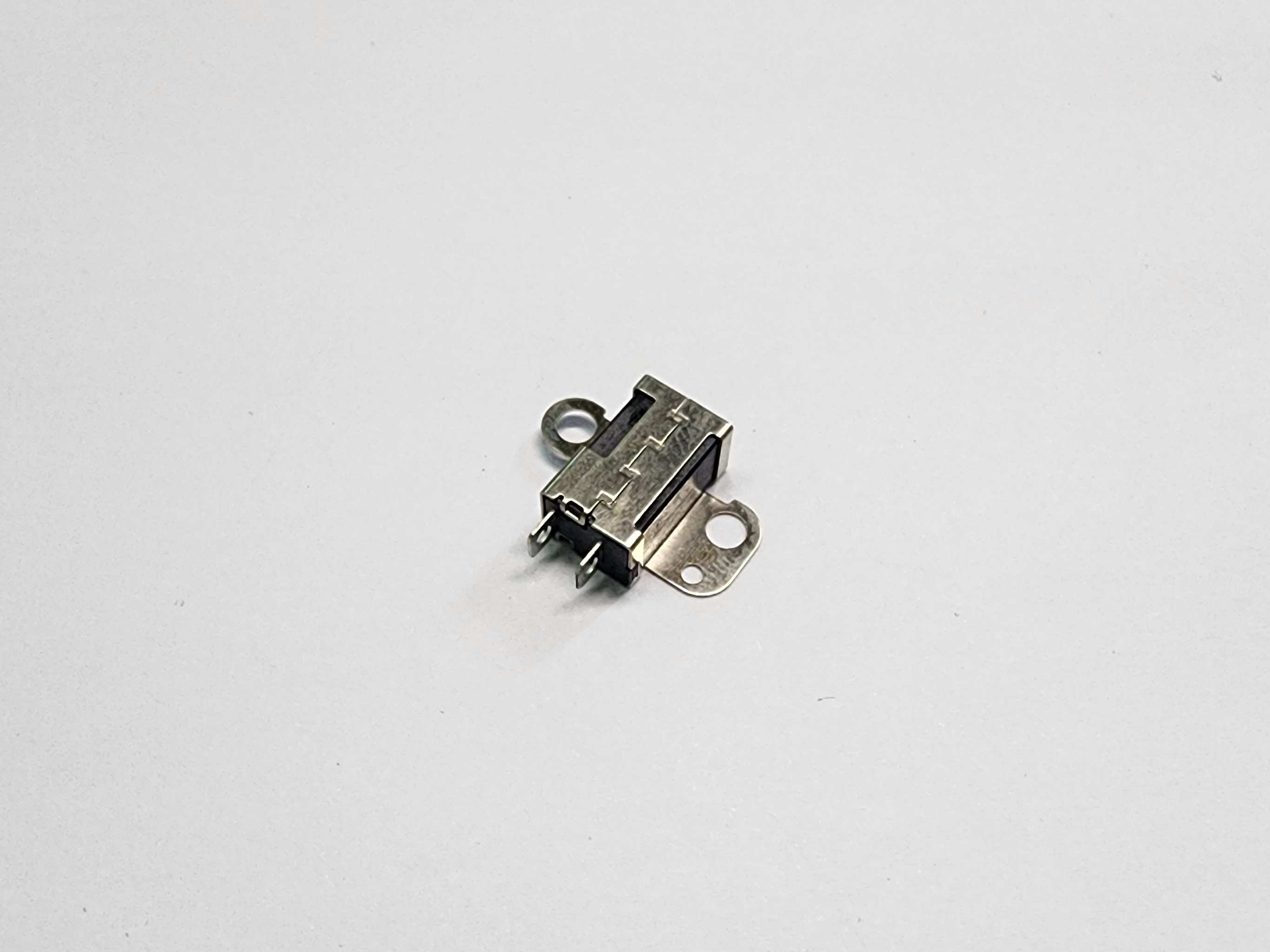

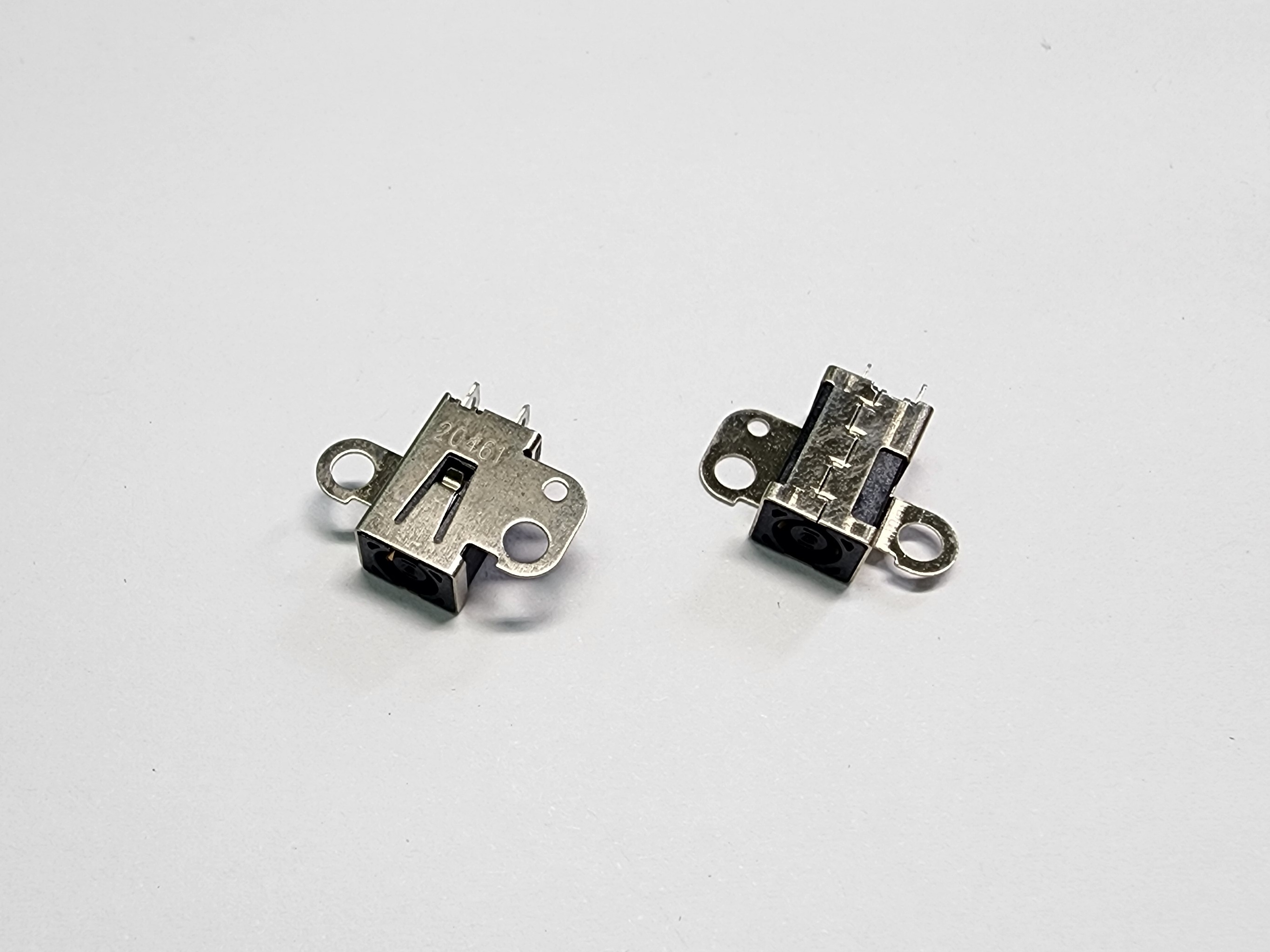

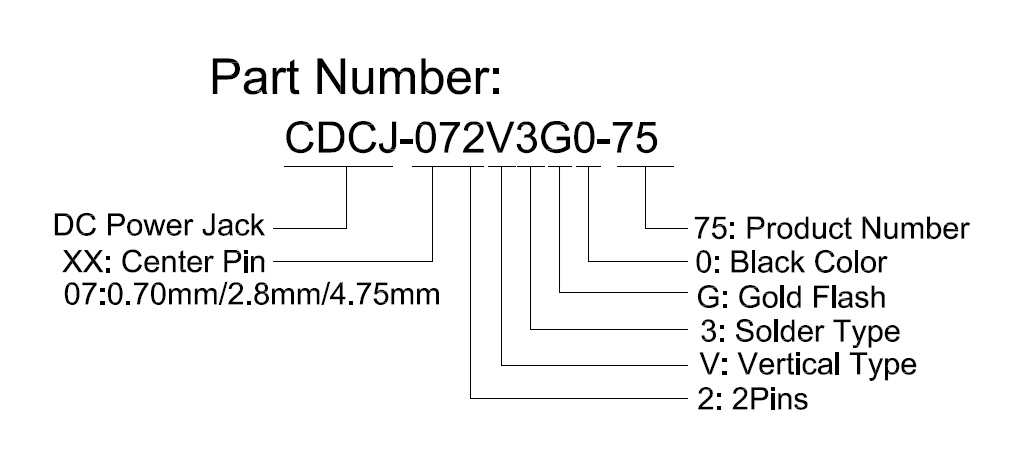

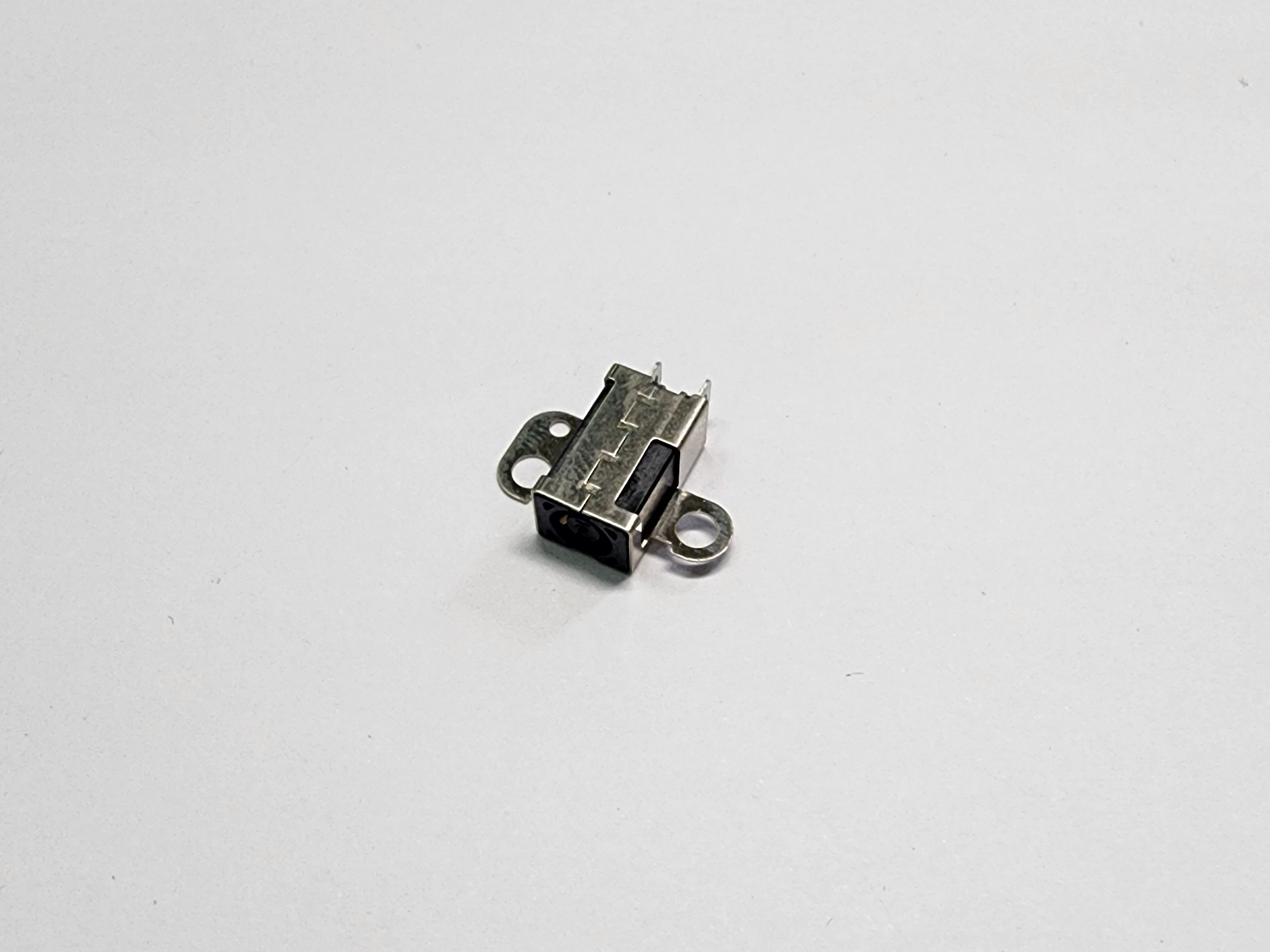

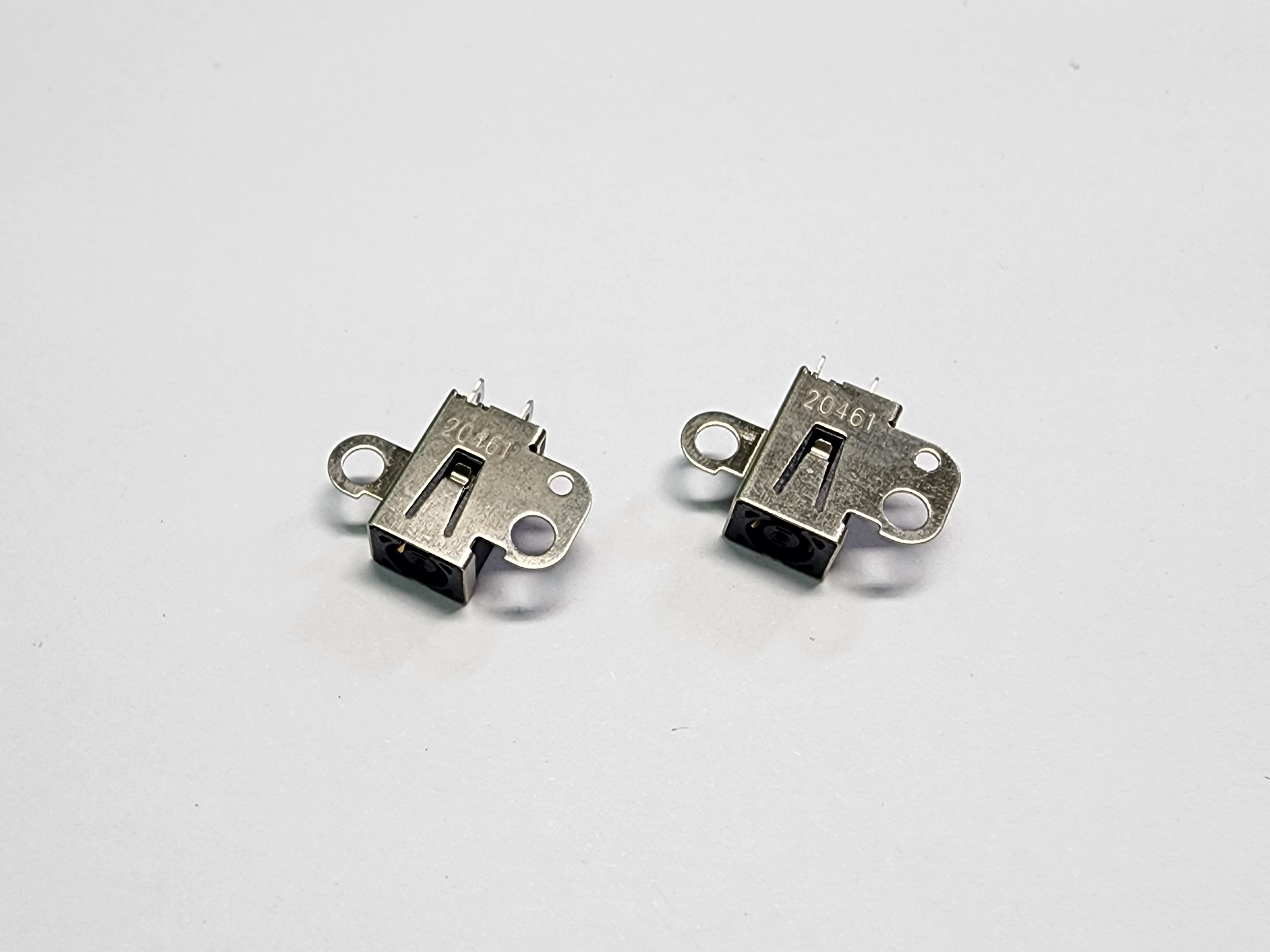

CDCJ-072V3G0-75 (20V12A)

DC Power Jack, 0.70mm/2.80mm/4.75mm, 2Pins, Vertical, Solder Type With Holes, Gold Flash, With Shielding, H=5.72mm, LCP, Black Color, Support 20V 12A

Material

• Housing: LCP (E130i), UL 94V-0 Rated.
• Color: Black.
• Ground Pin(V-): C7035 T=0.25mm.
• Plating: Gold Flash Plating over Nickel.
• Power Pin(V+): C7035 T=0.25mm.
• Plating: Gold Flash Plating over Nickel.
• Shell: SUS201 T=0.20mm.
• Plating: Gold Flash Plating over Nickel.
• Stopple: LCP (E130i), UL 94V-0 Rated.
• Color: Black.

Mechanical

• Insertion Force: 0.7~2.0Kgf Max.
• Extraction Force: 0.6~2.0Kgf after 5,000 Cycles.
• Durability: 5,000 Cycles Min.

Electrical Specification

• Current Rating: 12A Max.
• Voltage Rating: DC 20V Max.
• Contact Resistance: 0.03Ω Max.
• Insulation Resistance: 50MΩ Min. at 500V DC after 1 Minute.
• Withstand Voltage: 500V AC for 1 Minute.

Environmental

• Operation Temperature Range: -20°C~85°C.
• Moisture Sensitive Device MSL6-After Packing Has Been Opened 8 Hours, Parts Must Be Baked for Min 5Days at 40°C & 5% HR.
• RoHS Compliance.
• REACH Compliance.
