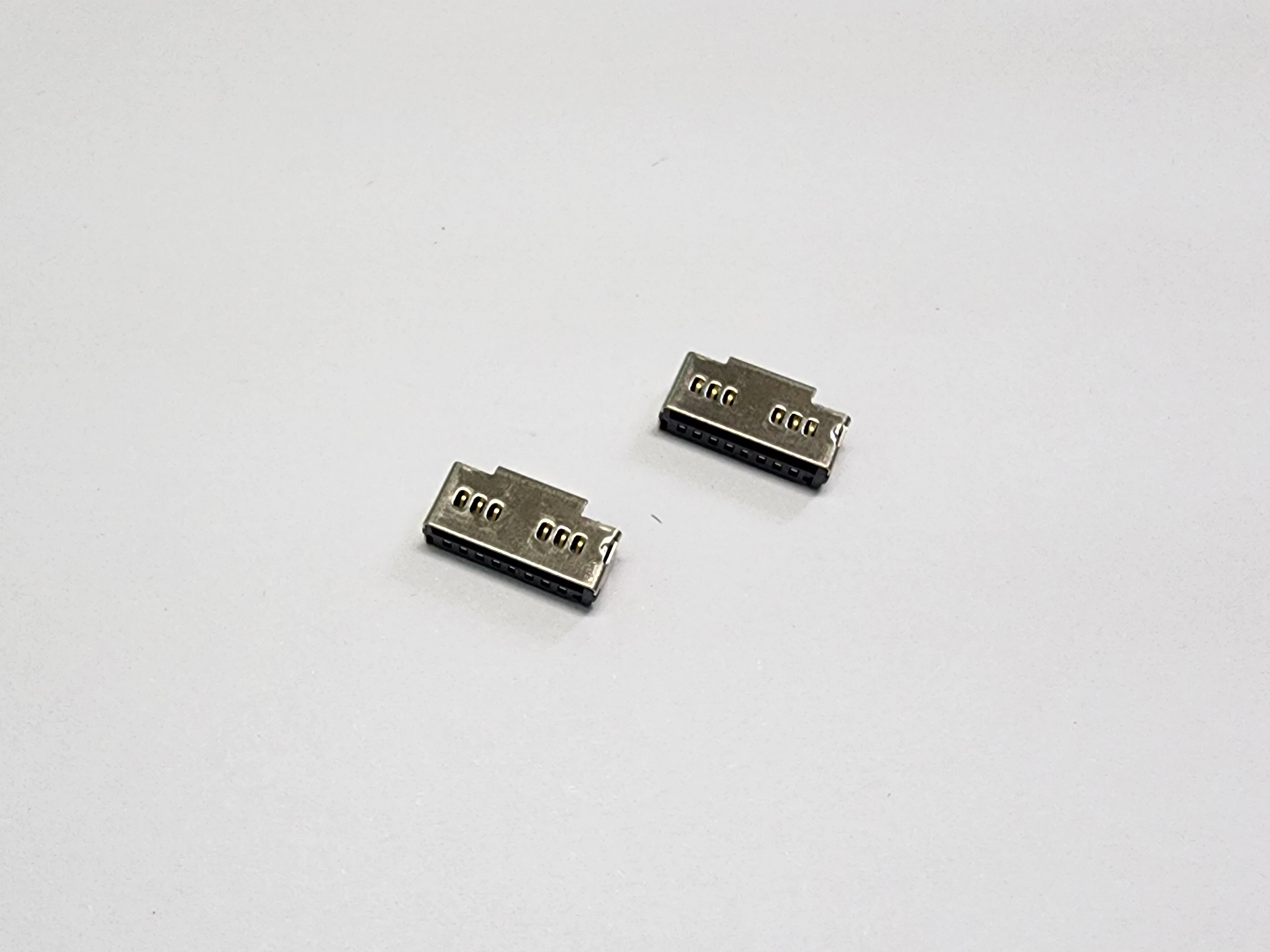

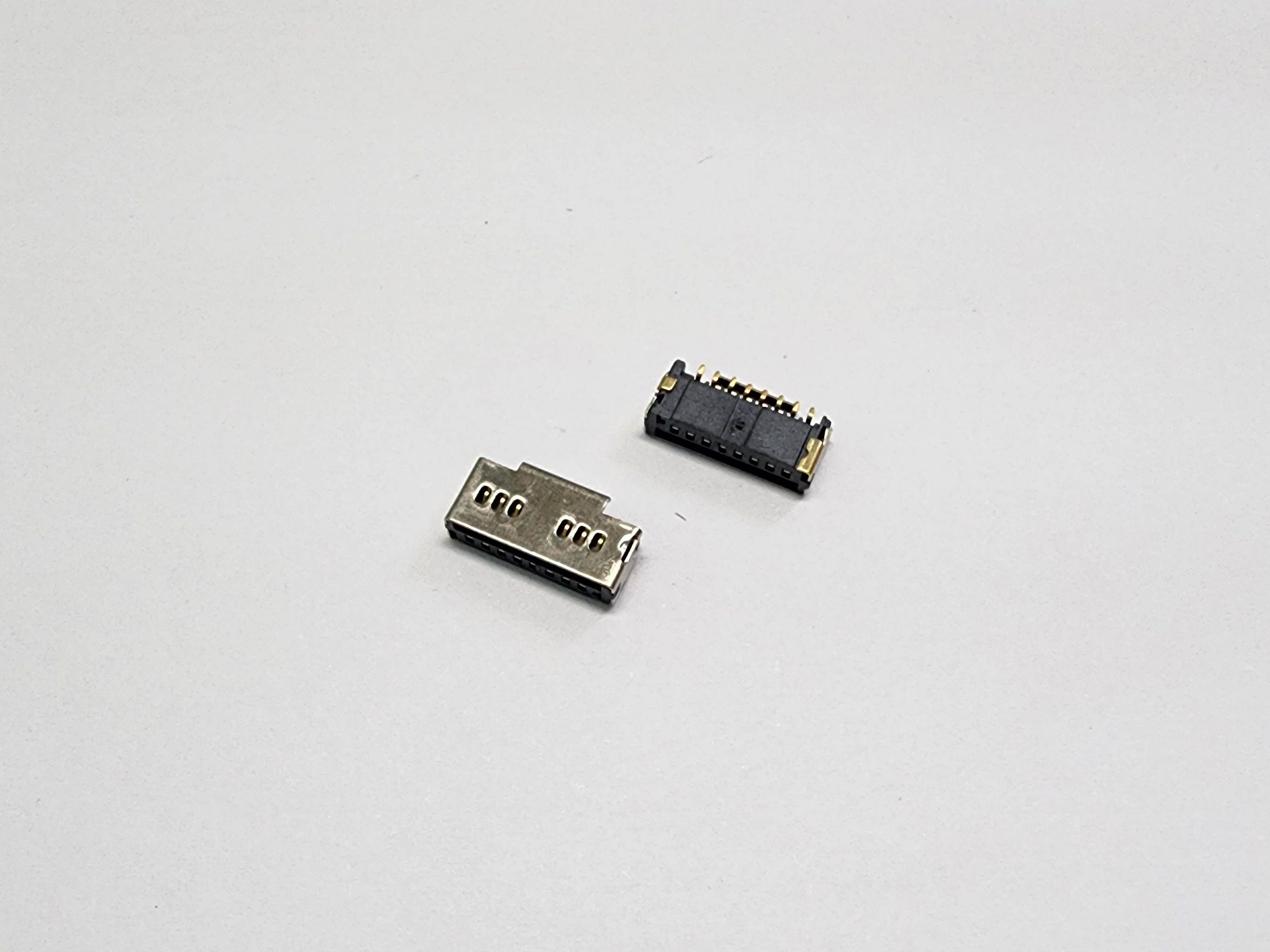

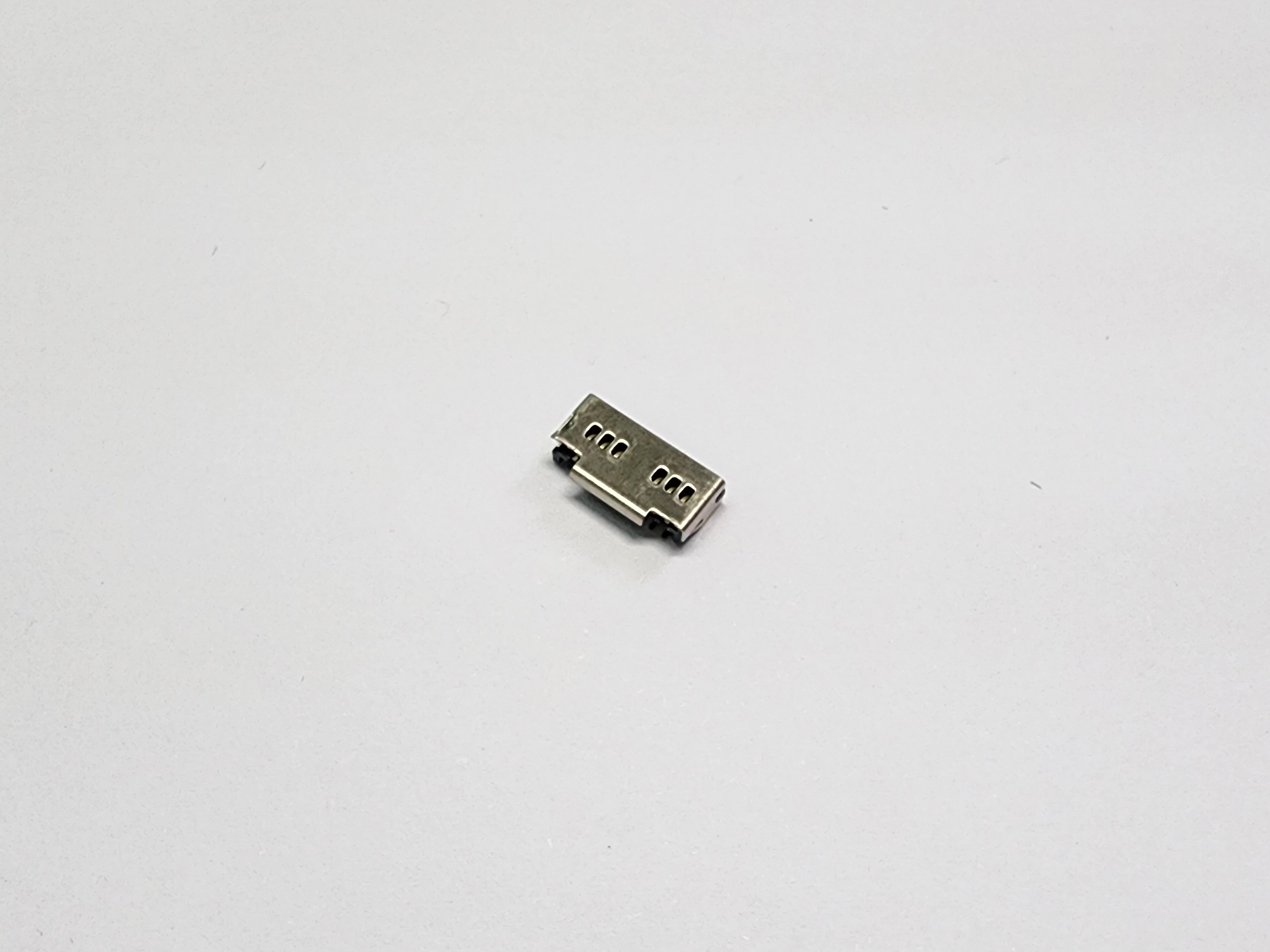

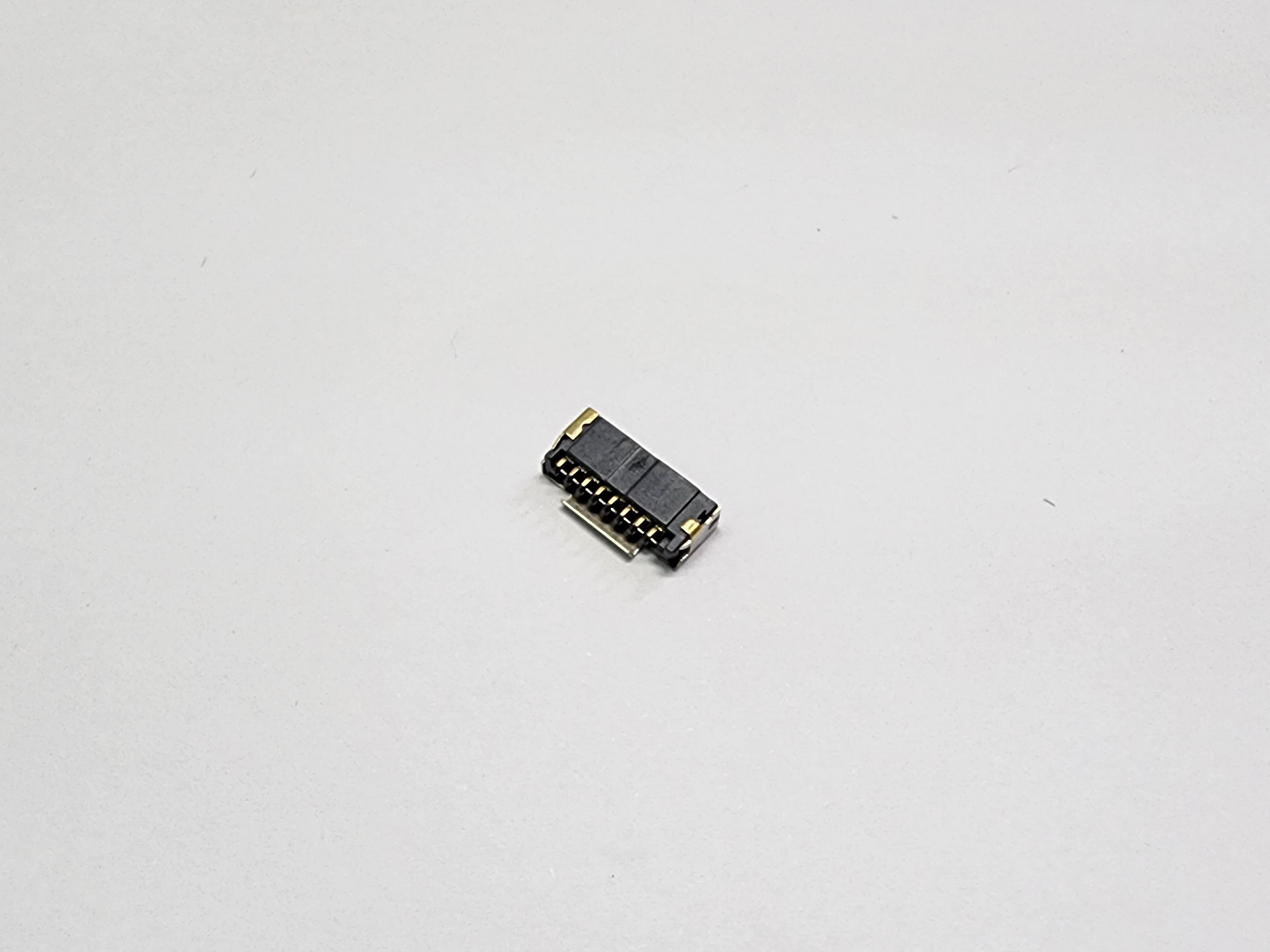

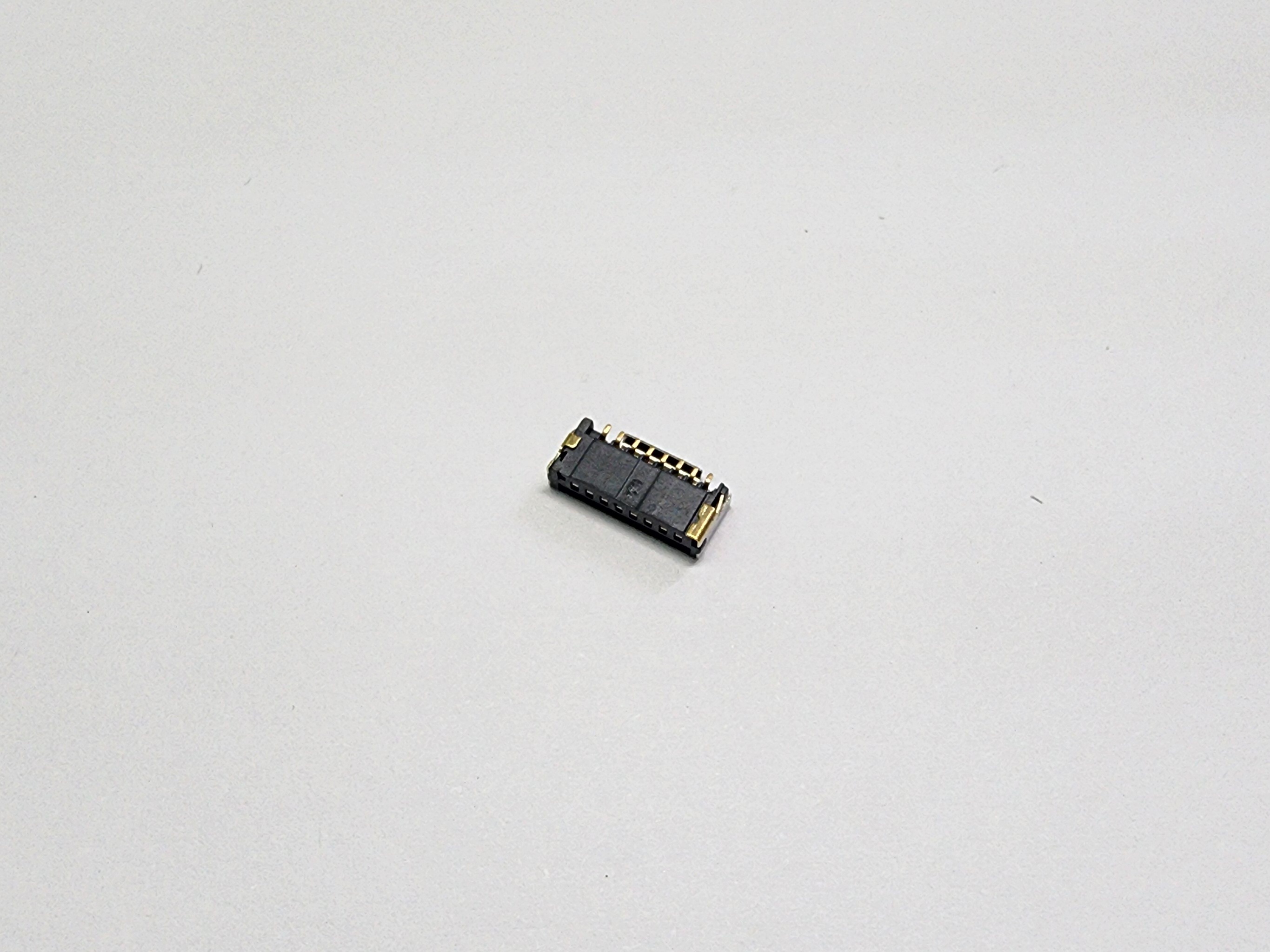

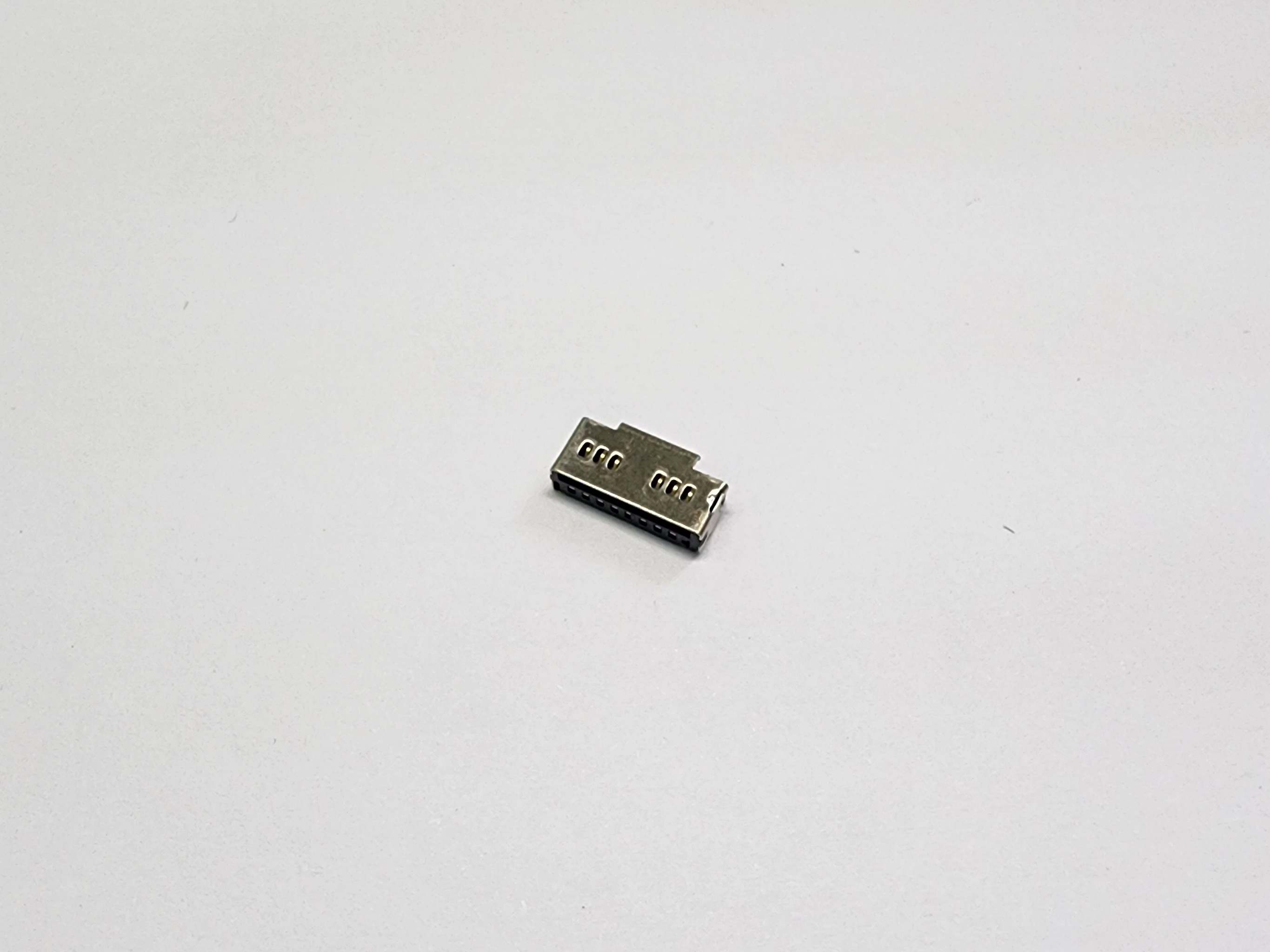

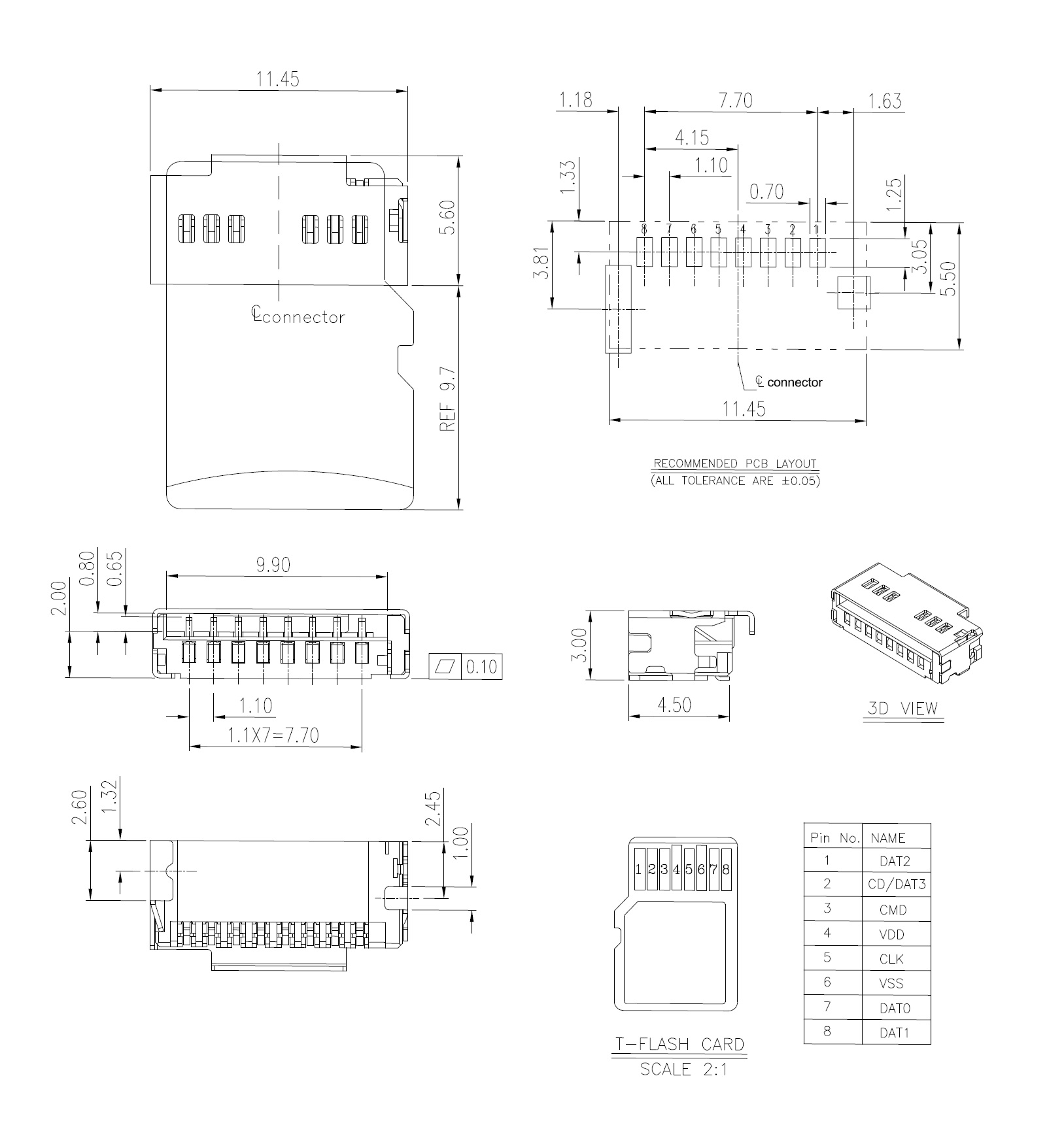

CMSD-QS8VSG0-GD3
Description
- Micro SD Card Socket Connector
- Push/Pull Type
- Standard Type
- 8Pins
- Gold Flash Plating
- SMD
- H=3.00mm High
- Without Post
- Metal Shield
- LCP
- Black Color
Micro SD Card(T-Flash), SMD, Push/Pull Type, 8Pins, H=3.00mm Height, Without Post, With Metal Shield, LCP, Black Color
Material
- Housing: Thermoplastic, UL 94V-0 Rated.
- Color: Black.
- Contact: Copper Alloy, T=0.15mm.
- Plating: Gold Plating over Nickel on Contact Area;
- Gold Flash Plating over Nickel on Solder Tail.
- Shell: Stainless Steel, T=0.20mm.
- Plating: Gold Plating on Solder Area.
- Nickel Underplating over All.
Electrical Specification
- Current Rating: 0.5 Ampere Max per Pin.
- Voltage Rating: 10V AC/DC.
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500V AC for One Minute.
Environmental
- Operating Temperature: -20°C to +65°C.
- RoHS Compliance.
- REACH Compliance.
