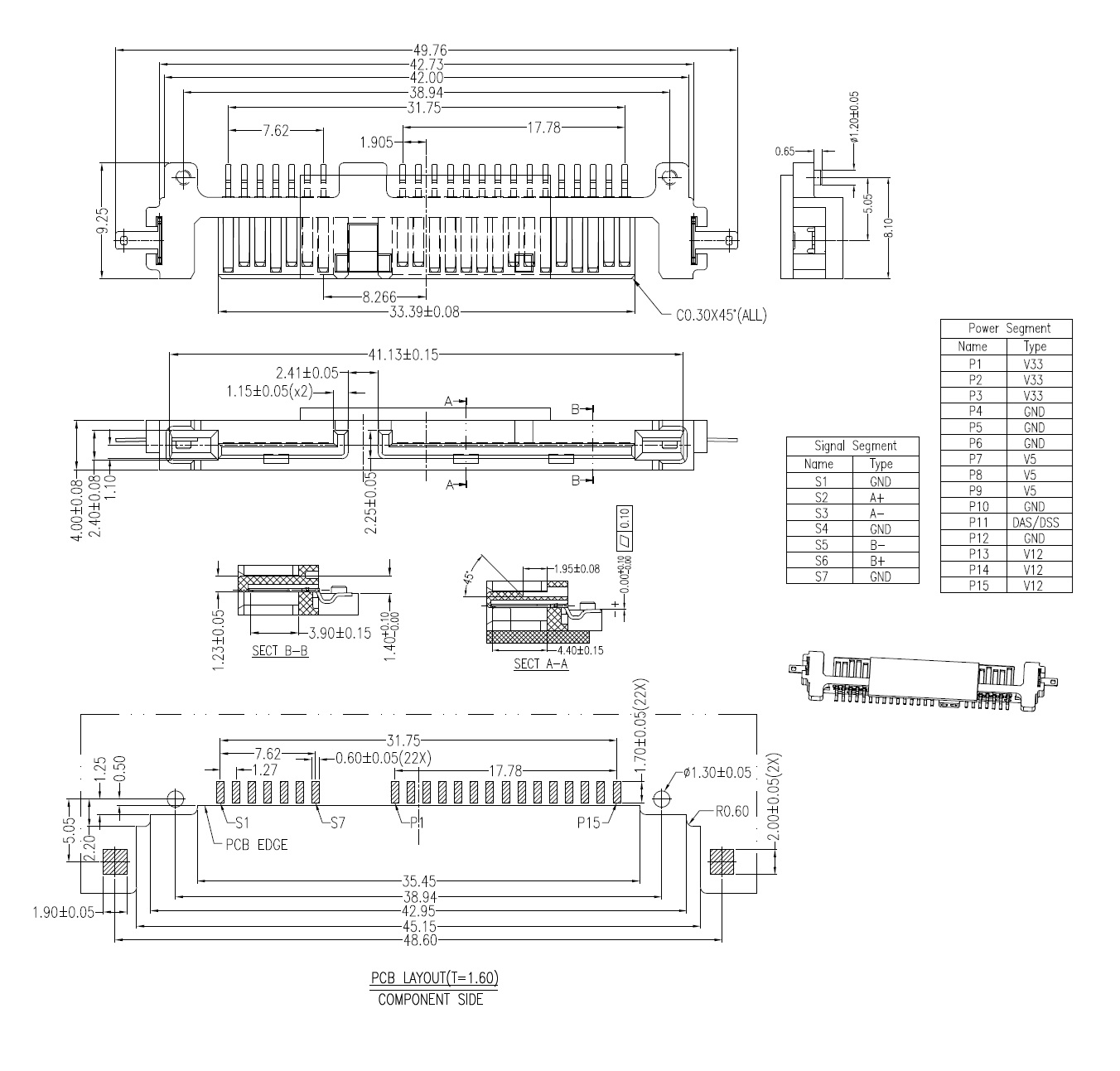

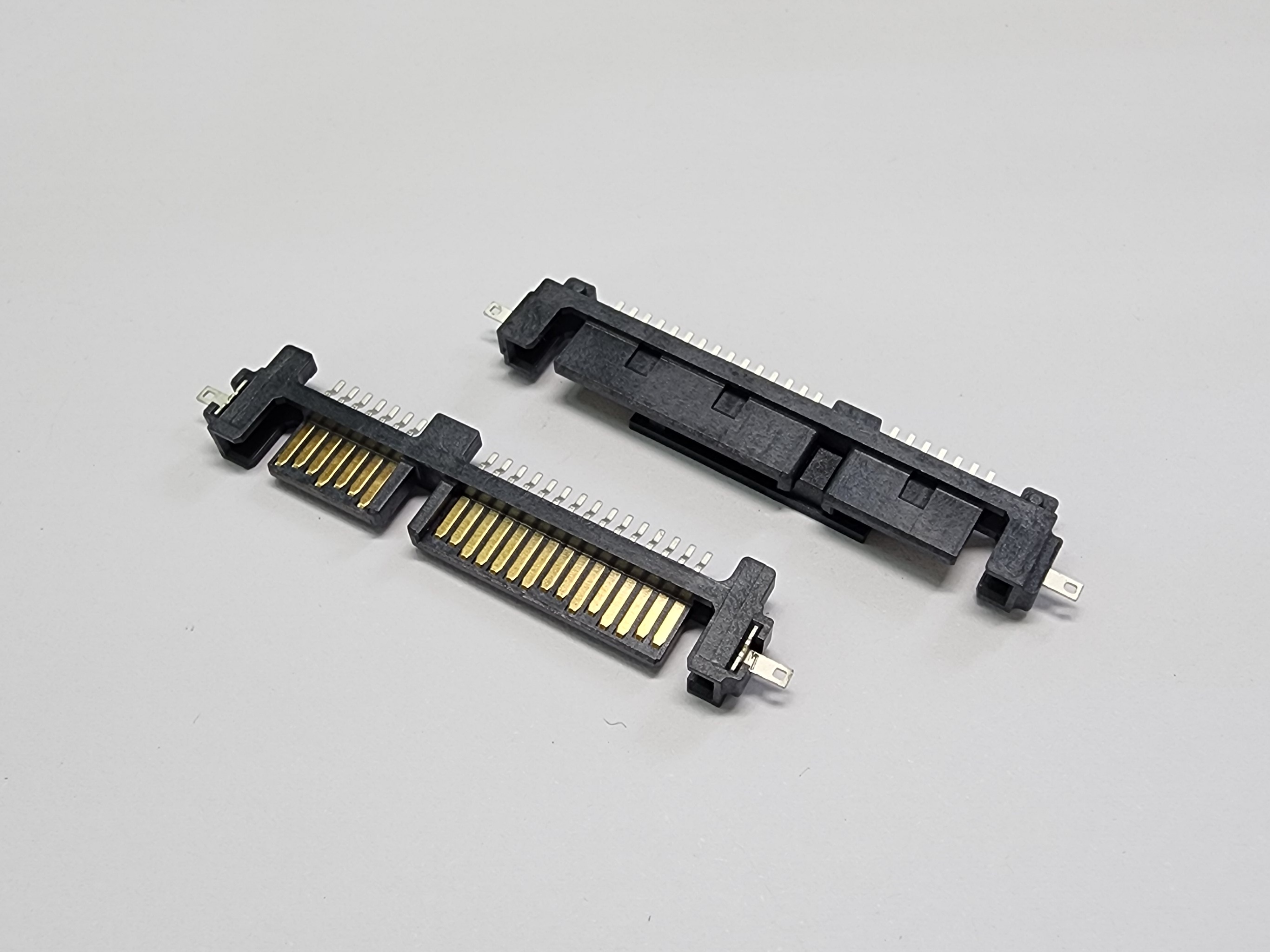

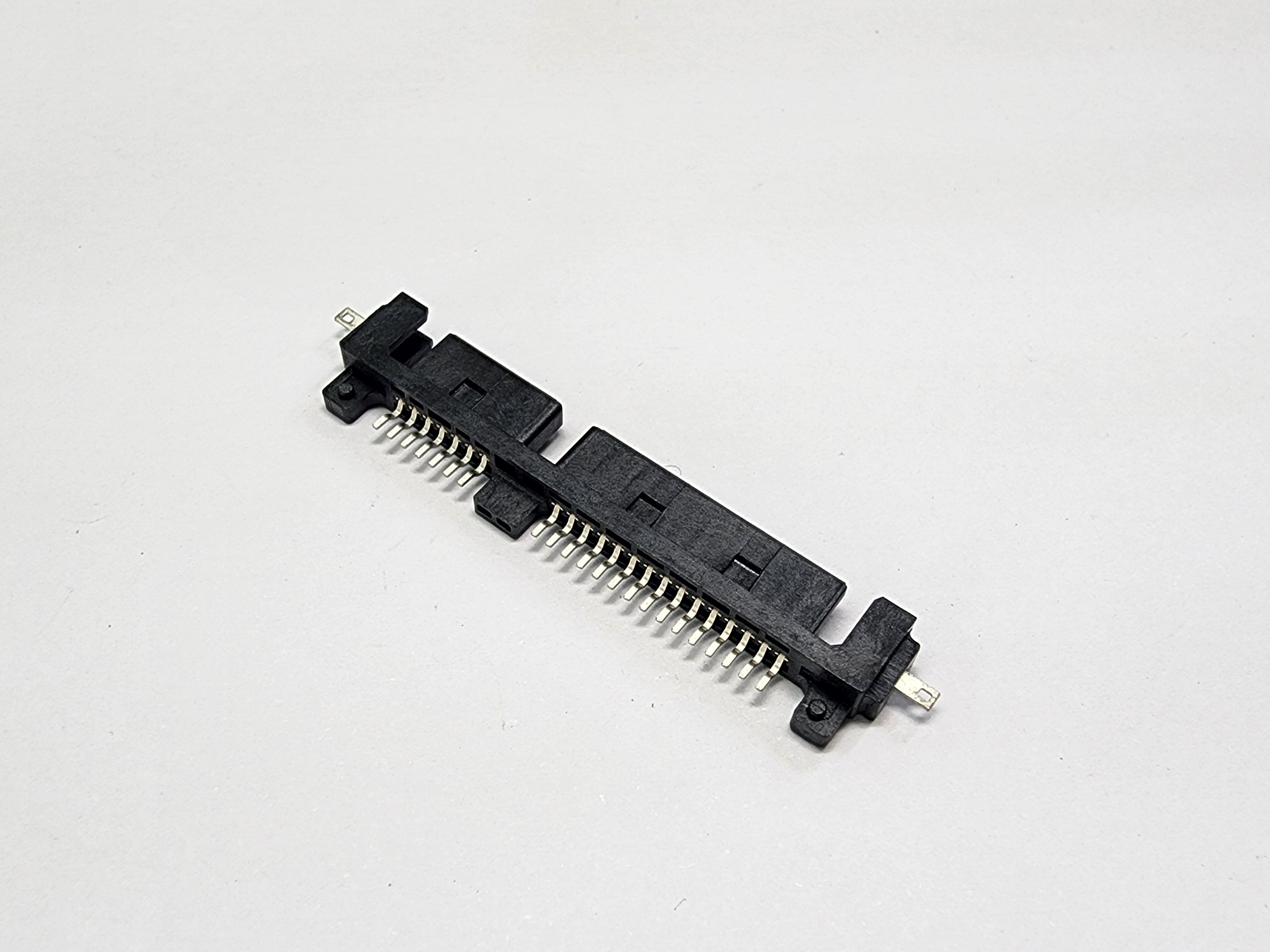

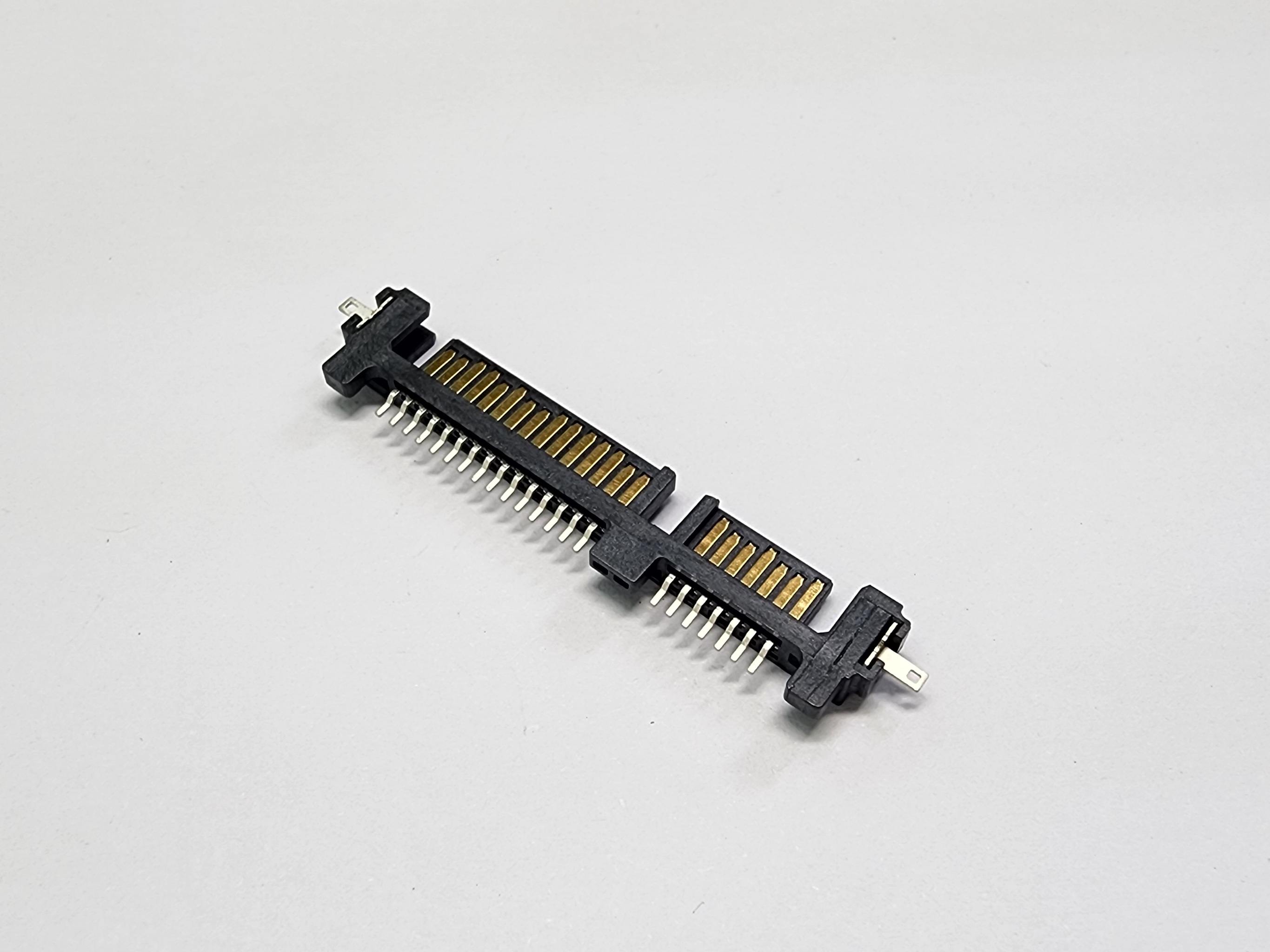

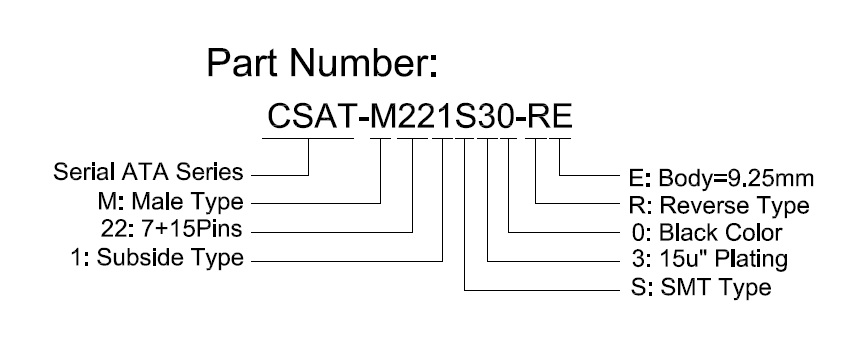

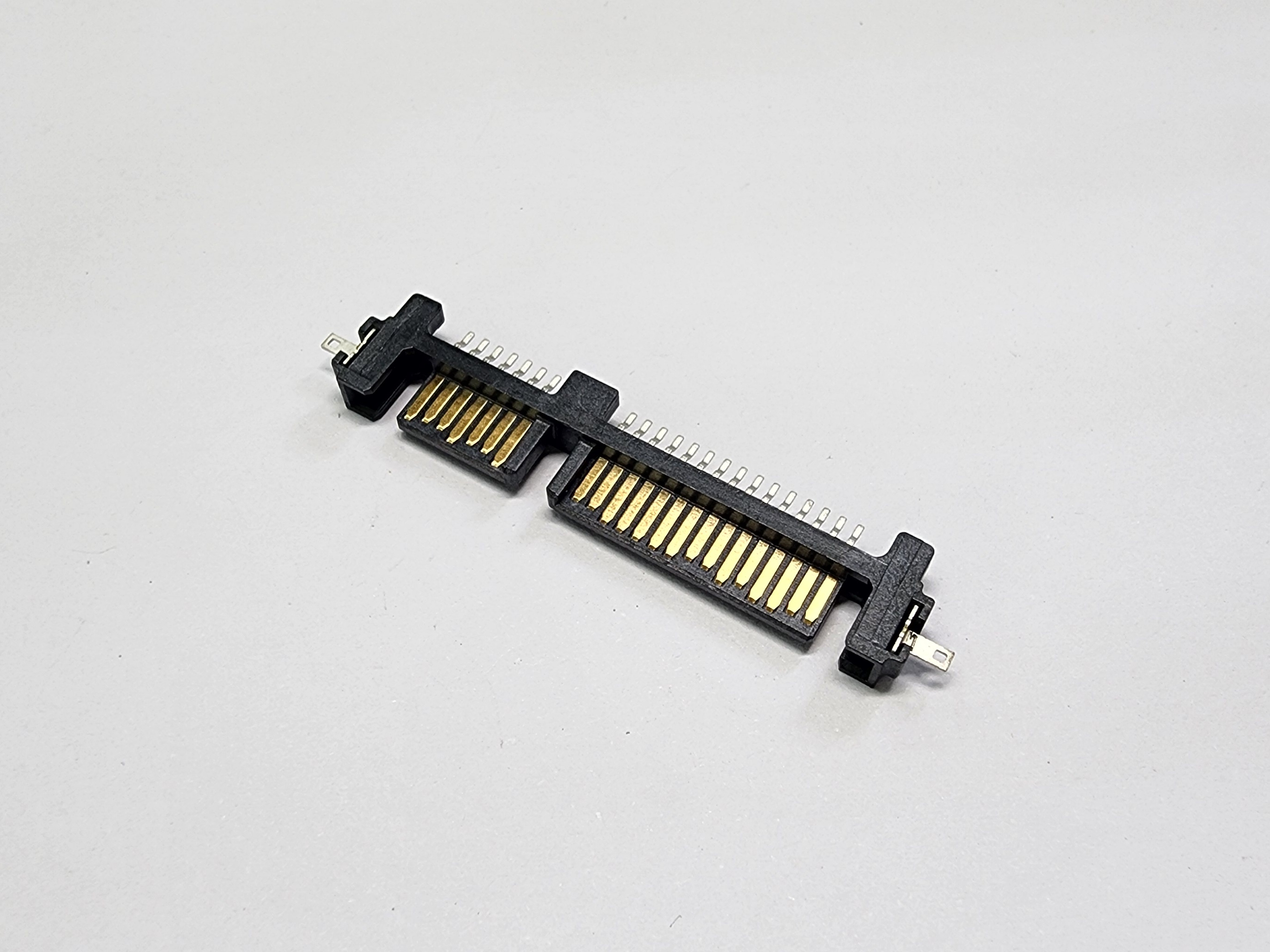

CSAT-M221S30-RE
Description
- Serial ATA Connector
- 22Pins
- Male
- Subside
- SMT
- 15u” Gold Plating
- Reverse Type
- Body L=9.25mm
- H=2.30mm
- LCP
- Black Color

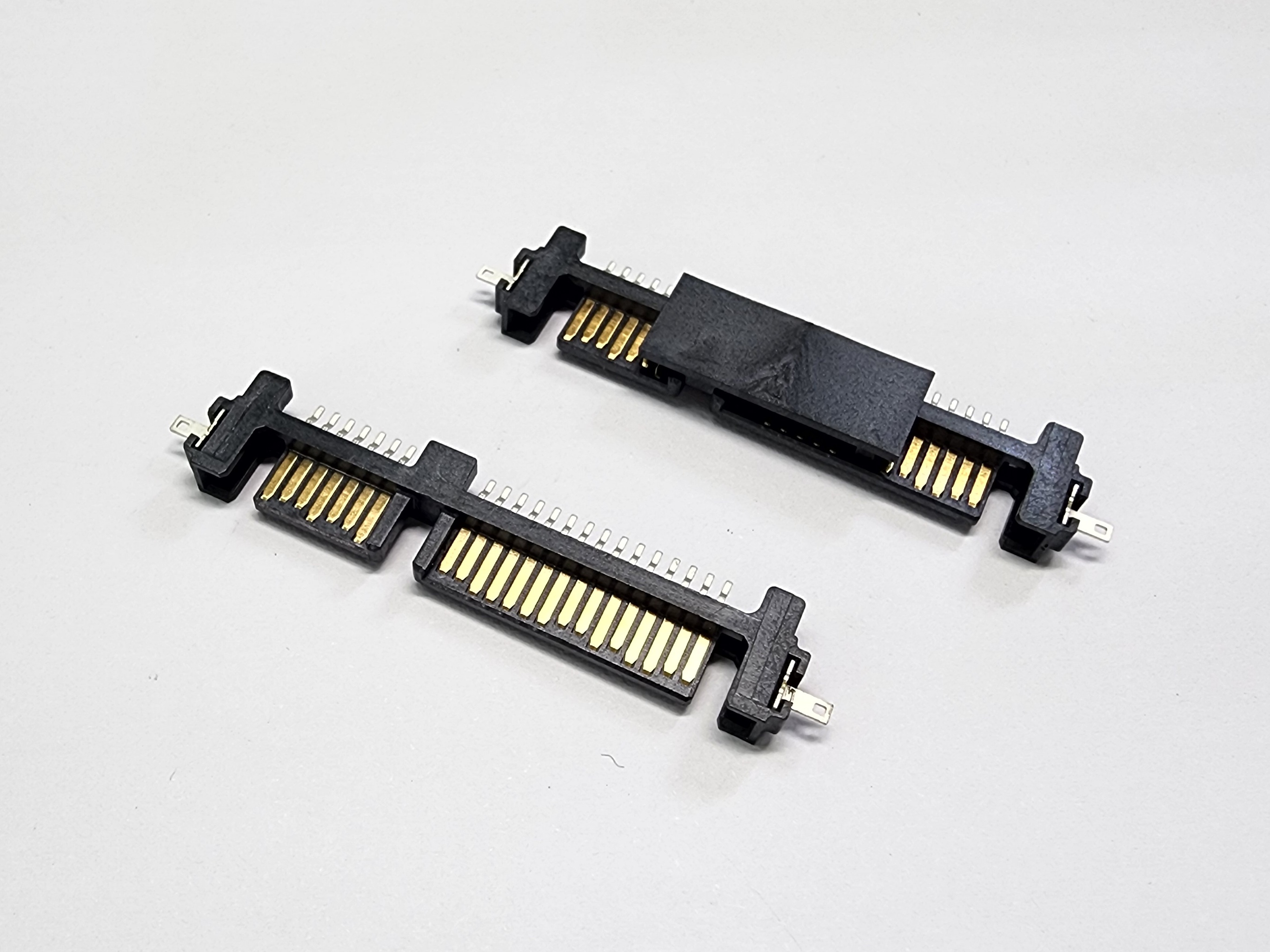

- With Cap
Serial ATA 22Pins, Male, Subside, SMD, 15u" Plating, Reverse Type, Body=9.25mm, H=2.3mm, LCP, Black Color, With Cap
Material
- Housing: LCP, UL 94V-0 Rated.
- Color: Black.
- Contact: Brass.
- Plating: Gold Plating over Nickel on Contact Area;
- Tin Plating on Solder tail.
- Harpoon: Brass.
- Plating: Tin Plating over Nickel.
Mechanical
- Insertion Force: 45N Max.
- Withdrawal Force: 10N Min.
- Durability: 500 Cycles.
Electrical Specification
- Current Rating: 1.5 Ampere per Contact.
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500V AC.
Environmental
- Operating Temperature: -55°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
