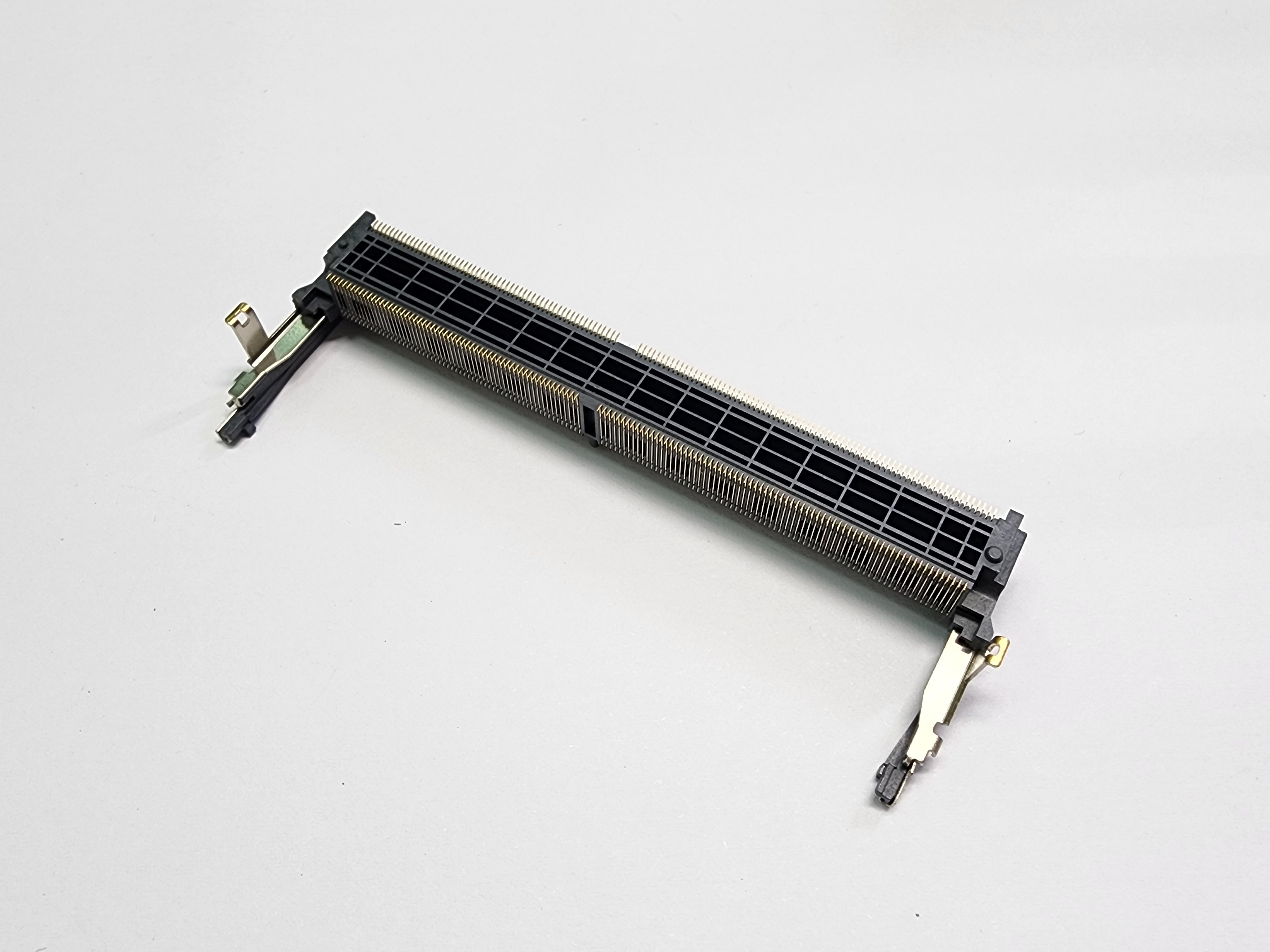

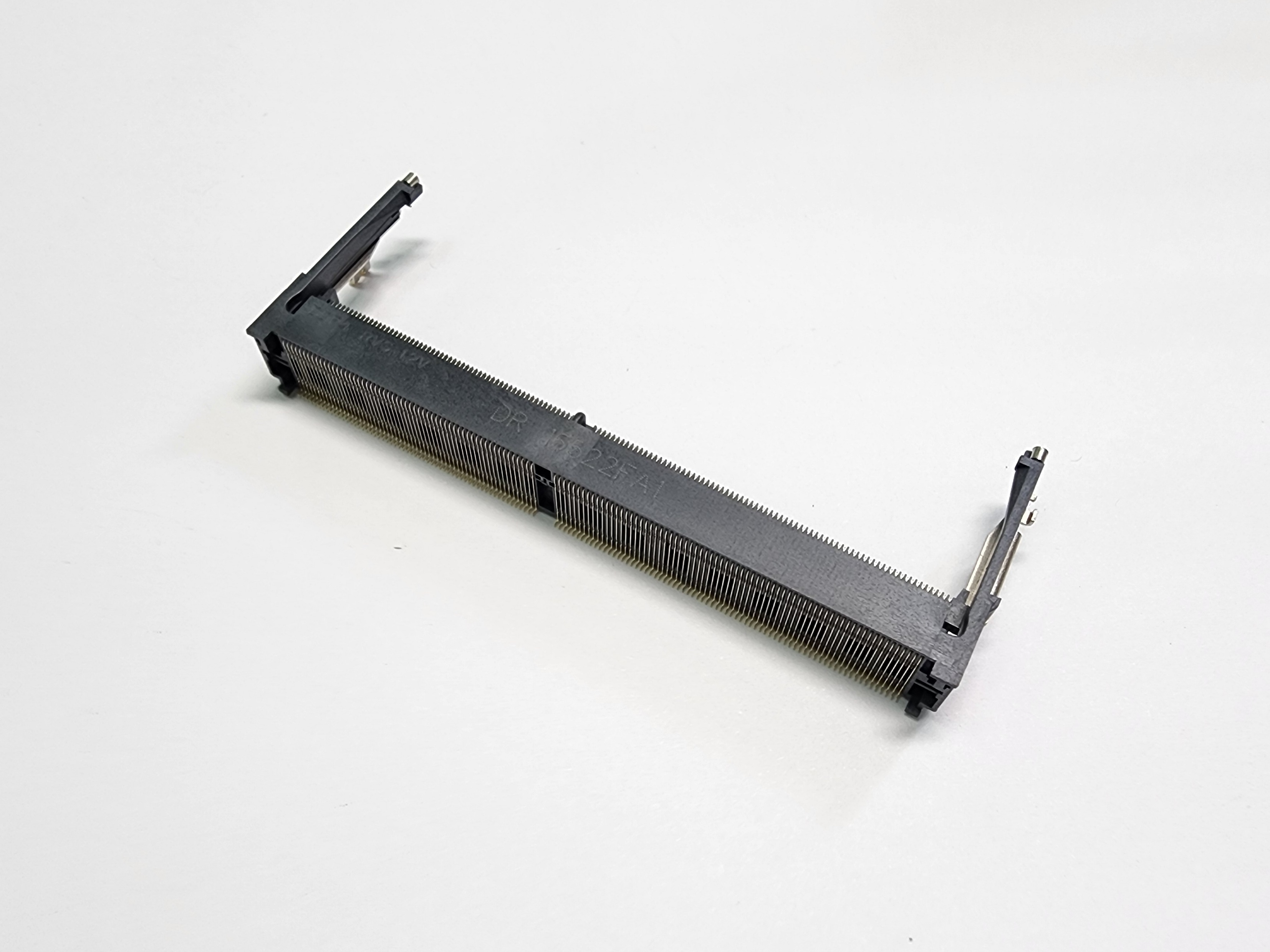

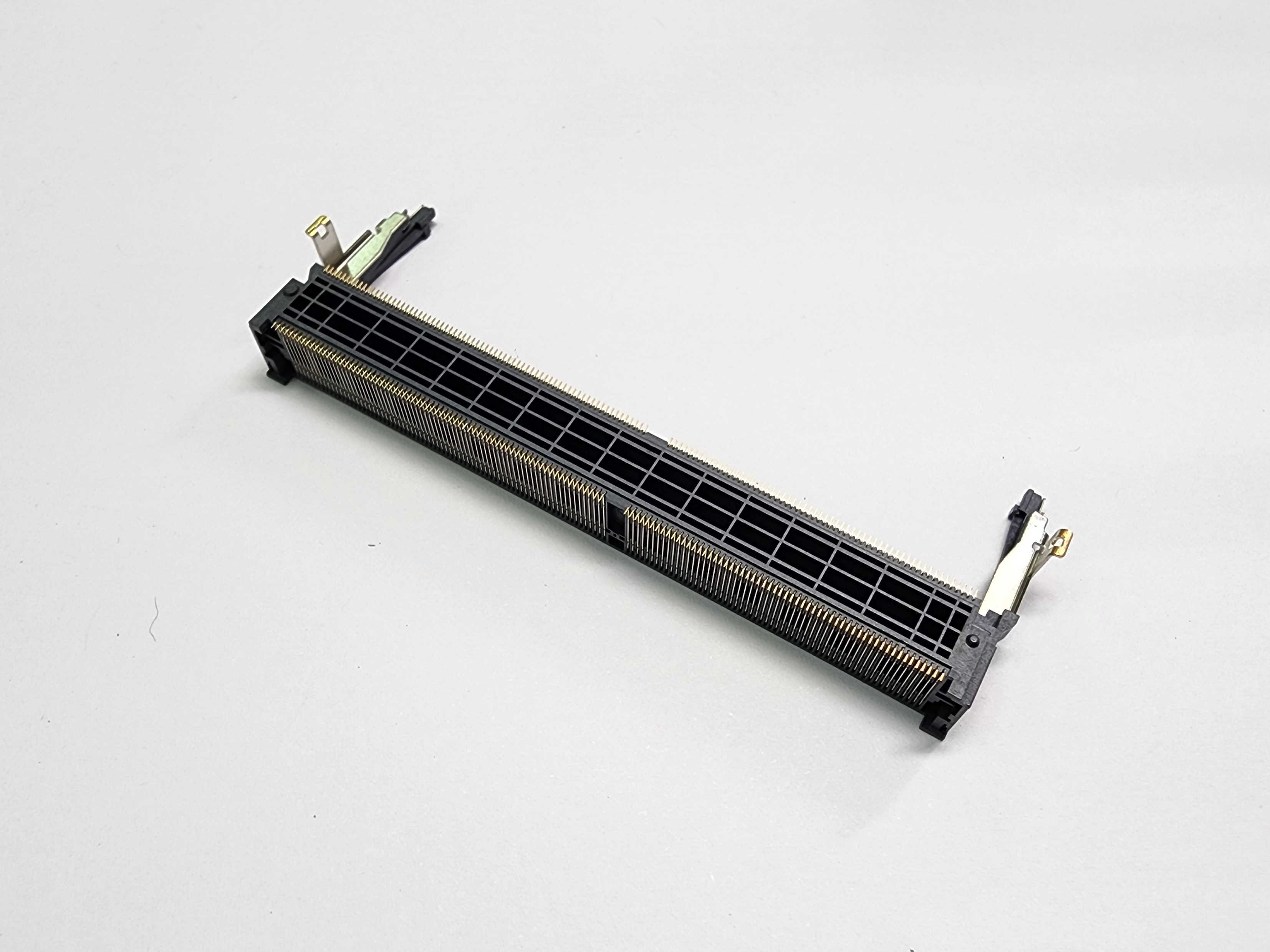

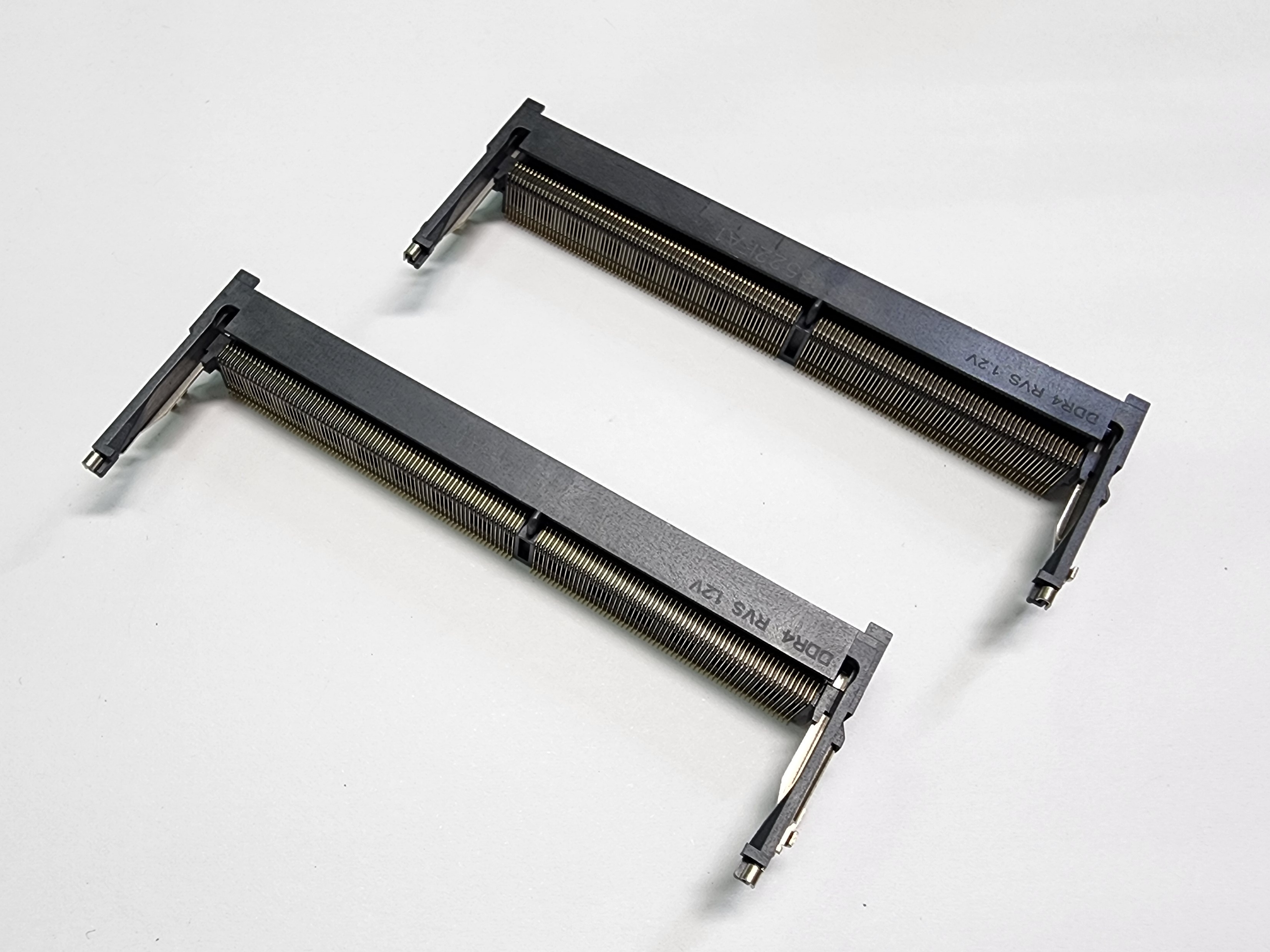

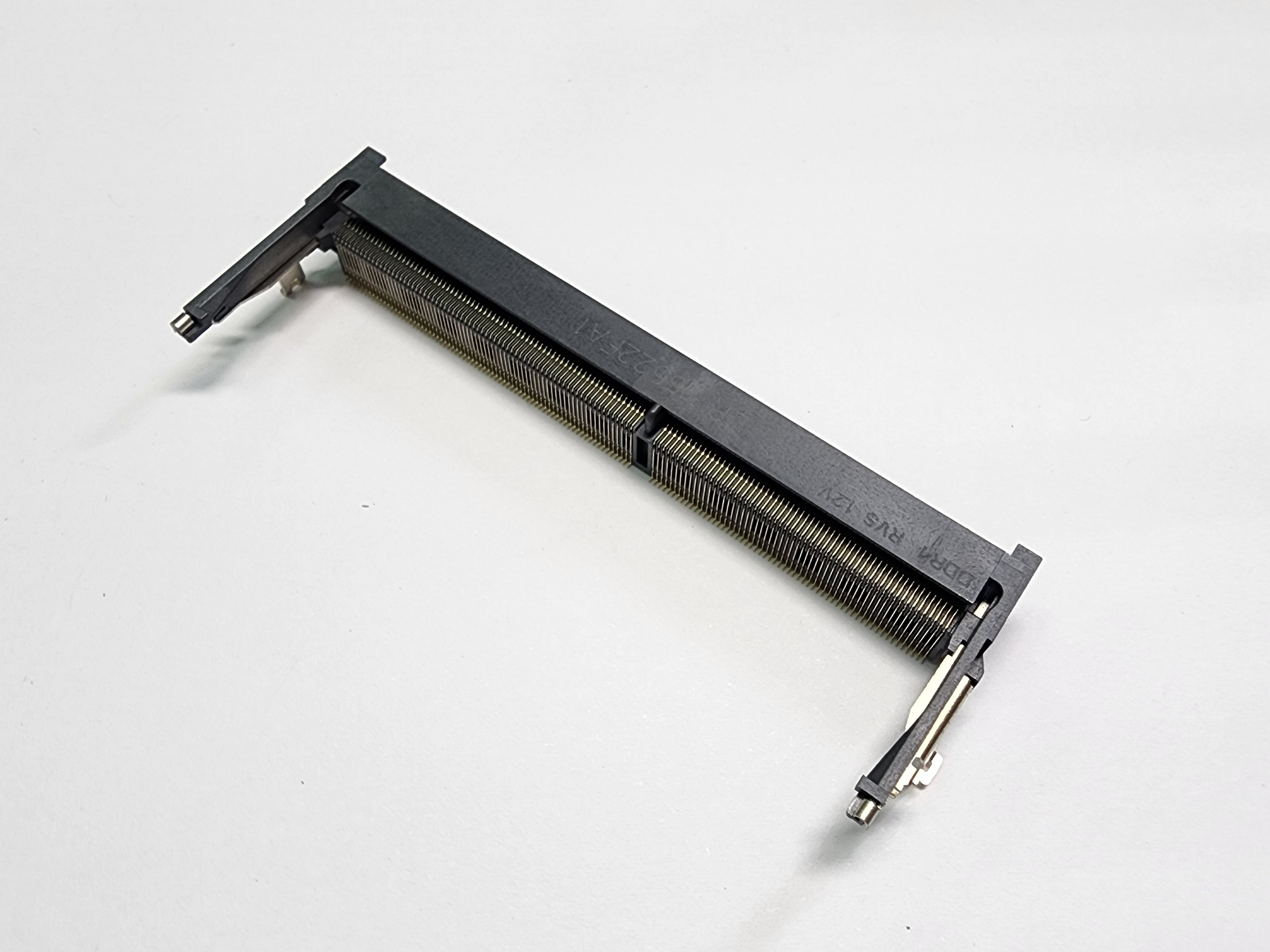

CSD4-260RSG0-R9
Description
- SO-DIMM DDR4 Connector
- 260Pins
- 1.2V
- Reverse Type
- Right Angle
- SMT
- Gold Flash
- H=9.2mm High
- LCP
- Black Color

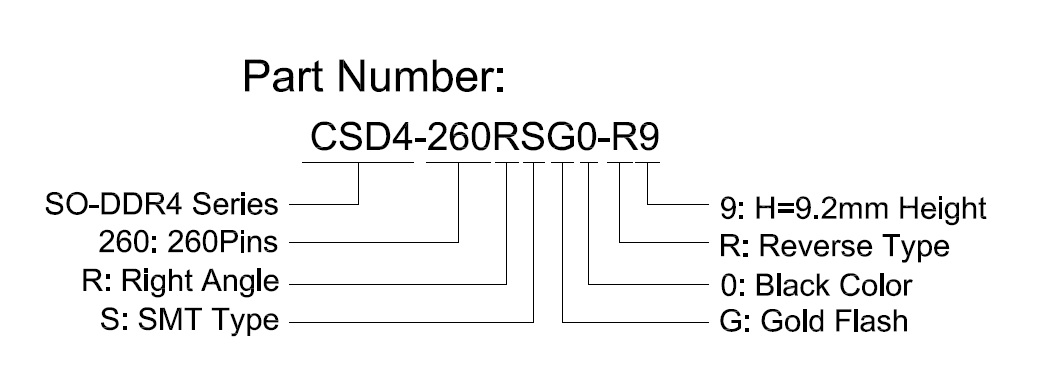

SO-DIMM DDR4, 260Pins, 1.2V, Right Angle, SMT, Gold Flash, Reverse Type, H=9.2mm Height, Black Color
Material
- Housing: LCP, UL 94V-0 Rated.
- Color: Black.
- Contact: Phosphor Bronze.
- Plating: Gold Plating on Contact Area;
- Gold Flash Plating on Solder Tail.
- 50u” Min. Nickel Underplating Over All.
- Solder Peg and Metal Latch: Stainless Steel.
- Plating: Gold Flash Plating on Solder Tail;
- 50u” Min. Nickel Underplating Over All.
Mechanical
- Durability: 25Cycles Min.
Electrical Specification
- Current Rating: 0.5A per Pin.
- Voltage Rating: 25V AC.
- Contact Resistance: 60mΩ Max.
- Insulation Resistance: 500MΩ Min.
- Dielectric Withstanding: 250V AC for 1Minute.
Environmental
- Operating Temperature: -40°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
