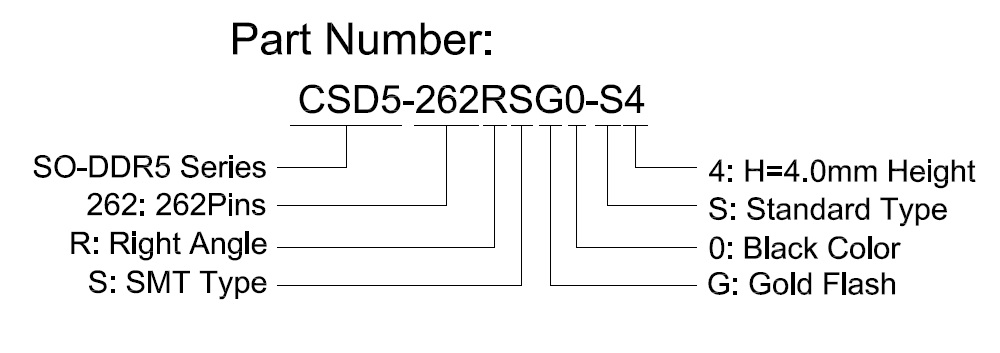

CSD5-262RSG0-S4
Description
- SO-DIMM DDR5 Connector
- 262Pins
- 1.1V
- Standard Type
- Right Angle
- SMT
- Gold Flash
- H=4.0mm High
- LCP
- Black Color
SO-DIMM DDR5 Connector, 262Pins, 1.1V, Right Angle, SMT, Gold Flash, Standard Type, H=4.0mm Height, Black Color
Material
- Housing: LCP, UL 94V-0 Rated.
- Color: Black.
- Contact: Phosphor Bronze.
- Plating: Gold Plating on Contact Area;
- Gold Flash Plating on Solder Tail.
- Nickel Underplating Over All.
- Metal Latch: Stainless Steel.
- Plating: Matt Tin Plating on Solder Tail;
- Nickel Underplating Over All.
Mechanical
- Durability: 25Cycles Min.
Electrical Specification
- Current Rating: 0.5A per Pin.
- Voltage Rating: 25V AC.
- Contact Resistance: 60mΩ Max.
- Insulation Resistance: 1MΩ Min.
- Dielectric Withstanding: 250V AC for 1Minute.
Environmental
- Operating Temperature: -55°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
