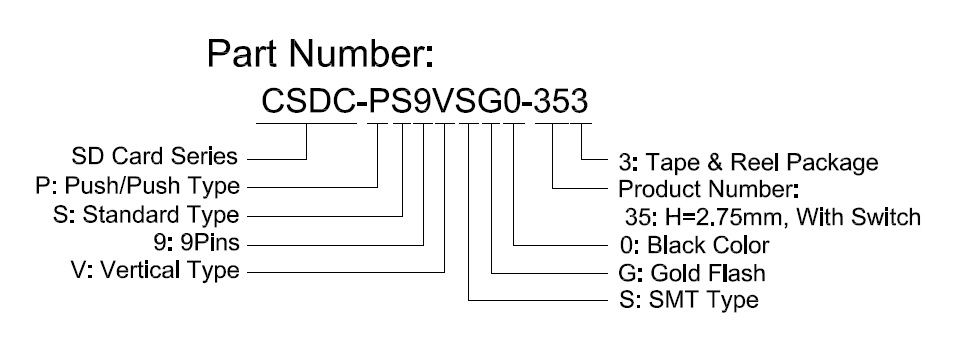

CSDC-PS9VSG0-353
Description

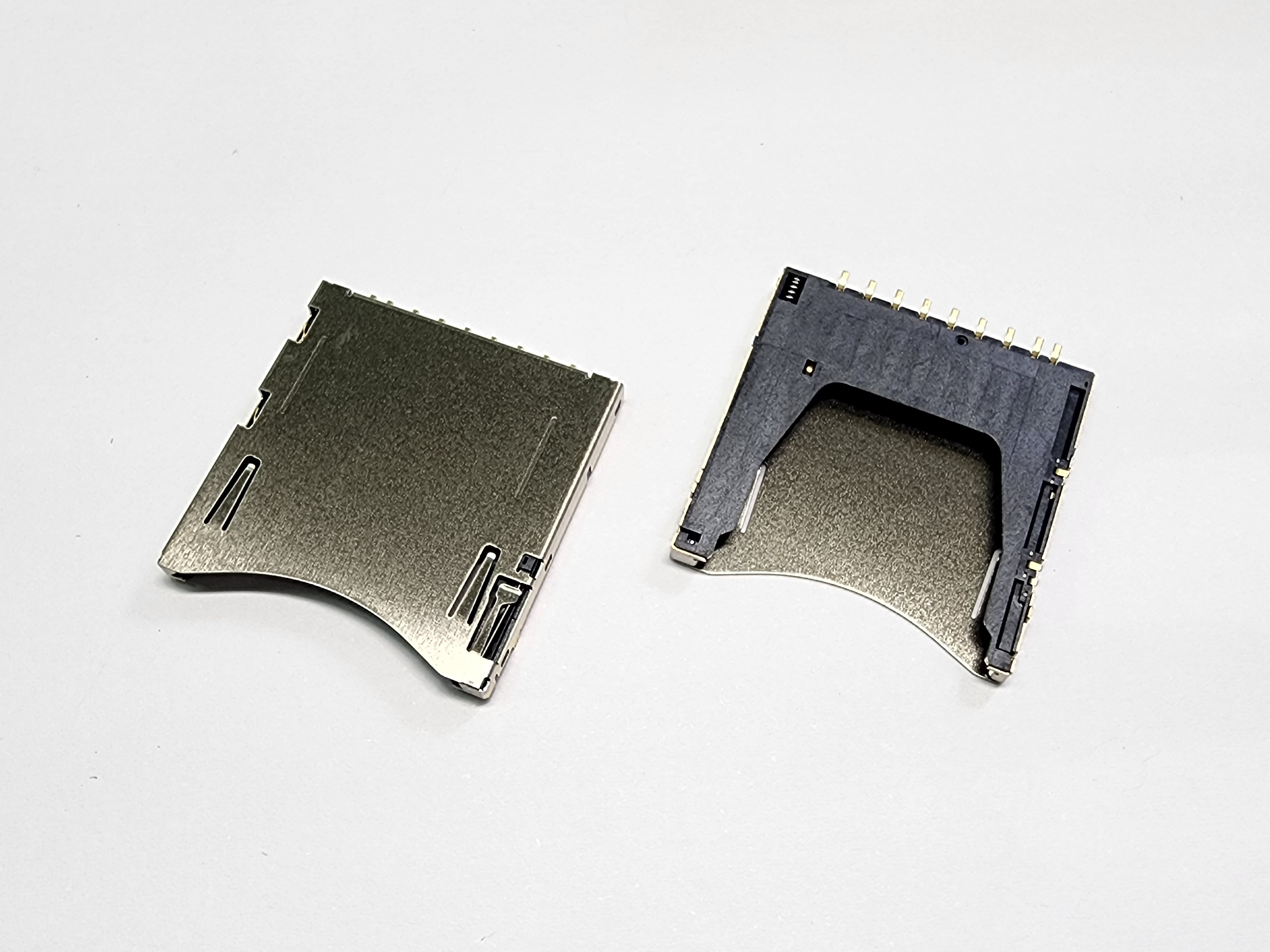

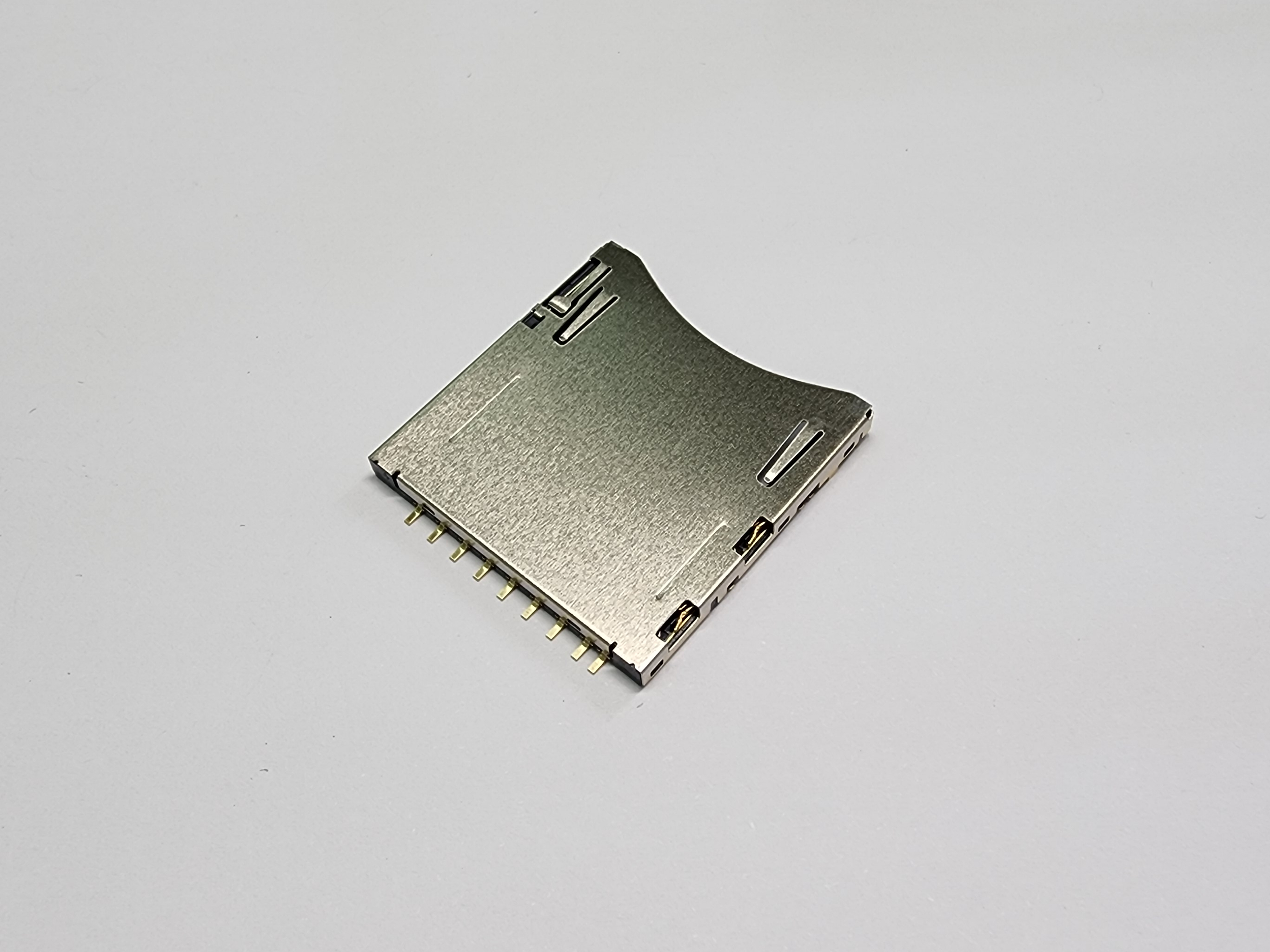

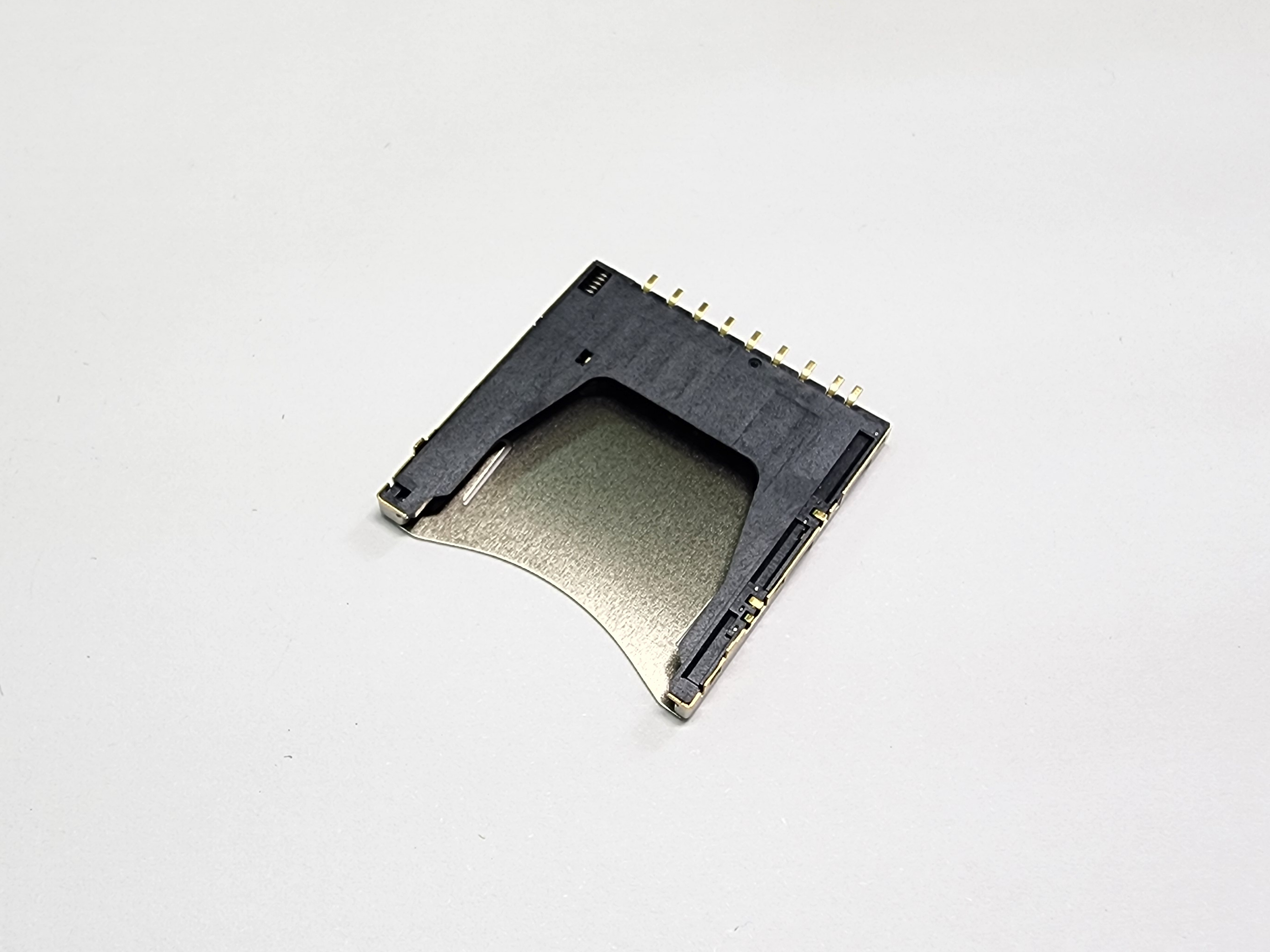

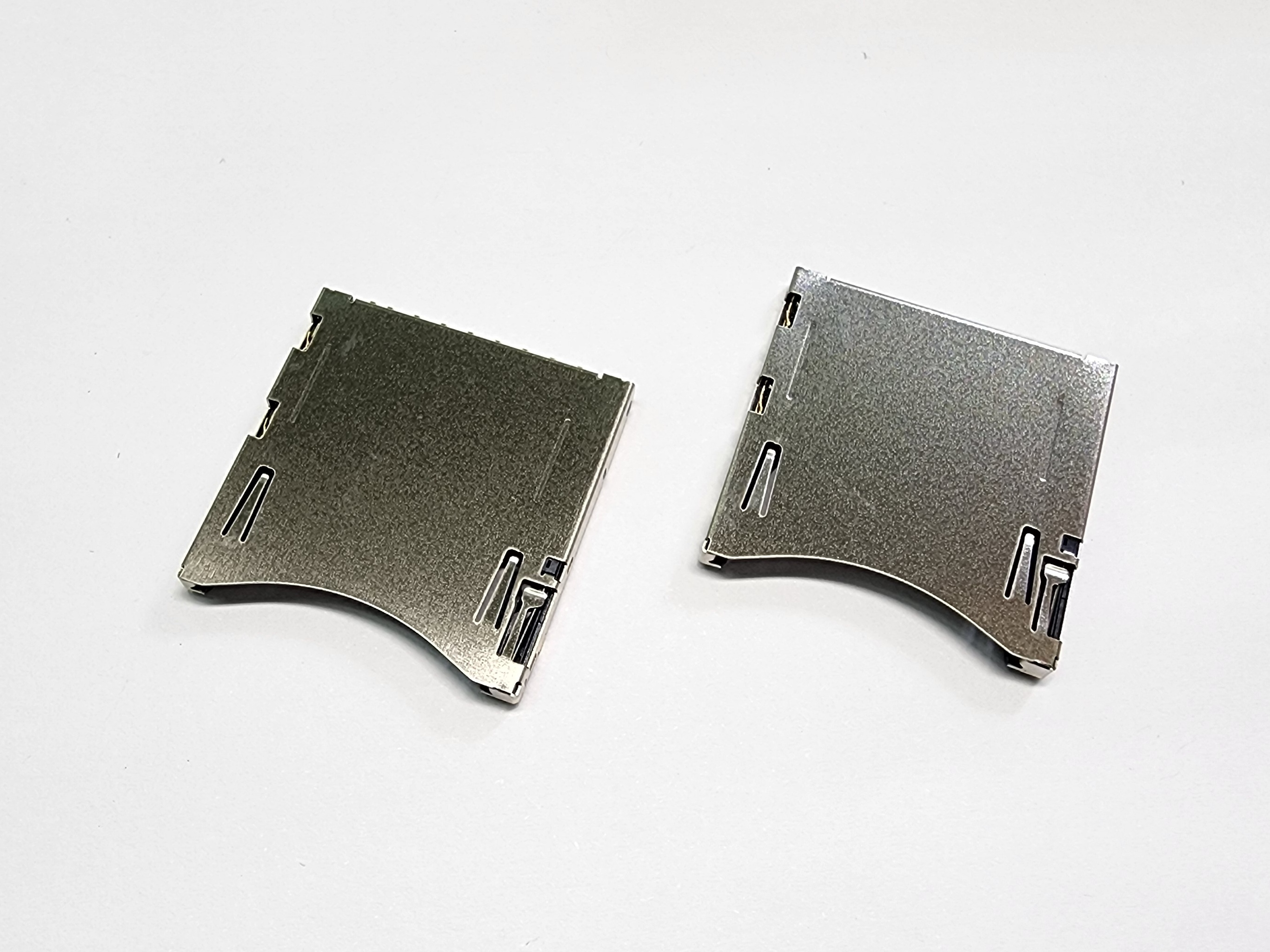

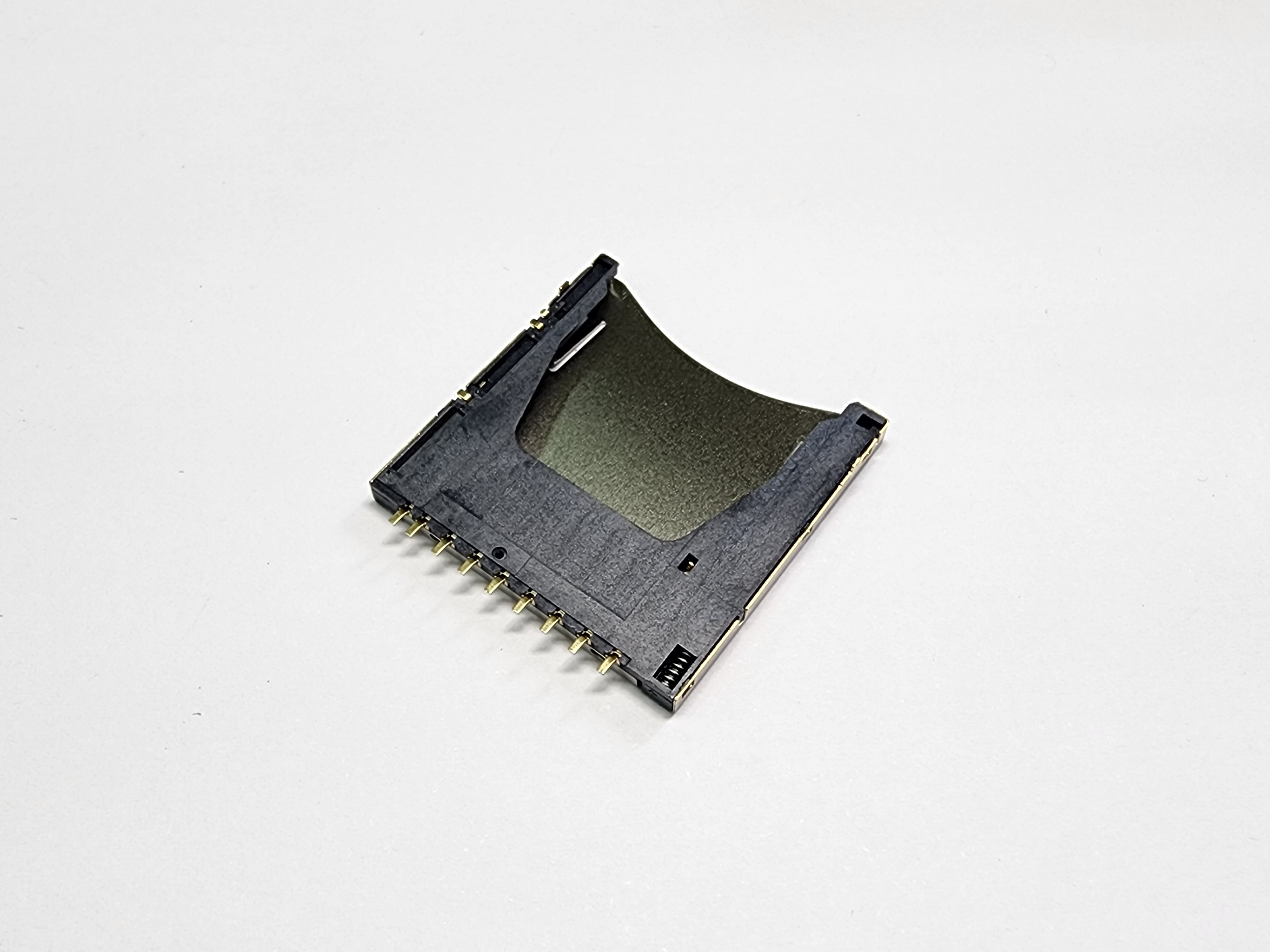

- SD Card Socket Connector
- Push/Push Type
- Standard Type
- 9Pins
- Gold Flash Plating
- SMD
- H=2.75mm High
- With Switch
- Hi-Temp Plastic
- Black Color
SD Card Socket Connector, SMD, Push/Push Type, 9Pins, Standard Type, H=2.75mm Height, With Switch, Black Color
Material
- Housing: Hi-Temp Plastic, UL 94V-0 Rated.
- Color: Black.
- Slide: Hi-Temp Plastic, UL 94V-0 Rated.
- Color: Black.
- Contact: Phosphor Bronze.
- Plating: Gold Plating Over All;
- Nickel Underplating over All.
- Switch Pin: Phosphor Bronze.
- Plating: Gold Plating Over All.
- Shell: Stainless.
- Spring: Piano Wire.
- Crank-Axle: Stainless.
Electrical Specification
- Current Rating: 0.5 Ampere Max.
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: 1000MΩ Min at 500V DC.
- Dielectric Withstanding Voltage: 500V AC for One Minute.
Environmental
- Operating Temperature: -25°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
