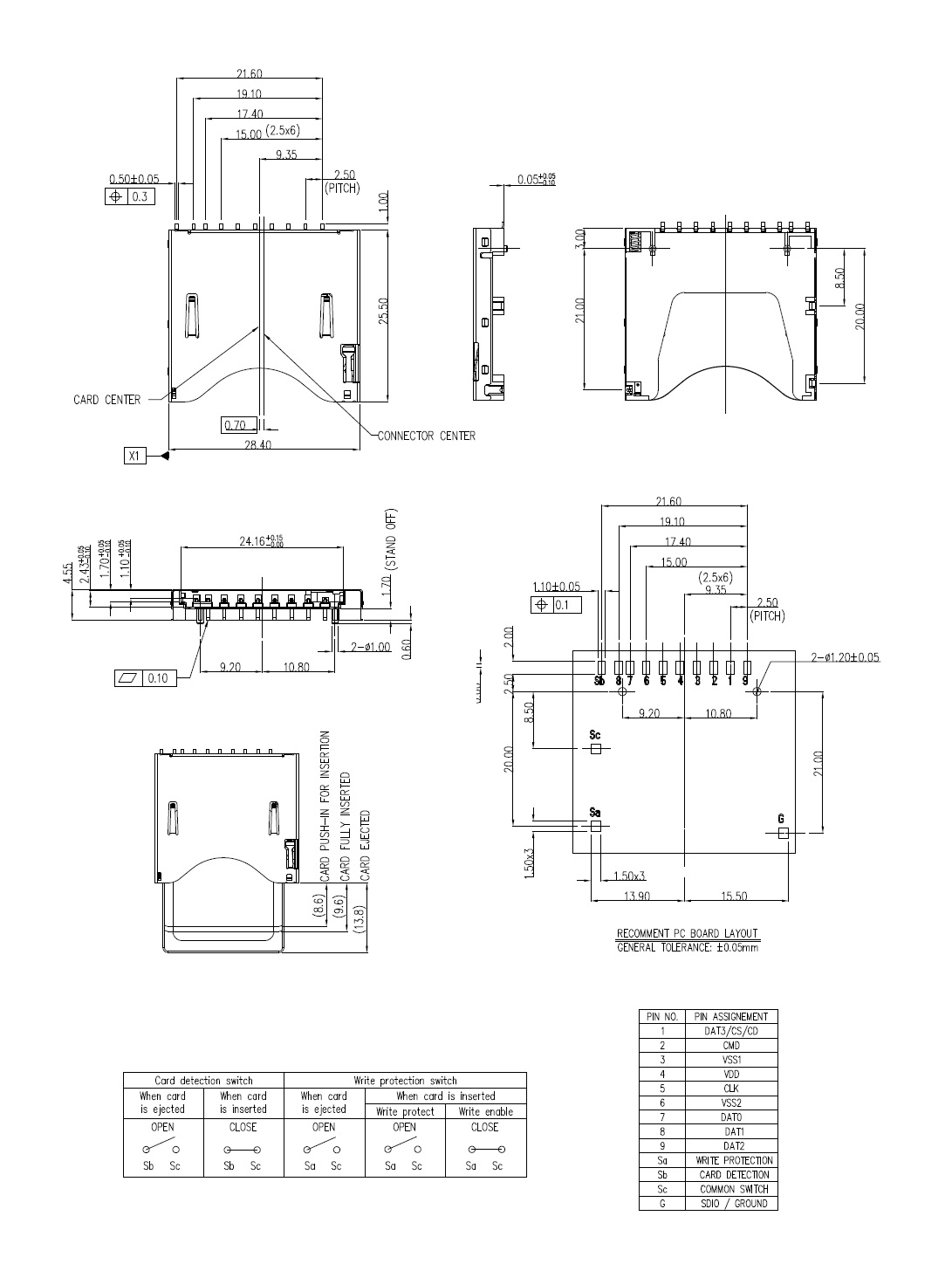

CSDC-PSAVS20-F73
Description
- SD Card Socket Connector
- Push/Push Type
- Standard Type
- 10Pins
- 10u” Gold Plating on Contact Area
- SMD
- H=4.45mm High
- With Switch (Wp/Cd/Sc/G)
- With 2Posts
- LCP
- Black Color
SD Card Socket Connector, SMD, Push/Push Type, 10Pins, Standard Type, 10u" Gold Plating on Contact Area, H=4.45mm Height, With Switch(Wp/Cd/Sc/G), With 2Posts, Black Color
Material
- Housing: LCP+35%G.F., UL 94V-0 Rated.
- Color: Black.
- Slide: LCP+35%G.F., UL 94V-0 Rated.
- Color: Black.
- Contact: Phosphor Bronze.
- Plating: Gold Plating Over All;
- Nickel Underplating over All.
- Switch Pin: Phosphor Bronze.
- Plating: Gold Plating Over All.
- Shell: Stainless Steel, SUS304.
- Spring: Piano Wire.
- Crank-Axle: Stainless Steel, SUS304.
Mechanical
- Insertion Force: 9.8N Max.
- Withdrawal Force: 4N.
- Contact Retention Force: 2.5N Min.
- Durability: 10,000Cycles Min.
Electrical Specification
- Current Rating: 0.5 Ampere Max.
- Voltage Rating: 100V AC/DC.
- Contact Resistance: 80mΩ Max.
- Insulation Resistance: 1000MΩ Min at 500V DC.
- Dielectric Withstanding Voltage: 500V AC for One Minute.
Environmental
- Operating Temperature: -40°C to +105°C.
- RoHS Compliance.
- REACH Compliance.
