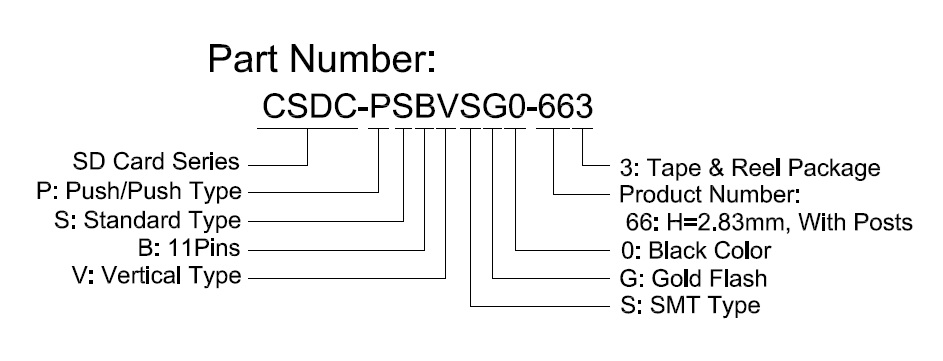

CSDC-PSBVSG0-663
Description

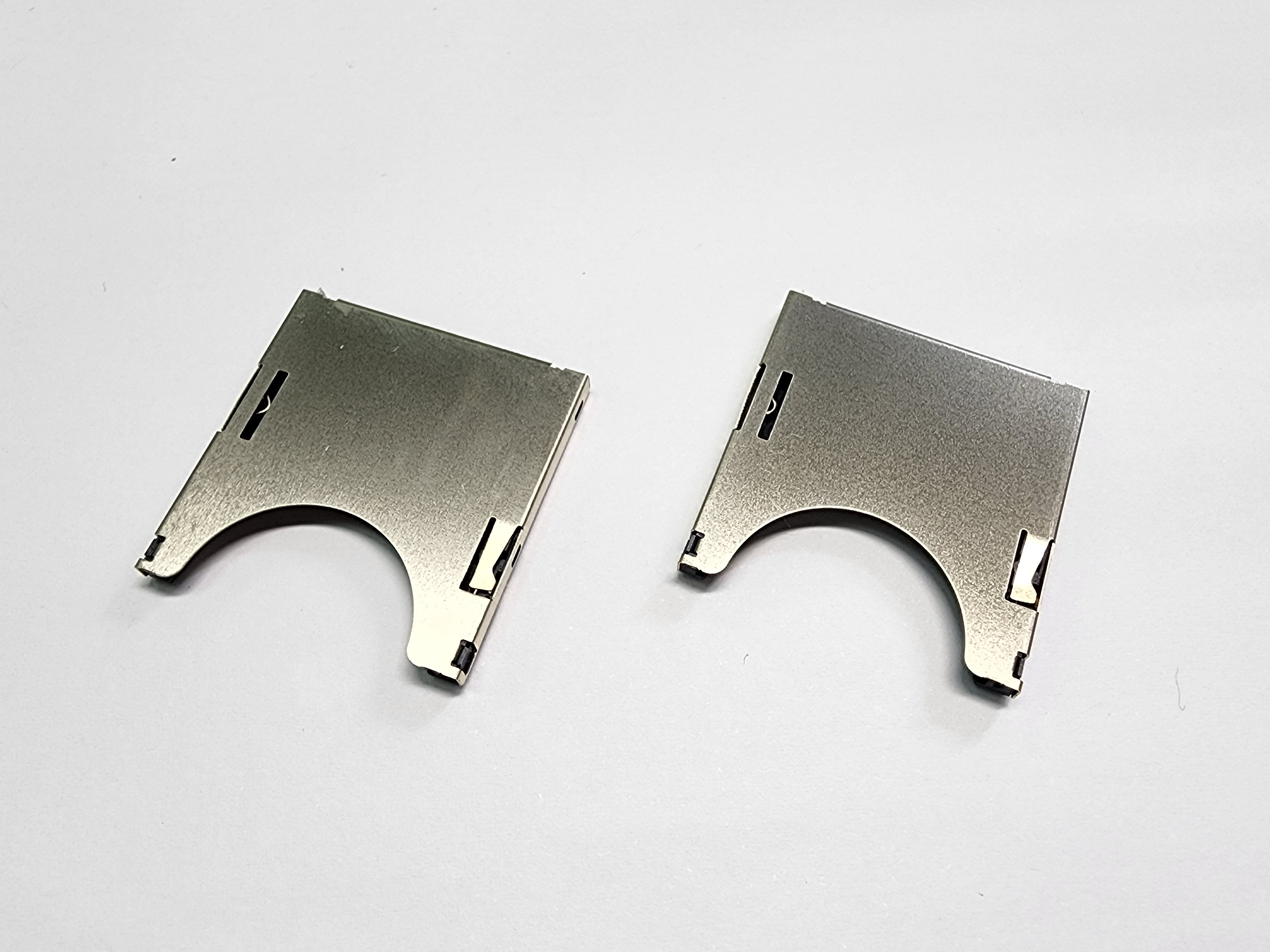

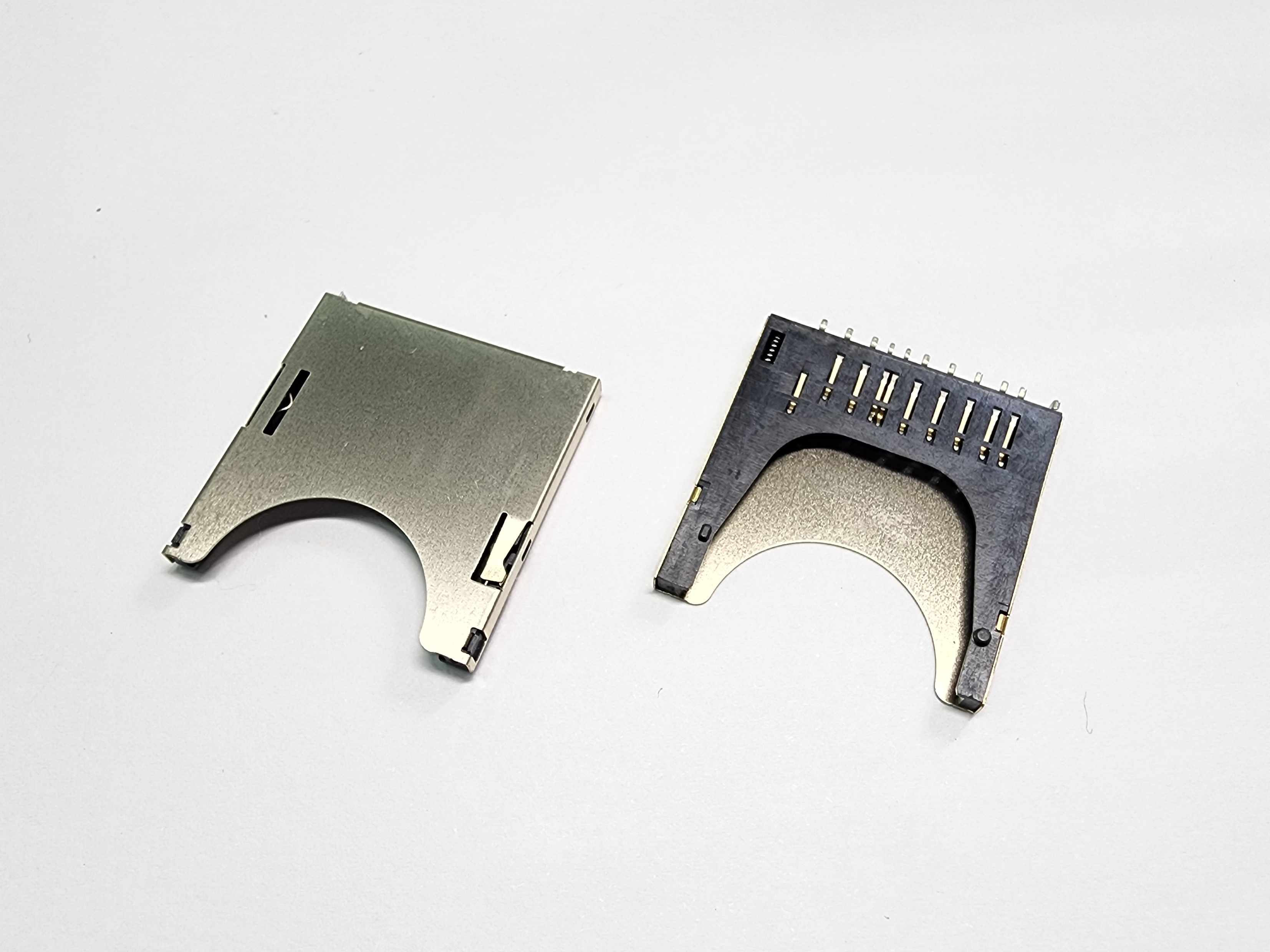

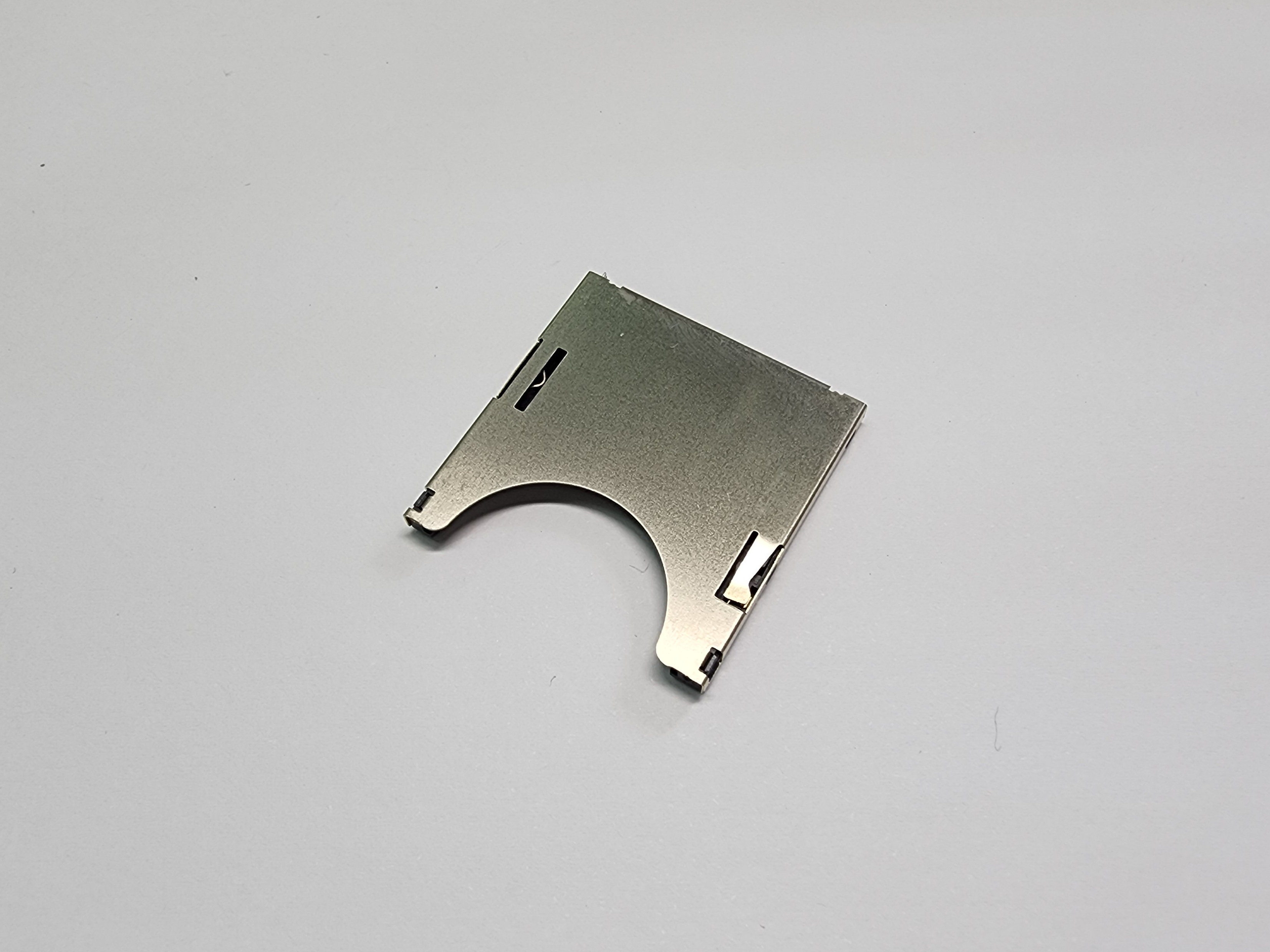

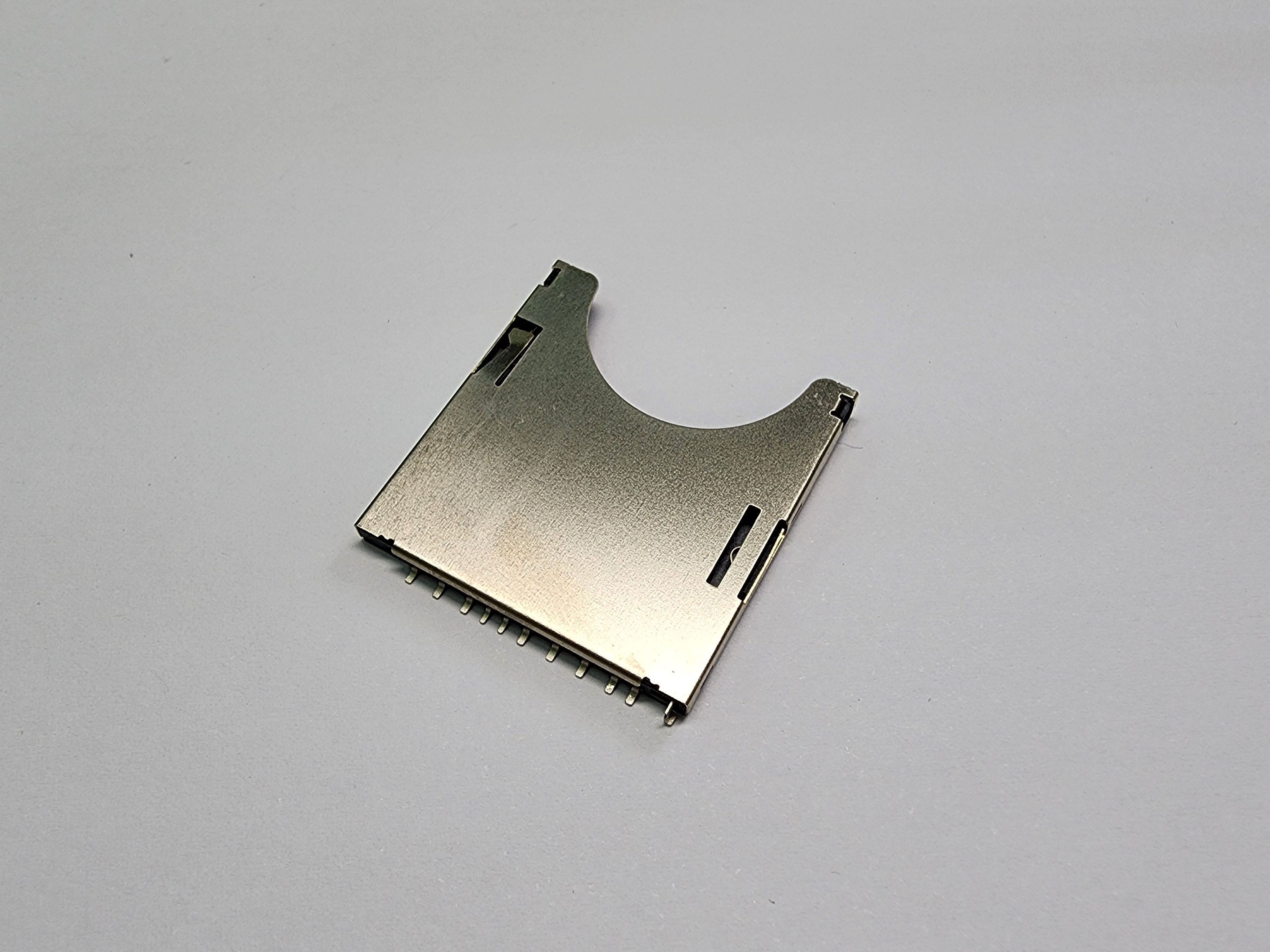

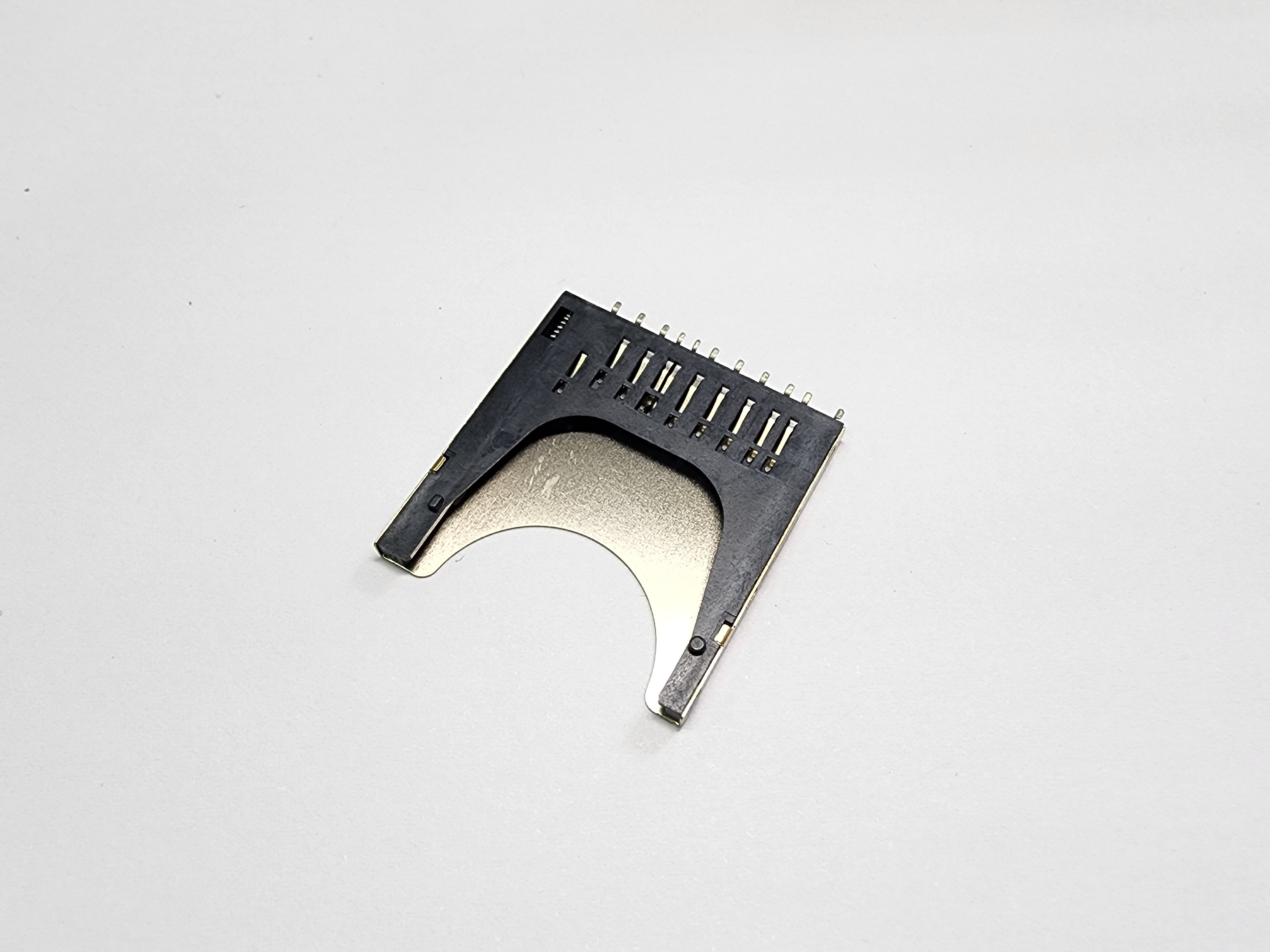

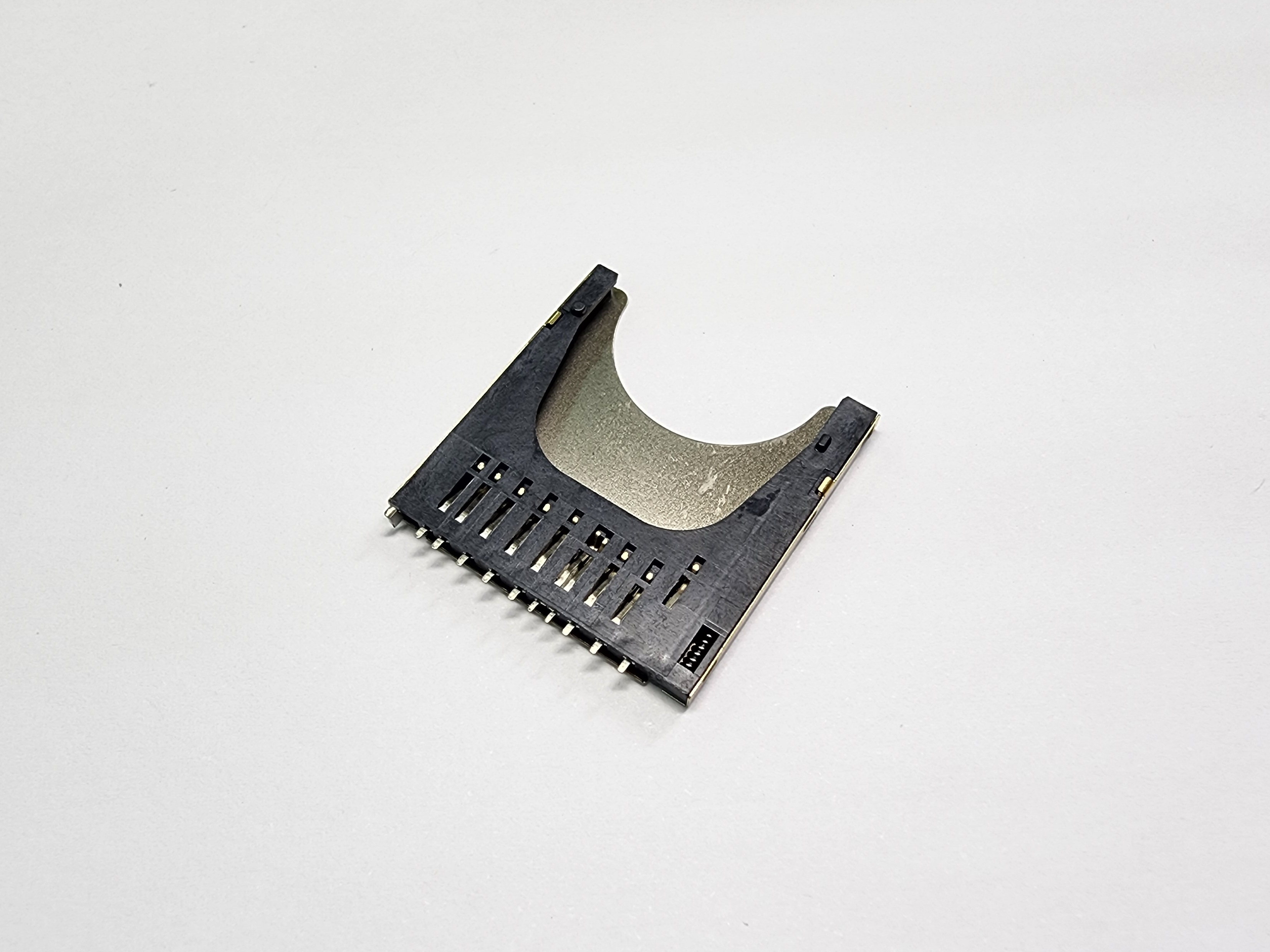

- SD Card Socket Connector
- Push/Push Type
- Standard Type
- 11Pins
- Gold Flash
- SMD

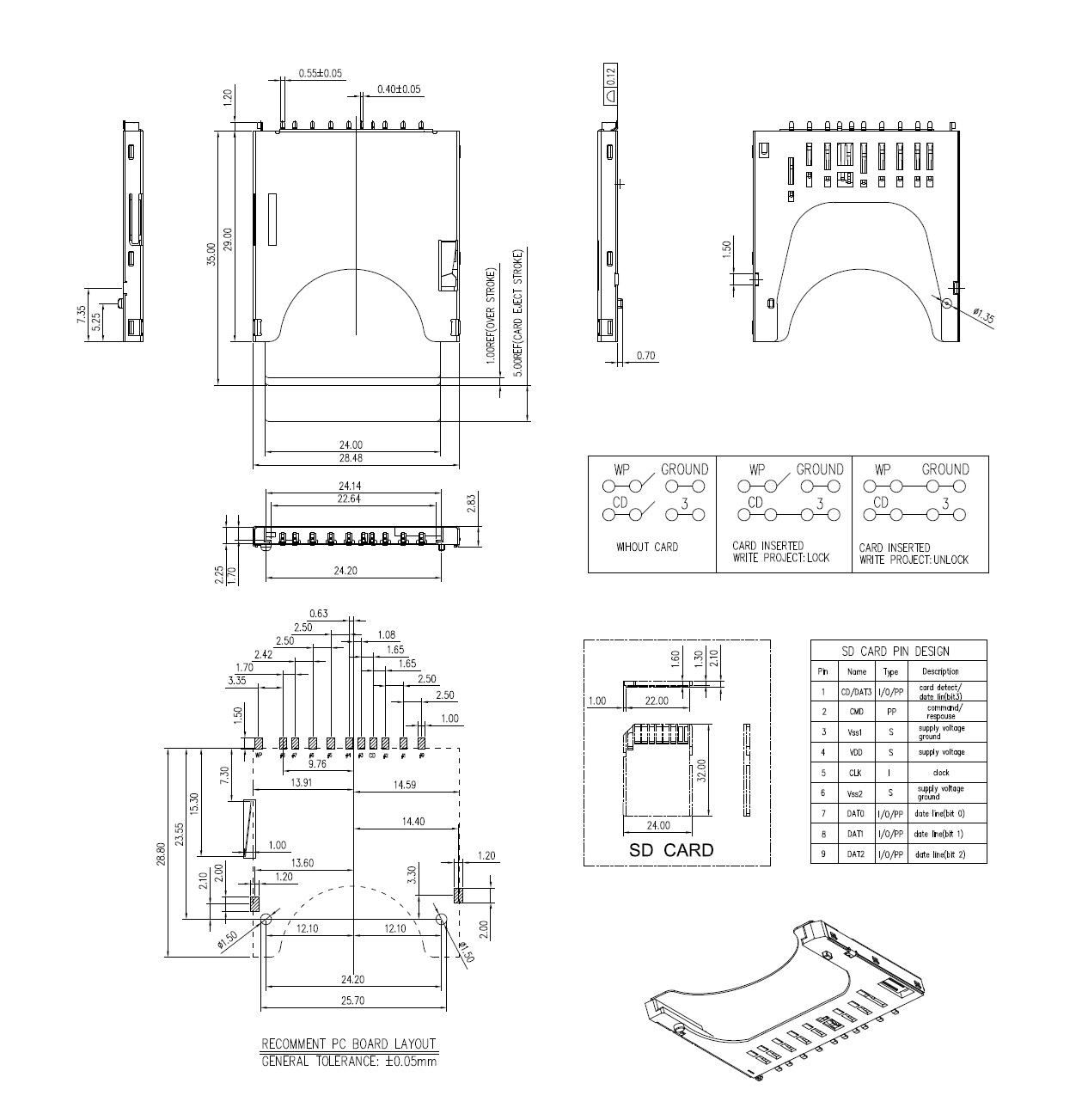

- H=2.83mm High
- W=28.48mm
- L=29.0mm
- With Switch (Wp+Cd)
- With 2Posts
- LCP
- Black Color
SD Card Connector, SMD, Push/Push Type, 11Pins, With Switch(WP+CD), H=2.83mm Height, W=28.48, L=29.0mm, With Posts, LCP, Black Color
Material
- Housing: LCP, UL 94V-0 Rated.
- Color: Black.
- Slide: LCP, UL 94V-0 Rated.
- Color: Black.
- Contact: Copper Alloy.
- Plating: Gold Plating over Nickel on Contact Area;
- Tin Plating over Nickel on Solder Area.
- Shell: Stainless Steel, SUS304.
- Spring: SWP.
Mechanical
- Insertion Force: 9.8N Max.
- Withdrawal Force: 4N.
- Contact Retention Force: 2.5N Min.
- Durability: 10,000Cycles Min.
Electrical Specification
- Current Rating: 0.5 Ampere Max.
- Voltage Rating: 100V AC/DC.
- Contact Resistance: 80mΩ Max.
- Insulation Resistance: 1000MΩ Min at 500V DC.
- Dielectric Withstanding Voltage: 500V AC for One Minute.
Environmental
- Operating Temperature: -20°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
