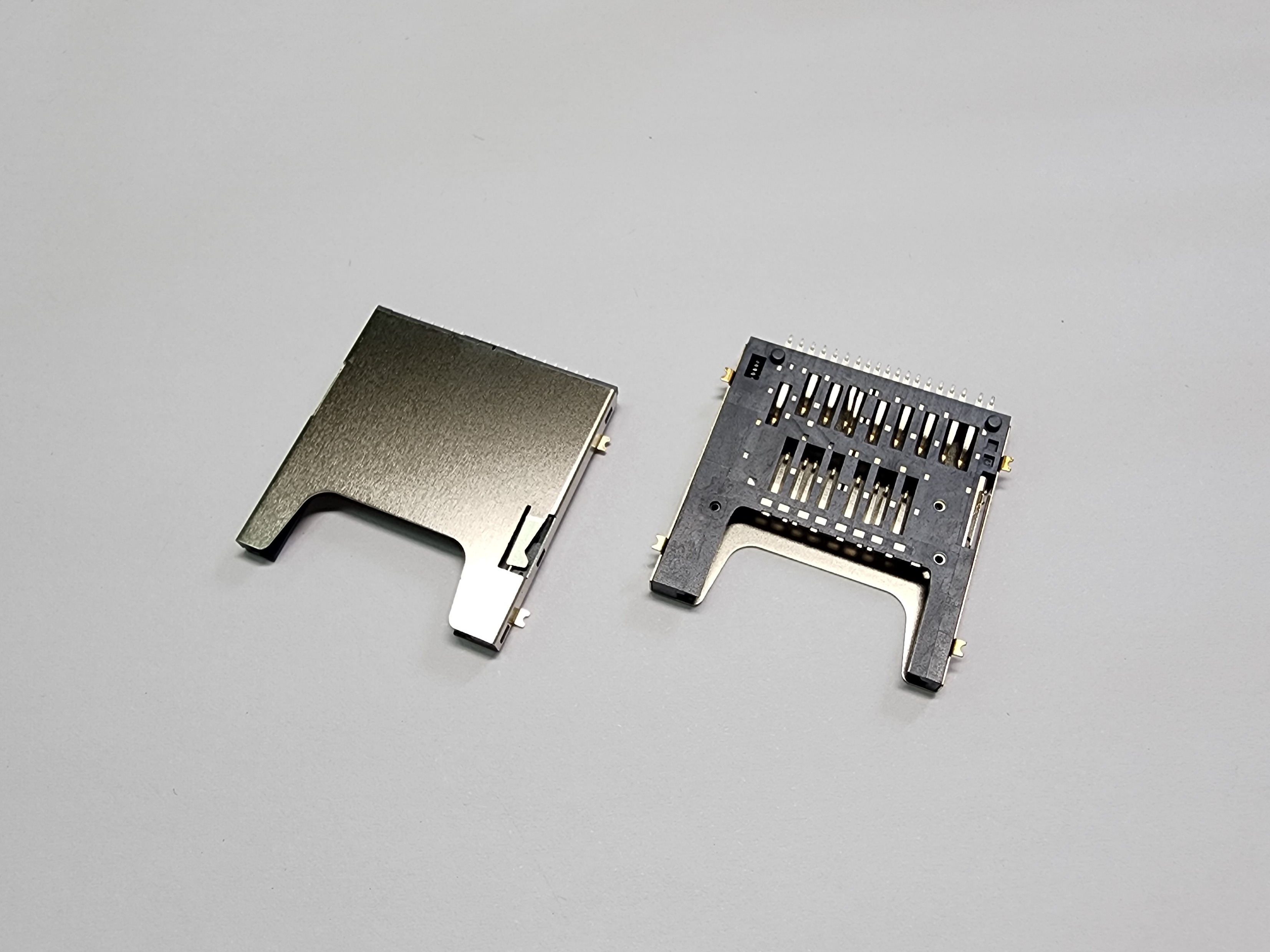

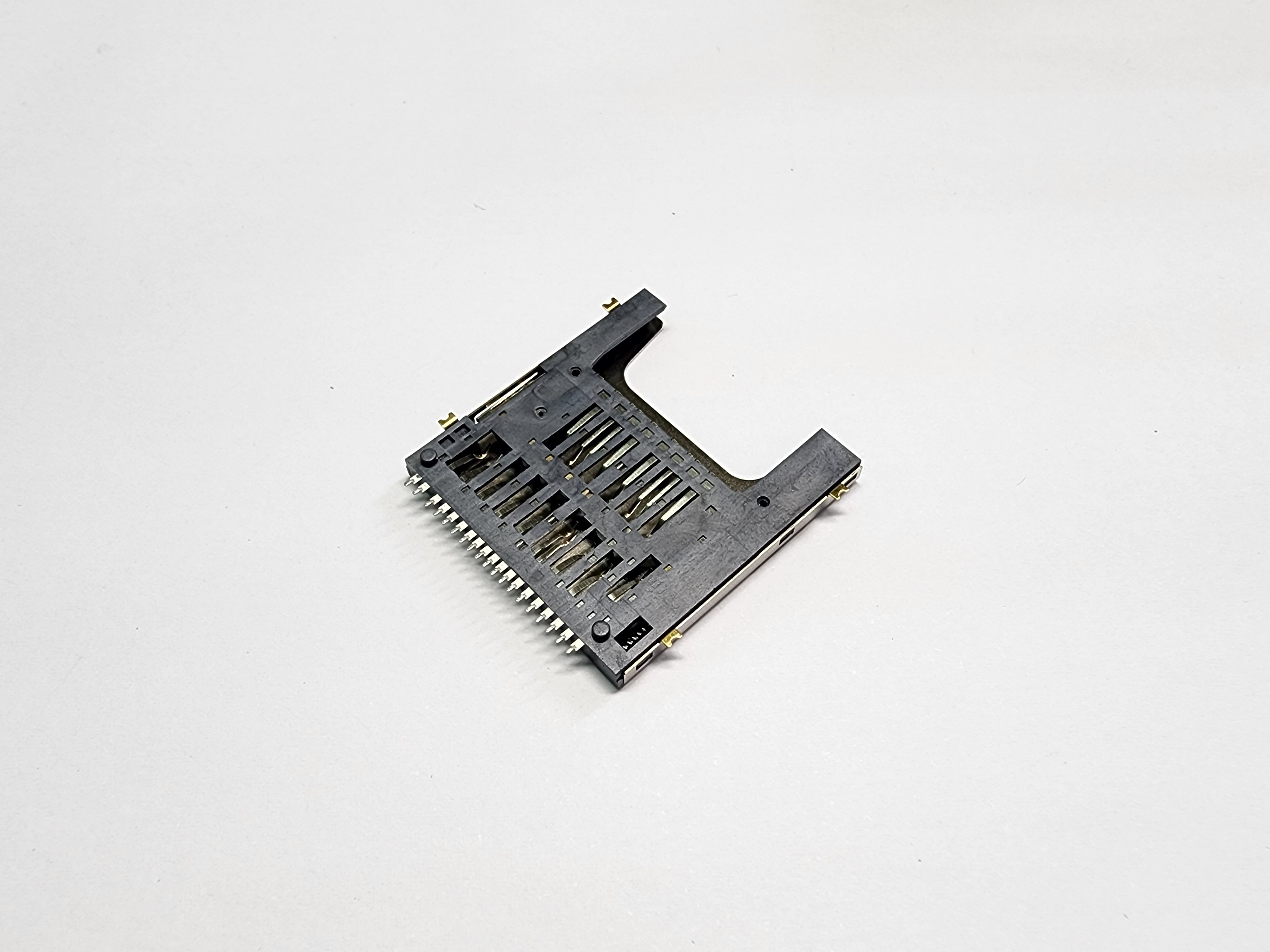

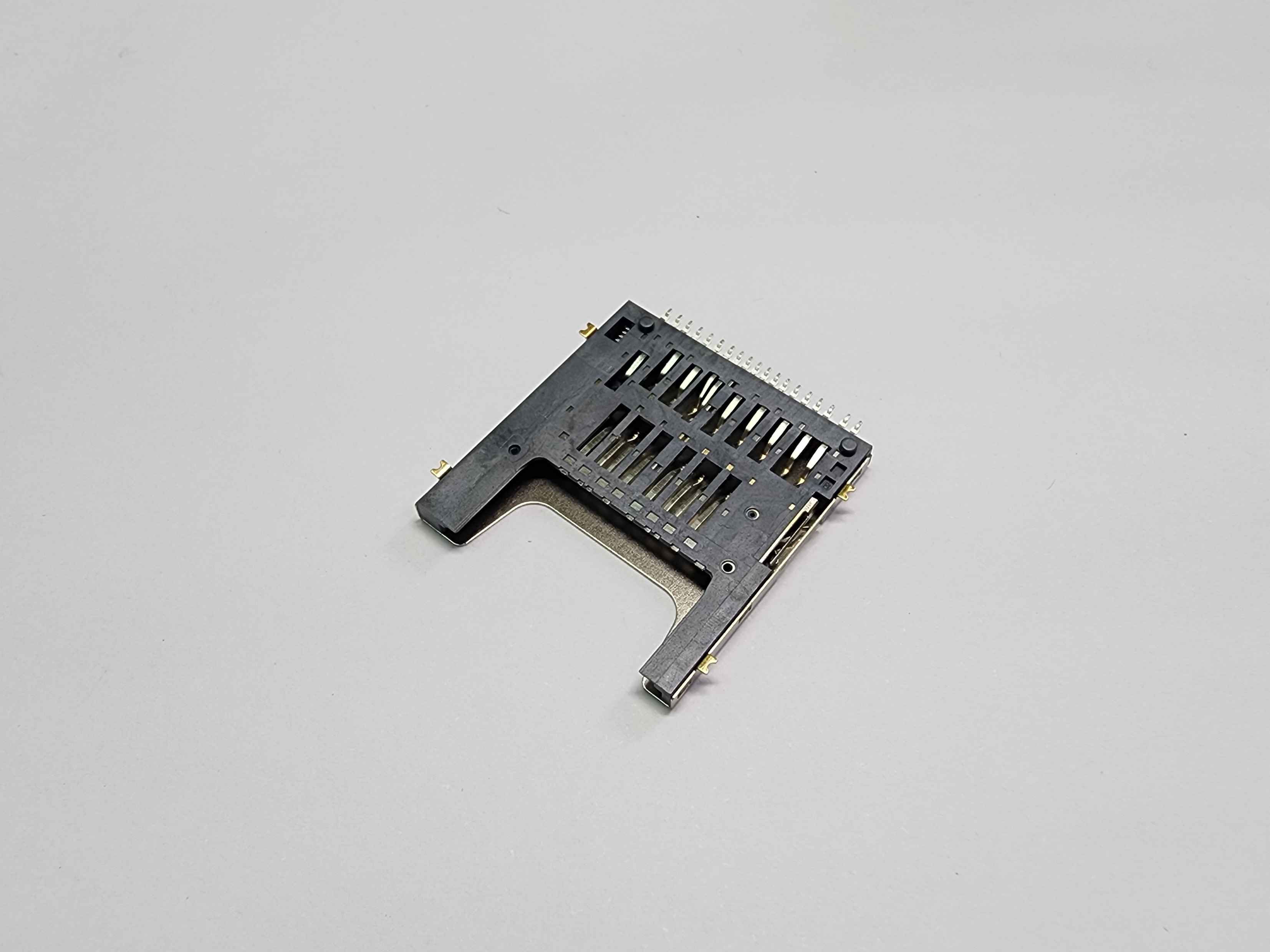

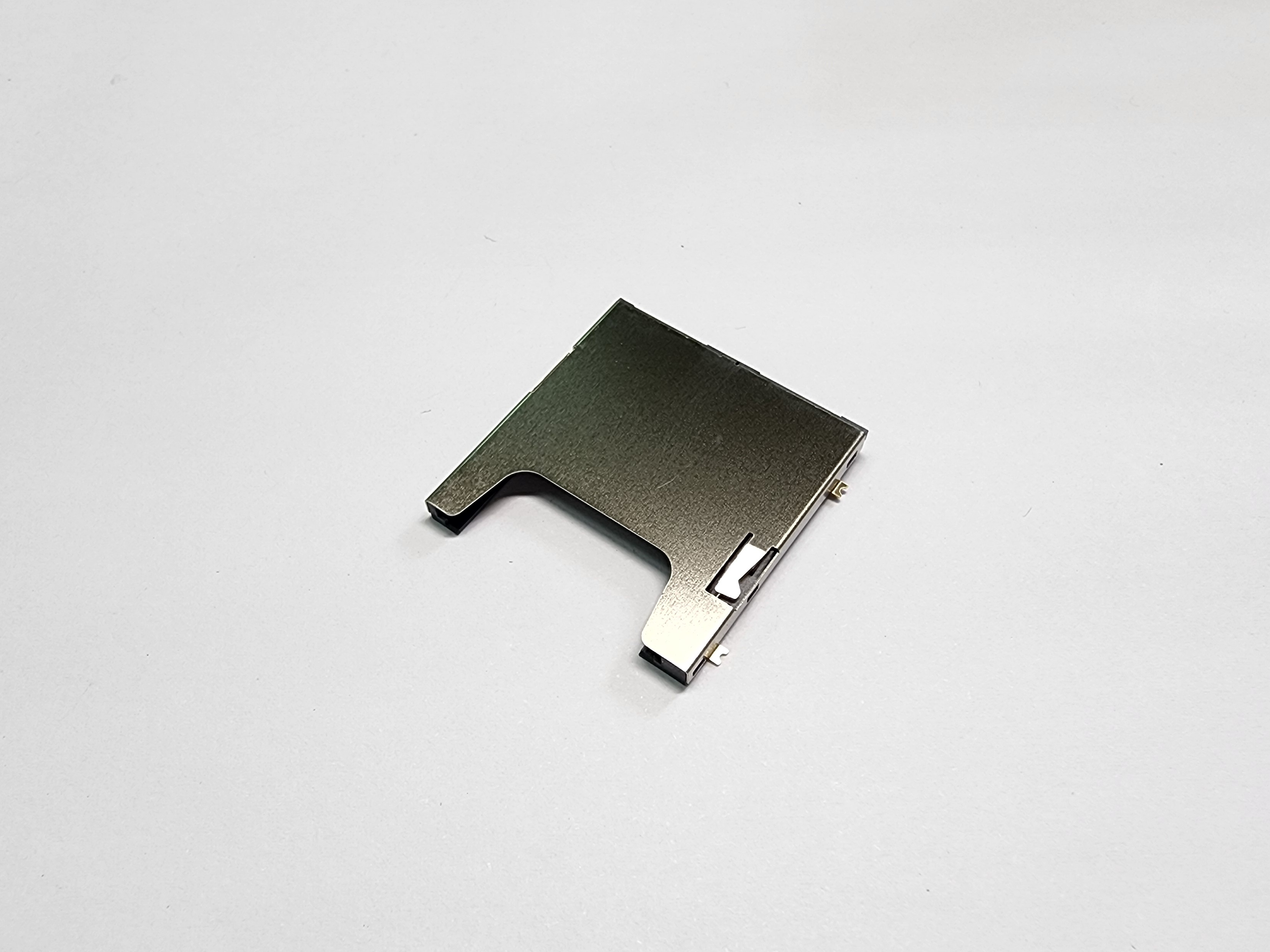

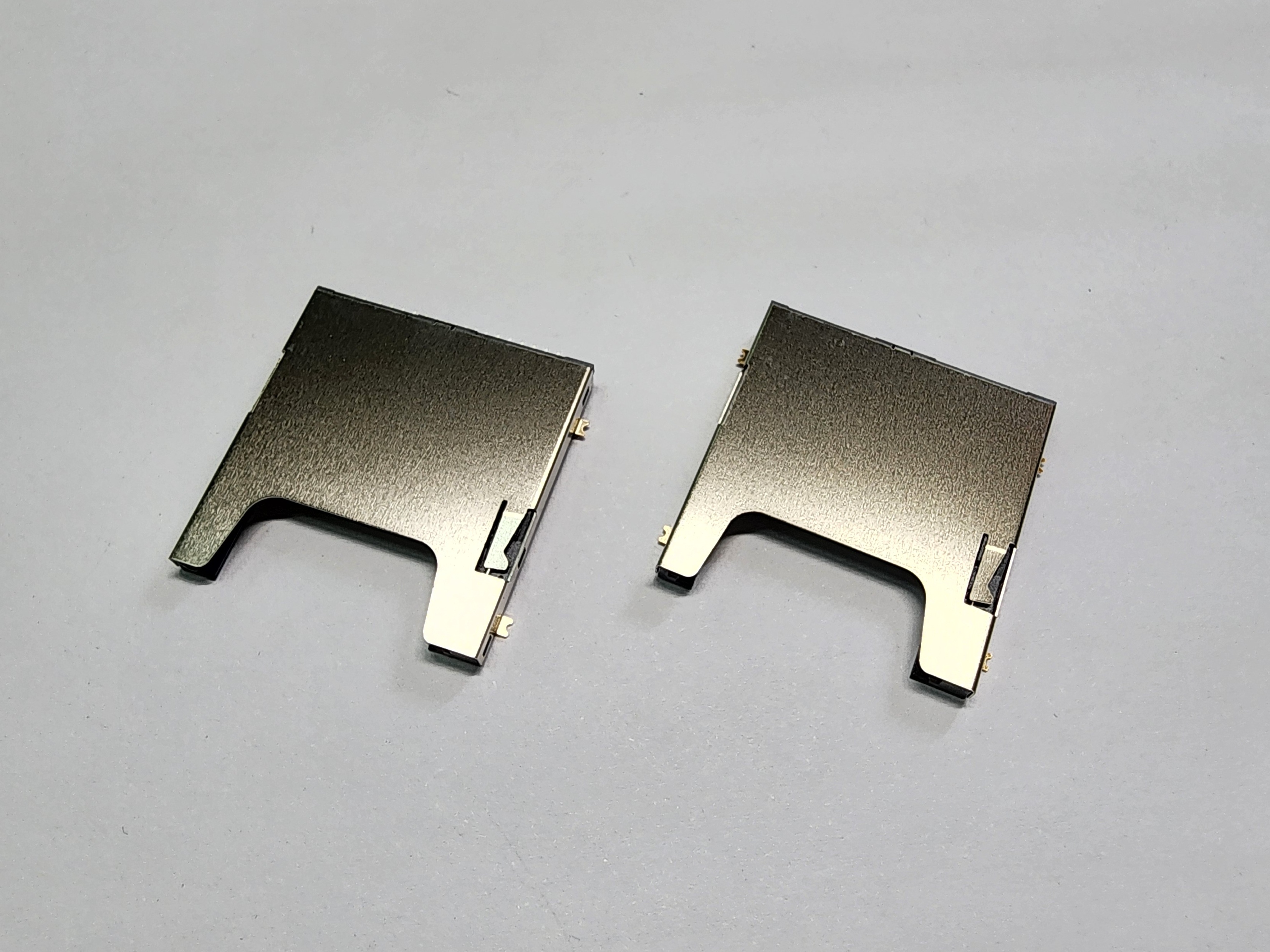

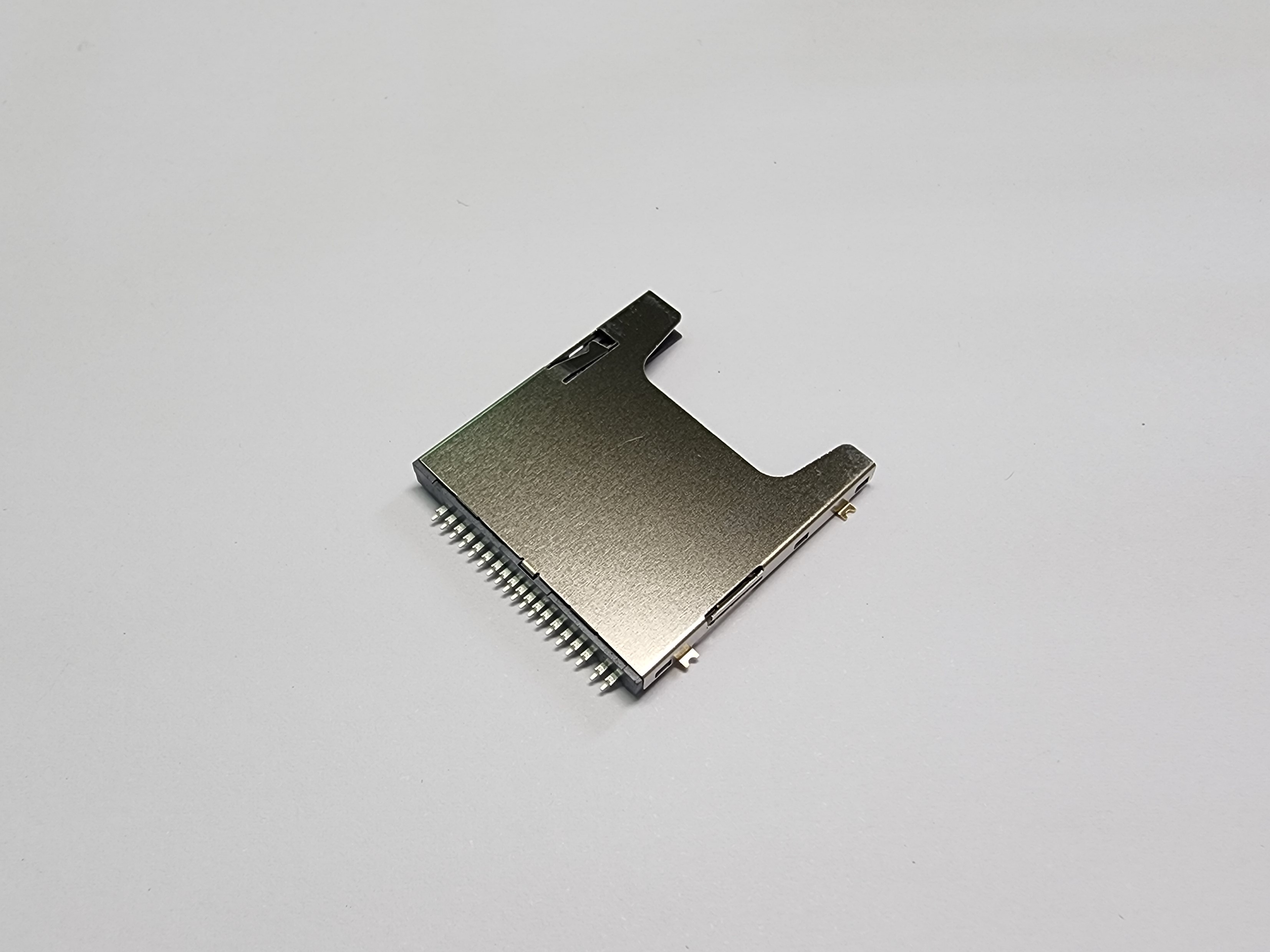

CSDC-PSJVSG0-A43
Description
- SD Card 4.0 Socket Connector
- Push/Push Type
- Standard Type
- 19Pins
- Gold Flash
- SMD
- H=3.00mm High
- L=29.40mm
- With 2Posts 22.80mm
- LCP
- Black Color
SD Card 4.0 Connector, SMD, Push/Push Type, 19Pins, Standard Type, H=3.00mm Height, L=29.40mm, With Posts 22.80mm, With Metal Shielding, LCP, Black Color
Material
- Housing: LCP, UL 94V-0 Rated.
- Color: Black.
- Slide: LCP, UL 94V-0 Rated.
- Color: Black.
- Contact: Phosphor Bronze.
- Plating: Gold Plating over Nickel on Contact Area;
- Tin Plating over Nickel on Solder Area.
- Shell: Stainless Steel, SUS304.
- Spring: Piano Wire.
Mechanical
- Insertion Force: 40N Max.
- Withdrawal Force: 2N.
- Durability: 5,000Cycles Min.
Electrical Specification
- Current Rating: 1.0 Ampere Max per Pin.
- Voltage Rating: 250V AC/DC.
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500V AC for One Minute.
Environmental
- Operating Temperature: -25°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
