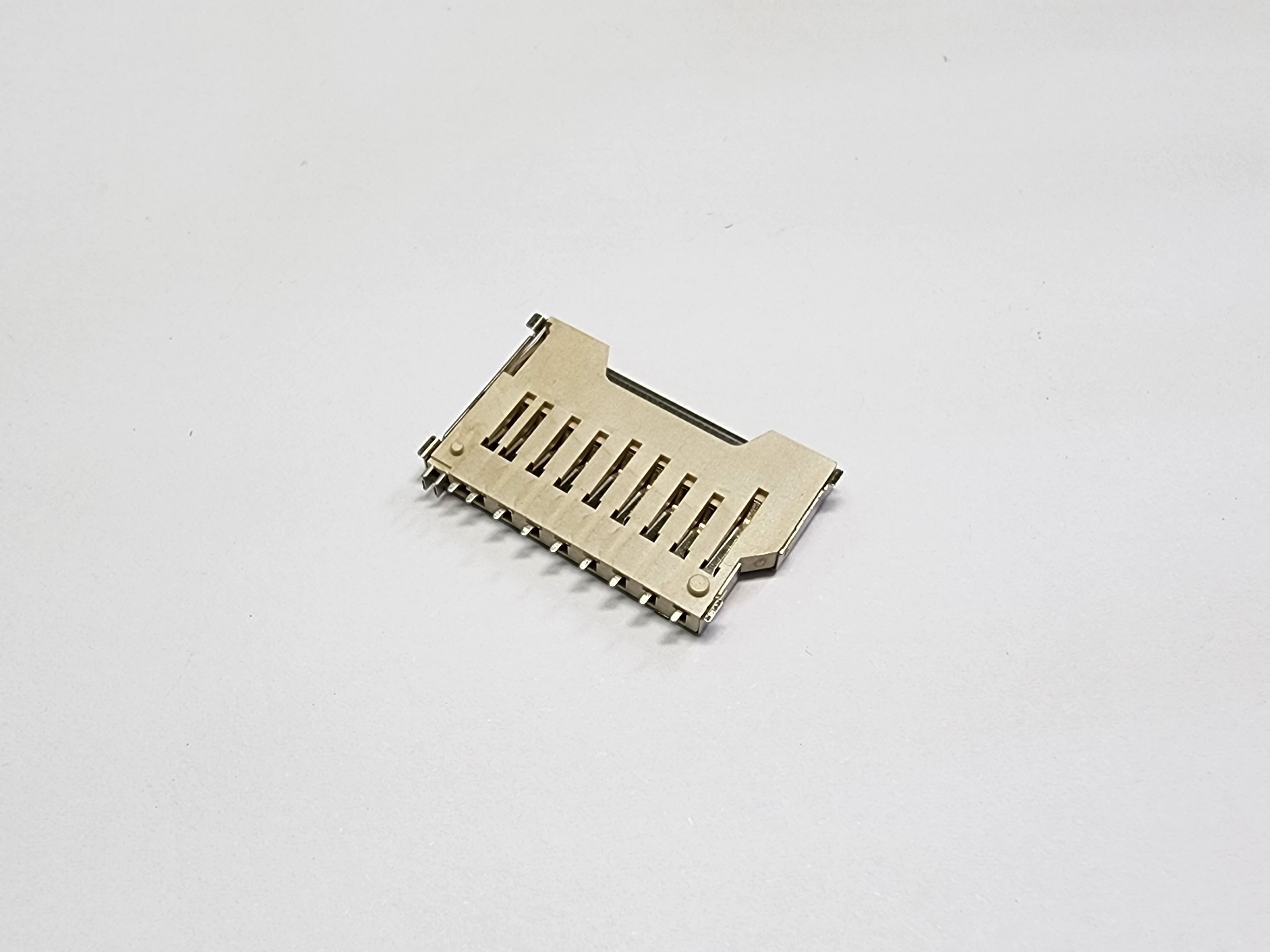

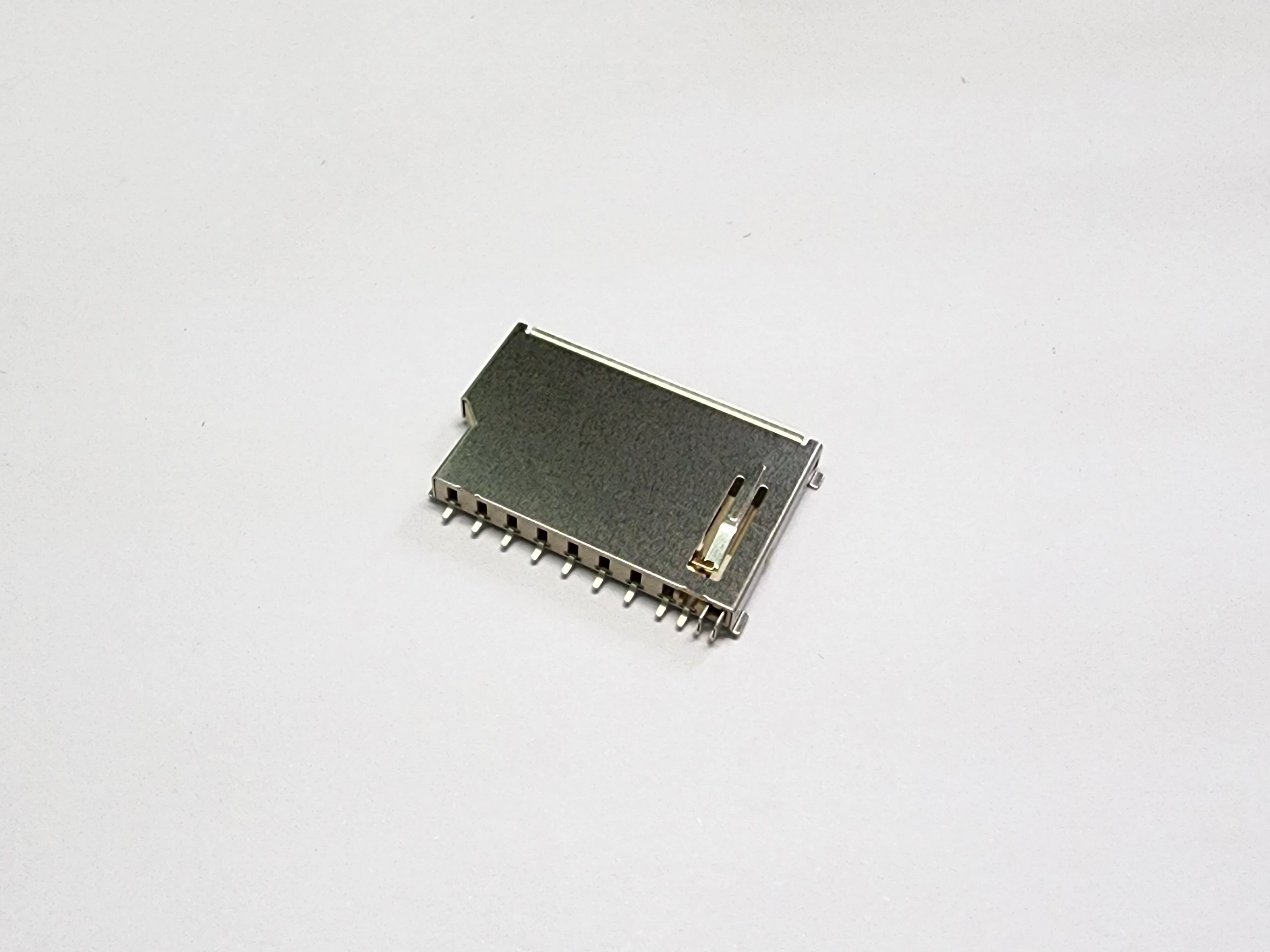

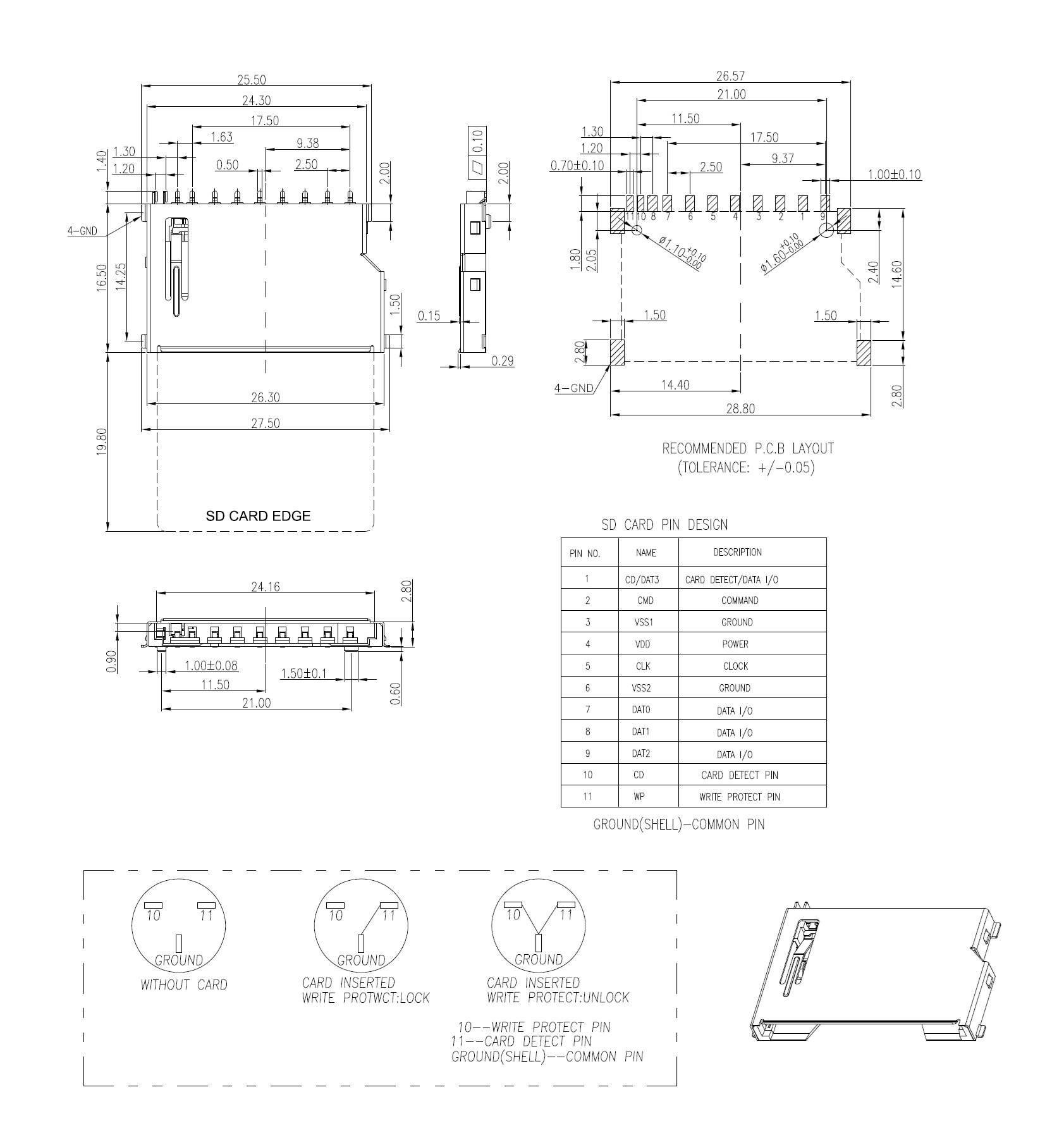

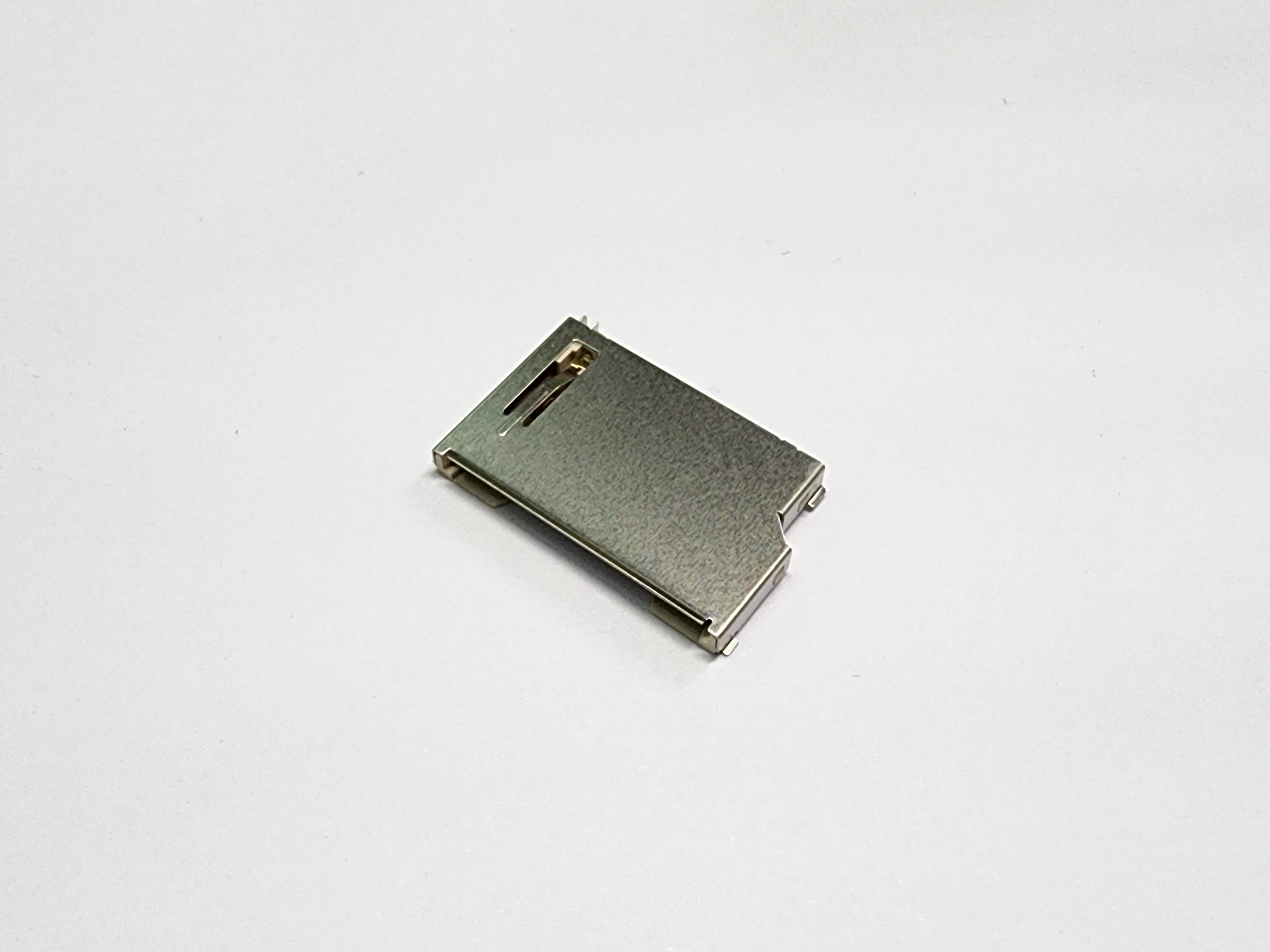

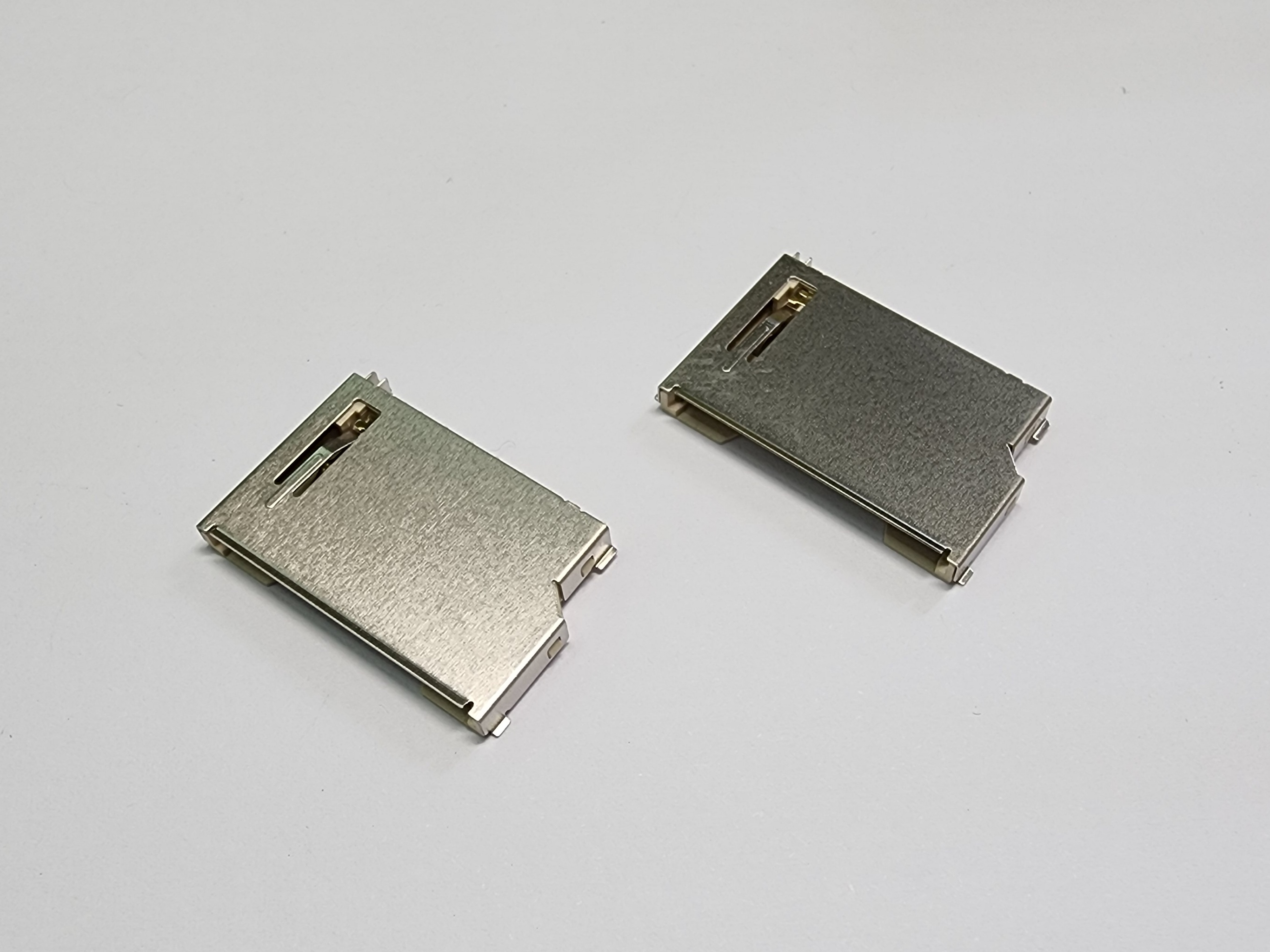

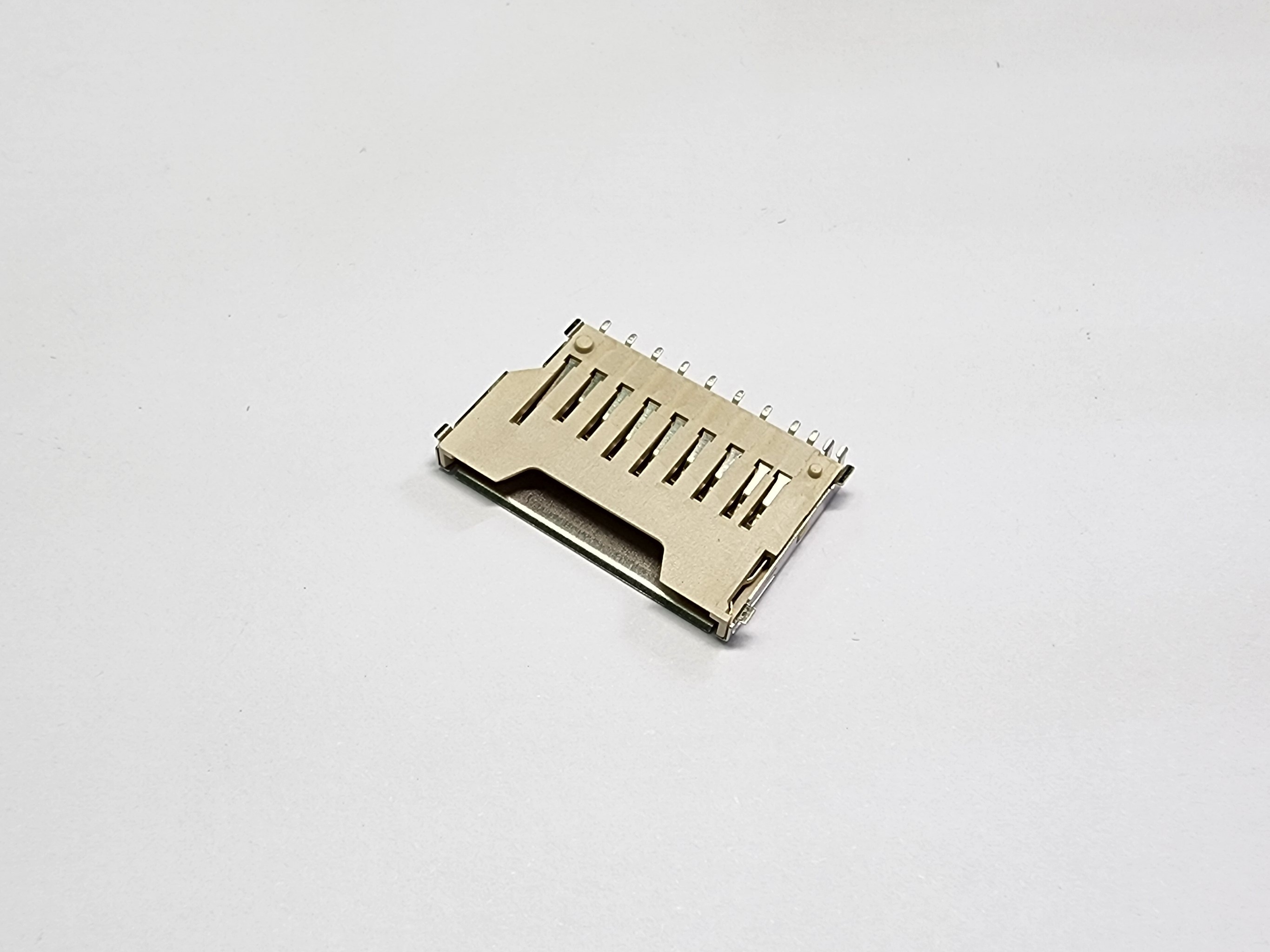

CSDC-QSBVSG1-633
Description
- SD Card Socket Connector
- Push/Pull Type
- Standard Type
- 11Pins
- Pitch 2.50mm
- Gold Flash
- SMD
- H=2.80mm High
- W=26.30mm
- L=16.50mm
- With Shell
- With Posts
- LCP
- White Color
SD Card Connector, SMD, Push/Pull Type, 11Pins, Standard, Pitch 2.50mm, H=2.80mm, W=26.30mm, L=16.50mm, With Shell, With Posts, With Pads, Gold Flash, White Color
Material
- Housing: LCP, UL 94V-0 Rated.
- Color: White.
- Contact: Copper Alloy.
- Plating: Gold Plating Over Nickel on Contact Area;
- Tin Plating Over Nickel on Solder Tail.
- Shell: Copper Alloy.
- Plating: Tin Plating Over Nickel on Solder Tail.
Mechanical
- Insertion Force: 40N Max.
- Separation Force: 2N Min.
Electrical Specification
- Current Rating: 0.5 Ampere Max per Pin.
- Voltage Rating: 250V AC/DC.
- Contact Resistance: 100mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500V AC for One Minute.
Environmental
- Operating Temperature: -25°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
