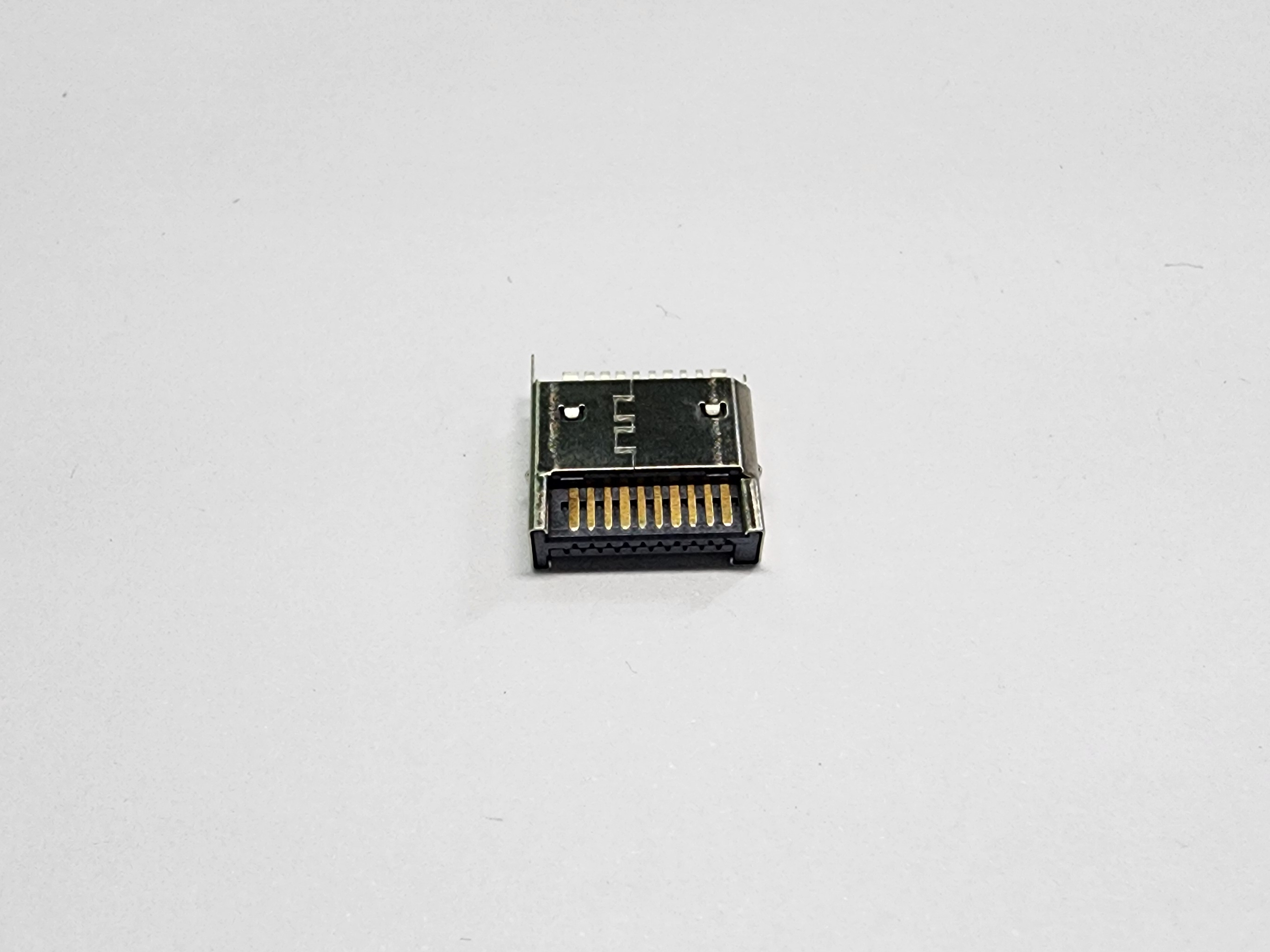

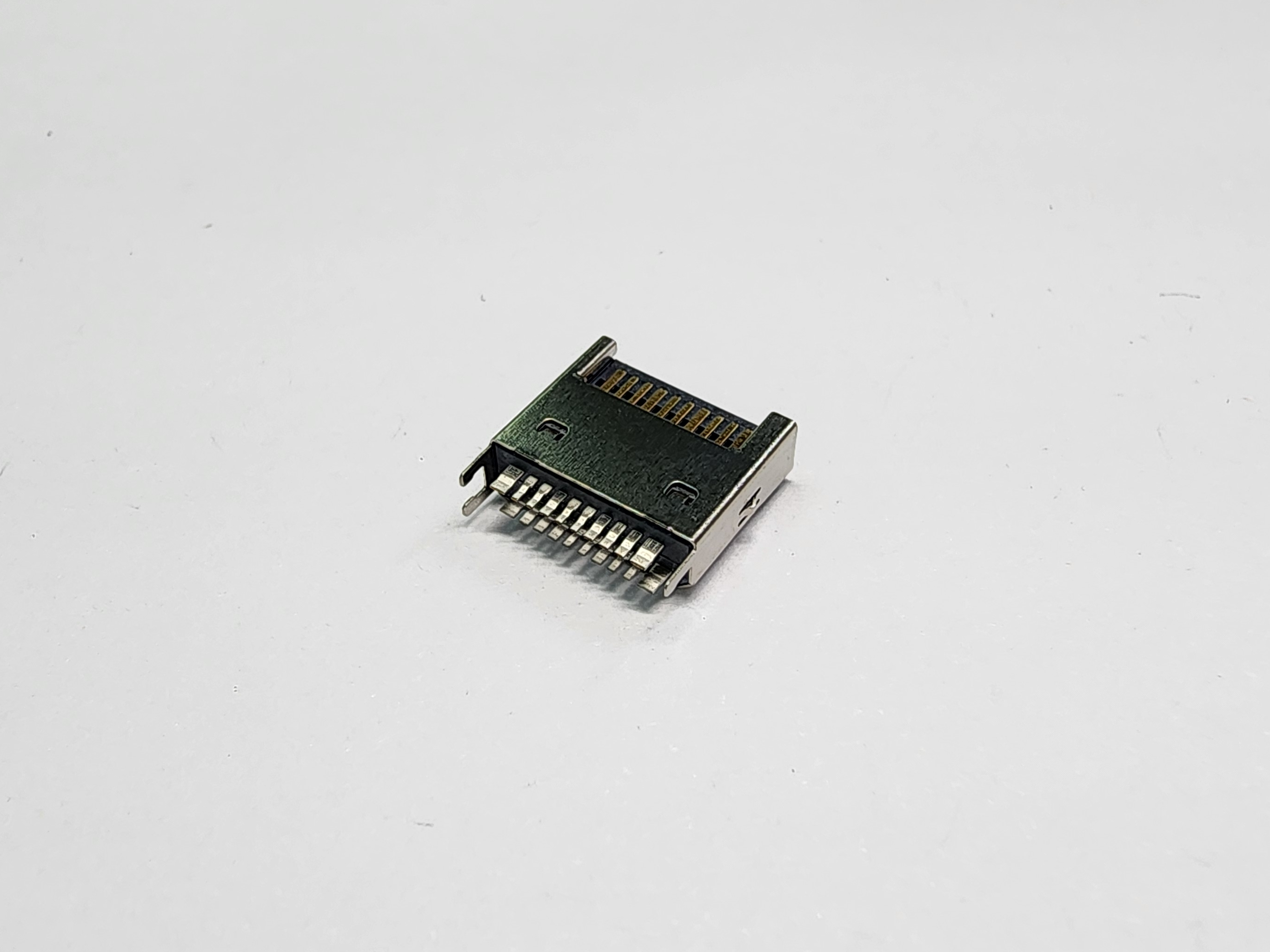

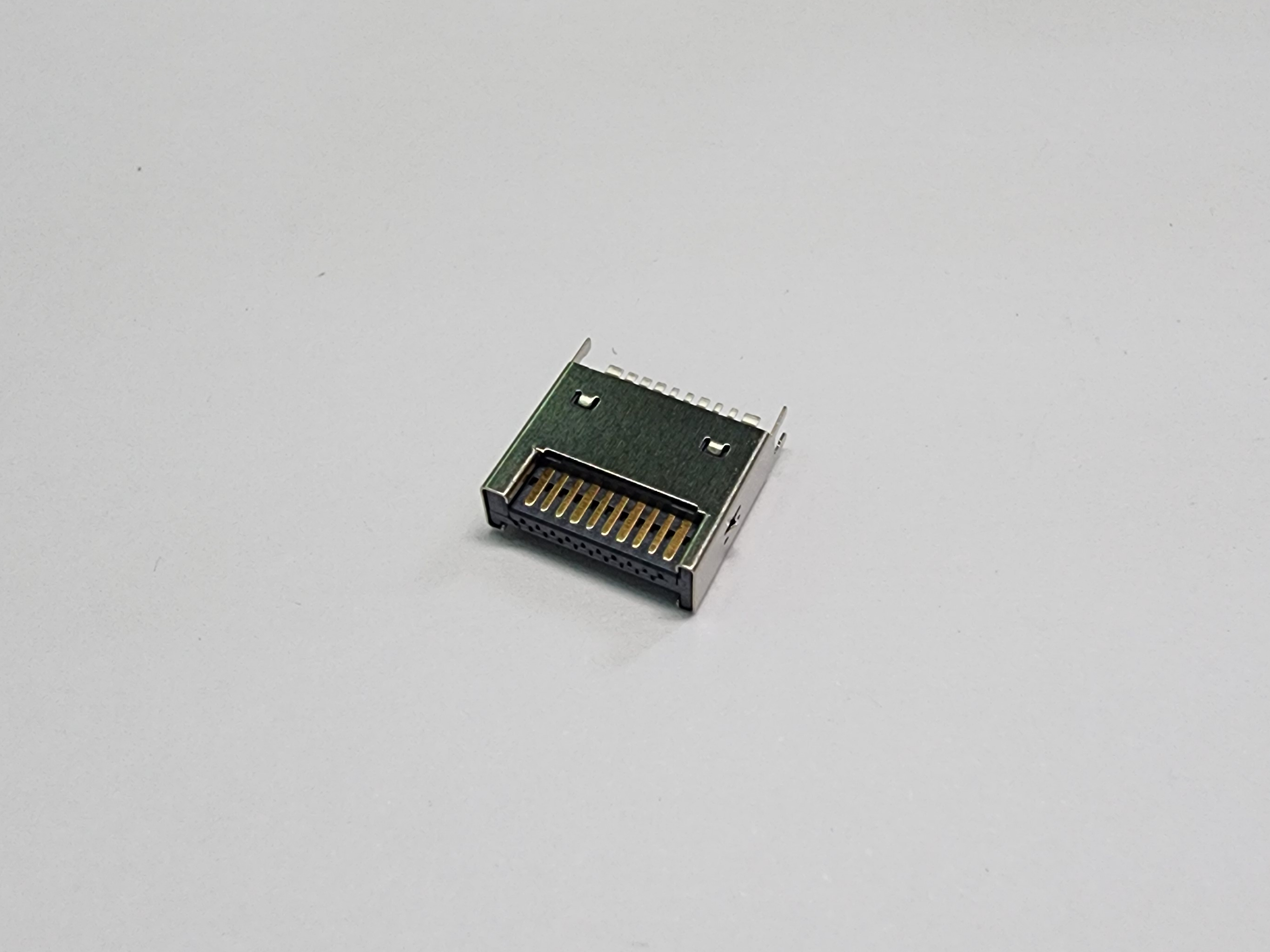

CU3E-P20SSA0-AP
Description
- USB 3.2 Type E Connector
- A Key
- Plug
- 20Pins
- Straddle Type
- SMT
- 3u” Gold Plating
- With Stainless Steel Shell
- LCP
- Black Color
- For PCB 1.2mm Thickness

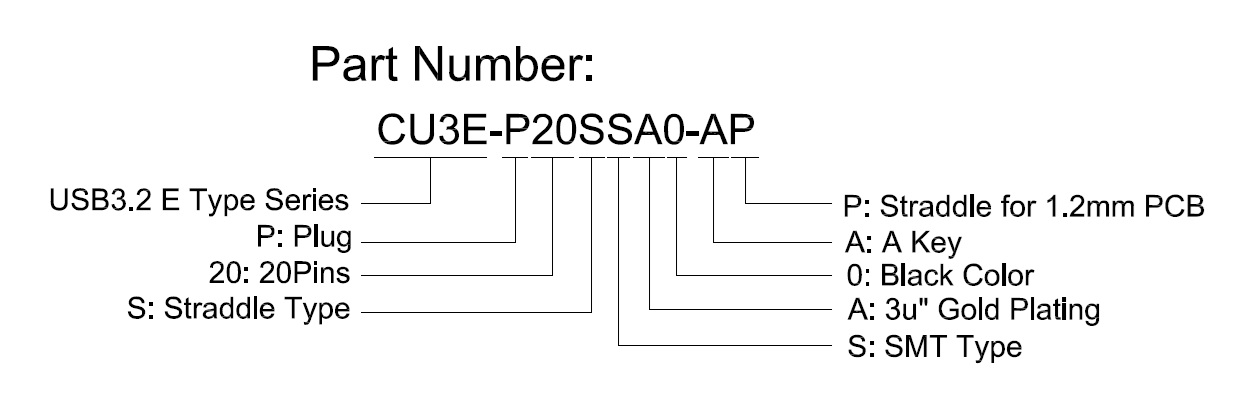

USB 3.2 Type E, Plug, 20Pins, Straddle Type, SMT, 3u" Gold Plating, A Key, With Stainless Steel Shell, LCP, Black Color, for PCB 1.2mm Thickness
Material
- Insulator: LCP, UL 94V-0 Rated.
- Color: Black.
- Contact: Brass.
- Plating: Gold Plating over Nickel 50u" Min. on Contact Area;
- Tin 80u" Min. Plating over Nickel 50u" Min. on Solder Tail.
- Shell: Stainless Steel.
- Plating: Nickel 30u" Min. Plating over All.
Mechanical
- Insertion Force: 35N Max.
- Withdrawal Force: 15N Min.
- Durability: 1,500Cycles.
Electrical Specification
- Current Rating: 3A Max for VBUS and GND Contacts;
- 1.25A for All Other Contacts.
- Voltage Rating: 30V AC Max.
- Contact Resistance: 40mΩ Max; 50mΩ Max after Durability.
- Insulation Resistance: 100MΩ Min.
- Dielectric Withstanding Voltage: 100V AC R.M.S.
Environmental
- Operating Temperature: -55°C to +85°C.
- Storage Temperature: -20°C to +60°C.
- Salt Spray: 24Hrs Min.
- RoHS Compliance.
- REACH Compliance.
