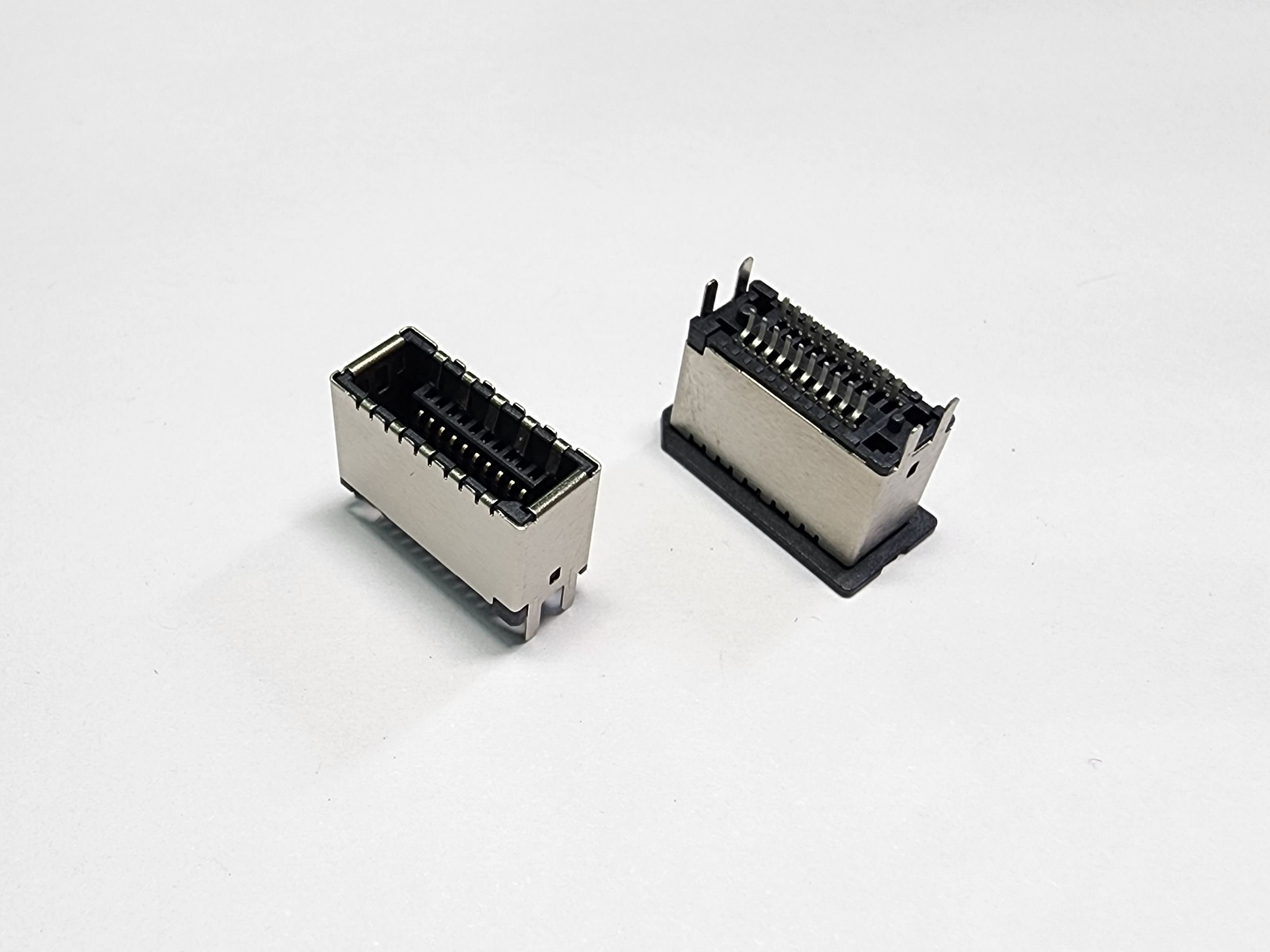

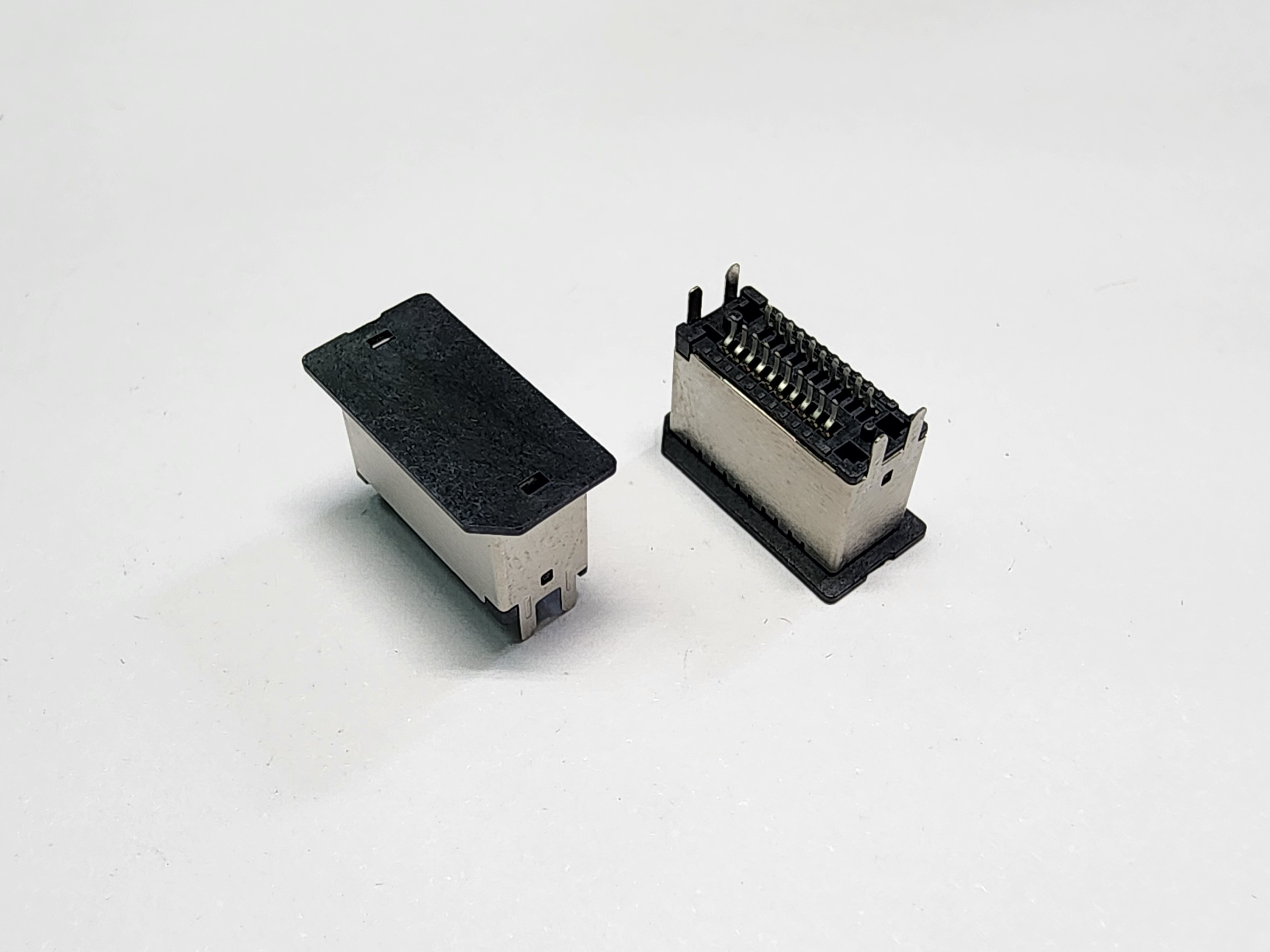

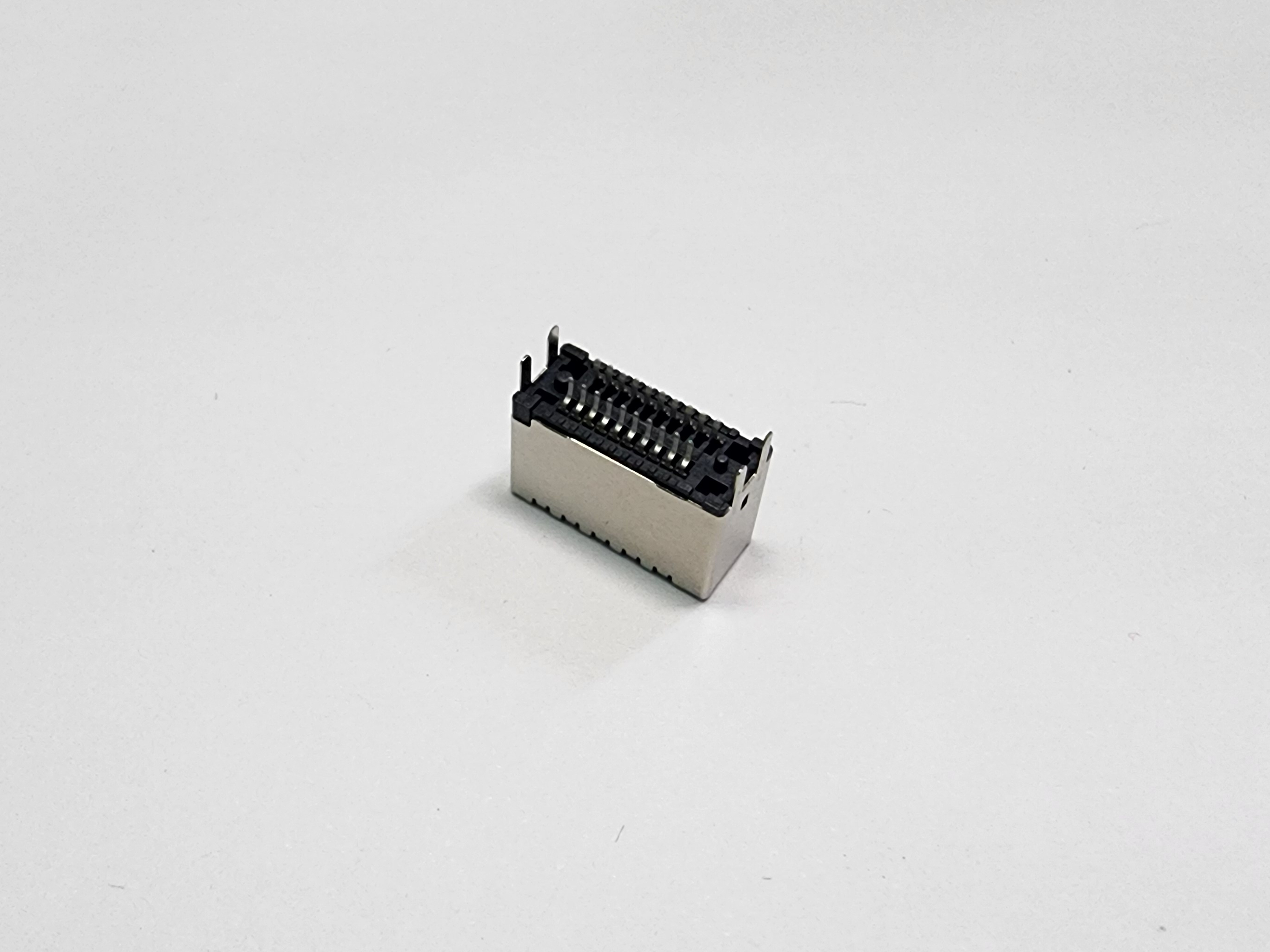

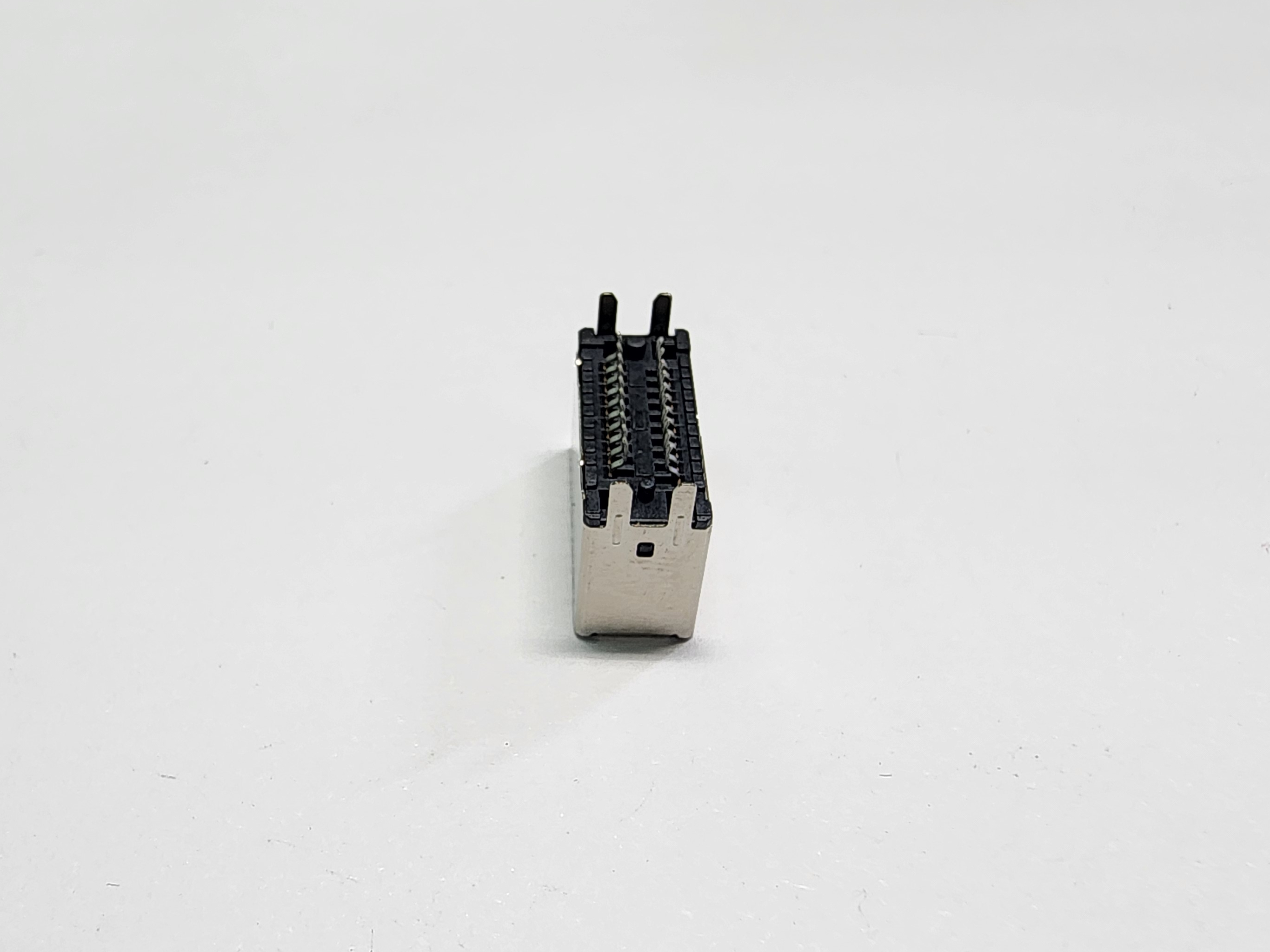

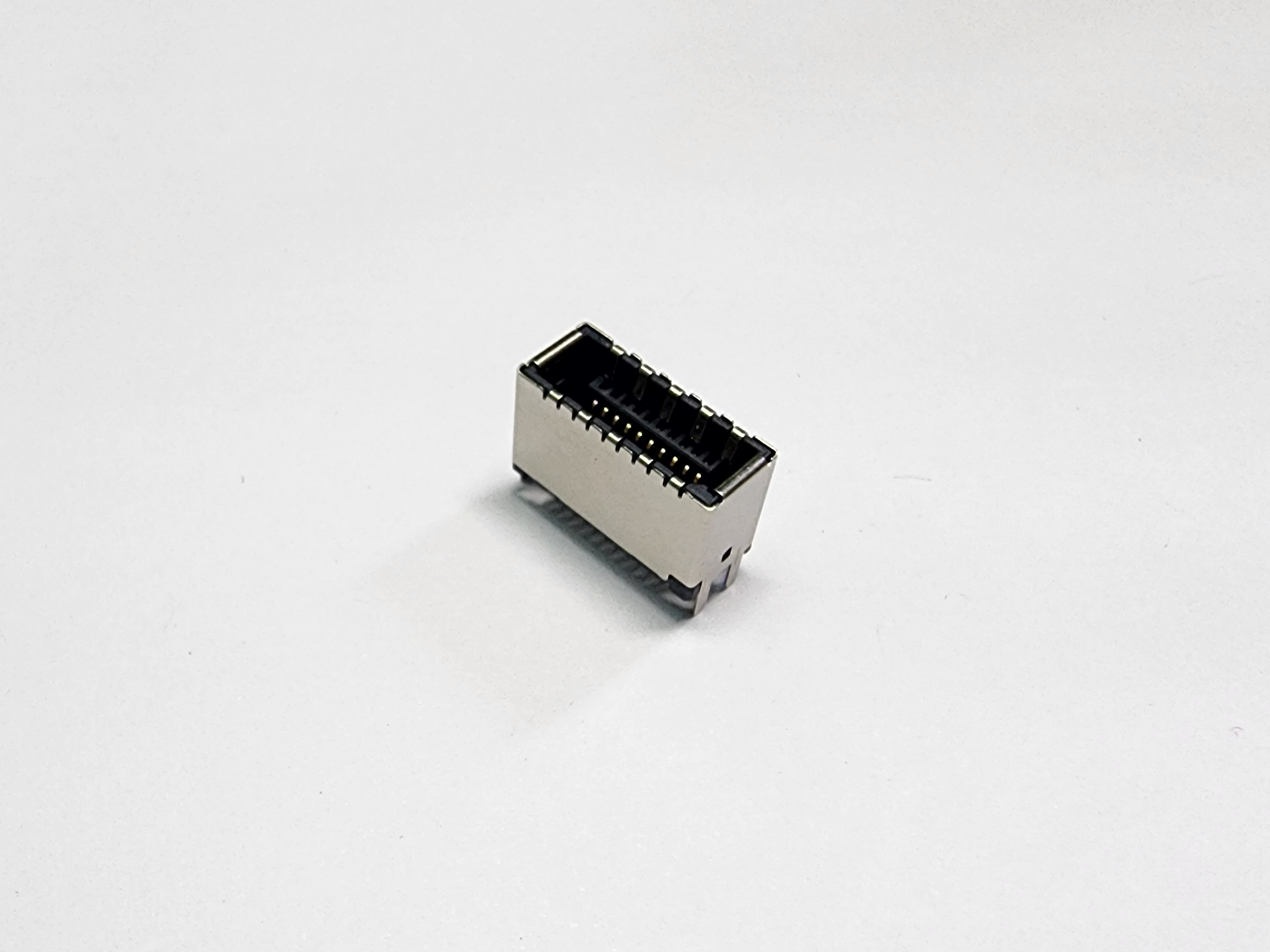

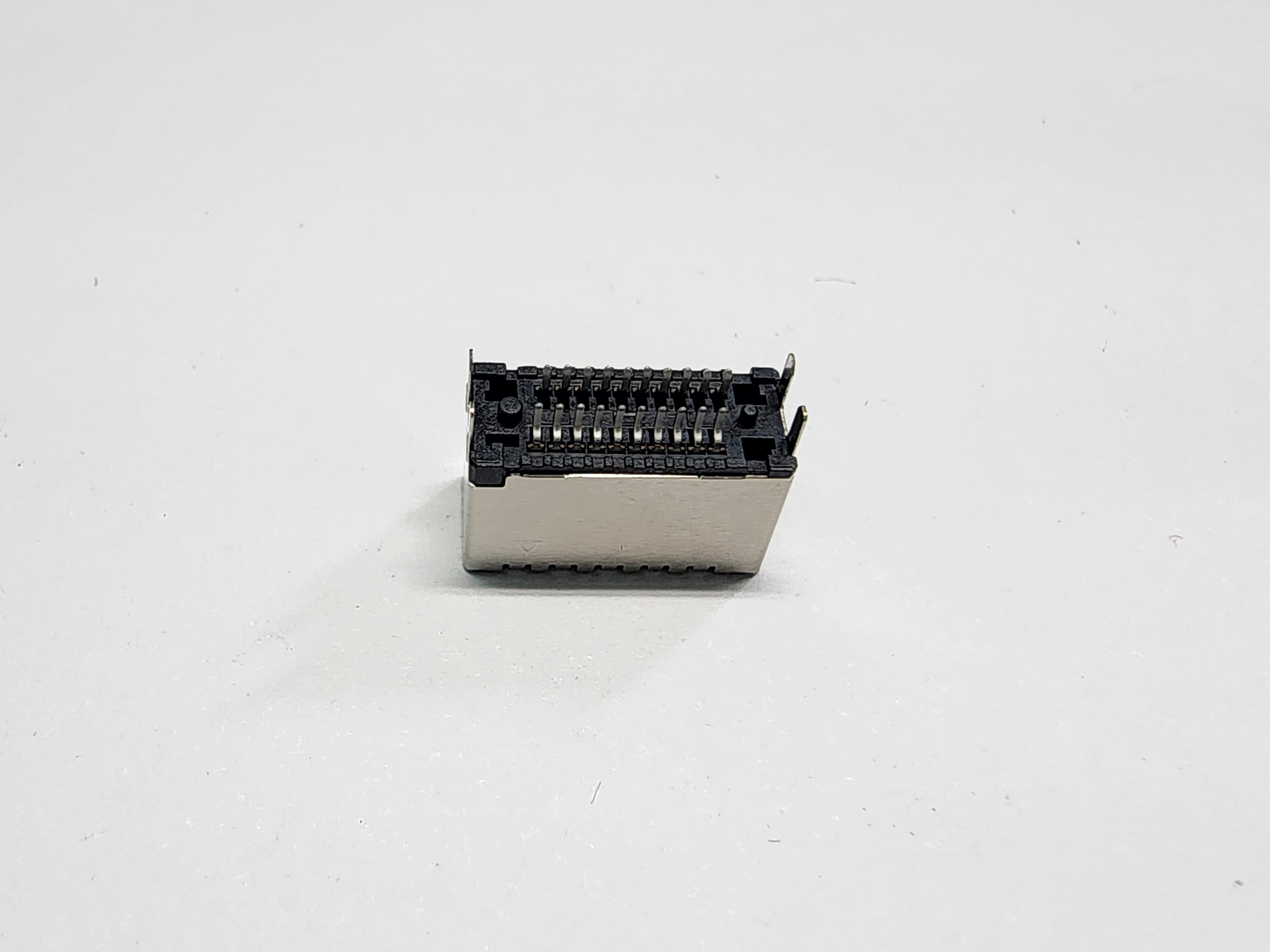

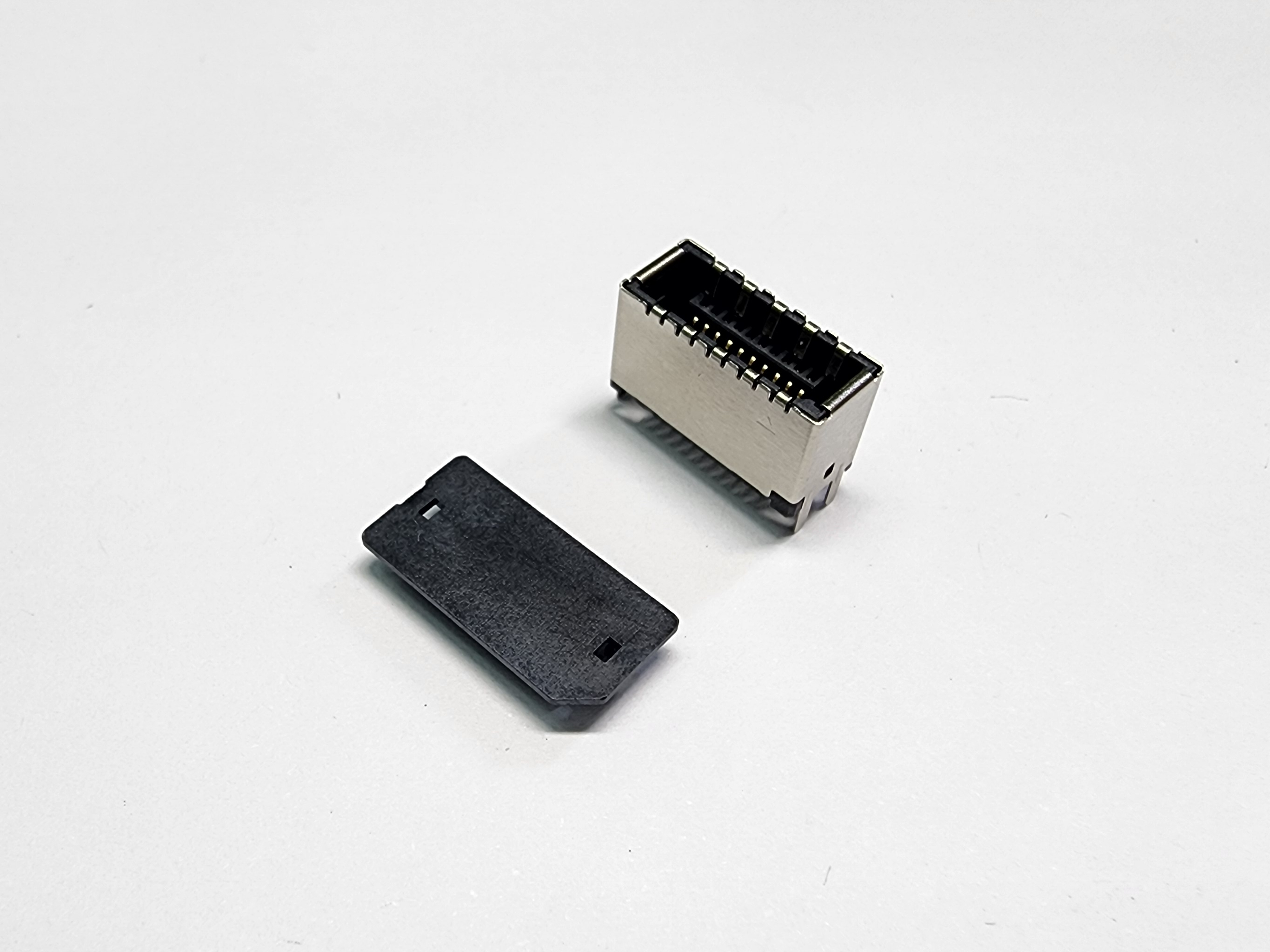

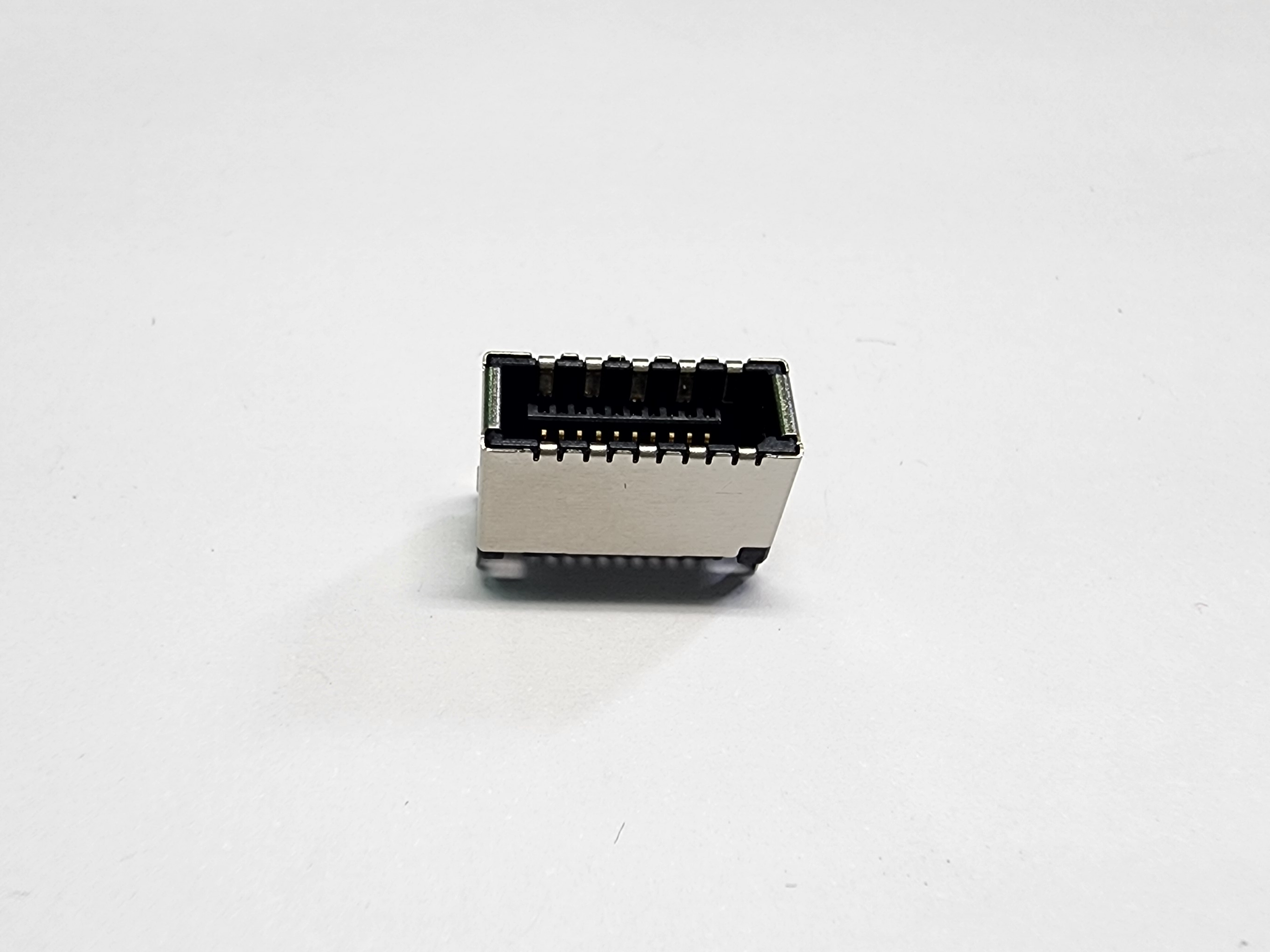

CU3E-R20SSG0-AB

USB 3.2 Type E, Receptacle, 20Pins, Straddle Type, SMT, Gold Flash, A Key, With Stainless Steel Shell, H=7.85mm, LCP, Black Color, for PCB 1.6mm Thickness

Material

• Insulator: LCP E130i+30%G.F., UL 94V-0 Rated.
• Color: Black.
• CAP: LCP E130i+30%G.F., UL 94V-0 Rated.
• Color: Black.
• Contact: Phosphor Bronze, C5210-EH T=0.15mm.
• Plating: Gold Plating over Nickel 50u" Min. on Contact Area;
• Tin 80u" Min. Plating over Nickel 50u" Min. on Solder Tail.
• Shell: Stainless Steel, SUS304-H T=0.15mm.
• Plating: Tin 80u" Min. Plating over Nickel 50u" Min.

Mechanical

• Insertion Force: 35N Max.
• Withdrawal Force: 15N Min.
• Durability: 50Cycles.

Electrical Specification

• Current Rating: 0.5A per Contact.
• LLCR: 50mΩ per Pin Max.
• LLCR 10mΩ Max Change of all Pins.
• Insulation Resistance: 100MΩ Min.
• Dielectric Withstanding Voltage: 300V AC R.M.S.

Environmental

• Operating Temperature: -55°C to +85°C.
• Soldering Temperature: 265°C±5°C for 10Secounds Max.
• If EMI Shell Solder Lead is Connected to The Adjacdat GND Pin Viatrace, Need to Be Isolated by Solder Resist.
• RoHS Compliance.
• REACH Compliance.
