Conn-Link Technology Inc

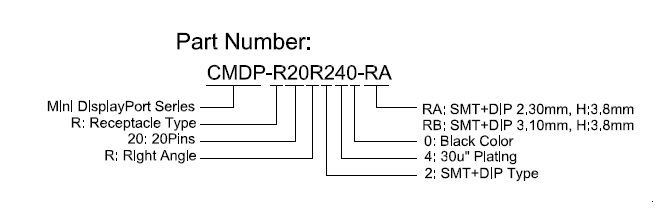

Description
  • Mini DisplayPort 20P
  • Receptacle
  • Right Angle
  • DIP 2.3mm+SMT
  • H:3.8mm
  • 30u" Plating
  • LCP
  • Black Color

Material

  • Body: LCP+50%G.F, UL 94V-0 Rated.
  • Color: Black.
  • Insertion(Molding): LCP+30%G.F, UL 94V-0 Rated.
  • Color: Black.
  • Contact: Phosphor Bronze(C7025).
  • Plating: Gold Plating over Nickel on Contact Area;
    Tin Plating on Solder Tail.
  • Shell: Brass.
  • Plating: Nickel(40~80u") Plating.

Mechanical

  • Insertion Force: 4.5Kgf Max.
  • Withdrawal Force: 1.0~4.0Kgf.
  • Durability: 10,000 Cycles.

Electrical Specification

  • Operation Voltage: 30VAC Max.
  • Current Rating: 0.5 Ampere per Contact.
  • Contact Resistance: 30mΩ Max.
  • Insulation Resistance: 100MΩ Min.
  • Dielectric Withstanding Voltage: 500 VAC.

Environmental

  • Operating Temperature: -40°C to +85°C
  • RoHS Compliance.
