Conn-Link Technology Inc

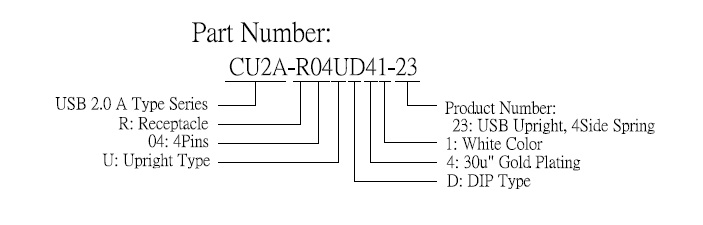

Description
  • USB2.0 A Type
  • 4Pins Receptacle
  • Upright
  • DIP Type
  • 30u” Plating
  • White Color

Material

  • Housing: PBT, UL94 V-0 Rated.
  • Color: White.
  • Contact: Phosphor Bronze.
  • Plating: Gold Plating over Nickel on Contact Area;
    Tin Plating over Nickel on Solder Tail.
  • Shield: Brass.
  • Plating: Nickel Plating.
  • Shield Cover: Brass.
  • Plating: Nickel Plating.

Electrical Specification

  • Current Rating: 1.5 Ampere.
  • Contact Resistance: 30mΩ Max.
  • Insulation Resistance: 1000MΩ Min.
  • Dielectric Withstanding Voltage: 500 VAC 1 Sec. Level.

Environmental

  • Operating Temperature: -55°C to +85°C
  • RoHS Compliance.
