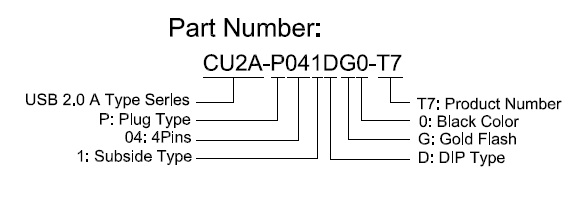

Description
- USB2.0 A Type
- 4Pins Plug
- Subside Type
- DIP
- With Harpoon
- Gold Flash Plating
- Black Color
Material
- Housing: PBT Glass Fibre UL94 V-0.
- Color: Black.
- Contact: Bronze T=0.25 ± 0.02mm.
- Plating: Gold Plating over Nickel on Contact Area;
Tin Plating over Nickel on Solder Tail.
- Shield: SPCC-SD-OILED, T=0.30 ± 0.02mm.
- Plating: Ag Plating over Nickel.
Mechanical
- Mating: 35N Max.
- Withdrawal: 10N Min.
- Durability: 1500Cycles Min.
Electrical Specification
- Operation Voltage: 30V Max.
- Current Rating: 1.5 Ampere.
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500 VAC 1 Sec. Level.
Environmental
- Operating Temperature: -55°C to +85°C
- RoHS Compliance.
![]()
![]()
