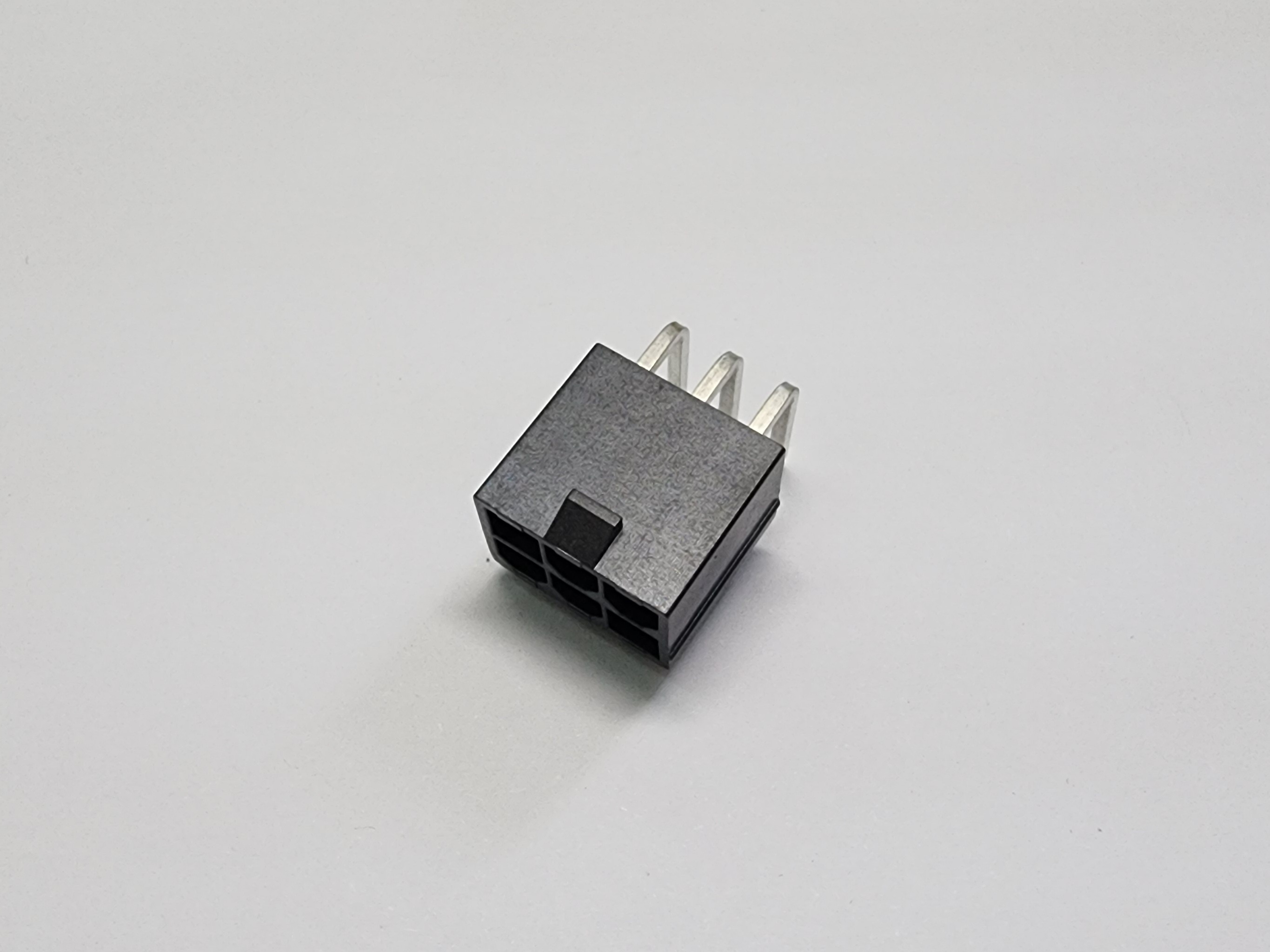

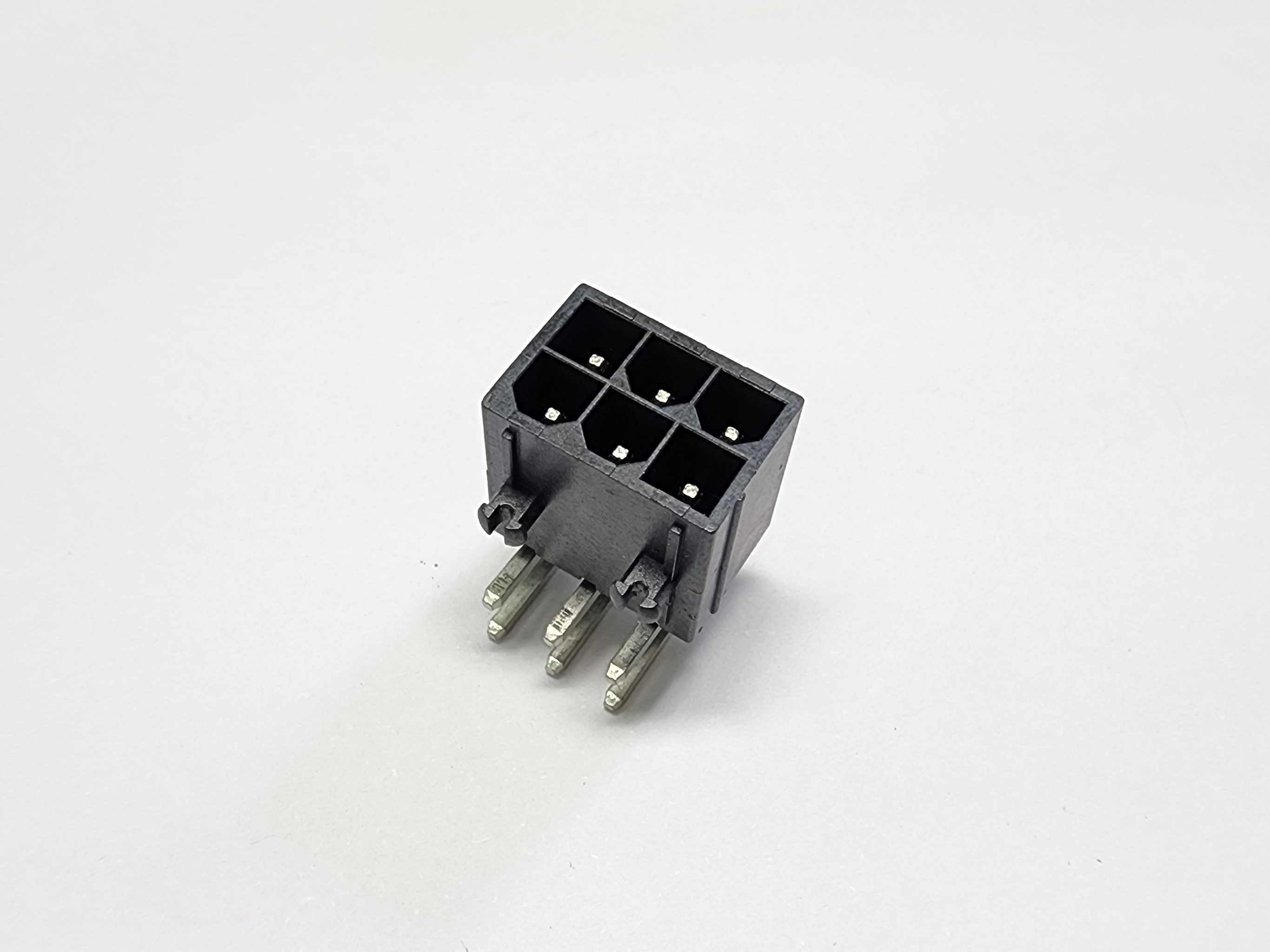

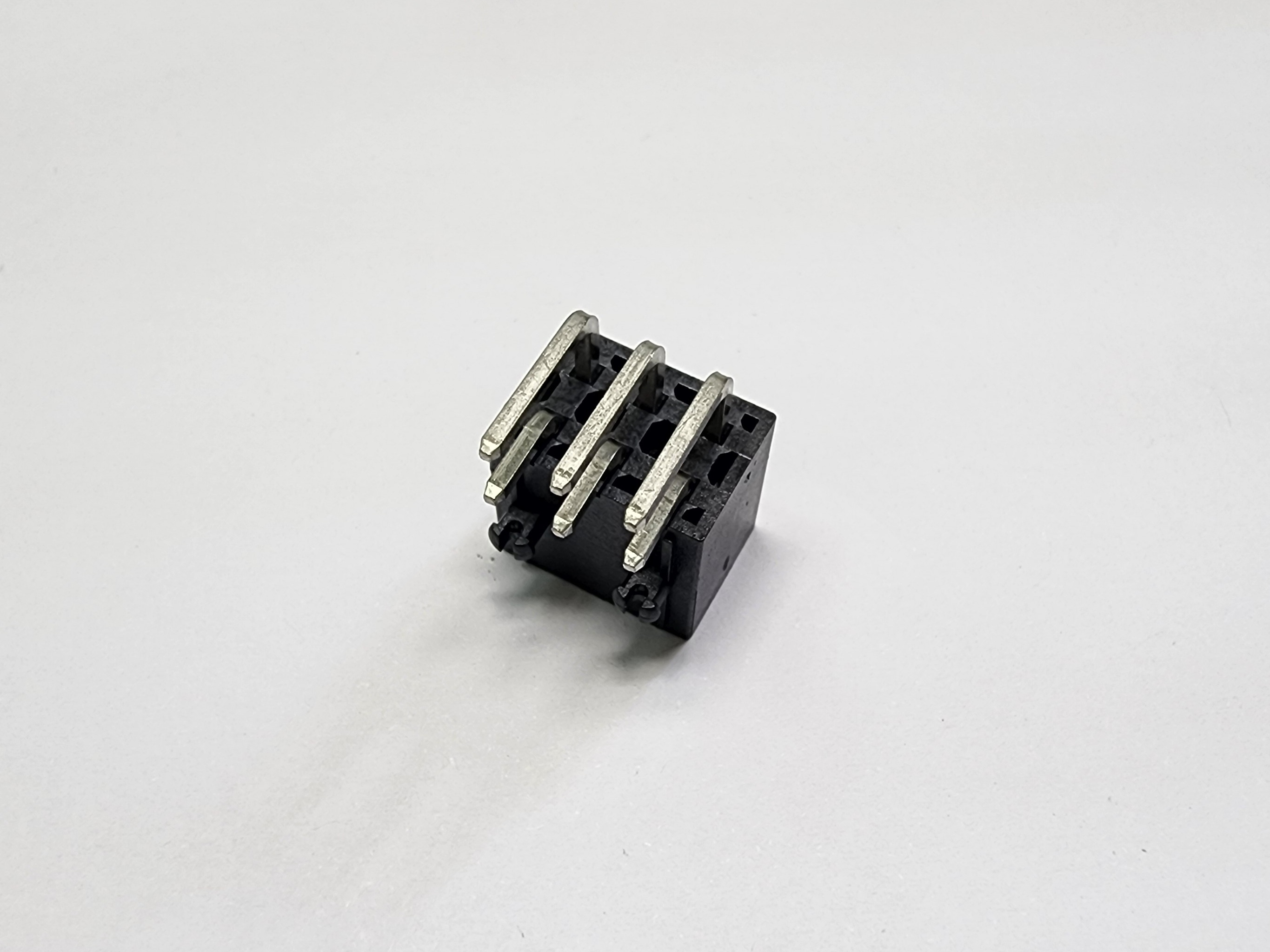

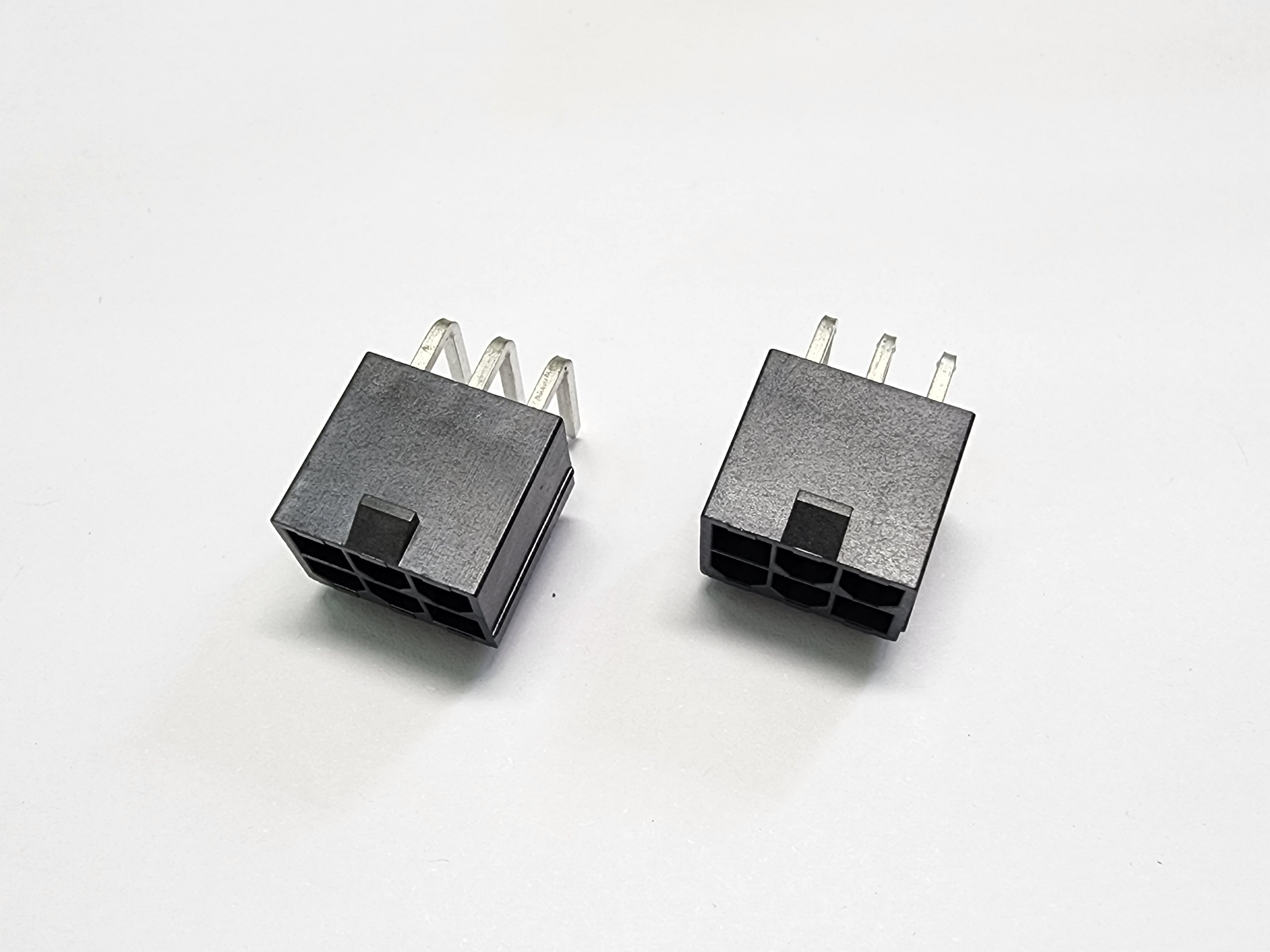

CATX-M06RDT0-8Q
Description
- PCI Express Power Connector
- 2x3Pins
- Male Type
- Right Angle
- DIP
- Tin Plating
- 4.2mm*4.2mm
- With Posts
- Latch=3.5mm
- LCP
- Black Color
PCIe Power Connector, 2x3Pins, Male, Right Angle, DIP, Tin Plating, 4.2mm*4.2mm, With Posts, Latch=3.5mm, LCP, Black Color
Material
- Housing: LCP, UL 94V-0 Rated.
- Color: Black.
- Contact: Copper Alloy.
- Plating: Tin Plating Over Nickel.
Electrical Specification
- Current Rating: 9 Ampere Max.
- Contact Resistance: 30mΩ Max.
- Insulation Resistance: 1000MΩ Min. at 1000V DC.
- Dielectric Withstanding Voltage: 1500V AC R.M.S. per Minute.
Environmental
- Operating Temperature: -25°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
