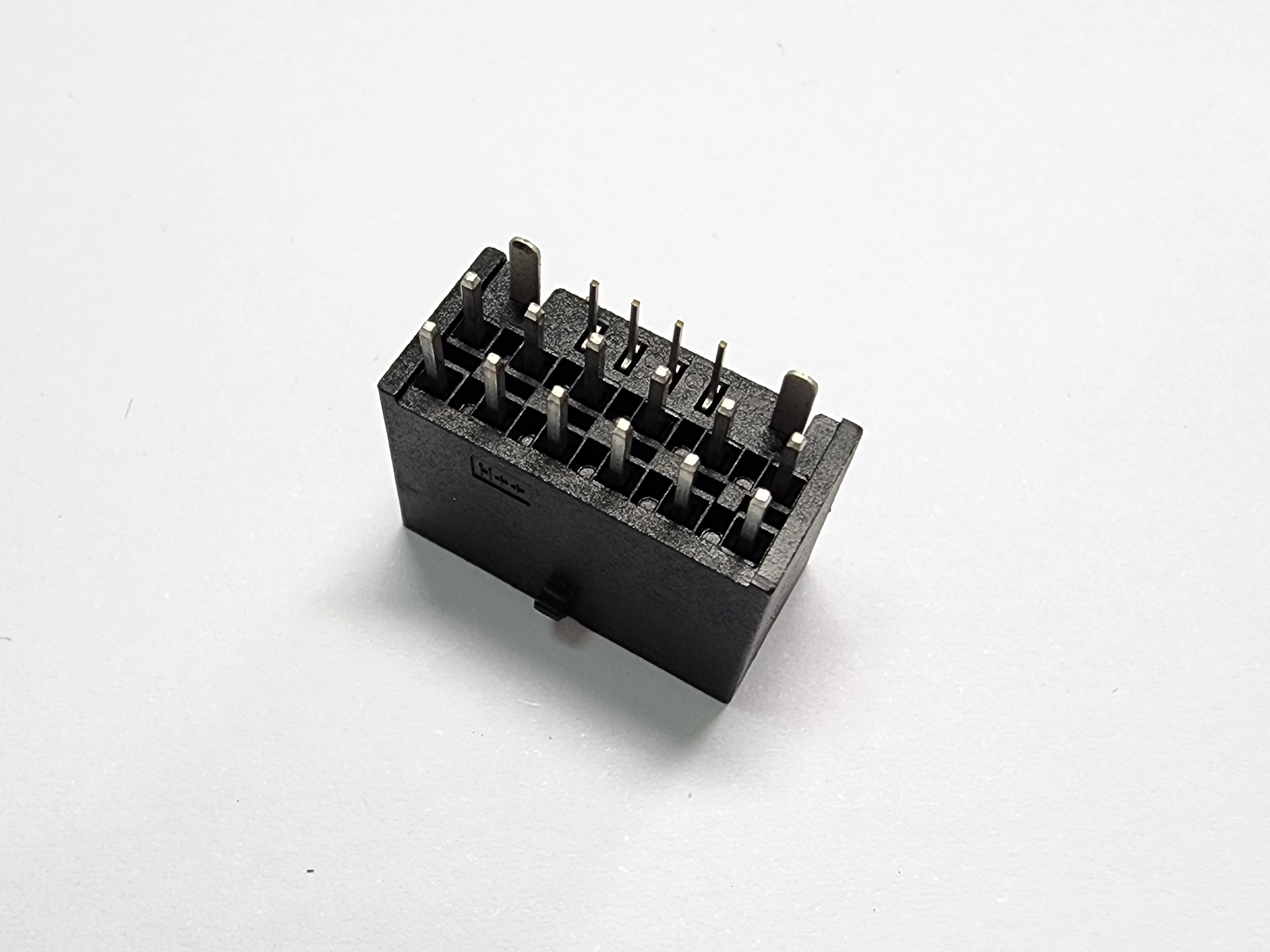

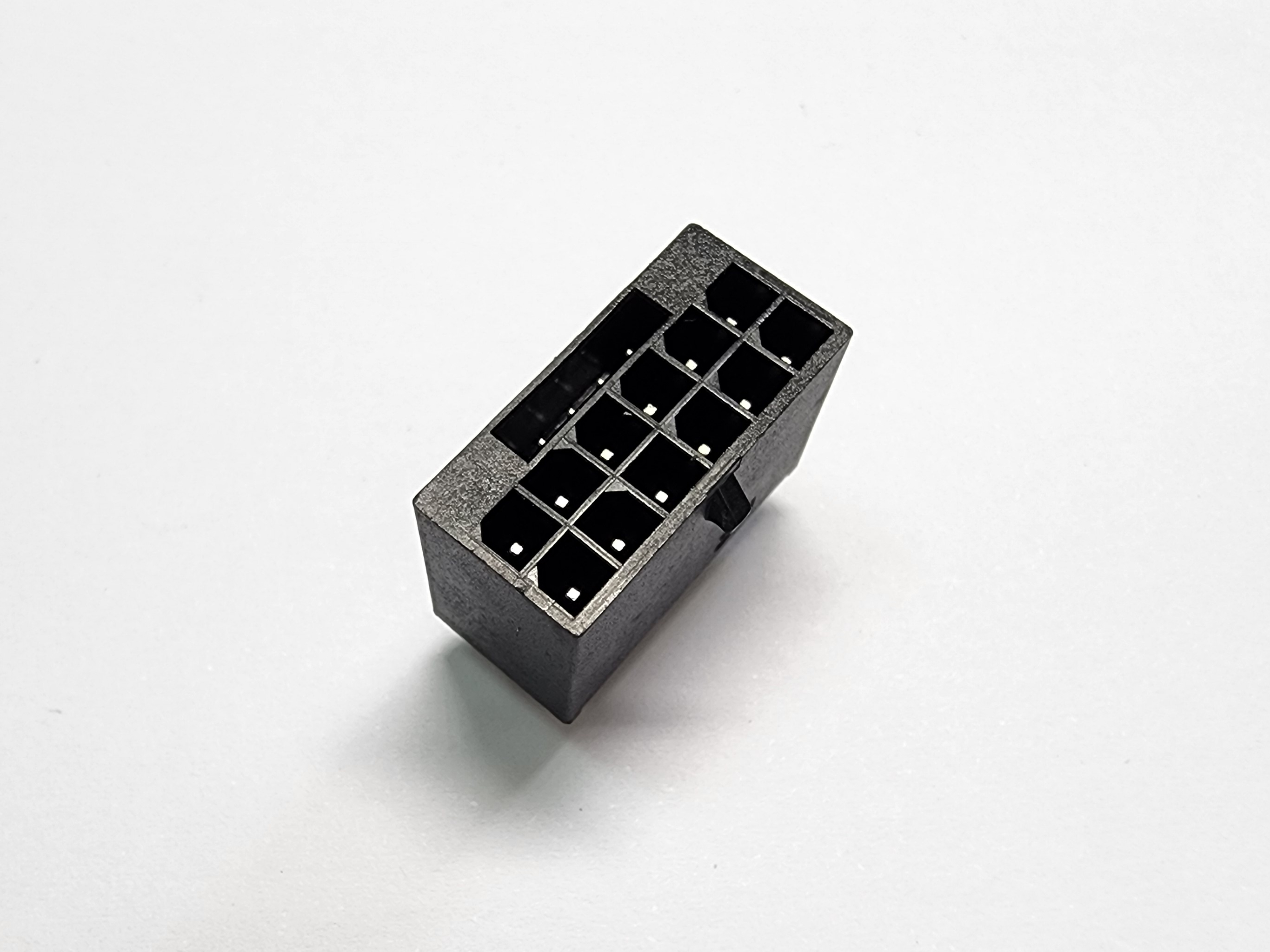

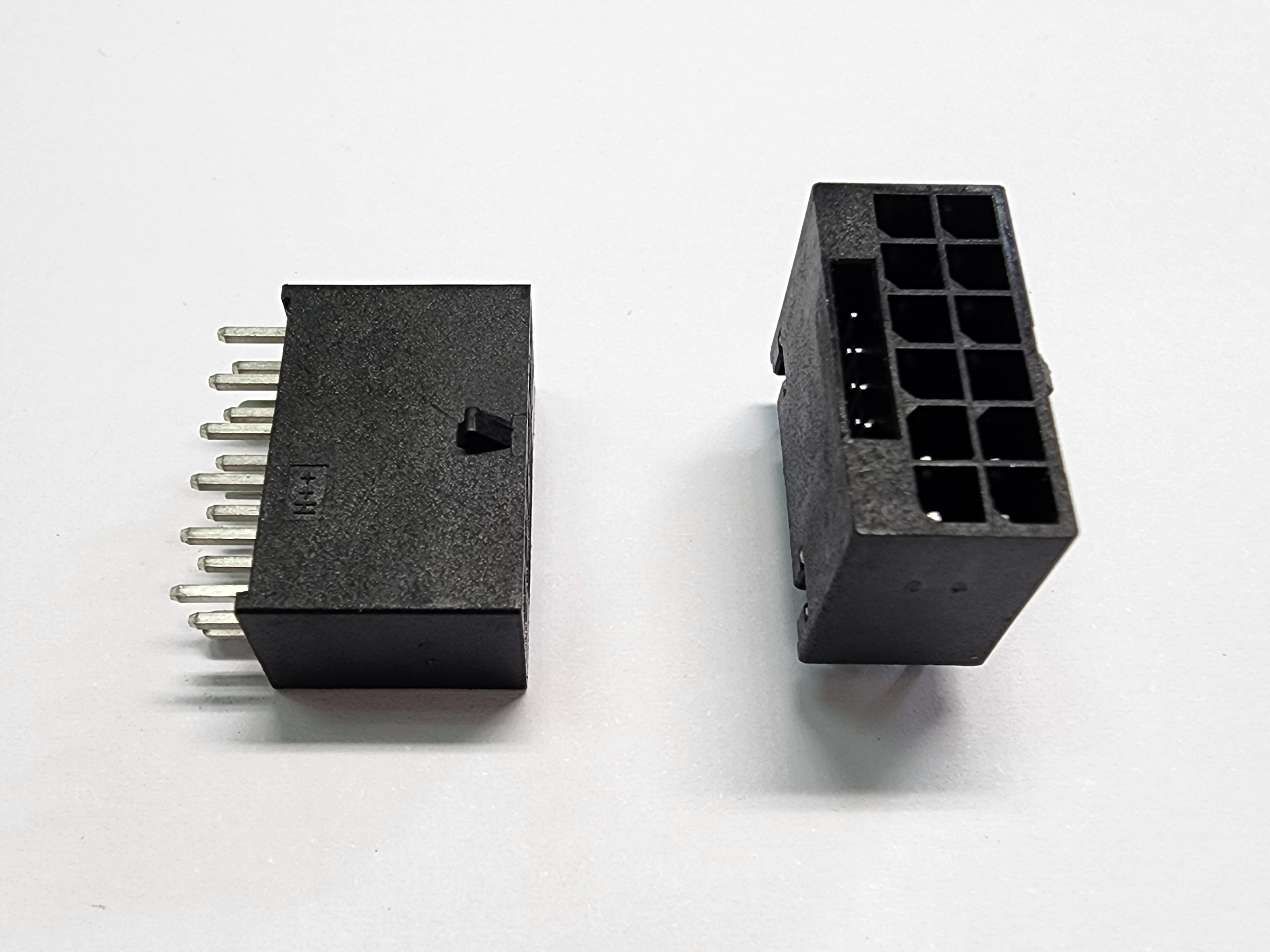

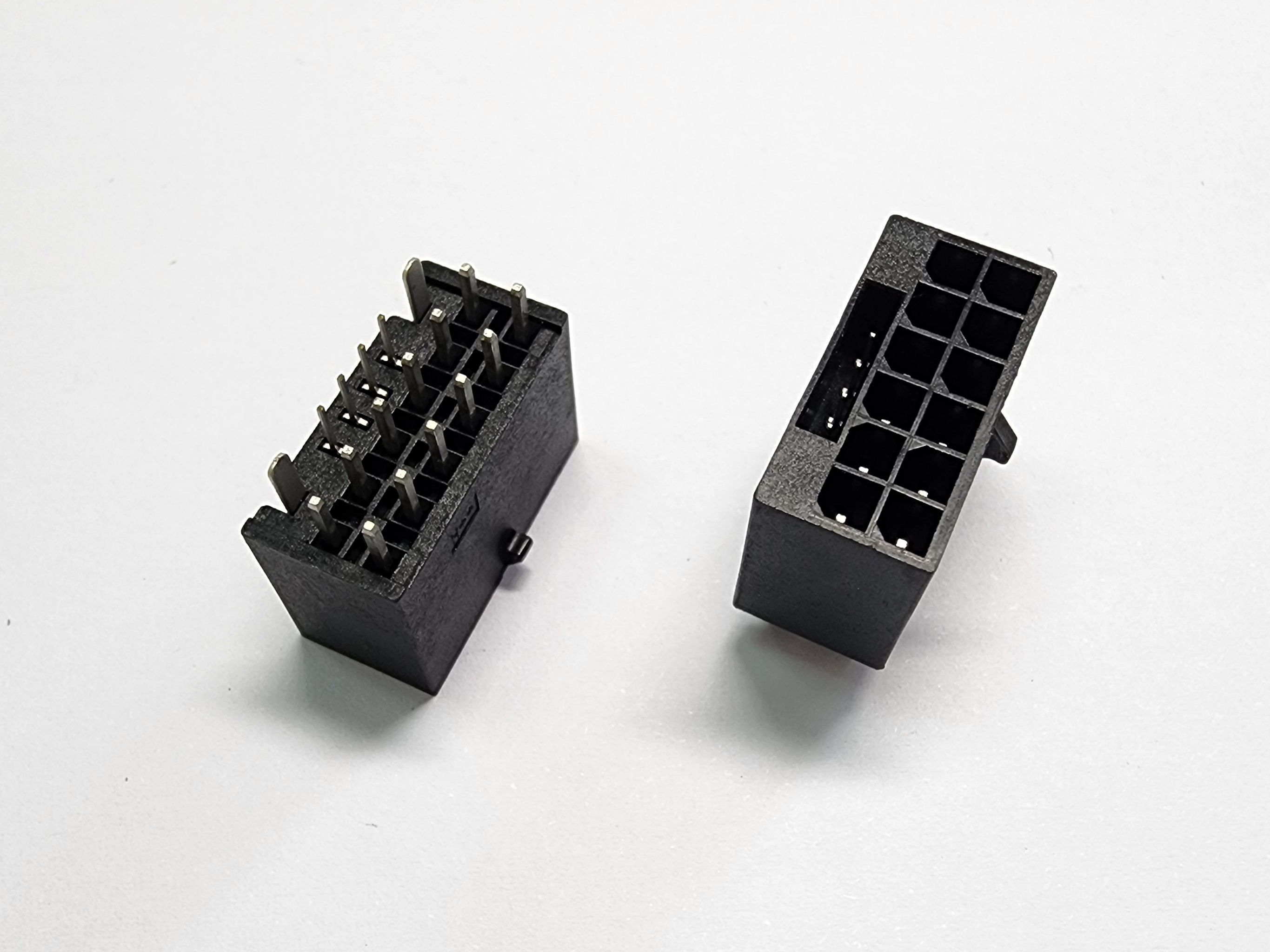

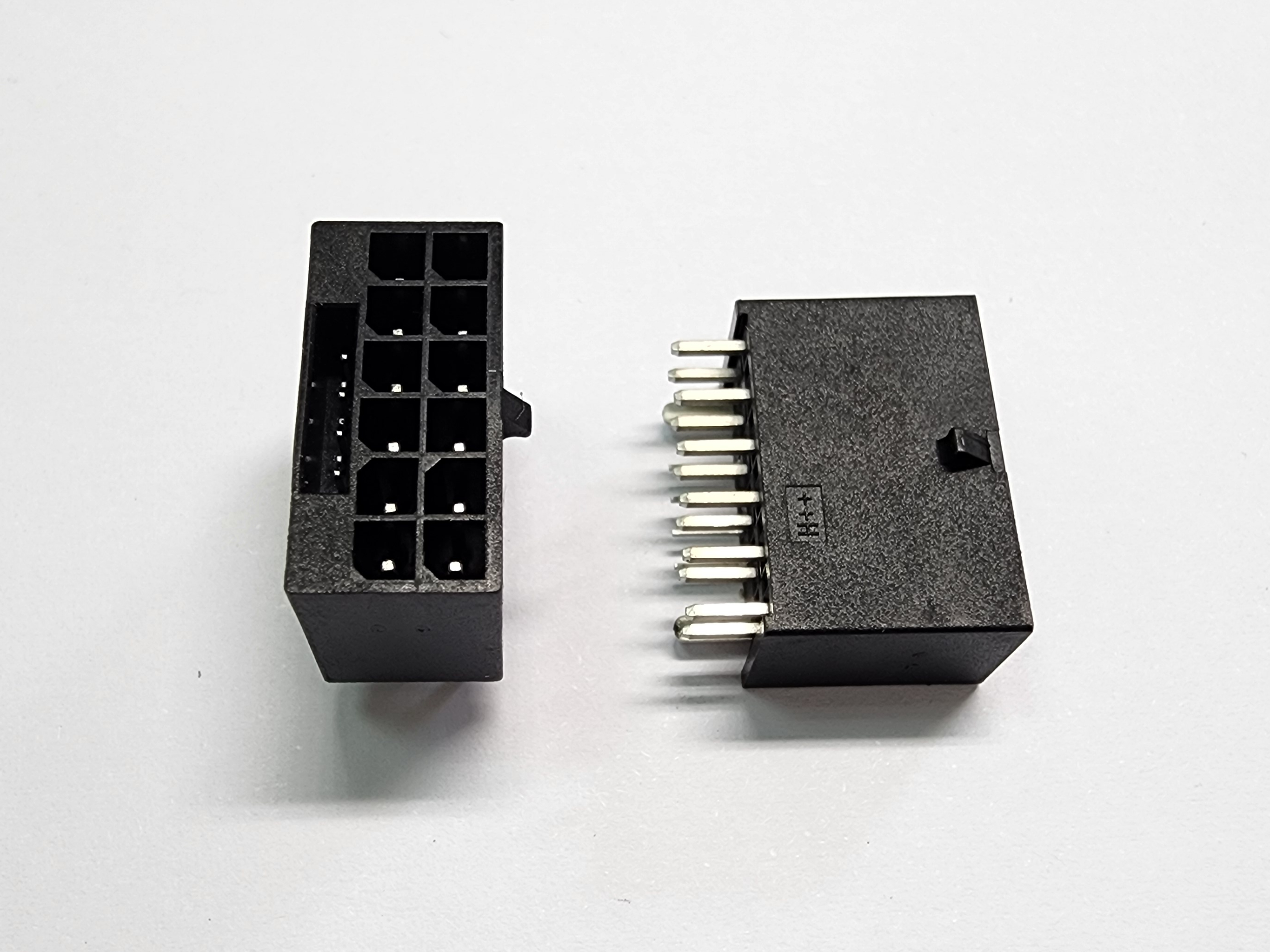

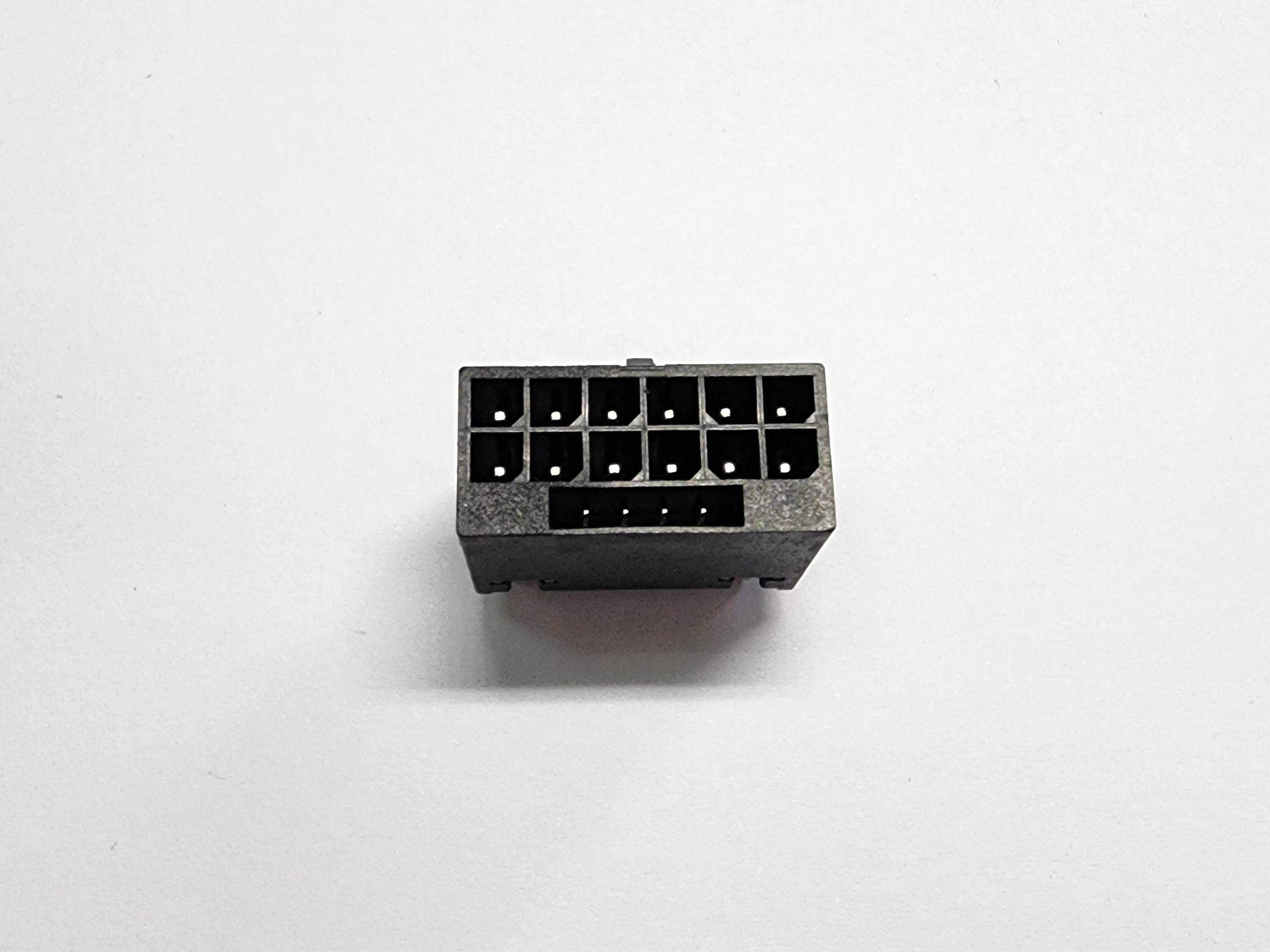

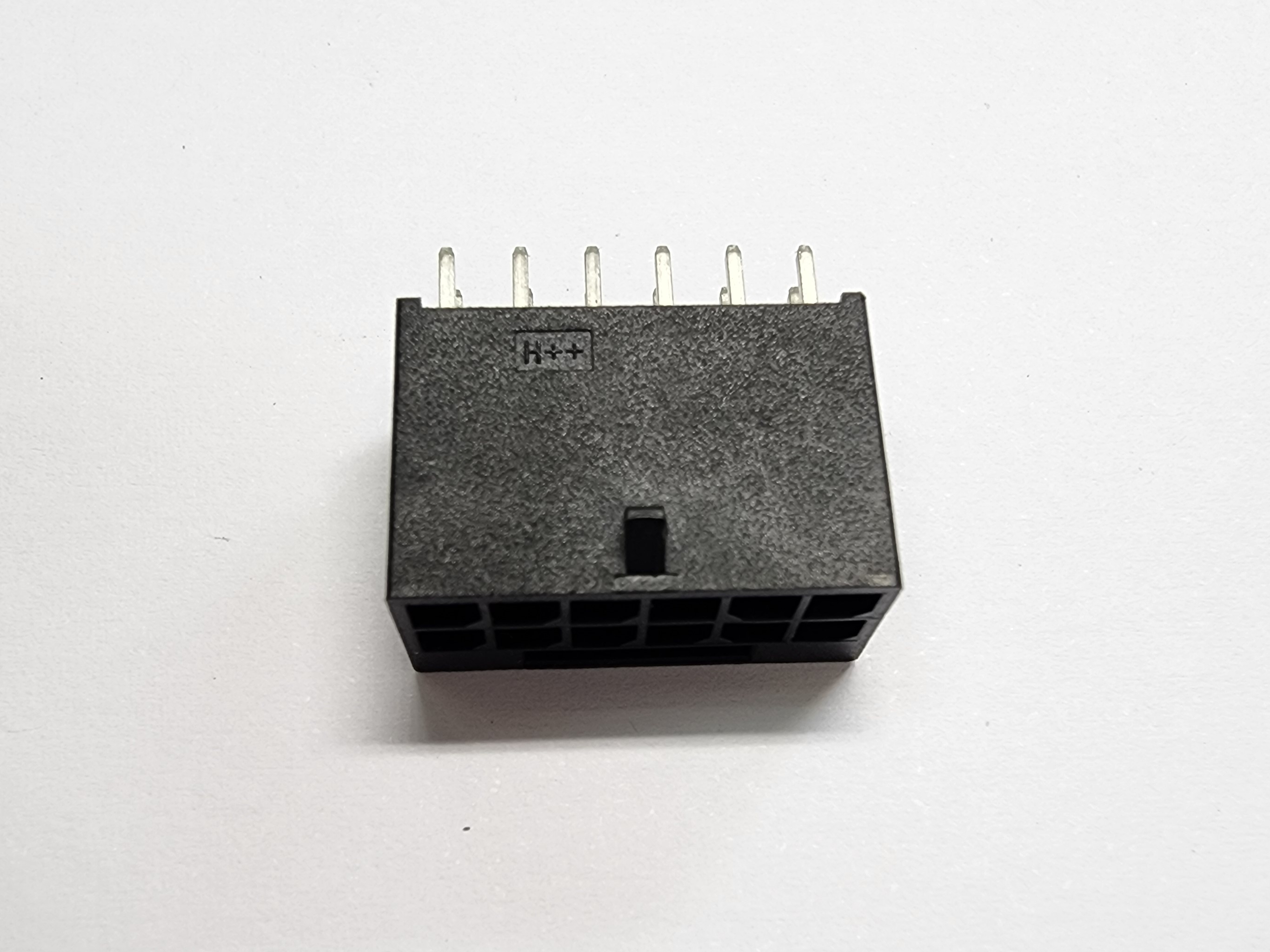

CATX-M16VDT0-3G

ATX3.1 H++ PCI Express 6.0 12V-2x6 Auxiliary Power, 3.0mm 2x6Pins with 2.0mm 4Pins, Male Type, Vertical, DIP D=3.4mm, H=12.80mm, Thermoplastic, Black Color

Material

• Housing: Engineer Thermoplastic, UL 94V-0 Rated.
• Color: Black Color.
• Power and GND Contacts: Copper Alloy.
• Plating: 80u" Min. Tin Plating Over All;
• 30u" Min. Nickel Under Plating Over All.
• Signal Contacts: Copper Alloy.
• Plating: 80u" Min. Tin Plating Over All;
• 30u" Min. Nickel Under Plating Over All.
• Board Lock: Stainless Steel.
• Plating: 80u" Min. Tin Plating Over All;
• 30u" Min. Nickel Under Plating Over All.

Electrical Specification

• Current Rating:
• 9.2A per Pin (Power & GND Pins);
• 1.0A per Pin (Signal Pins).
• Voltage Rating: 12V DC.
• Contact Resistance:
• 6mΩ Max Initial(Power & GND Pins);
• 10mΩ Max Initial(Signal Pins).
• Insulation Resistance: 1000MΩ Min at 500V DC.
• Dielectric Withstanding Voltage:
• 1500V AC R.M.S for One Minute(Power & GND Pins).
• 500V AC R.M.S for One Minute(Signal Pins).

Environmental

• Operating Temperature:  -40°C to +105°C.
• Resistance to Soldering Heat: 260°C for 10 Seconds.
• RoHS Compliance.
• REACH Compliance.
