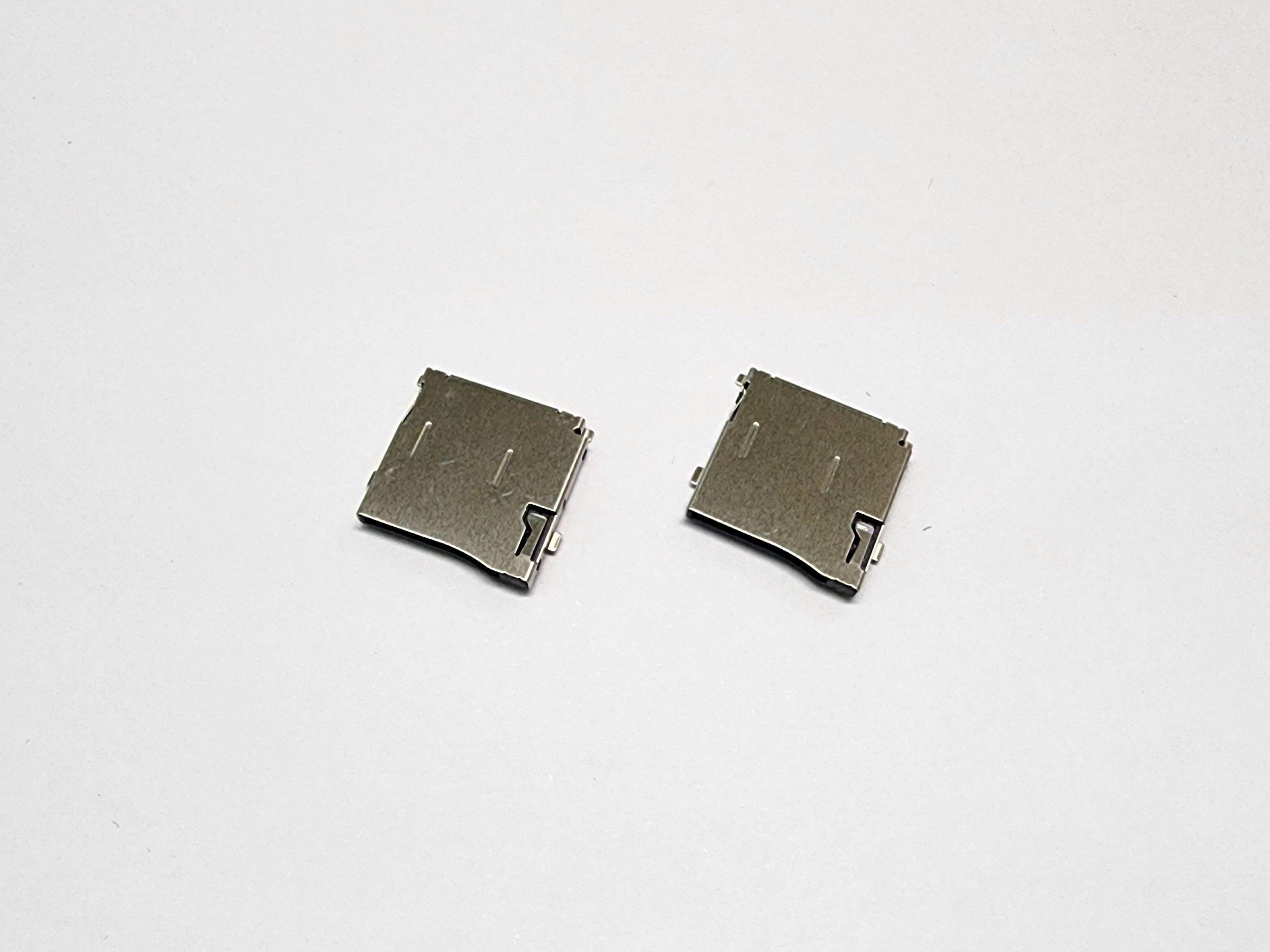

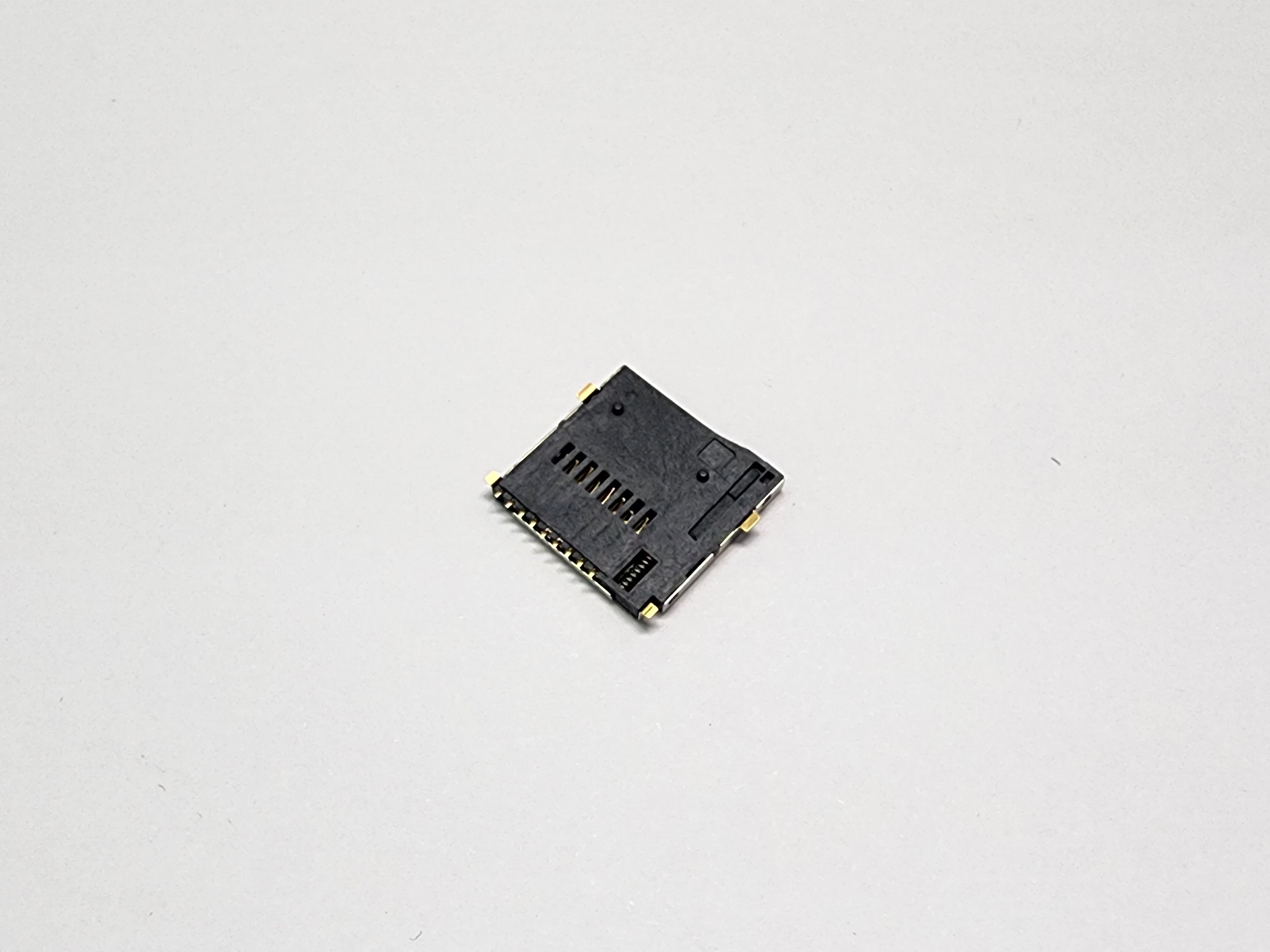

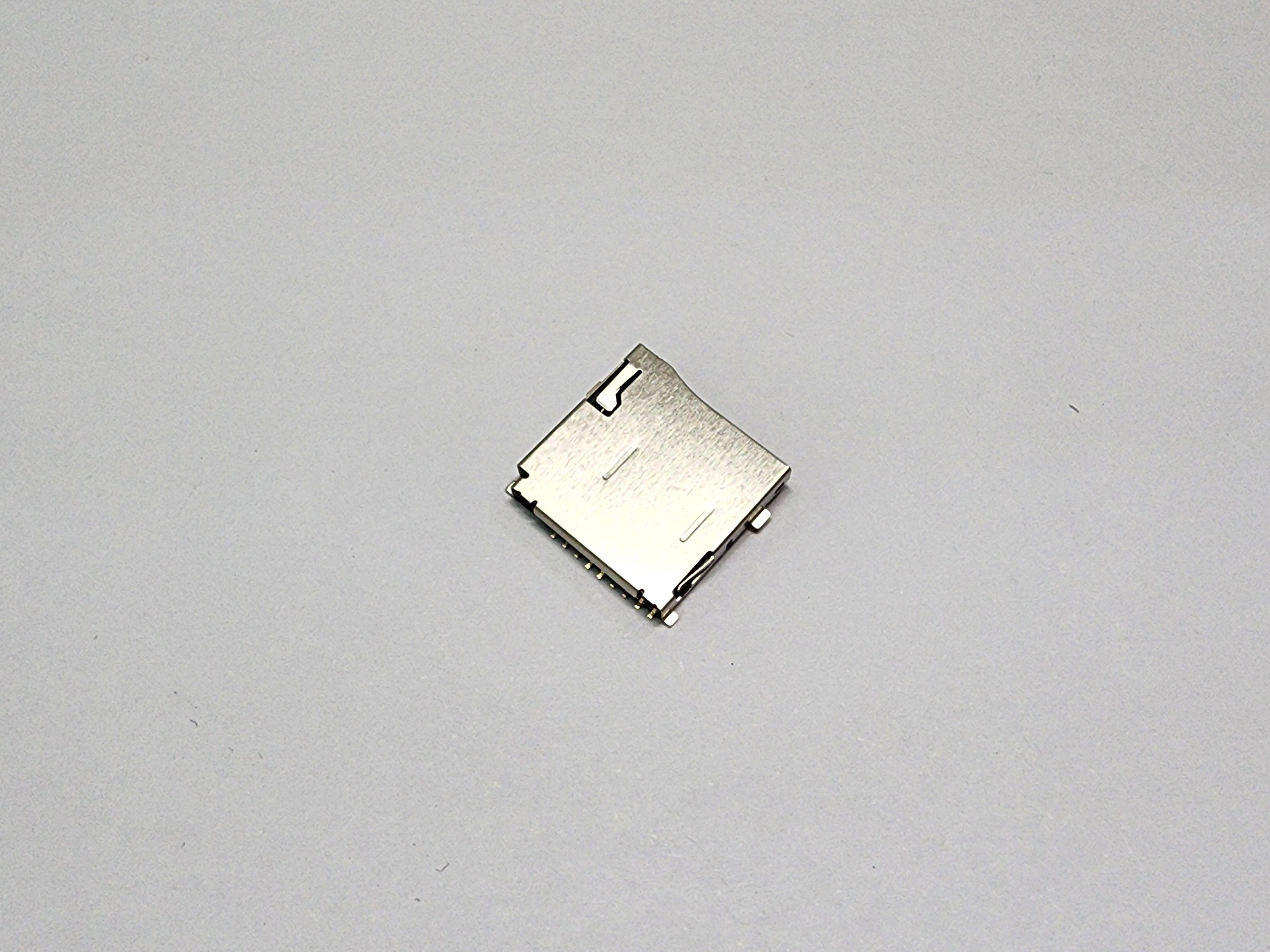

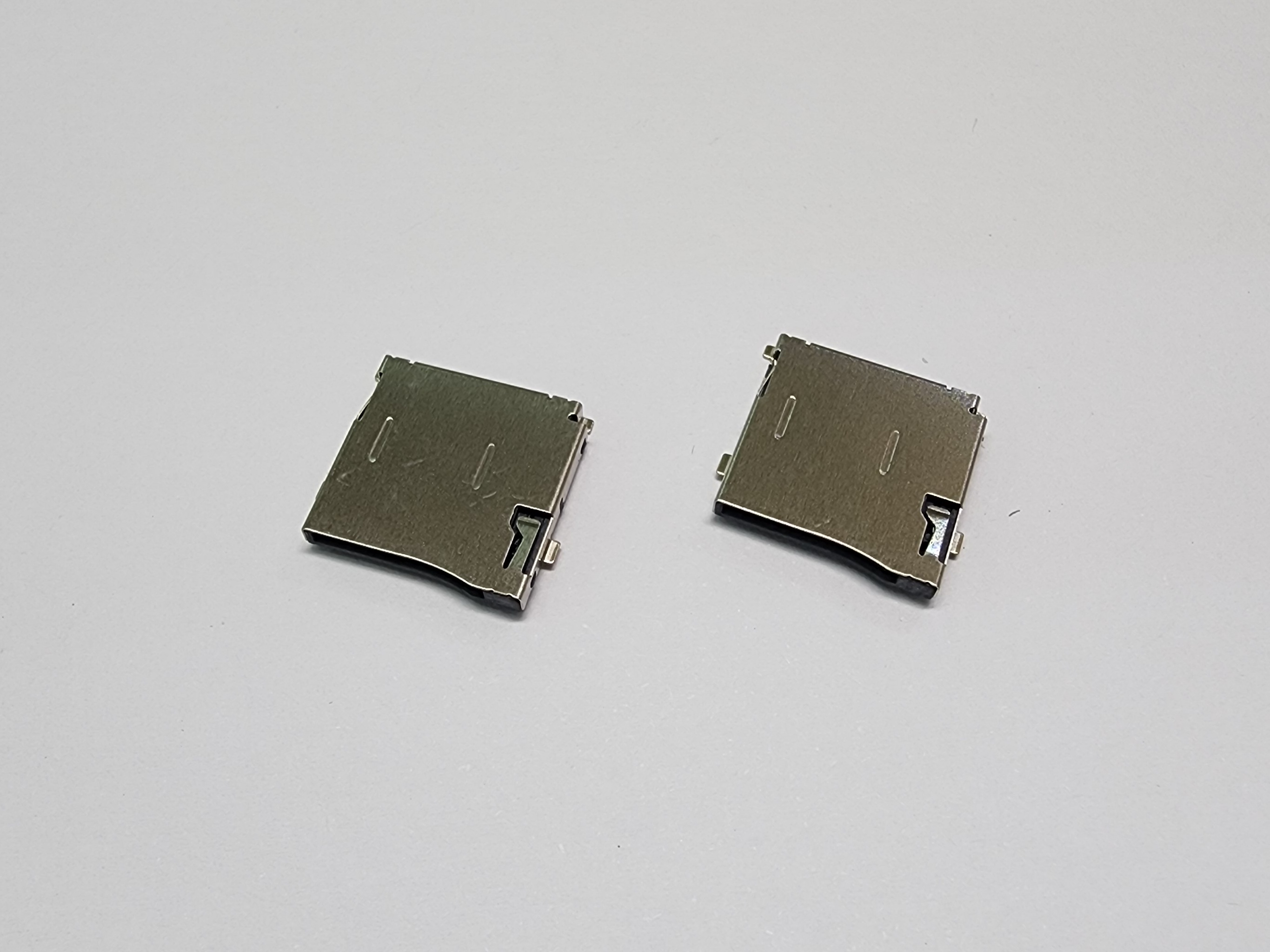

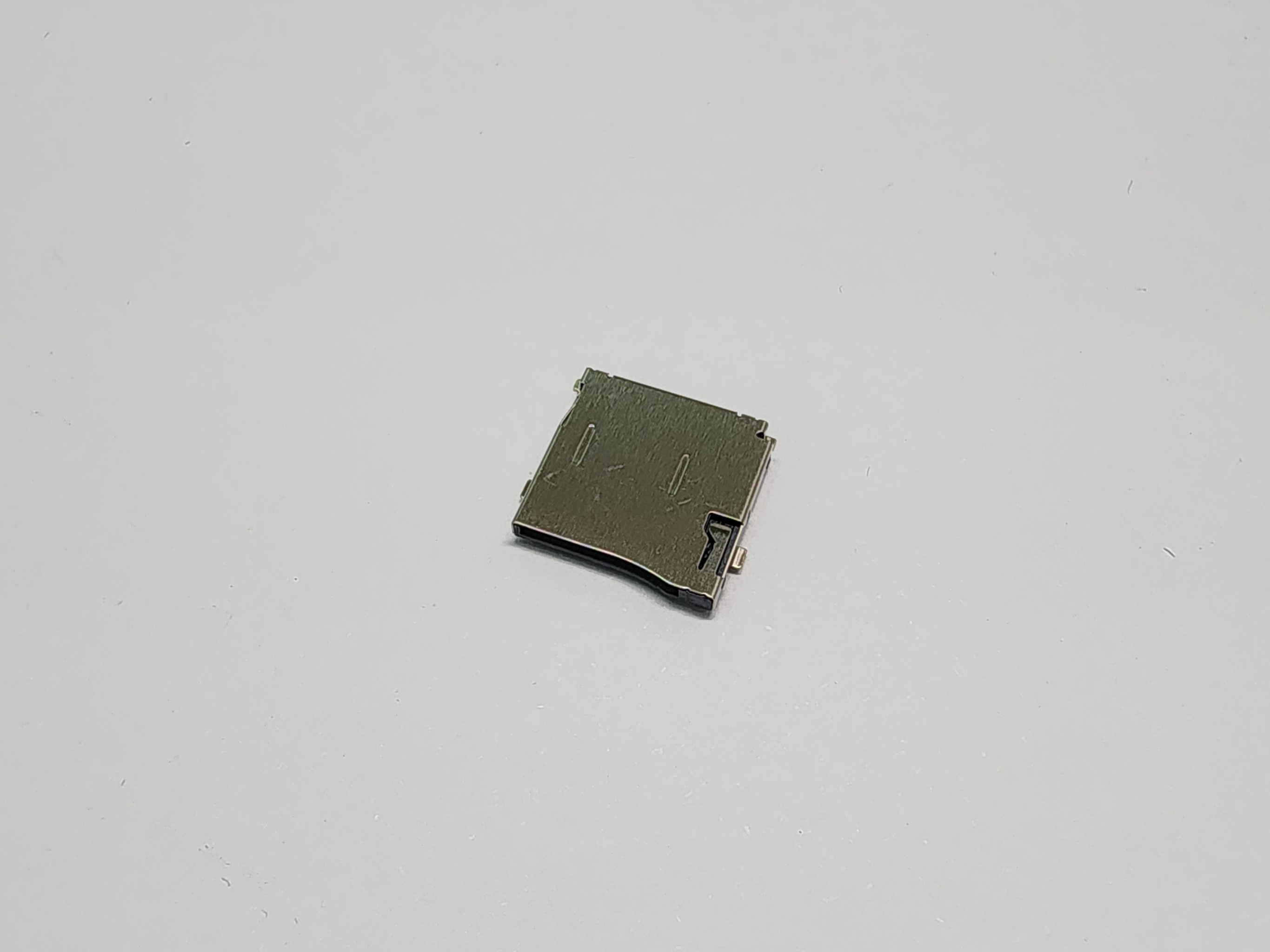

CMSD-PS9VSG0-603
Description
- Micro SD Card Socket Connector
- Push/Push Type
- Standard Type
- 8+Card Detect(Switch)Pins
- Gold Flash Plating
- SMD
- H=1.85mm High
- With Posts 8.0mm
- Metal Cover without Spring
- LCP
- Black Color
Micro SD Card(T-Flash), SMD, Push/Push Type, 8Pins+Card Detect(Switch), H=1.85mm Height, With Posts 8.0mm, With Metal Cover Without Spring, LCP, Black Color
Material
- Housing: LCP+35%G.F., UL 94V-0 Rated.
- Color: Black.
- Contact: Phosphor Bronze.
- Plating: Gold Plating over Nickel on Contact Area;
- Gold Flash Plating over Nickel on Solder Tail.
- S/W Pin: Phosphor Bronze.
- Shell: SUS304.
- Plating: Gold Plating on Solder Area.
- Nickel Underplating over All.
- Spring: Piano Wire.
- Crank Axle: SUS304.
Mechanical
- Insertion Force: 9.8N Max.
- Withdrawal Force: 2N.
- Contact Retention Force: 2.5N Min.
- Durability: 10,000Cycles Min.
Electrical Specification
- Current Rating: 0.5 Ampere Max per Pin.
- Voltage Rating: 100V AC/DC.
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500V AC for One Minute.
Environmental
- Operating Temperature: -40°C to +90°C.
- RoHS Compliance.
- REACH Compliance.
