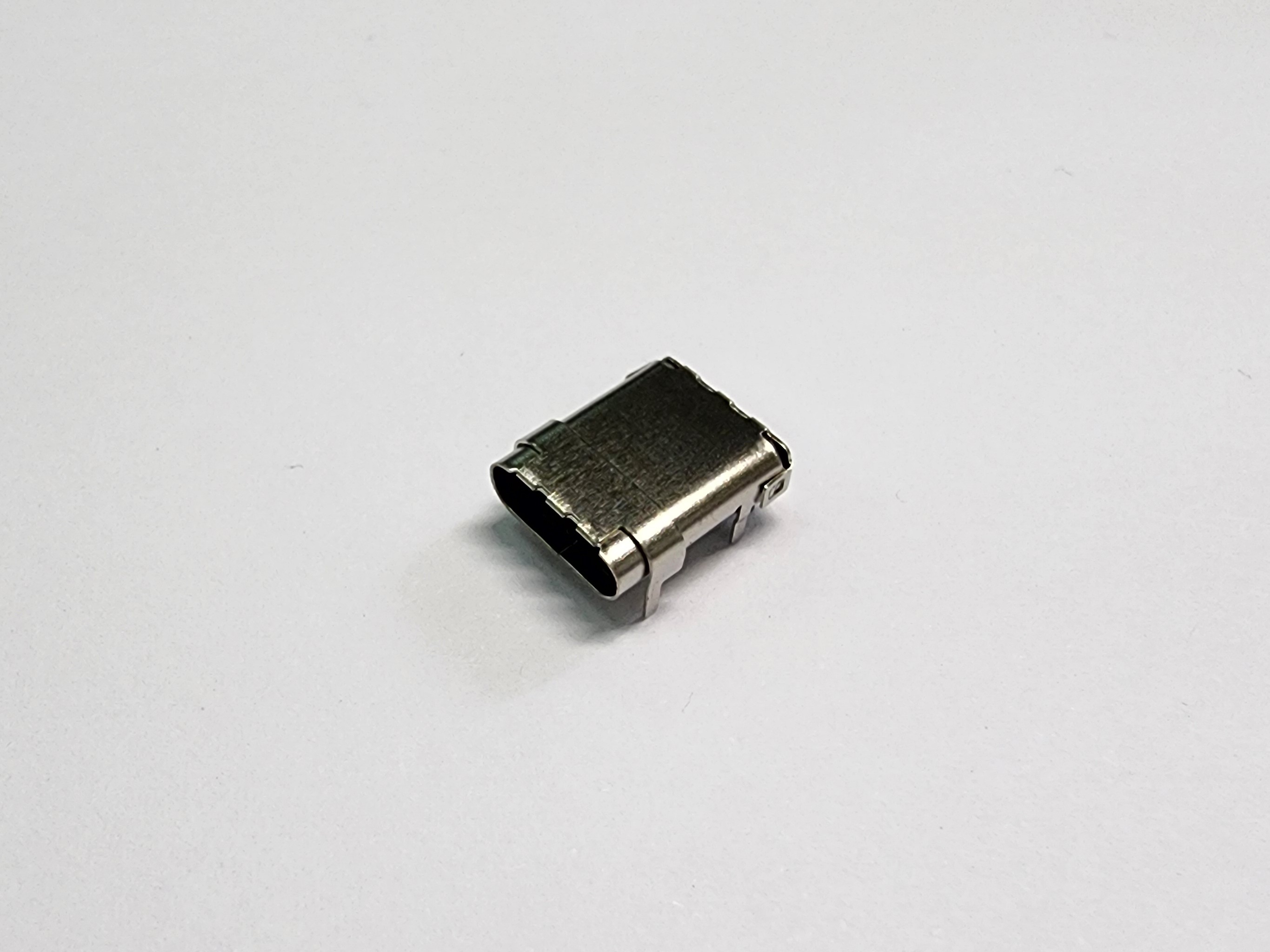

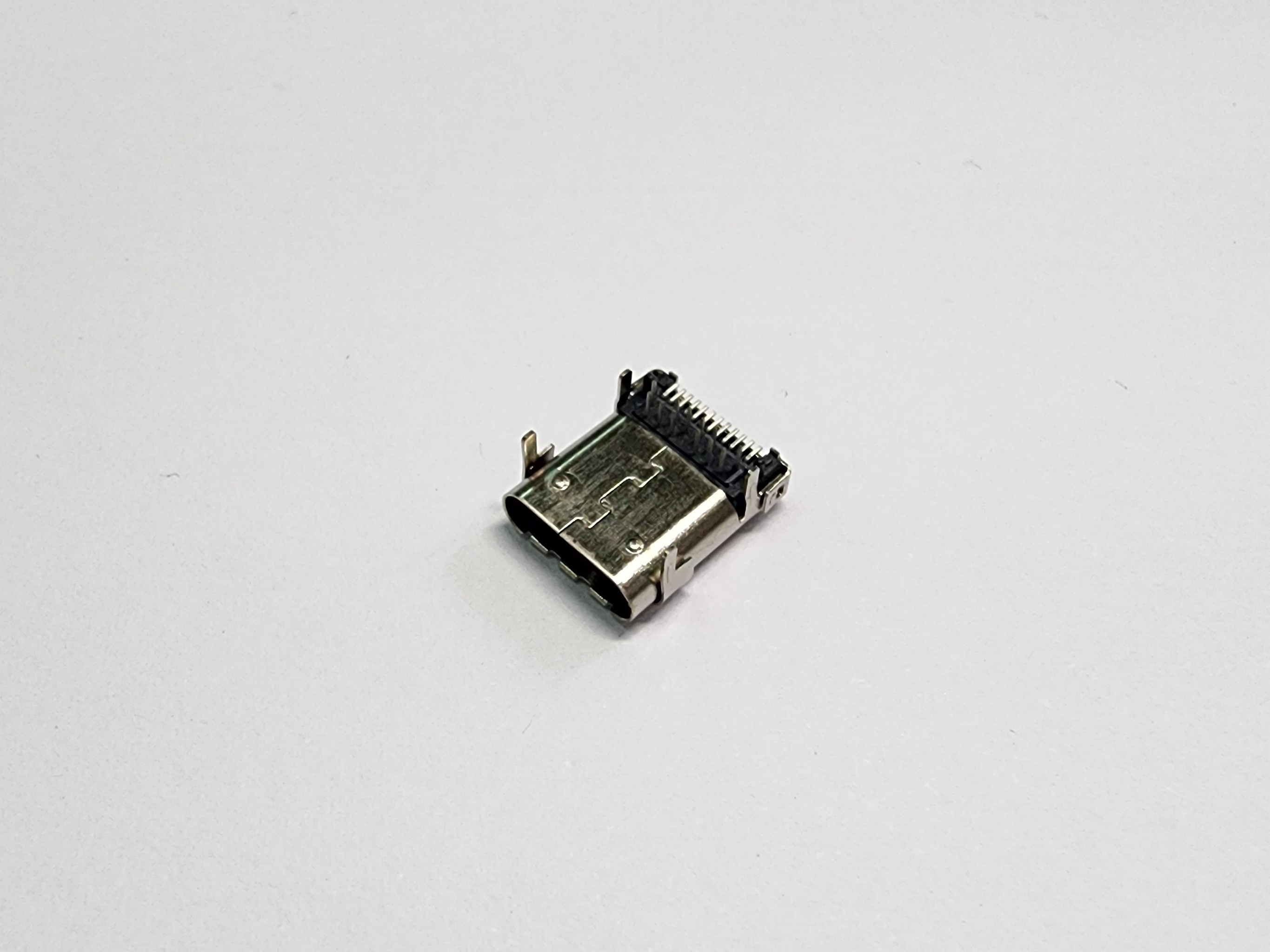

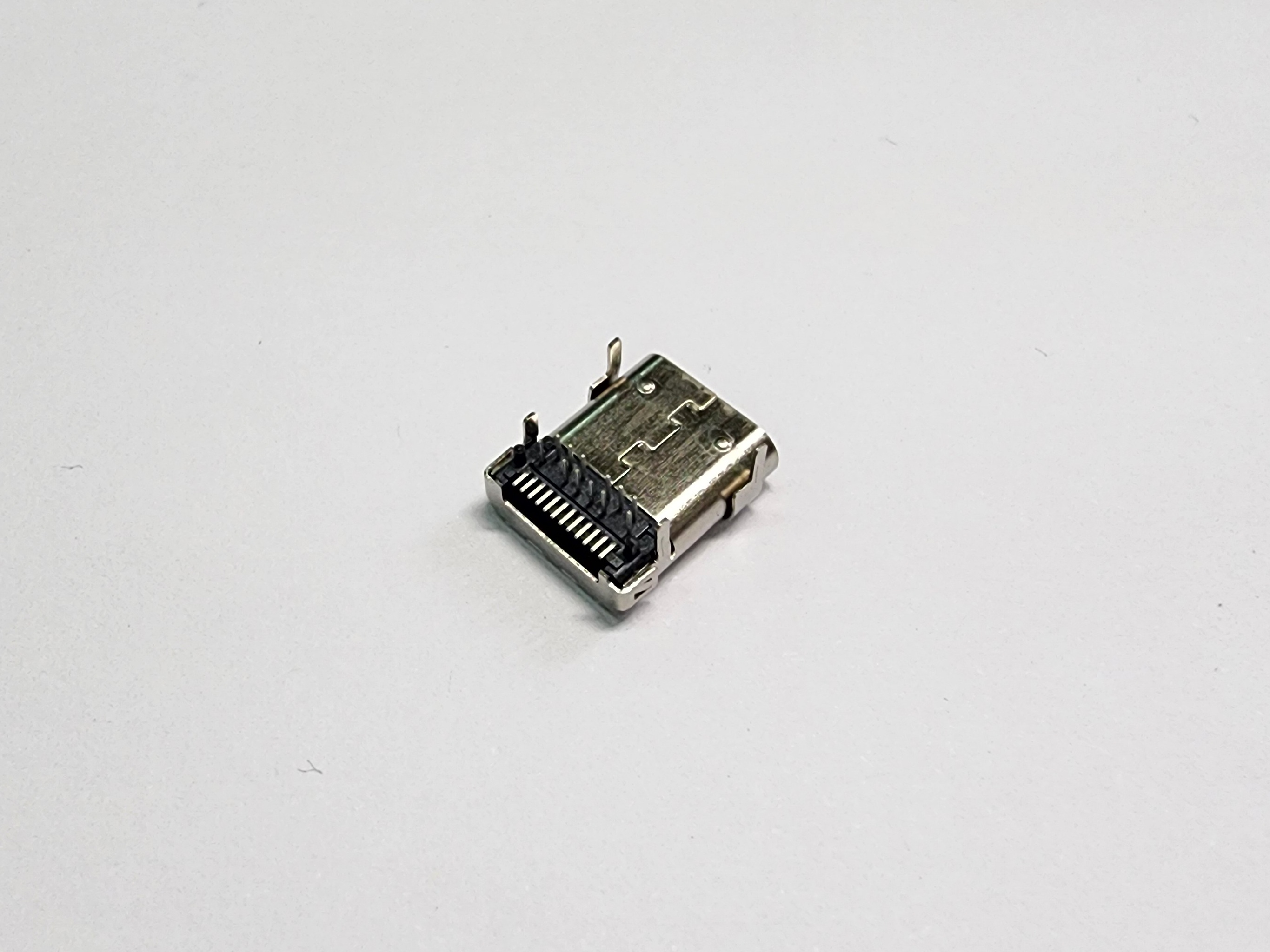

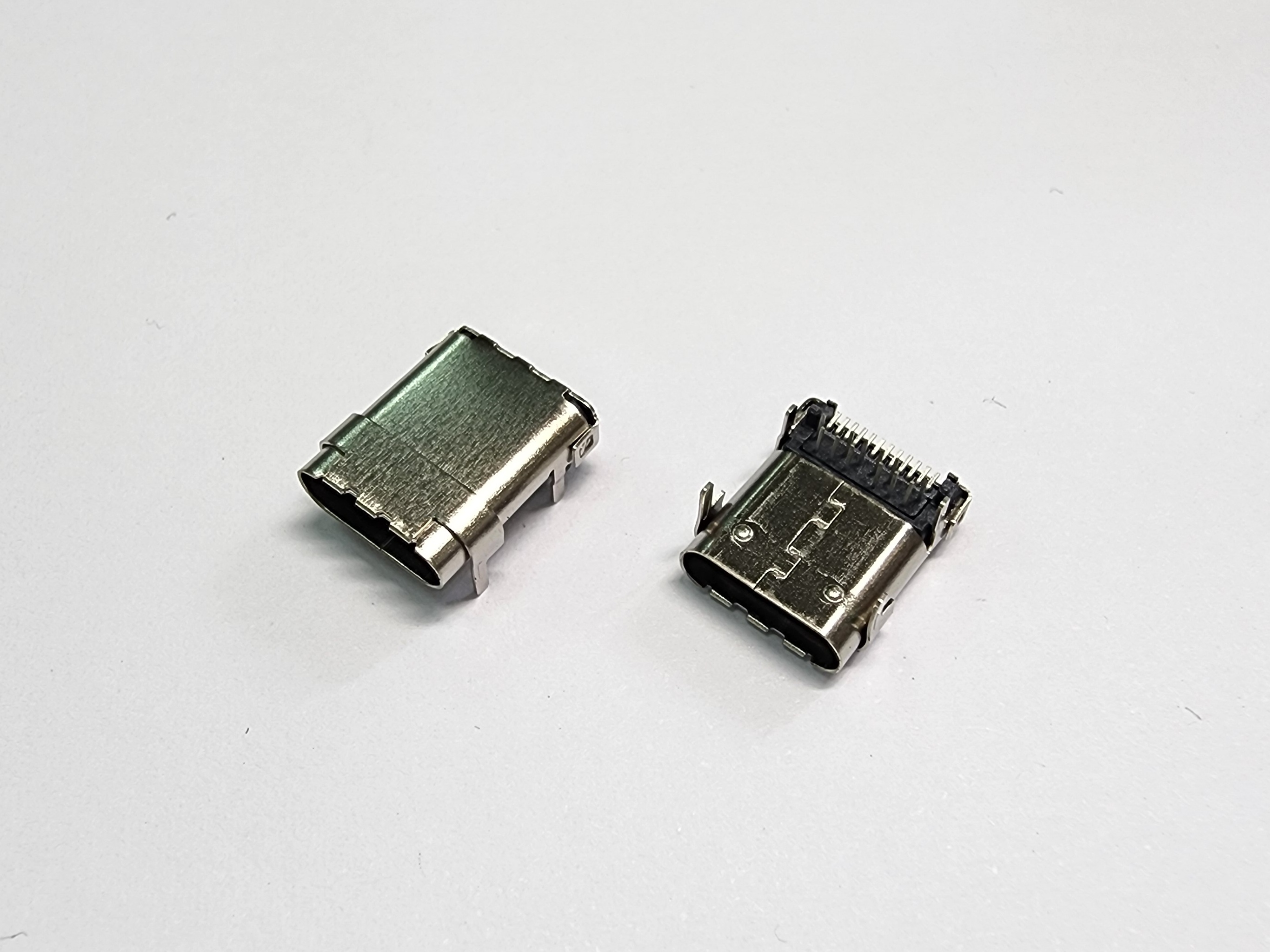

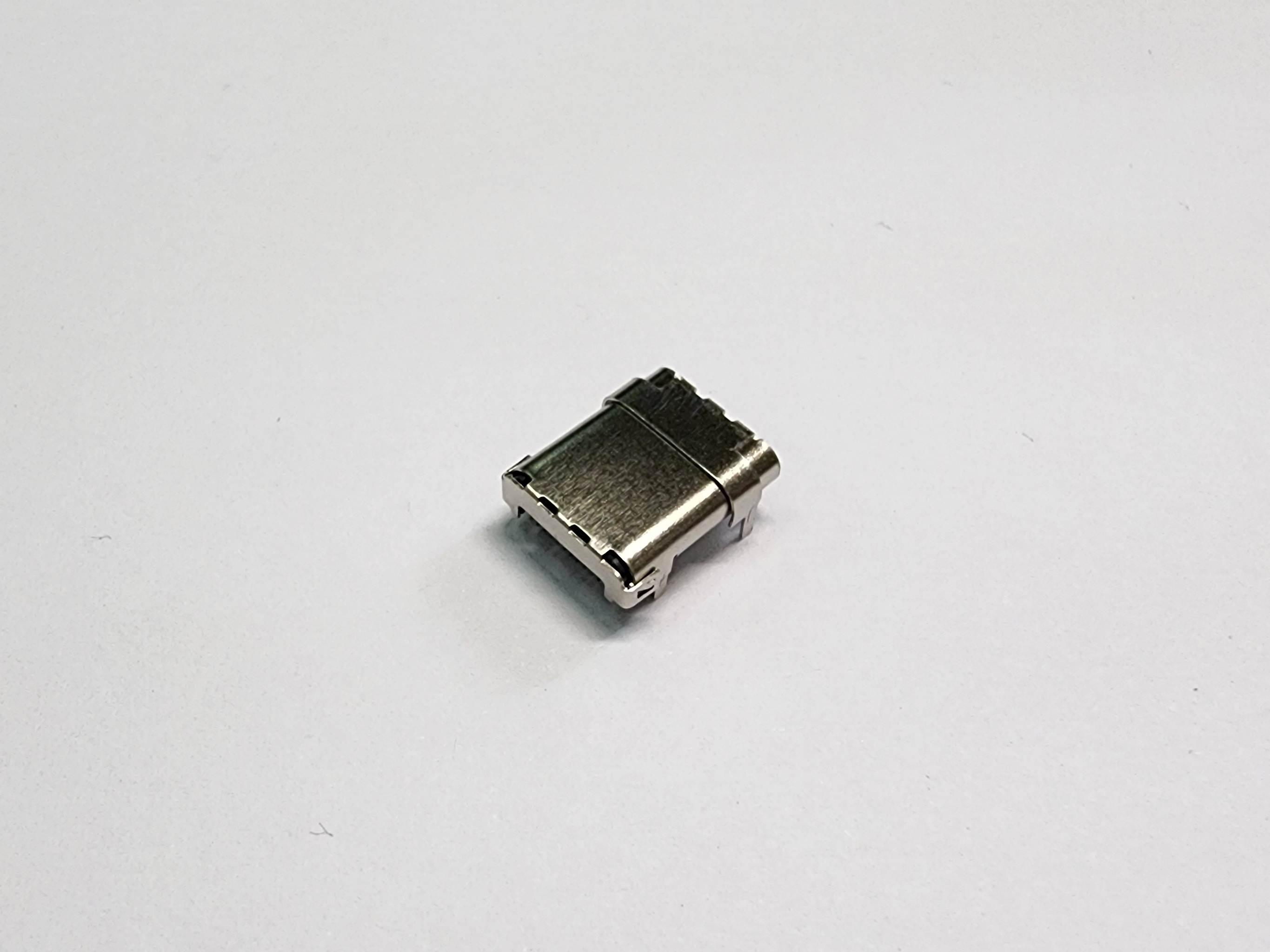

CU3C-R24R2G0-04
Description
- USB 3.1 Type C Connector
- 24Pins
- Receptacle
- Right Angle
- SMT+DIP D=1.65mm
- Gold Flash
- H=3.16mm
- CH=1.63mm
- LCP
- Black Color
USB 3.1 C Type, 24Pins, Receptacle, Right Angle, SMT+DIP D=1.65mm, H=3.16mm, CH=1.63mm, Gold Flash, Black Color
Material
- Insulator: High Temperature Plastic, UL 94V-0 Rated.
- Color: Black.
- Contact: Copper Alloy (T=0.15mm).
- Plating: Gold Plating over Nickel on Contact Area.
- Tin Plating over Nickel on Solder Tail.
- Shell: Stainless Steel(T=0.15mm).
- Plating: Nickel Plating over All.
Mechanical
- Insertion Force: 5~20N.
- Withdrawal Force: 8~20N After Durability Test.
- Durability: 10,000Cycles.
Electrical Specification
- Current Rating: 5A for VBUS Pins; 1.25A for VCONN Pins.
- Contact Resistance: 40mΩ Max. Initial, 50mΩ Max. after Test, Measure at 20mV 100mA.
- Insulation Resistance: 100MΩ Min.
- Dielectric Withstanding Voltage: 100V AC R.M.S.
Environmental
- Operating Temperature: -40°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
