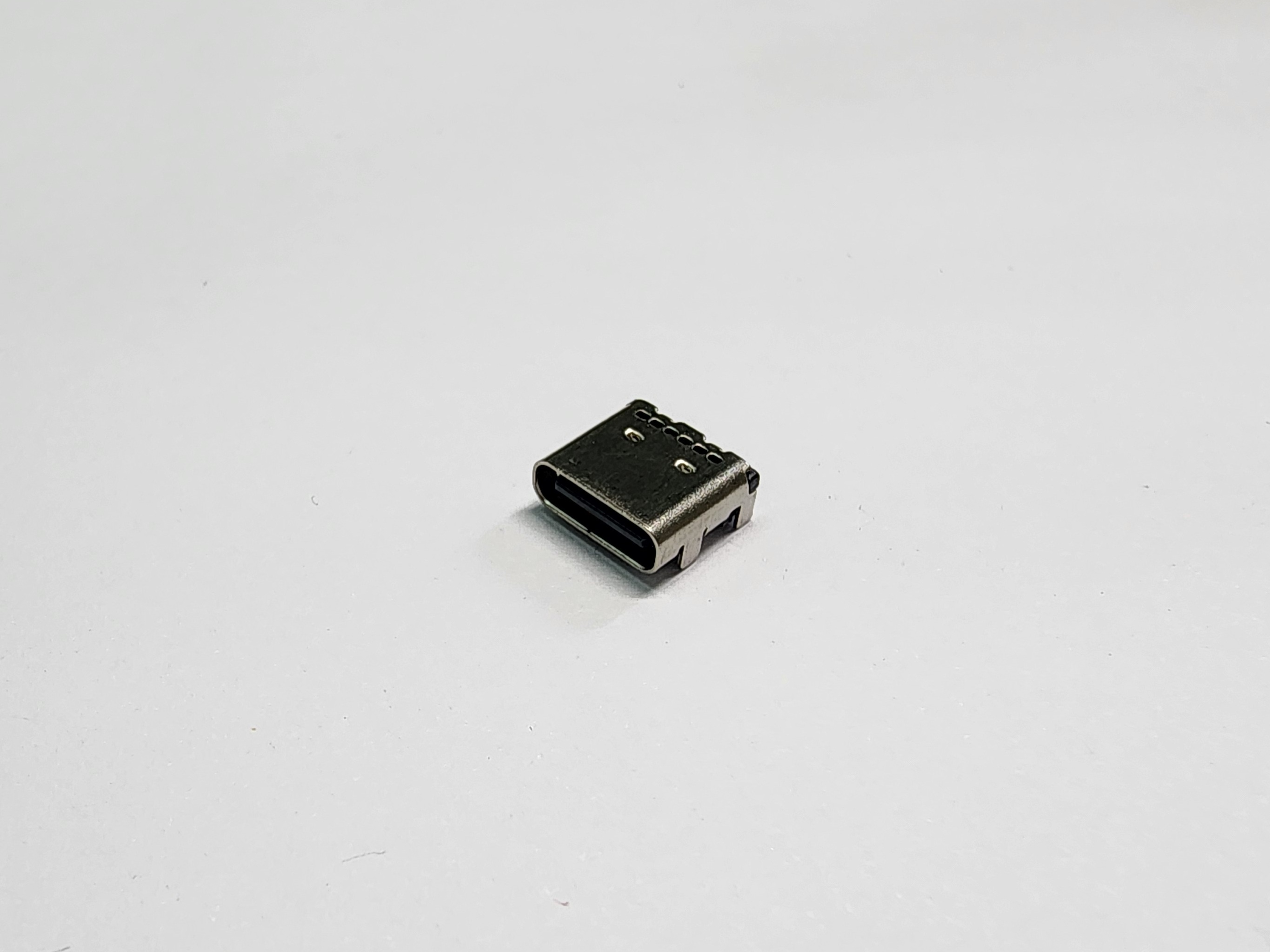

CU3C-R24RSG0-28
Description
- USB 3.1 Type C Connector
- 24Pins
- Receptacle
- Right Angle
- SMT Dual Rows
- Gold Flash
- Short Body 7.9mm
- H=3.26mm
- High Temperature Thermoplastic
- Black Color
USB 3.1 C Type, 24Pins, Receptacle, Right Angle, SMT, Short Body 7.9mm, Gold Flash, H=3.26mm, Black Color
Material
- Insulator: High Temperature Thermoplastic, UL 94V-0 Rated.
- Color: Black.
- Contact: Copper Alloy.
- Plating: Gold Plating over Nickel on Contact Area.
- Tin Plating over Nickel on Solder Tail.
- Shielding Plate: Stainless Steel.
- Plating: Nickel Plating over All.
- Shell: Stainless Steel.
- Plating: Nickel Plating over All.
- Spring: Stainless Steel.
Mechanical
- Insertion Force: 5~20N.
- Withdrawal Force: 8~20N.
- Durability: 10,000Cycles.
Electrical Specification
- Current Rating: 5.0A Max.
- Voltage Rating: 100V AC.
- Contact Resistance: 40mΩ Max.
- Insulation Resistance: 100MΩ Min.
- Dielectric Withstanding Voltage: 100V AC R.M.S.
Environmental
- Operating Temperature: -25°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
