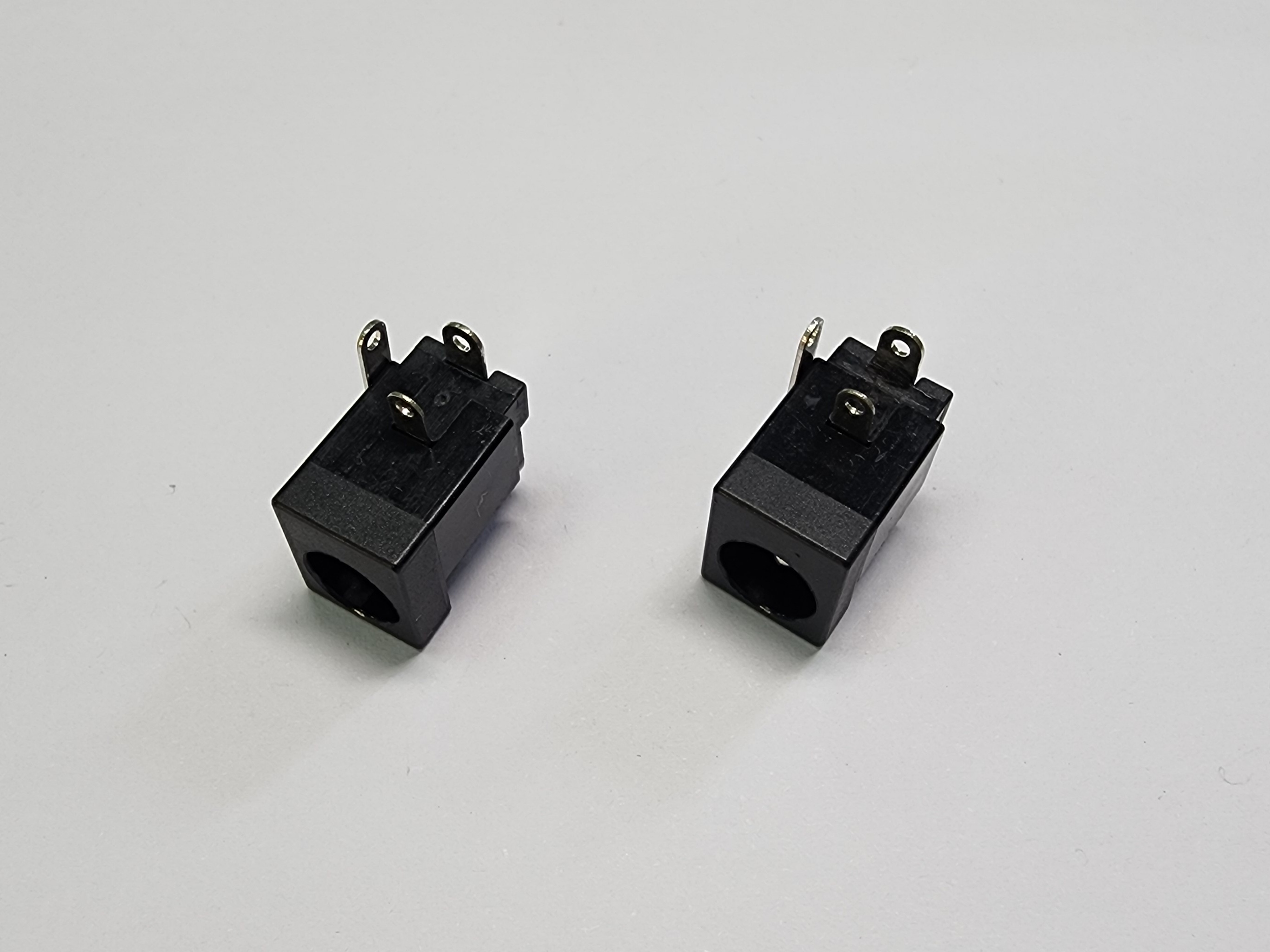

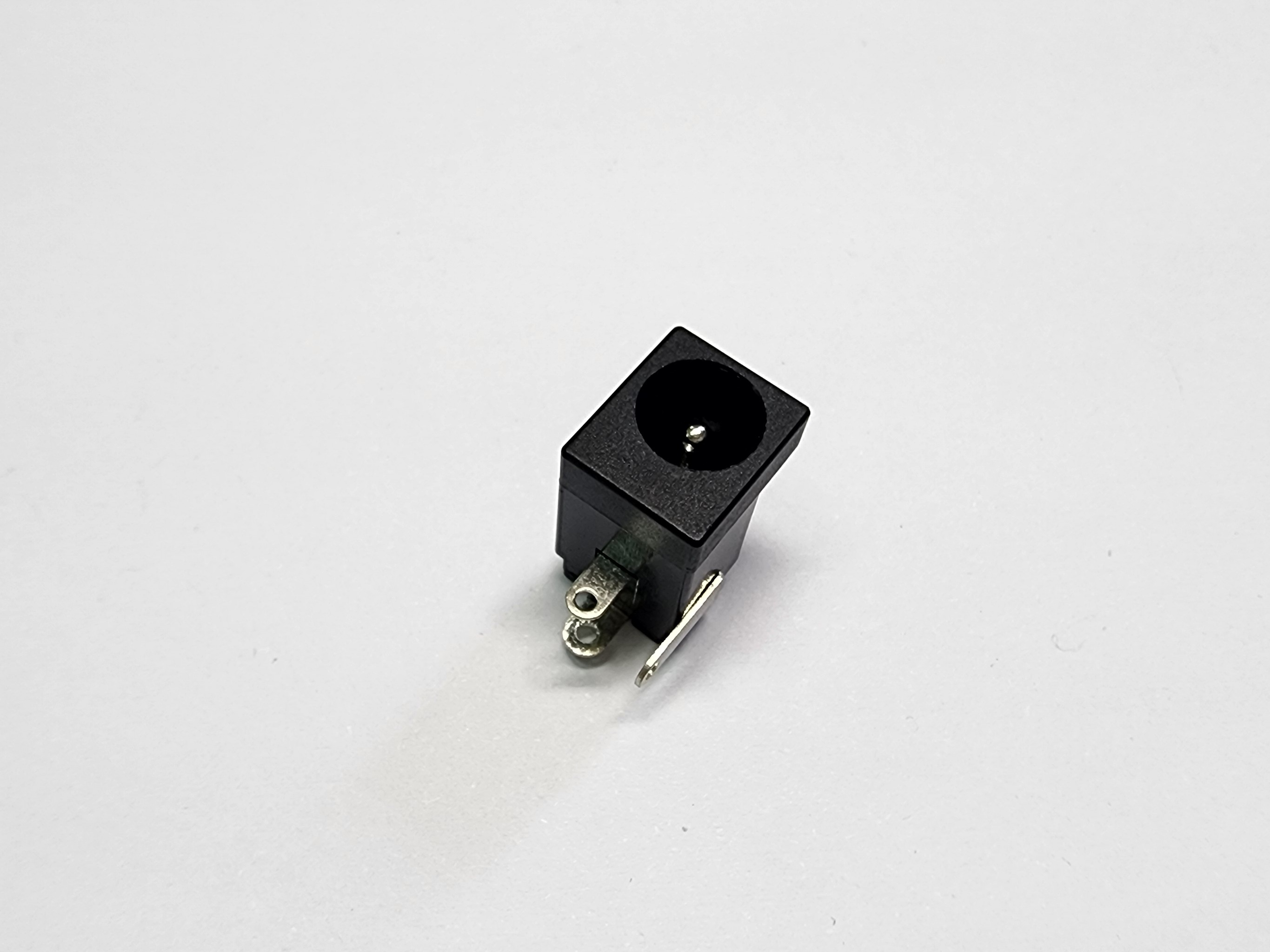

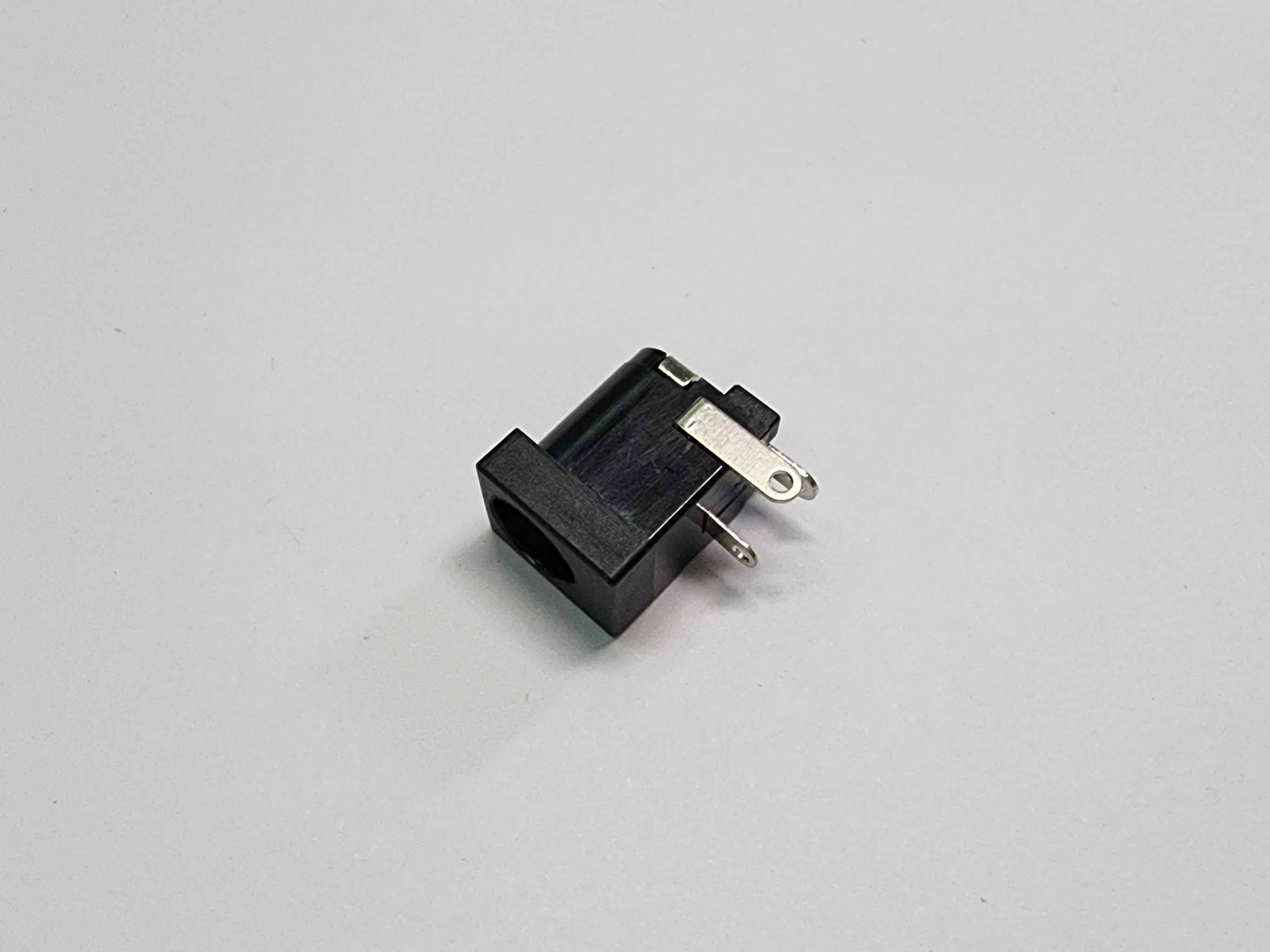

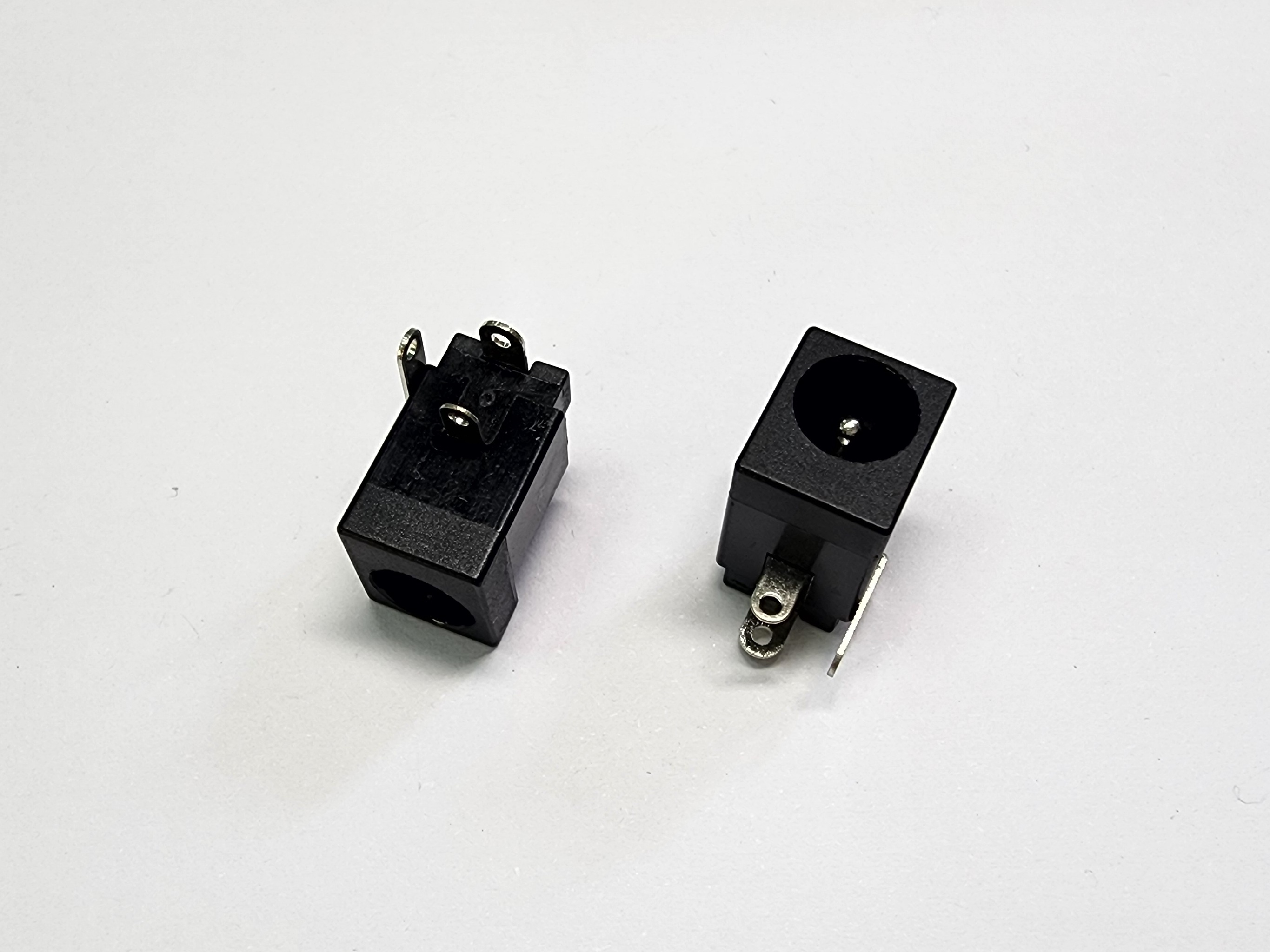

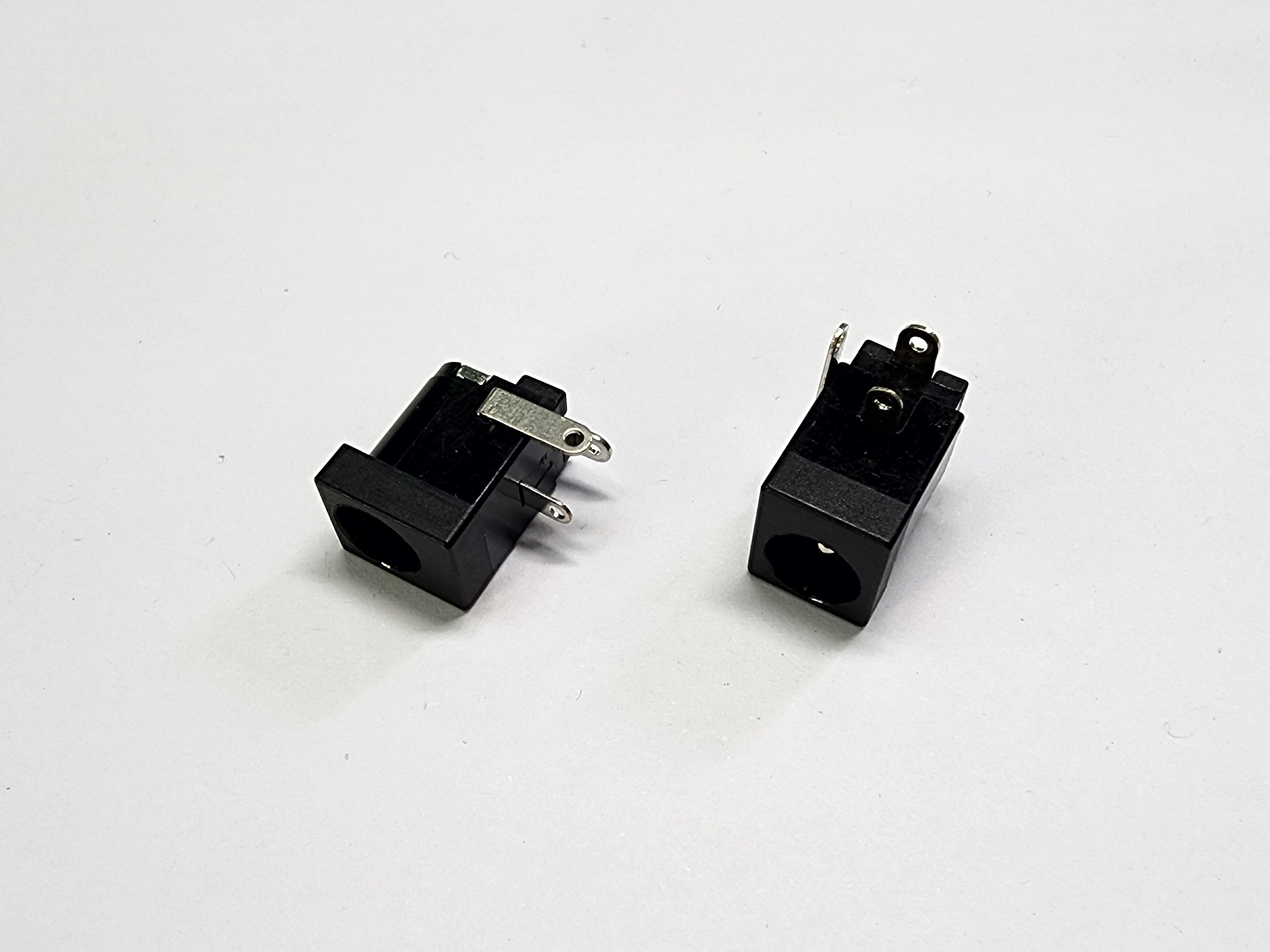

CDCJ-203RDT0-5H
Description
- DC Power Jack
- Center Pin 2.0mm/6.4mm
- 3Pins
- Right Angle
- DIP
- Tin Plating
- H=11.0mm
- PBT
- Black Color
- Support Current 24V 5A
DC Power Jack, 2.0mm/6.4mm, Right Angle, DIP, H=11.0mm, at 24V 5A Rated, PBT, Black Color
Material
- Housing: PBT 4815, UL 94V-0 Rated.
- Color: Black.
- Cover: PBT 4815, UL 94V-0 Rated.
- Color: Black.
- Center Pin: H59(Copper Alloy).
- Plating: Nickel Plating over All.
- Curve Piece: C2680, T=0.4mm.
- Plating: Sn Plating.
- Spring: C5191, T=0.3mm.
- Plating: Sn Plating.
- Flat Piece: C2680, T=0.3mm.
- Plating: Sn Plating.
Mechanical
- Insertion Force: 3N~30N.
- Extraction Force: 3N~30N.
- Life Test: 5,000 Cycles Min.
Electrical Specification
- Rating: DC 24V 5A.
- Contact Resistance: 30mΩ Max(Initial);
- After Life Test: 50mΩ Max(Final).
- Insulation Resistance: 100MΩ Min Measured by 500V DC.
- After Life Test: 50MΩ Min.
- Dielectric Withstanding Voltage: 500V AC for One Minute.
Environmental
- Operation Temperature Range: -20°C~70°C.
- Respervation Temperature Range: -40°C~85°C.
- RoHS Compliance.
- REACH Compliance.
