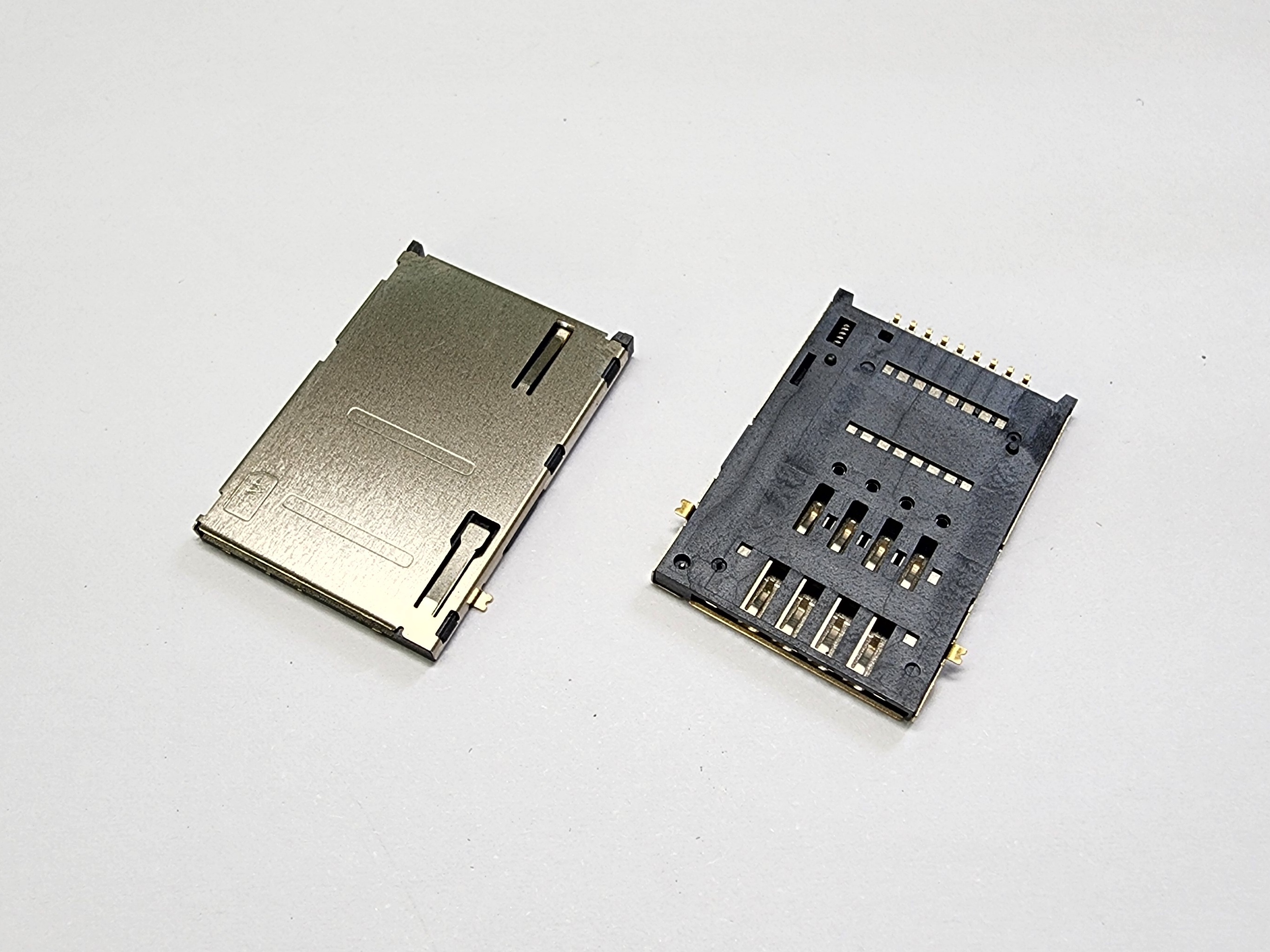

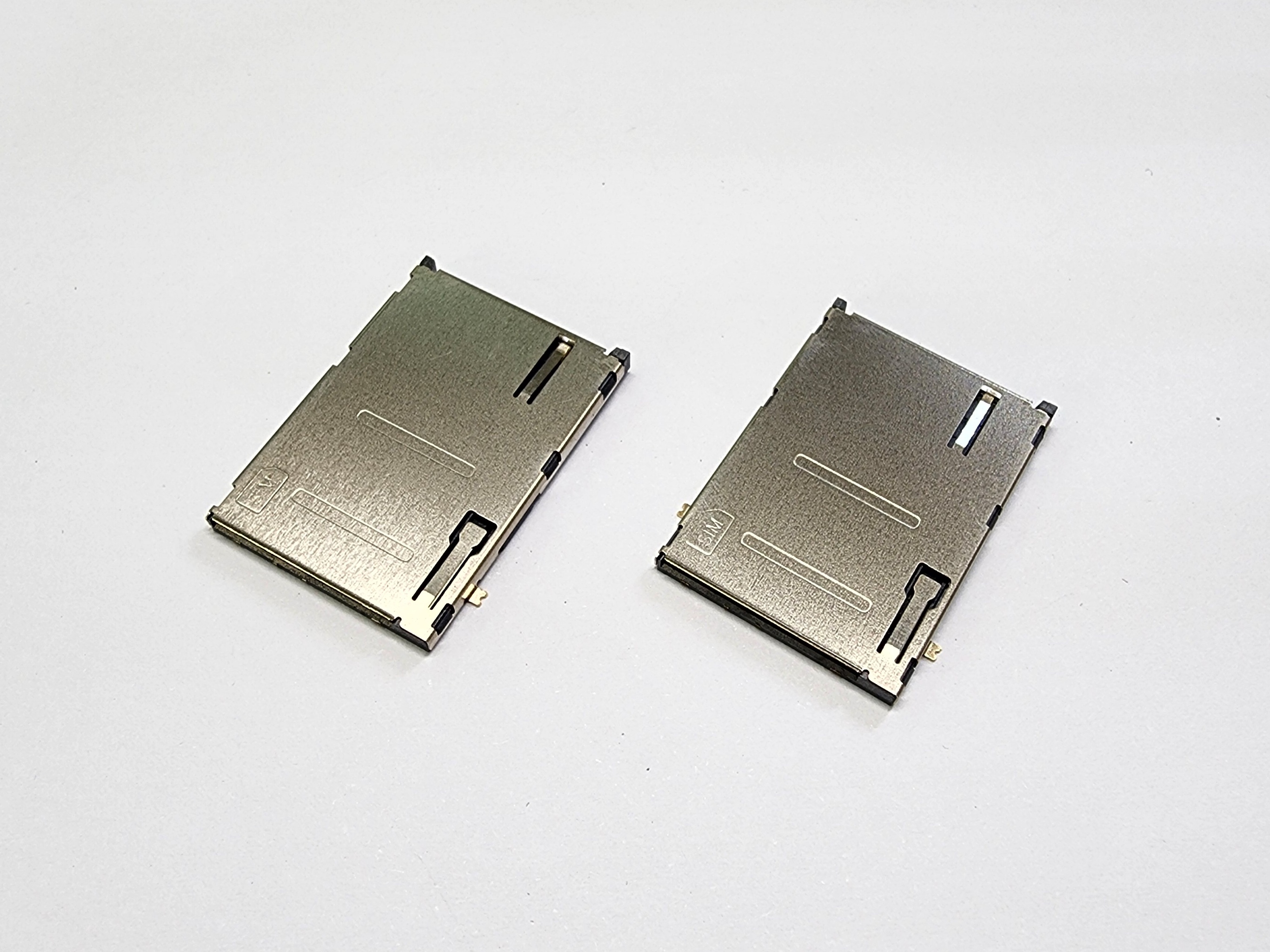

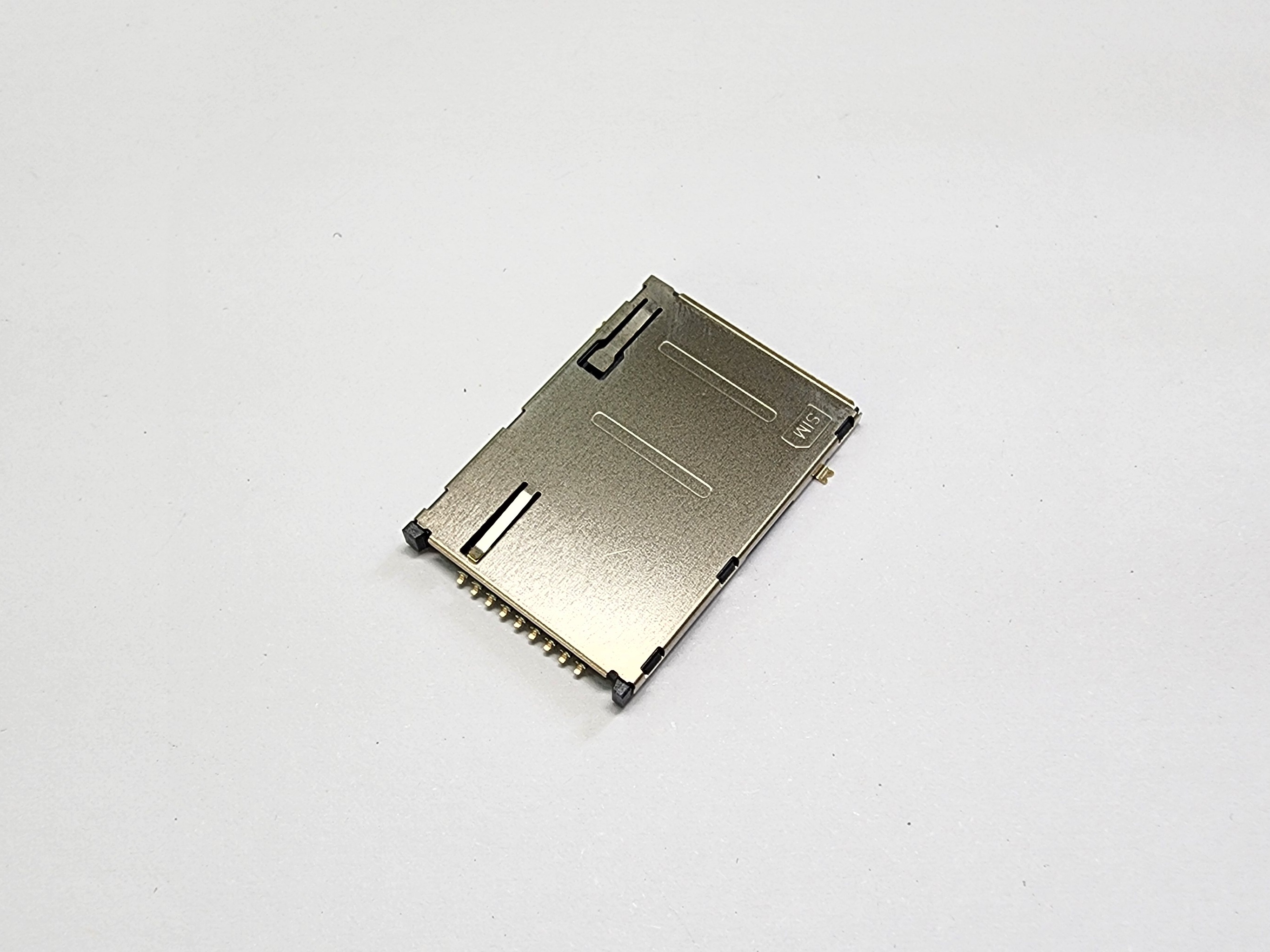

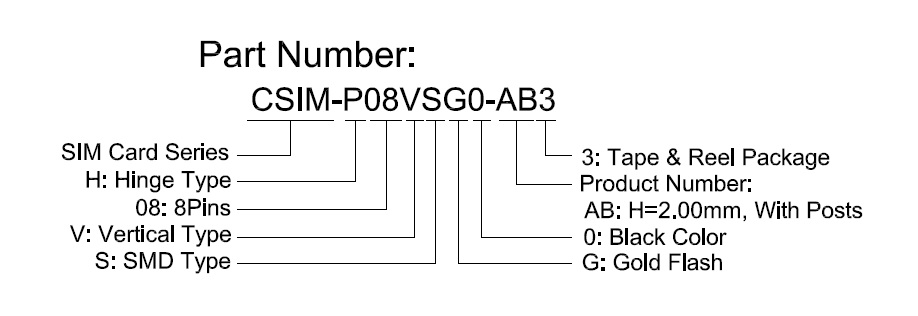

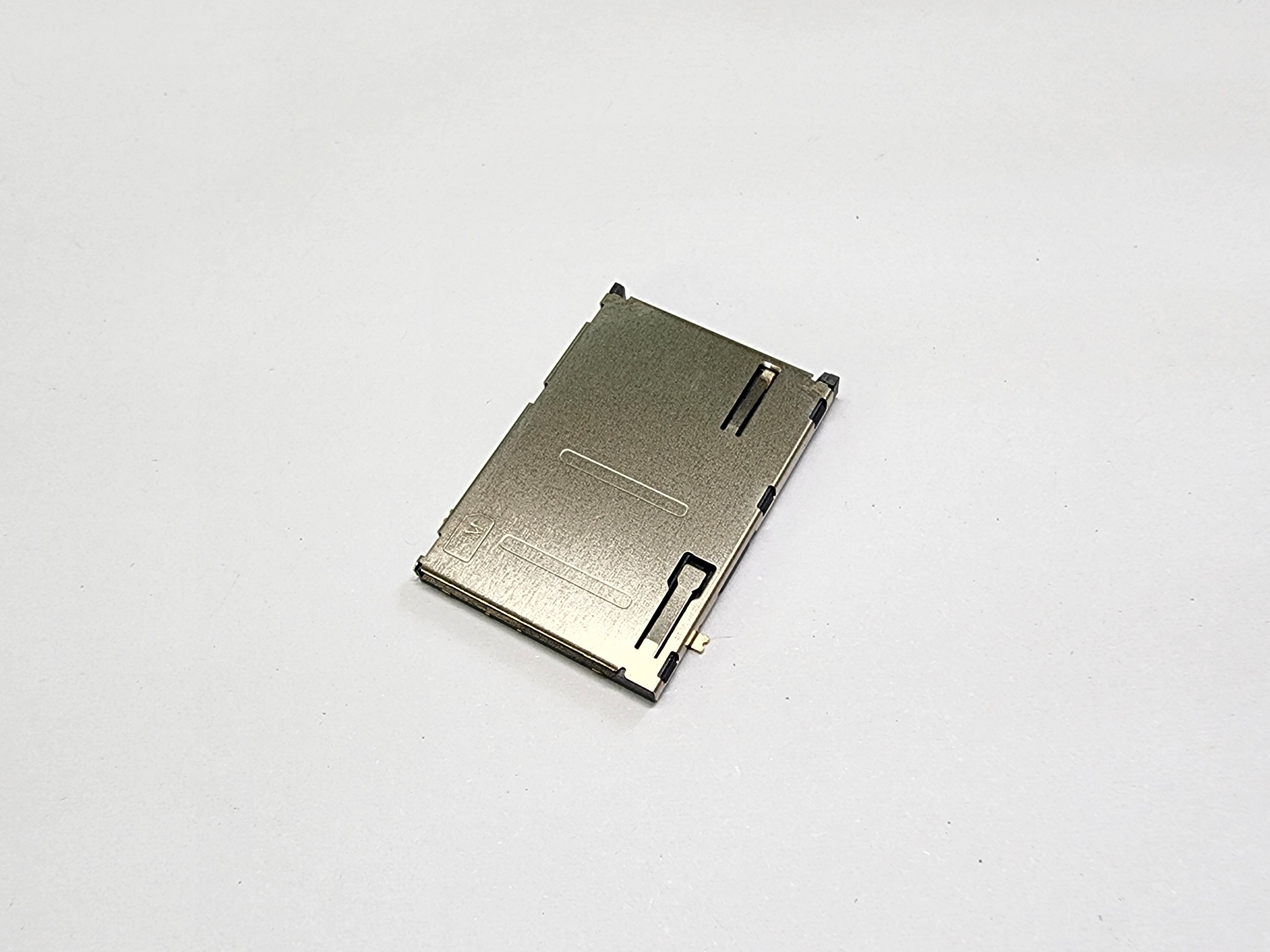

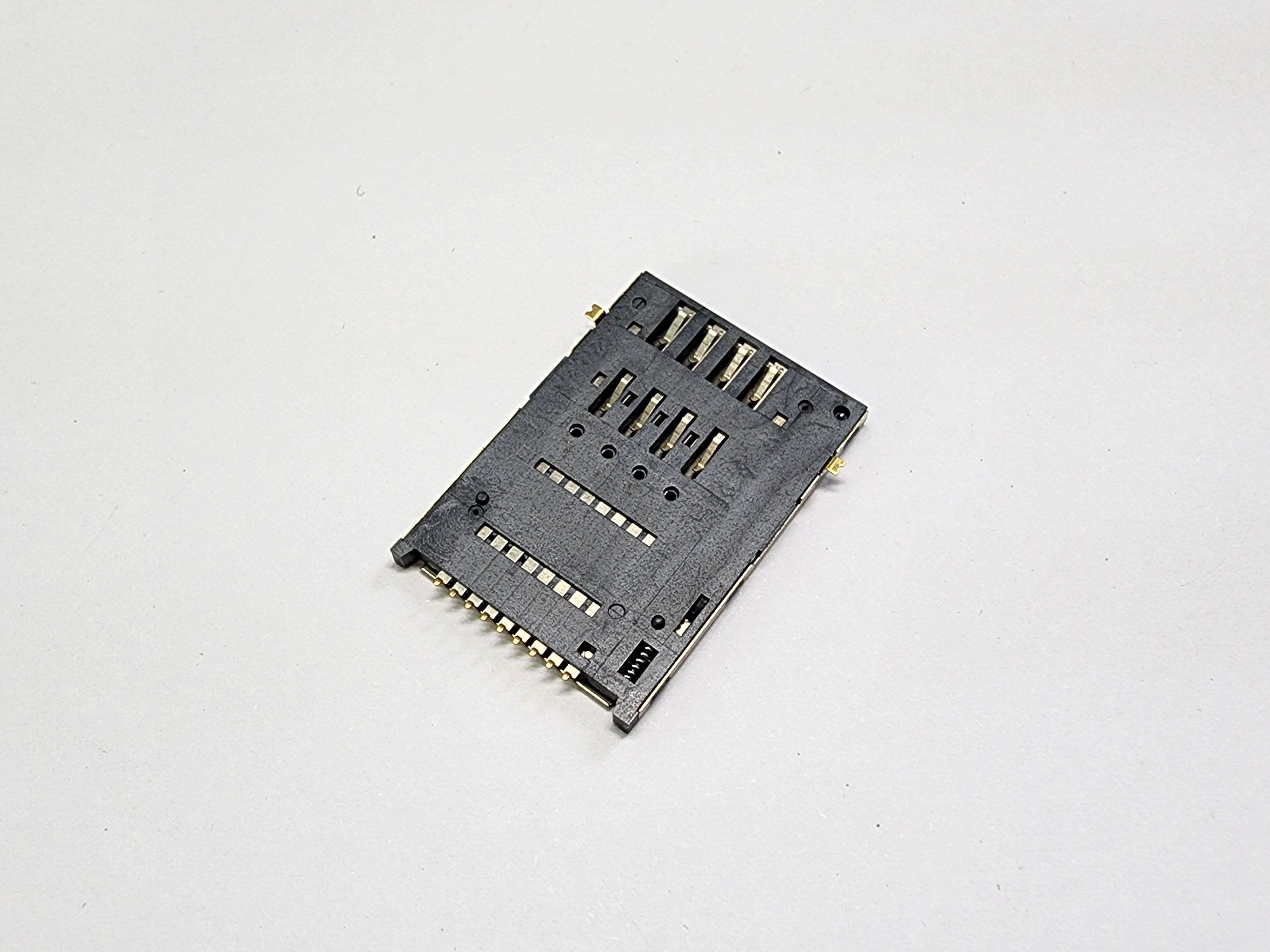

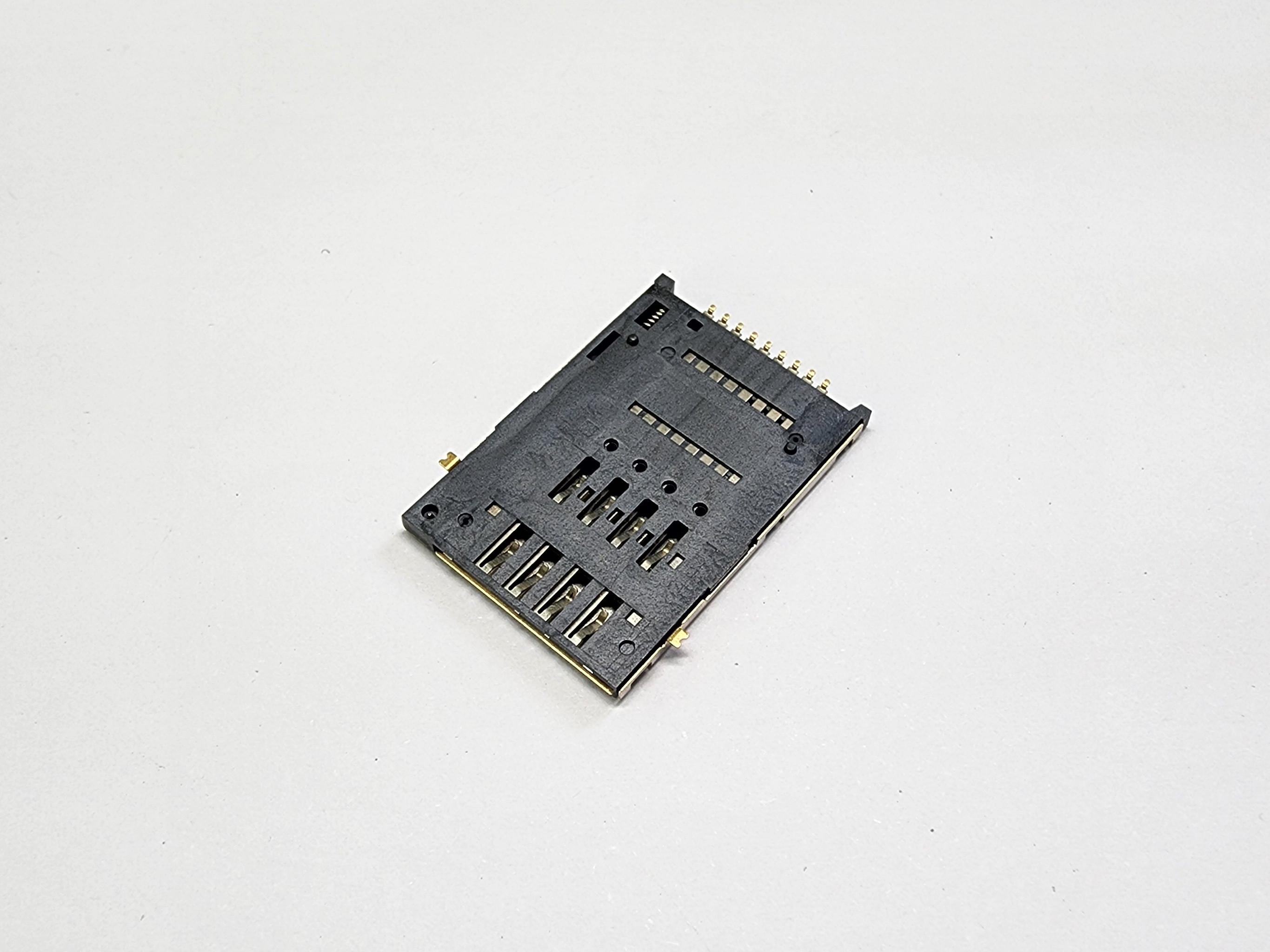

CSIM-P08VSG0-AB3
Description
- SIM Card Socket Connector
- Push/Push Type
- Pitch 1.27mm
- 8Pins
- With Switch
- Gold Flash
- SMD
- H=2.00mm Height
- With Posts
- LCP
- Black Color
SIM Card Socket, 8Pins, Push/Push Type, With Switch, Pitch 1.27mm, Gold Flash, H=2.00mm, With Posts, LCP, Black Color
Material
- Housing: LCP+30%G.F., UL 94V-0 Rated.
- Color: Black.
- Slide: LCP+30%G.F., UL 94V-0 Rated.
- Color: Black.
- Contact: Phosphor Bronze.
- Plating: Gold Plating over Nickel on Contact Area;
- Tin Plating over Nickel on Solder Area.
- Shell: Stainless Steel, SUS304.
- Plating: Gold Flash Plating on Solder Area.
- Nickel Underplating over All.
- Spring: Piano Wire, SWP-B.
- Crank-Axle: Stainless Steel, SUS304.
Mechanical
- Insertion Force: 9.8N Max.
- Withdrawal Force: 4N.
- Contact Retention Force: 2.5N Min.
- Durability: 10,000Cycles Min.
Electrical Specification
- Current Rating: 0.5 Ampere Max per Contact.
- Voltage Rating: 50V AC/DC.
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500 VAC for One Minute.
Environmental
- Operating Temperature: -40°C to +85°C.
- RoHS Compliance.
- REACH Compliance.
